GUWIEYG J1772 to GBT EV Charger Adapter User Manual

1. Introduction

This user manual provides essential information for the safe and effective use of your GUWIEYG J1772 to GBT EV Charger Adapter. This adapter is designed to facilitate the charging of GBT-compatible electric vehicles, such as BYD models, using J1772 (Type 1) charging stations, wall connectors, and mobile chargers. It supports charging up to 32A.

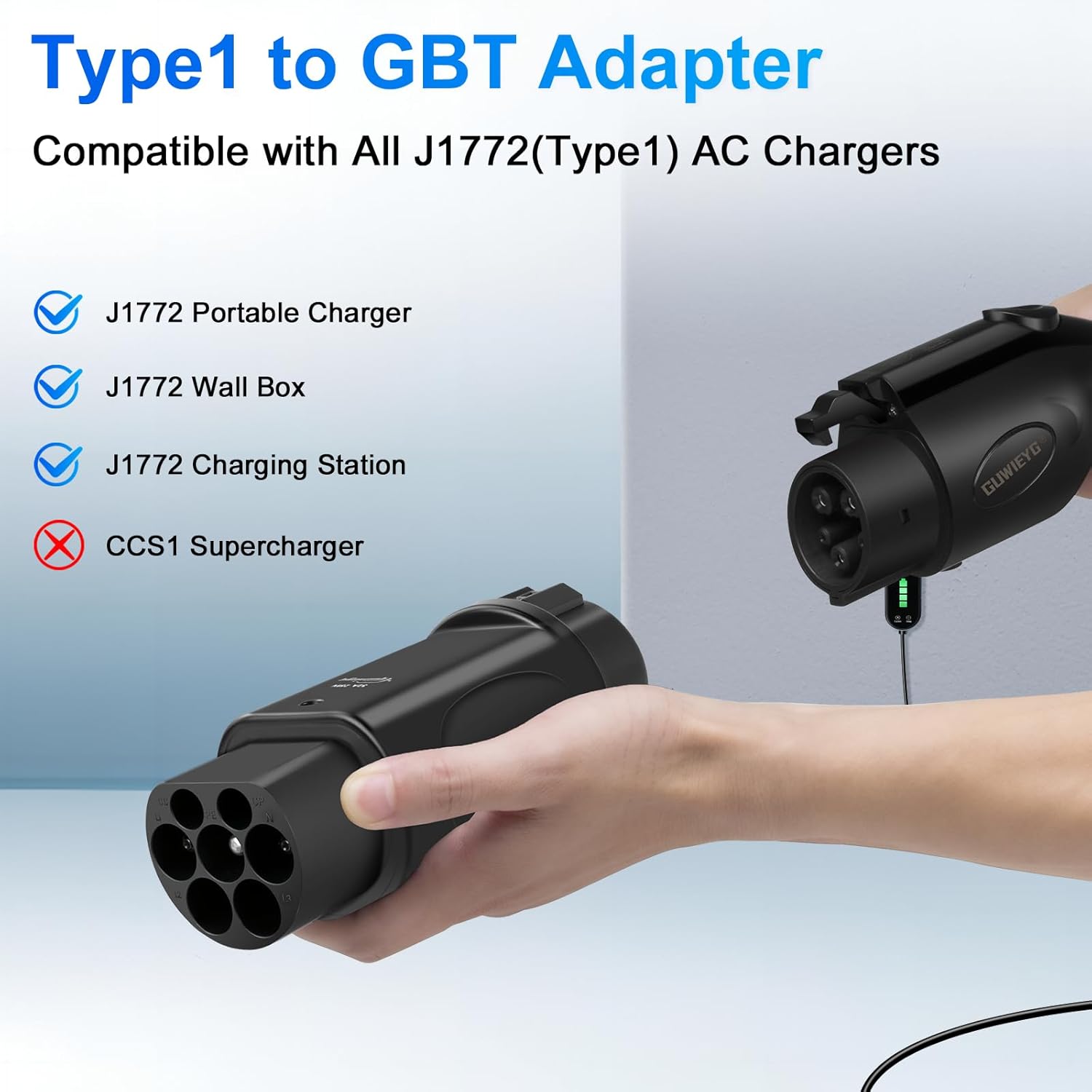

Figure 1: GUWIEYG J1772 to GBT EV Charger Adapter

2. Safety Information

Please read all safety warnings and instructions carefully before using this product. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Do not use the adapter if it is damaged, cracked, or shows any signs of wear.
• Ensure the adapter is fully inserted into both the charger and the vehicle's charging port before initiating charging.
• Do not immerse the adapter in water or other liquids. The adapter has an IP54 waterproof rating, meaning it is protected from dust and splashing water, but not full immersion.
• Keep out of reach of children.
• Do not attempt to disassemble or modify the adapter.
• Use only with compatible J1772 (Type 1) AC chargers and GBT-compatible electric vehicles. Do not use with CCS1 Superchargers.
• Operate within the specified temperature range of -22°F to 122°F (-30°C to 50°C).

3. Package Contents

Verify that all items are present in the package:

• 1 x GUWIEYG J1772 to GBT Adapter

4. Setup

The GUWIEYG J1772 to GBT Adapter is designed for simple plug-and-charge operation. No complex setup is required.

Figure 2: Adapter showing GBT and J1772 (Type 1) connector ends.

Before charging, ensure your electric vehicle is compatible with the GBT charging standard and that your charging station uses the J1772 (Type 1) standard.

5. Operating Instructions

Follow these steps to charge your GBT-compatible electric vehicle using a J1772 charger:

1. Connect the J1772 Charger to the Adapter: Take your J1772 charging cable and firmly insert its connector into the J1772 (Type 1) end of the GUWIEYG adapter. Ensure a secure connection.
2. Plug the Adapter into the GBT EV: Insert the GBT end of the adapter (now connected to the J1772 charger) into your electric vehicle's GBT charging port. Ensure it clicks into place.
3. Initiate Charging: Once both connections are secure, initiate charging from your J1772 charging station or vehicle, as per its instructions. The adapter supports up to 32A charging.
4. Release Plug and Adapter: After charging is complete, follow your vehicle's and charger's instructions to safely stop the charging session and release the adapter and charging cable.

Figure 3: Step-by-step guide for connecting and using the adapter.

Figure 4: Compatibility overview, showing the adapter works with J1772 Portable Chargers, Wall Boxes, and Charging Stations, but not CCS1 Superchargers.

Figure 5: The adapter connected to a GBT electric vehicle's charging port.

Figure 6: Illustration of the adapter's high-efficiency charging capability, supporting up to 32A maximum current.

6. Maintenance

To ensure the longevity and optimal performance of your adapter:

• Clean the adapter regularly with a dry, soft cloth. Do not use abrasive cleaners or solvents.
• Store the adapter in a cool, dry place when not in use, away from direct sunlight and extreme temperatures.
• Inspect the adapter for any signs of damage or wear before each use.
• Ensure the connectors are free from dirt, dust, or moisture before connecting.

Figure 7: The adapter's IP54 waterproof rating allows for use in various weather conditions.

7. Troubleshooting

If you encounter issues with your adapter, please refer to the following common problems and solutions:

If the problem persists, please contact GUWIEYG customer support.

8. Specifications

9. Warranty and Support

GUWIEYG provides a 1-year guarantee and technical support with every product purchase. Our dedicated customer service team is available to assist you with any questions or concerns.

For further assistance or to claim warranty, please visit the official GUWIEYG store on Amazon or contact their customer service directly.

Visit GUWIEYG Store
