Important Safety Instructions
Please read all instructions carefully before using the FOHERE AMR516 Centrifugal Juicer. Keep this manual for future reference.
- Always ensure the juicer is properly assembled and the locking bar is securely in place before operation.
- Do not operate the appliance with a damaged cord or plug, or if the appliance malfunctions or has been damaged in any manner.
- Keep hands and utensils out of the feed chute during operation to prevent injury. Use the food pusher provided.
- Unplug the juicer from the outlet when not in use, before assembling or disassembling parts, and before cleaning.
- Do not immerse the motor base in water or other liquids.
- This appliance is for household use only. Do not use outdoors.
- Ensure the appliance is placed on a stable, level, and dry surface during use.
- The motor is equipped with overheat protection. If the motor overheats, the juicer will automatically shut off. Unplug the unit and let it cool for 3-5 minutes before restarting.
Product Components
Familiarize yourself with the parts of your FOHERE AMR516 Centrifugal Juicer:
- Food Pusher
- Transparent Lid
- Filter Basket (with 304 stainless steel 12-row sawtooth blades)
- Juicer Base (Motor Unit)
- Pulp Collector
- Juice Jug
- Locking Bar
- Speed Control Dial (P, 0, 1, 2)
- Cleaning Brush
Image: Overview of the FOHERE AMR516 juicer showing the pulp collector, juice jug, and main unit. The pulp collector gathers discarded fiber, while the juice jug collects the extracted liquid.
Image: Close-up of the food-grade 304 stainless steel filter basket, featuring 12-row sawtooth blades designed for efficient juice extraction.
Setup
Assembly
- Place the motor base on a dry, stable, and level surface.
- Position the pulp collector onto the motor base, ensuring it fits securely.
- Insert the filter basket into the juicer base, making sure it is firmly seated.
- Place the transparent lid over the filter basket and pulp collector.
- Secure the locking bar by lifting it and hooking it over the lid. Ensure it clicks into place, indicating the juicer is safely locked. The juicer will not operate if the locking bar is not secured.
- Place the juice jug under the juice spout.
Initial Cleaning
Before first use, disassemble all removable parts (food pusher, lid, filter basket, pulp collector, juice jug) and wash them in warm, soapy water. Rinse thoroughly and dry. Wipe the motor base with a damp cloth.
Operating Instructions
Preparation
- Wash fruits and vegetables thoroughly.
- Cut larger items into pieces that fit comfortably into the feed chute. Remove pits from fruits like peaches, cherries, etc.
- For citrus fruits, peel them before juicing.
Juicing Process
- Ensure the juicer is correctly assembled and the juice jug is in place.
- Plug the juicer into a power outlet.
- Turn the speed control dial to the desired setting (1 or 2).
- Gradually feed the prepared fruits and vegetables into the feed chute using the food pusher. Do not force ingredients down.
- Once juicing is complete, turn the dial to "0" and unplug the appliance.
Speed Settings
The FOHERE AMR516 juicer features a 3-speed control dial for optimal juicing:
- Speed 1 (13,000 - 15,000 RPM): Ideal for soft fruits and vegetables such as oranges, grapes, tomatoes, and soft leafy greens.
- Speed 2 (15,000 - 18,000 RPM): Suitable for harder fruits and vegetables like carrots, apples, celery, and ginger.
- "P" (Pulse) Function: Provides maximum speed instantly for short bursts, useful for clearing blockages or processing very hard ingredients quickly. Release the dial to return to "0".

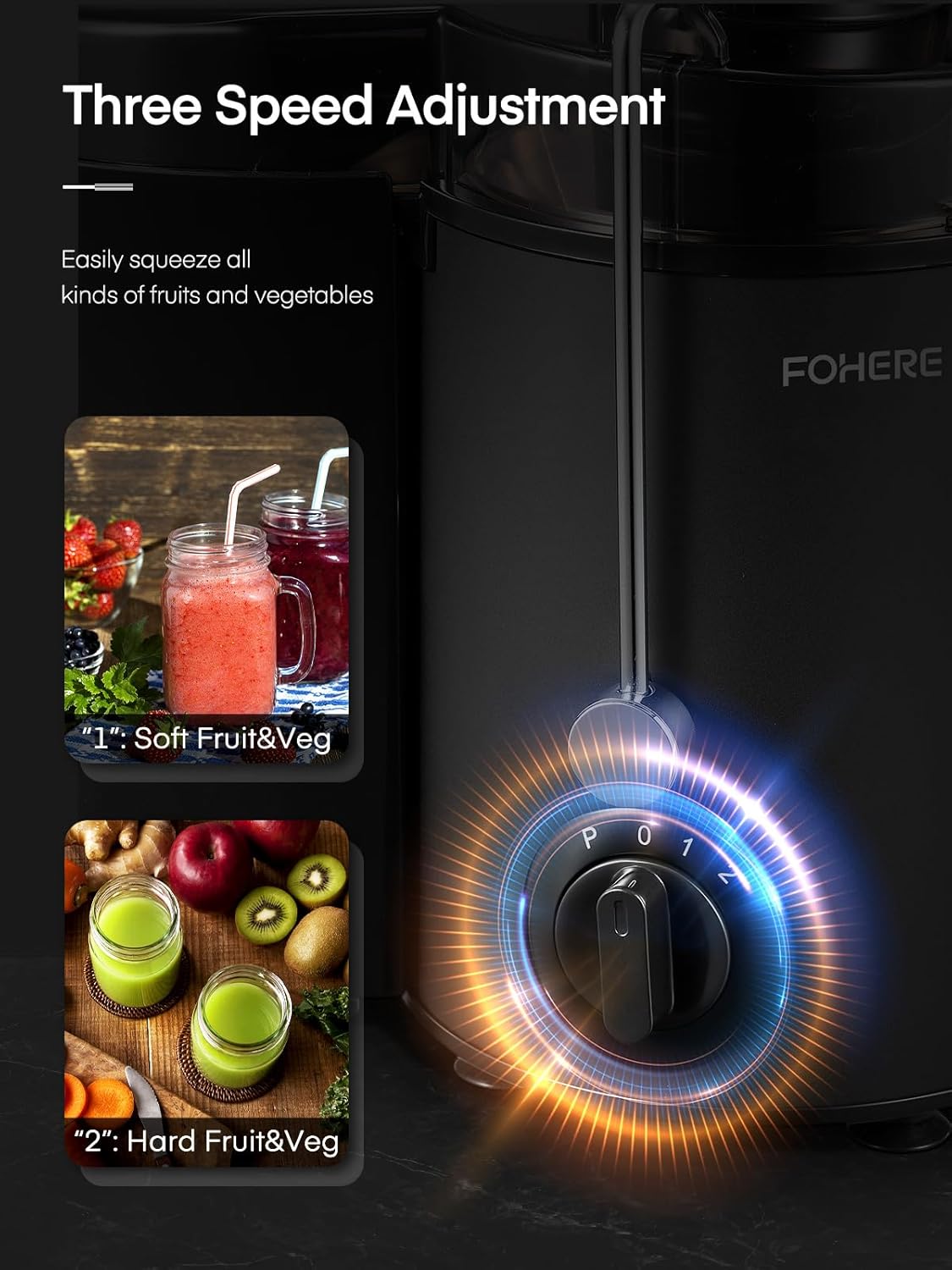

Image: The speed adjustment dial on the FOHERE AMR516 juicer, illustrating the 'P' (Pulse), '0' (Off), '1' (Low Speed), and '2' (High Speed) settings for various fruit and vegetable types.
Image: The FOHERE AMR516 juicer in operation, demonstrating its high juice yield as it extracts green juice into a glass, surrounded by fresh produce.
Maintenance
Cleaning
Regular cleaning ensures optimal performance and longevity of your juicer.
- Always unplug the juicer before cleaning.
- Disassemble all removable parts: food pusher, lid, filter basket, pulp collector, and juice jug.
- Rinse all removable parts under running water to remove pulp residue.
- Use the provided cleaning brush to thoroughly clean the filter basket, paying special attention to the mesh and blades.
- Wash all removable parts in warm, soapy water. They are also dishwasher safe.
- Wipe the motor base with a damp cloth. Never immerse the motor base in water.
- Dry all parts completely before reassembling or storing.
Image: Cleaning instructions for the FOHERE AMR516 juicer, highlighting that disassembled small parts are dishwasher safe and the filter can be easily cleaned manually with water and the provided brush.
Troubleshooting
Refer to the table below for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Juicer does not turn on. |
|
|
| Motor stops during operation. |
|
|
| Low juice yield or excessive pulp in juice. |
|
|
Specifications
| Feature | Detail |
|---|---|
| Brand | FOHERE |
| Model Number | AMR516 |
| Color | Black |
| Material | Stainless Steel |
| Power | 400 Watts |
| Voltage | 220 Volts |
| Capacity (Juice Jug) | 450 Milliliters |
| Number of Speeds | 3 (P, 1, 2) |
| Special Features | Powerful motor, multiple speed settings, large juice and pulp container, BPA-free materials, overheat protection. |
| Item Weight | 2.65 Kilograms |
| Dimensions (Product) | 31P x 30l x 19H centimeters |
| Care Instructions | Dishwasher safe parts |
Warranty and Support
FOHERE is committed to providing quality products and customer satisfaction. While specific warranty details are not provided in this manual, we recommend retaining your proof of purchase for any warranty claims.
For any questions, concerns, or technical support regarding your FOHERE AMR516 Centrifugal Juicer, please contact our professional customer service team. Contact information can typically be found on the product packaging or the retailer's website where the product was purchased.
We are available to assist you with any issues before or after your purchase.
Additional Information
Image: The FOHERE AMR516 juicer with bottles of freshly prepared juice, illustrating the convenience of storing homemade fresh and nutritious beverages.
Image: The FOHERE AMR516 juicer positioned on a kitchen shelf, showcasing its compact and delicate design for easy storage in various kitchen spaces.
Image: A person reviewing a recipe book alongside the FOHERE AMR516 juicer and various fresh juices, encouraging the creation of customized healthy beverages.
