1. Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your AFI Acadia Twin Size Wood Daybed Frame with 2 Storage Drawers. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

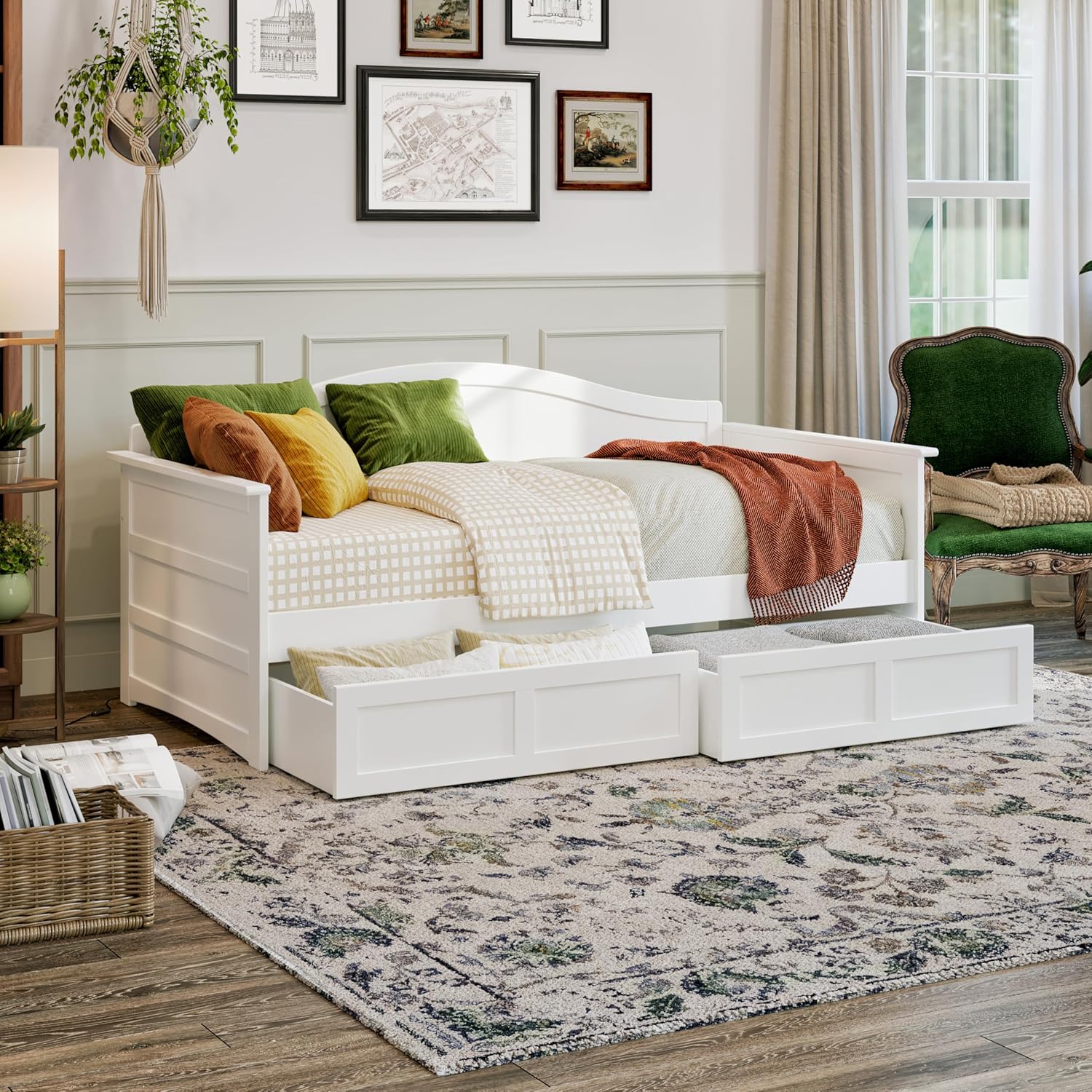

Image 1.1: The AFI Acadia Twin Size Wood Daybed Frame in White, showcasing its design and integrated storage drawers in a room setting.
2. Safety Information
WARNING: Failure to follow these safety instructions could result in injury or damage to the product.
- Always assemble the product on a soft, clean surface to prevent scratches.
- Ensure all hardware is securely tightened before use. Periodically check and re-tighten as necessary.
- Do not exceed the maximum weight capacity of 600 lbs.
- Keep small parts and packaging materials away from children during assembly.
- Use only the recommended mattress size (Twin) and thickness (6-8 inches).
- Do not stand or jump on the daybed.
3. Package Contents
Before beginning assembly, verify that all components and hardware are present. Refer to the included parts list in your packaging. If any parts are missing or damaged, contact AFI customer support.
Typical components include:
- Daybed Frame Panels (Headboard, Footboard, Side Rails)
- Slat Kit
- Drawer Components (Fronts, Sides, Backs, Bottoms, Wheels)
- Hardware Pack (Screws, bolts, nuts, Allen wrench)
4. Setup & Assembly Instructions
Assembly requires at least two people. Power tools may be helpful for securing base board screws, but exercise caution to avoid overtightening.
4.1. Frame Assembly
- Unpack all components and lay them out on a protected surface.
- Attach the side rails to the headboard and footboard using the provided hardware. Ensure all connections are secure.
- Ensure the frame is square and stable before proceeding.
Image 4.1.1: Front view of the daybed frame during assembly, illustrating the main structural components.
4.2. Slat Installation
- Place the wooden slats across the support beams within the daybed frame.
- Secure each slat using the provided screws. This step is crucial for mattress support and air circulation.
Image 4.2.1: Detail of the slat system, providing support for the mattress.
4.3. Drawer Assembly
- Assemble the drawer boxes by attaching the sides, back, and bottom panels.
- Attach the drawer fronts.
- Install the wheels onto the bottom of each drawer.
- Slide the assembled drawers under the daybed frame.
Image 4.3.1: Assembled storage drawers with wheels for easy movement.
5. Operation
5.1. Daybed Functionality
The Acadia Daybed is designed for versatile use. It can function as a comfortable bed for sleeping, a stylish sofa for lounging, or an extra seating option in any room.
- As a Bed: Place a Twin-size mattress (recommended 6-8 inches thick) directly onto the slats. No box spring is required.
- As a Sofa/Couch: Arrange pillows and throws to create a comfortable seating area.
Image 5.1.1: The daybed configured for lounging, demonstrating its versatility.
5.2. Storage Drawers
The two integrated storage drawers provide convenient space for linens, clothing, toys, or other items. They are equipped with wheels for smooth operation on various floor surfaces.
- To open, gently pull the drawer front.
- To close, push the drawer back into the daybed frame until it is flush.
- Avoid overloading drawers to ensure smooth movement and prevent damage.
Image 5.2.1: The spacious storage drawers, ideal for organizing various items.
6. Maintenance
- Cleaning: Wipe the daybed frame with a dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish.
- Hardware Check: Periodically inspect all screws and bolts to ensure they remain tight. Re-tighten as needed to maintain stability and safety.
- Drawer Care: Keep drawer tracks free of obstructions. If drawers become difficult to open or close, check for debris or misalignment of the wheels.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Daybed feels wobbly or unstable. | Loose hardware connections. | Check and tighten all screws and bolts on the frame. Ensure all components are correctly aligned. |
| Drawers do not slide smoothly. | Obstruction in the drawer path or damaged wheels. | Clear any debris from under the daybed. Inspect drawer wheels for damage and ensure they are properly installed. |
| Backboard moves when leaned against. | Design characteristic or insufficient bracing. | Ensure all backboard connections are fully tightened. If movement persists, consider adding additional bracing (not supplied) for enhanced stability if desired. |
| Missing or damaged parts upon arrival. | Shipping damage or packaging error. | Do not proceed with assembly. Contact AFI customer support immediately for replacement parts. |
8. Specifications
- Brand: AFI
- Model: AG123622
- Product Type: Daybed Frame with Storage Drawers
- Size: Twin
- Color: White
- Material: Wood (Solid Hardwood and Wood Veneer)
- Assembled Dimensions (L x W x H): 78.75" x 40" x 34.63"
- Bed Drawer Dimensions (L x W x H): 36.75" x 23.38" x 10.25"
- Weight Capacity: 600 lbs
- Mattress Compatibility: Twin size, 6-8 inch height recommended (mattress not included)
- Assembly Required: Yes
- Care Instructions: Wipe with Dry Cloth
- UPC: 782219421806
Image 8.1: Detailed dimensions of the AFI Acadia Daybed and its storage drawers.
9. Warranty & Support
For specific warranty details, please refer to the product description on the retailer's website or contact AFI customer service directly. AFI is committed to providing quality products and support.
If you encounter any issues or have questions not covered in this manual, please contact AFI customer support through their official website or the retailer where the product was purchased.
Manufacturer: AFI Furnishings
Website: Visit the AFI Store on Amazon
