Introduction
This manual provides instructions for the installation and use of your new vhbw bobbin case, designed as a high-quality replacement part for compatible Privileg sewing machine models. A properly functioning bobbin case is essential for consistent stitch quality and smooth sewing operations. This precision-engineered component ensures reliable performance and extends the lifespan of your sewing machine.
Compatibility
This vhbw bobbin case is compatible with the following Privileg sewing machine models:
- Privileg 1508
- Privileg 1510
- Privileg 1511
- Privileg 1520
- Privileg 1521
Ensure your sewing machine model is listed above before proceeding with installation.
Setup and Installation
Before beginning, ensure your sewing machine is turned off and unplugged from the power source for safety.
- Access the Bobbin Area: Open the bobbin cover plate on your sewing machine. This is typically located beneath the needle plate. Refer to your sewing machine's original manual if you are unsure how to access this area.
- Remove the Old Bobbin Case: Carefully remove the existing bobbin case. It usually has a small latch or handle that allows it to be pulled out. Note its orientation for easier installation of the new one.
- Inspect the New Bobbin Case: Examine your new vhbw bobbin case for any visible defects.
- Insert the New Bobbin Case: Hold the new bobbin case by its latch. Align it correctly within the bobbin housing of your sewing machine. It should slide in smoothly and click into place. Do not force it.
- Verify Installation: Gently tug on the bobbin case to ensure it is securely seated. It should not wobble excessively.
Image: Side view of the vhbw bobbin case, showing the latch mechanism. This view helps in understanding how to grip and insert the bobbin case into the sewing machine.
Operating Instructions
- Wind a Bobbin: Wind your bobbin with the desired thread according to your sewing machine's instructions. Ensure the bobbin is wound evenly and not overfilled.
- Insert Bobbin into Case: Place the wound bobbin into the vhbw bobbin case. The thread should unwind in the correct direction (usually clockwise or counter-clockwise, depending on your machine and bobbin type).
- Thread the Bobbin Case: Guide the bobbin thread through the tension spring slot on the side of the bobbin case. Pull the thread gently to ensure it moves freely and has appropriate tension.
- Close Bobbin Cover: Once the bobbin case is threaded and inserted, close the bobbin cover plate.
- Test Stitch: Perform a test stitch on a scrap piece of fabric to check the stitch quality and tension. Adjust the upper thread tension on your machine if necessary.

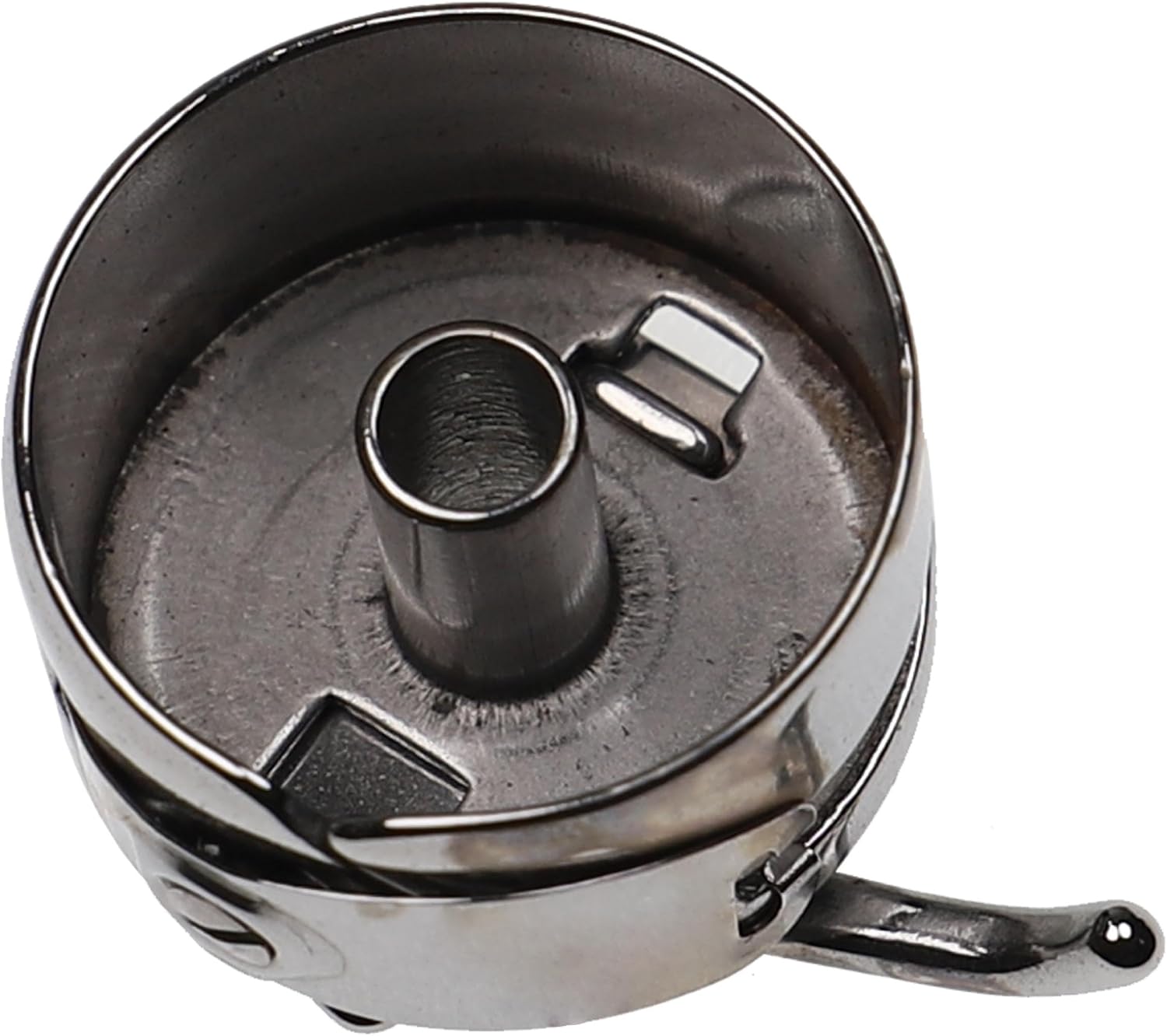

Image: Interior view of the vhbw bobbin case, showing the central spindle where the bobbin is placed and the tension spring slot. This view is crucial for correctly inserting the bobbin and threading the bobbin case.
Adjusting Bobbin Thread Tension
The vhbw bobbin case allows for precise adjustment of spring tension. If your stitches are uneven or looping on the underside of the fabric, the bobbin tension may need adjustment. Locate the small screw on the side of the bobbin case (visible in the images).
- Turn the screw clockwise in very small increments to increase tension.
- Turn the screw counter-clockwise in very small increments to decrease tension.
Always make minor adjustments and test on scrap fabric until the desired stitch quality is achieved. Remember that bobbin tension works in conjunction with upper thread tension.
Maintenance
Regular maintenance of your bobbin case ensures optimal performance and longevity.
- Cleaning: Periodically remove the bobbin case and use a small brush or lint roller to clean out any lint, dust, or thread fragments that may accumulate inside the case or around the tension spring. Accumulation can affect thread tension and stitch quality.
- Inspection: Regularly inspect the bobbin case for any signs of wear, damage, or burrs, especially around the tension spring and thread path. Damaged areas can snag the thread and cause issues.
- Lubrication: The bobbin case itself typically does not require lubrication. Refer to your sewing machine's manual for general lubrication points within the bobbin area.
Troubleshooting
If you encounter issues after installing the new bobbin case, consider the following:
- Skipped Stitches or Thread Breakage:
- Ensure the bobbin is correctly inserted and threaded through the tension spring.
- Check for lint or debris in the bobbin case.
- Verify the bobbin thread tension is not too tight or too loose.
- Confirm the needle is correctly inserted and not bent or dull.
- Uneven Stitches or Looping:
- Adjust the bobbin thread tension (see "Adjusting Bobbin Thread Tension" above).
- Adjust the upper thread tension on your sewing machine.
- Ensure the bobbin is wound evenly.
- Bobbin Case Not Seating Properly:
- Double-check compatibility with your sewing machine model.
- Ensure no obstructions (e.g., stray threads) are preventing it from seating correctly.
- Gently re-insert, ensuring correct alignment.
If problems persist, consult your sewing machine's original manual or contact a qualified sewing machine technician.
Specifications
| Material: | Metal |
| Color: | Silver |
| Diameter (for empty bobbin): | 20 mm |
| Height: | 1.6 cm |
| Model Number: | VHBW4064115944440 |
Warranty and Support
vhbw products are designed for high quality and reliability. While specific warranty details are not provided in this manual, vhbw stands by the quality of its replacement parts and accessories. For any questions regarding product performance, installation, or potential defects, please contact your retailer or the vhbw customer support directly. Keep your purchase receipt as proof of purchase.
