GDOR JE2003 Centrifugal Juicer Machine User Manual

1. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before operating the juicer.
• To protect against risk of electrical shock, do not immerse the motor base in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Avoid contact with moving parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Always ensure the juicer cover is properly and securely fastened before the motor is switched on. Do not unfasten during operation.
• Do not put fingers or other objects into the juicer opening while it is in operation. If food becomes lodged in the opening, use the food pusher to push it down. If this method is not possible, turn off the motor and disassemble the juicer to remove the remaining food.
• Do not use the appliance for other than intended use.
• Do not process hard seeds, pits, or frozen fruits in the juicer.

2. Product Overview and Components

The GDOR JE2003 Centrifugal Juicer is designed for efficient extraction of juice from various fruits and vegetables. It features a powerful 600W motor and durable titanium blades for optimal performance.

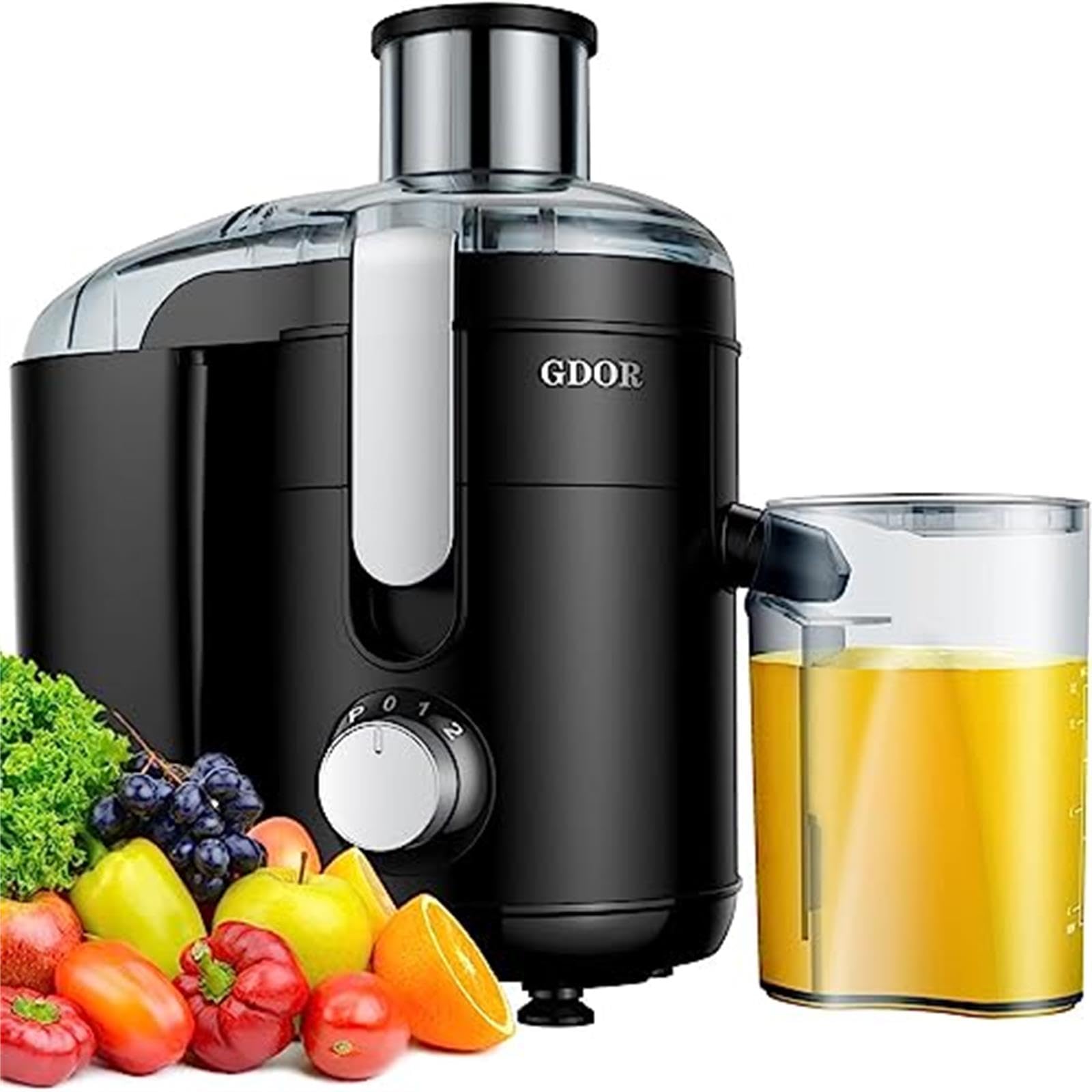

Image 2.1: Assembled GDOR JE2003 Centrifugal Juicer Machine. This image shows the complete juicer unit with its main components visible, including the motor base, juice jug, pulp container, and feed chute.

Key Components:

• Motor Base: Contains the 600W motor and control panel.
• Pulp Container: Collects the discarded pulp.
• Juice Collector: Holds the extracted juice before it flows into the juice jug.
• Filter Basket with Titanium Blades: The core component for juice extraction, featuring enhanced titanium blades and a micro mesh filter.
• Juicer Cover with 2.5" Feed Chute: Secures the internal components and allows for feeding whole or large pieces of produce.
• Food Pusher: Used to guide fruits and vegetables down the feed chute.
• 15 oz Juice Jug: Collects the fresh juice, featuring a built-in foam separator.
• Cleaning Brush: Included for easy cleaning of the filter basket.

3. Setup and Assembly

Before first use, wash all parts that will come into contact with food (except the motor base) in warm, soapy water. Rinse and dry thoroughly.

1. Place the motor base on a dry, stable, and level surface.
2. Position the pulp container under the pulp spout on the motor base.
3. Place the juice collector onto the motor base, ensuring it is seated correctly.
4. Insert the filter basket with titanium blades into the juice collector, pressing down firmly until it clicks into place.
5. Place the juicer cover onto the juice collector, aligning the feed chute with the opening. Ensure the cover is securely locked into place using the safety locking arm. The juicer will not operate if the locking arm is not engaged.
6. Place the 15 oz juice jug under the juice spout.
7. Insert the food pusher into the feed chute.

4. Operating Instructions

Follow these steps for optimal juicing results:

1. Prepare Produce: Wash fruits and vegetables thoroughly. For larger items, cut them into pieces that fit comfortably into the 2.5-inch feed chute. Remove any hard seeds or pits (e.g., from peaches, cherries, mangoes). Peeling is generally not necessary for most fruits and vegetables, but you may peel citrus fruits to avoid a bitter taste.
2. Select Speed: Plug the juicer into a 120V electrical outlet. Turn the control knob to the desired speed setting:
   • "Ⅰ" (Low Speed): Ideal for soft fruits and vegetables such as oranges, tomatoes, grapes, and berries.
   • "Ⅱ" (Fast Speed): Suitable for harder fruits and vegetables like apples, carrots, celery, kale, and ginger.
3. Begin Juicing: With the motor running, gradually feed the prepared produce into the feed chute using the food pusher. Apply gentle, even pressure. Do not force the produce down, as this can reduce juice yield and potentially damage the motor.
4. Juice Collection: Fresh juice will flow into the 15 oz juice jug. The built-in foam separator in the jug helps to reduce foam for a clearer juice. Pulp will be collected in the pulp container.
5. Finish Juicing: Once all produce has been juiced, turn the control knob to the "OFF" position and unplug the appliance.

5. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your juicer. Clean the juicer immediately after each use.

1. Unplug: Always unplug the juicer from the power outlet before cleaning.
2. Disassemble: Remove the food pusher, juicer cover, filter basket, juice collector, and pulp container.
3. Rinse: Rinse all removable parts under running water to remove most of the pulp and juice residue.
4. Wash: Wash the removable parts (pulp container, juice collector, filter basket, juicer cover, food pusher, juice jug) in warm, soapy water. The filter basket, with its micro mesh, can be effectively cleaned using the provided cleaning brush to remove stubborn pulp. All removable parts are dishwasher safe.
5. Clean Motor Base: Wipe the motor base with a damp cloth. Never immerse the motor base in water or any other liquid.
6. Dry and Store: Dry all parts thoroughly before reassembling or storing. Store the juicer in a clean, dry place.

6. Troubleshooting

If you encounter issues with your GDOR JE2003 Juicer, refer to the following common problems and solutions:

7. Specifications

Detailed technical specifications for the GDOR JE2003 Centrifugal Juicer Machine:

• Brand: GDOR
• Model Name: JE2003
• Color: Black
• Product Dimensions: 10.55"D x 5.81"W x 13"H
• Maximum Power: 600W (650.0 listed in specifications, using 600W from feature bullets for consistency with marketing)
• Voltage: 120 Volts
• Number of Speeds: 2 (Low and Fast)
• Blade Material: Titanium
• Capacity (Juice Jug): 15 ounces
• Feed Chute Size: 2.5 inches
• Special Feature: Quiet Motor
• Product Care Instructions: Dishwasher Safe (removable parts)
• Item Weight: 5.96 pounds
• Material: Metal (blades), Plastic (housing)

8. Warranty and Support

GDOR stands behind the quality of its products.

• Warranty: This product is covered by a 2-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims.
• Customer Support: For any questions, concerns, or warranty claims, please contact GDOR customer service. Refer to the product packaging or the official GDOR website for the most current contact information.
