1. Introduction
Thank you for purchasing the Flieks Twin Size Upholstered Tufted Daybed with Trundle. This manual provides essential information for the safe assembly, operation, and maintenance of your new daybed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
2. Safety Information
- Weight Capacity: The daybed is designed to support a maximum weight of 300 lbs. Do not exceed this limit.
- Assembly: Ensure all parts are correctly assembled and fasteners are tightened securely before use. Periodically check and re-tighten all connections.
- Children: Keep small parts away from children during assembly. This product is not intended for use by children without adult supervision.
- Placement: Place the daybed on a flat, stable surface. Avoid placing it near heat sources or in direct sunlight to prevent material degradation.
- Mattress: Mattresses are not included. Ensure mattresses used fit the dimensions of the daybed (75x39 inches) and trundle (75x39 inches).
3. Package Contents
Before assembly, please verify that all components and hardware are present. Refer to the detailed parts list and hardware diagram included in your product packaging. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.
4. Assembly Instructions
Assembly requires two adults. Use the provided tools and hardware. Do not use power tools unless specifically instructed, as over-tightening can damage the frame.
4.1. Overview and Dimensions
Familiarize yourself with the overall structure and dimensions of the daybed and trundle before starting assembly.
4.2. General Assembly Steps (Refer to packaged manual for detailed diagrams)
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches.
- Assemble Main Frame: Attach the side panels to the headboard and footboard using the specified hardware. Ensure all connections are snug but do not fully tighten until the frame is stable.
- Install Slat Support: Place the center support beam and attach the wooden slats to the main daybed frame. Ensure slats are evenly spaced and secured.
- Assemble Trundle Frame: Construct the trundle frame separately, attaching its side panels and slat supports.
- Attach Trundle Casters: Secure the casters (wheels) to the bottom of the trundle frame for easy movement.
- Insert Trundle: Slide the assembled trundle into position under the main daybed frame.
- Final Tightening: Once all components are in place and aligned, fully tighten all bolts and screws.
5. Operating Instructions
5.1. Using the Trundle Bed
The integrated trundle provides an additional sleeping surface. It is designed to slide smoothly for convenient access.

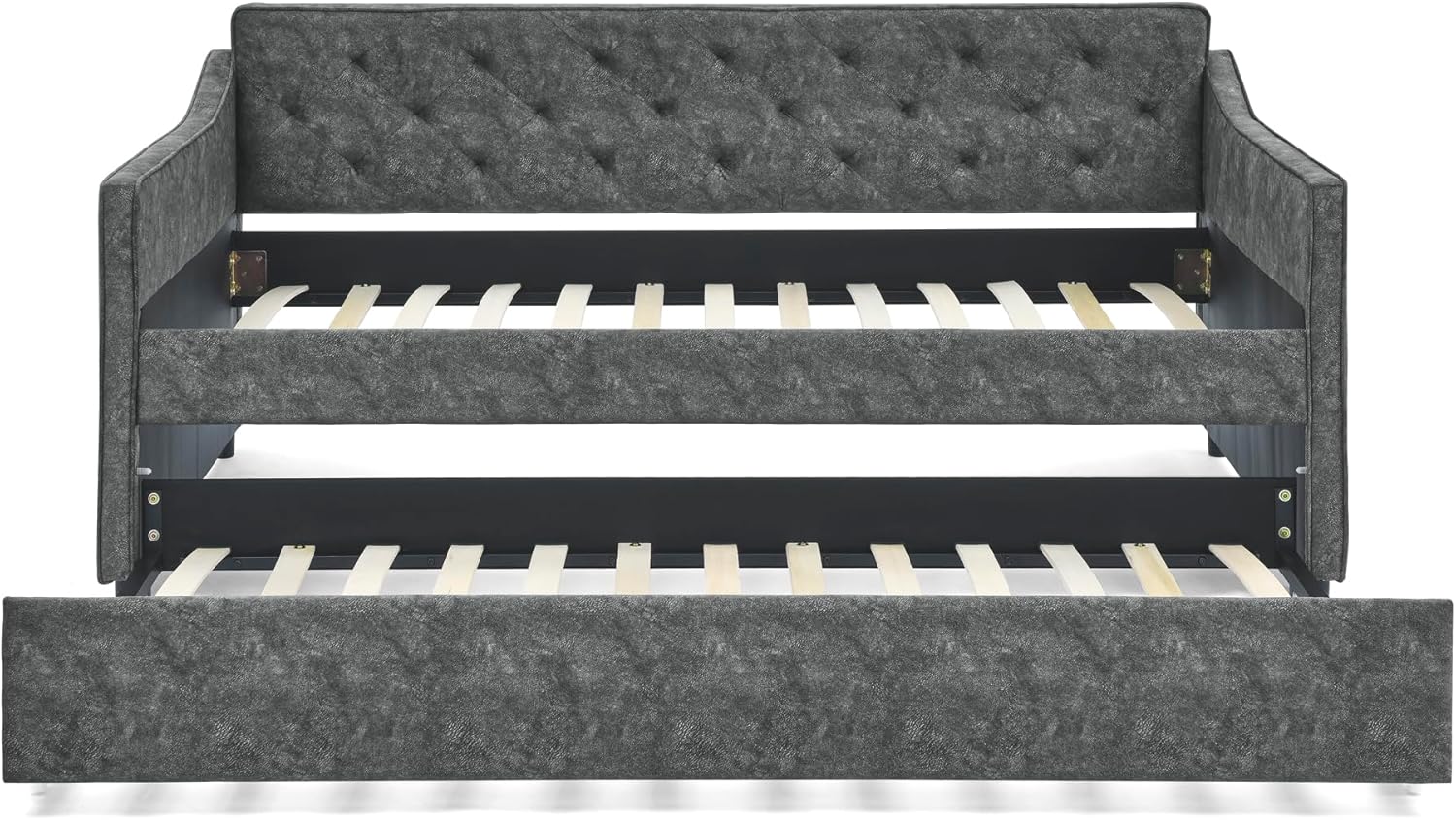

- To Extend the Trundle: Gently pull the trundle frame outwards from under the daybed. The casters will allow it to roll out smoothly.
- To Retract the Trundle: Push the trundle frame back under the daybed until it is fully nested. Ensure no bedding or obstructions prevent it from closing completely.
6. Maintenance
- Cleaning Fabric: The upholstered fabric requires dry cleaning only. Do not use liquid cleaners or abrasive materials, as this may damage the upholstery.
- Frame Care: Wipe the wooden frame components with a soft, dry cloth. Avoid harsh chemicals.
- Hardware Check: Periodically inspect all bolts and screws to ensure they remain tight. Re-tighten as necessary to maintain structural integrity.
- Moving the Daybed: When moving the daybed, lift it rather than dragging it to prevent damage to the legs and frame.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Daybed feels unstable or wobbly. | Loose hardware. Uneven floor. | Check and tighten all bolts and screws. Ensure the daybed is on a level surface; use shims if necessary. |
| Trundle does not slide smoothly. | Obstruction under trundle. Damaged casters. | Clear any objects from under the daybed. Inspect casters for damage; contact support if broken. |
| Squeaking noises. | Loose connections. Friction between parts. | Re-tighten all hardware. Apply a small amount of lubricant (e.g., silicone spray) to metal-on-metal contact points if the issue persists. |
8. Specifications
- Overall Dimensions (L x W x H): 80.5 x 44.5 x 33.5 inches
- Daybed Mattress Size: 75 x 39 inches (Twin)
- Trundle Mattress Size: 75 x 39 inches (Twin)
- Maximum Weight Capacity: 300 lbs
- Frame Material: Eucalyptus Wood, MDF Board
- Upholstery Material: Fabric
- Assembly Required: Yes
- Product Care: Dry Clean Only
9. Warranty and Support
For warranty information, please refer to the documentation included with your purchase or contact the retailer. If you have any questions, require replacement parts, or need technical assistance, please contact Flieks customer support through your purchase platform or the official brand website.
