INTELAMP Solar Outdoor Lights with Motion Detector - User Manual

Introduction

Thank you for choosing the INTELAMP Solar Outdoor Lights with Motion Detector. This manual provides essential information for the proper installation, operation, and maintenance of your new solar lights. Please read these instructions carefully before use to ensure optimal performance and longevity of the product.

These solar-powered lights are designed for outdoor use, featuring a high-capacity battery, powerful LED illumination, wide-angle coverage, and intelligent motion detection, all controllable via a convenient remote.

Product Features

• Wide-Angle Illumination: Equipped with 108 high-brightness LED beads, providing up to 1200 lumens. The adjustable LED wings allow for a wide 270-degree illumination angle, covering an area of approximately 70 square meters.

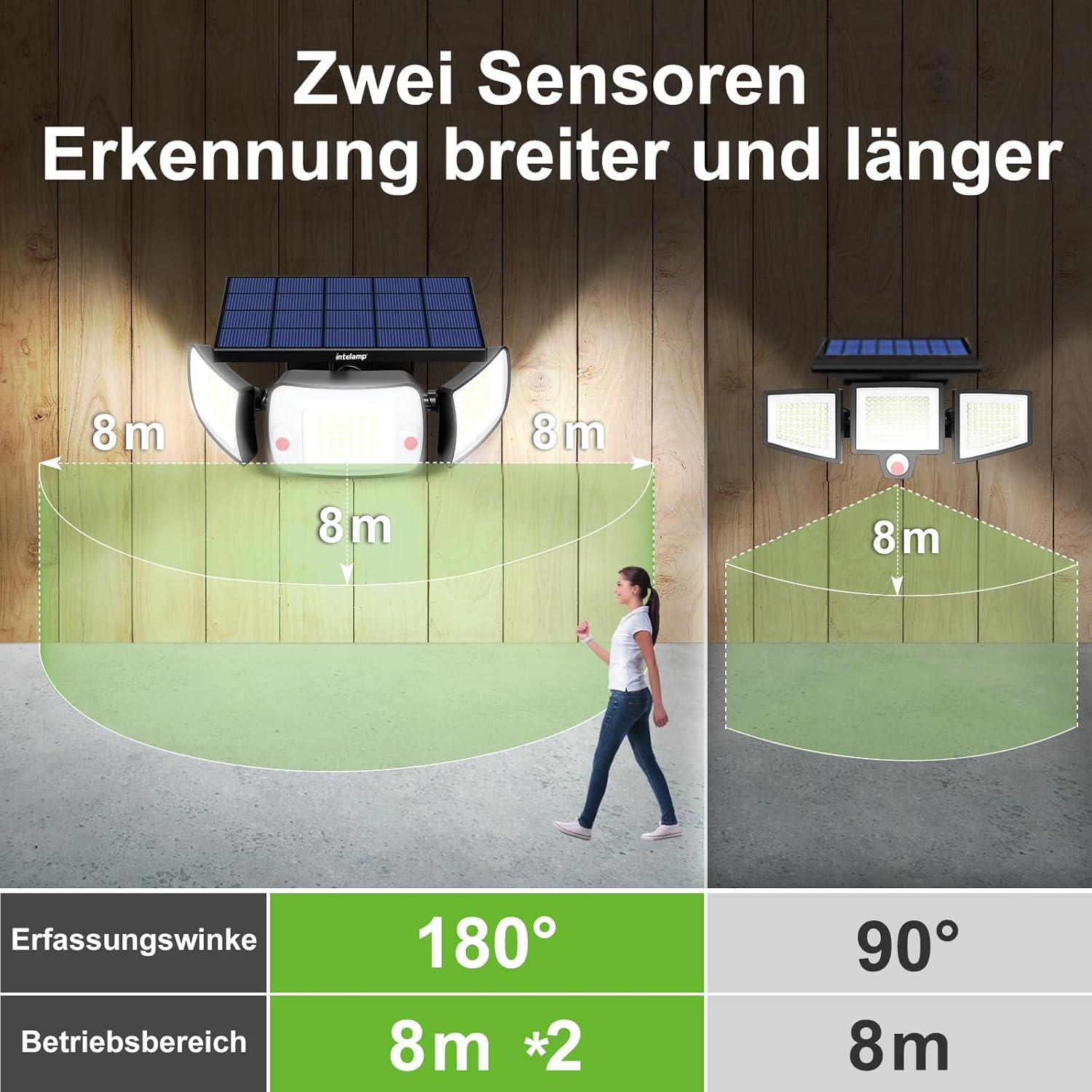

• Dual PIR Sensors & 4 Lighting Modes: Features a dual-sensor design for enhanced motion detection over a 180-degree area, covering a range of 10 to 16 meters. Choose from 4 distinct lighting modes to suit various needs.
• Remote Control Functionality: Includes a user-friendly remote control for easy adjustment of operating parameters. Customize the highlight detection time to 20, 30, or 40 seconds, ensuring consistent illumination.
• Durable & Weatherproof Design: Constructed from ABS plastic with an IP65 waterproof rating, ensuring resistance to rain, snow, frost, and sun. Suitable for extreme weather conditions.
• High Efficiency & Energy Saving: Utilizes a large solar panel for efficient charging and a safe 6000 mAh lithium-iron phosphate battery, providing illumination for more than an entire night. The silicone solar panel boasts a high conversion rate of 22% and offers over 2000 charge cycles.
• Easy Installation: Comes with screws and cable ties for flexible mounting options on walls or poles. For optimal charging, install the solar panel facing the sun. The ideal installation height is approximately 1.7 to 2 meters.

Package Contents

Please verify that all components are present in your package:

• 2 x INTELAMP Solar Outdoor Lights
• 1 x Remote Control
• Mounting Screws
• Cable Ties

Setup and Installation

1. Choose an Installation Location: Select a location that receives direct sunlight for at least 6-8 hours daily to ensure the solar panel charges effectively. Avoid areas under eaves, trees, or other obstructions that might block sunlight.
2. Determine Mounting Method: You can mount the light on a wall using the provided screws or attach it to a pole using the cable ties.
3. Wall Mounting:
   • Mark the desired drilling points on the wall. The ideal installation height is approximately 1.7 to 2 meters (5.6 to 6.5 feet).
   • Drill holes at the marked positions.
   • Insert wall plugs (if necessary) and secure the light to the wall using the provided screws.
4. Pole Mounting:
   • Position the light on the pole.
   • Use the provided cable ties to firmly secure the light to the pole.
5. Adjust Solar Panel and Light Heads: Once mounted, adjust the angle of the solar panel to maximize sun exposure. The light heads can also be adjusted to direct illumination where needed.

Operating Instructions

Your INTELAMP solar light is equipped with a remote control for convenient operation and mode selection.

Remote Control Functions:

• ON/OFF: Power the light on or off.
• Mode Selection: Cycle through the 4 available lighting modes. Refer to the remote for specific mode icons (e.g., constant dim light, motion-activated bright light, etc.).
• Detection Time Adjustment: Set the duration for which the light stays bright after motion is detected (20s, 30s, or 40s).
• Dim Lighting: Activate or deactivate a continuous dim light mode.
• Timer Functions: Some modes may include timer settings (e.g., 2H, 4H, 6H) for continuous illumination for a set period.

Ensure the remote control is pointed directly at the light for effective communication.

Maintenance

• Clean Solar Panel: Regularly wipe the solar panel with a soft, damp cloth to remove dust, dirt, and debris. A clean panel ensures maximum sunlight absorption and efficient charging.
• Clear Obstructions: Ensure no new obstructions (e.g., growing branches, new structures) are blocking sunlight from reaching the solar panel.
• Check Mounting: Periodically check that the light is securely mounted and has not become loose due to weather or other factors.
• Weather Resistance: The IP65 rating provides protection against dust and water jets. While designed for outdoor use, extreme conditions like prolonged submersion should be avoided.

Troubleshooting

• Light Does Not Turn On at Night:
  • Ensure the light is switched ON via the remote control.
  • Verify the solar panel is receiving sufficient direct sunlight during the day (6-8 hours recommended).
  • Check for any obstructions blocking the solar panel.
  • The battery might be low. Allow several days of full sunlight charging.
• Motion Sensor Not Working:
  • Ensure the light is in a motion-sensing mode.
  • Check if the sensor lens is clean and free from obstructions.
  • Verify the detection range and angle are appropriate for your needs.
• Light is Dim or Only Stays On Briefly:
  • The battery may not be fully charged. Ensure adequate sunlight exposure.
  • In winter or cloudy weather, charging efficiency may decrease, leading to shorter illumination times.
  • Check the remote control settings for detection time (20s, 30s, 40s).

Specifications

Warranty and Support

For any product-related inquiries, technical support, or warranty claims, please contact the seller directly through your purchase platform. Please retain your proof of purchase for warranty purposes.

While specific warranty details are not provided in this manual, general consumer rights apply. The manufacturer, INTELAMP, is committed to producing high-quality solar lighting solutions.
