intelamp YL002-12C Solar Flood Light Instruction Manual

Introduction

Thank you for choosing the intelamp YL002-12C Solar Flood Light. This manual provides essential information for the proper setup, operation, and maintenance of your new solar-powered security light. Designed for outdoor use, this light features a 6000mAh battery, 1200LM brightness, dual motion sensors, and multiple lighting modes for enhanced security and convenience.

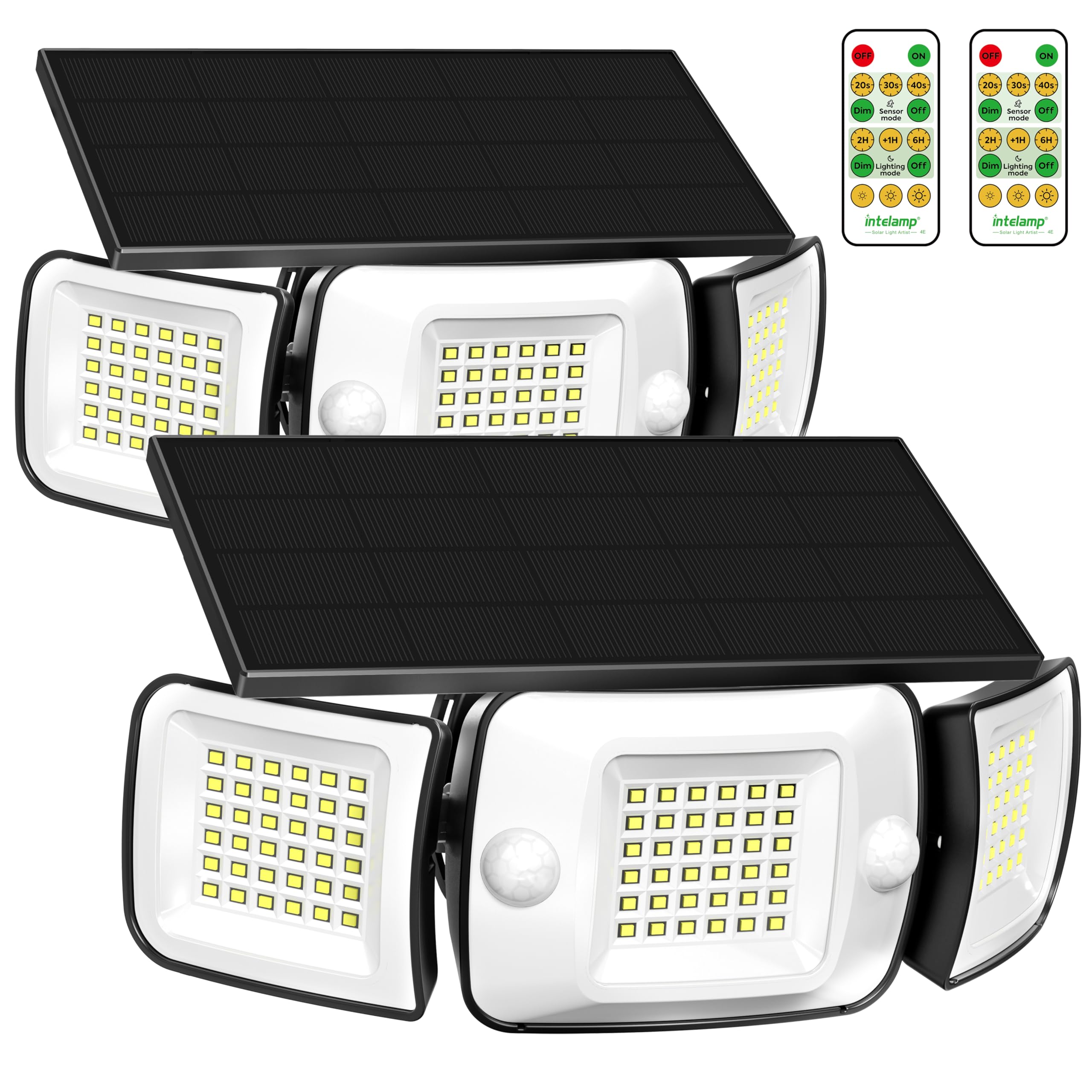

Figure 1: intelamp YL002-12C Solar Flood Light, showcasing its three adjustable light heads and integrated solar panel.

Setup and Installation

The intelamp YL002-12C Solar Flood Light is designed for quick and effortless setup with its all-in-one design. It can be mounted on various outdoor surfaces such as walls, fences, trees, or lamp posts. Ensure the solar panel receives maximum direct sunlight for optimal charging.

Package Contents:

• intelamp YL002-12C Solar Flood Light Unit
• Remote Control
• Mounting Hardware (screws, wall anchors, zip ties)
• Instruction Manual

Installation Steps:

1. Choose a Location: Select an outdoor area where the solar panel can receive at least 6-8 hours of direct sunlight daily. The light unit should be positioned to cover the desired area.
2. Mark Drilling Points: Use the mounting bracket on the back of the solar panel to mark the screw positions on your chosen surface.
3. Drill Holes: Drill pilot holes at the marked positions. If installing on masonry or concrete, insert the provided wall anchors.
4. Mount the Solar Panel: Secure the solar panel bracket using the provided screws.
5. Attach the Light Unit: Connect the light unit to the solar panel via the integrated cable. The light unit can be attached directly below the solar panel or separately using the extended cable and zip ties for flexible placement.
6. Adjust Light Heads: Adjust the three light heads to achieve the desired 270° wide lighting angle.

Figure 2: The solar panel and light unit are designed for easy, no-wiring installation, utilizing a high-efficiency monocrystalline solar panel.

Figure 3: The light offers versatile installation options including tree, post, and fence mounting, requiring no wires or tools beyond basic mounting hardware.

Operating Instructions

Your intelamp Solar Flood Light comes with a remote control to easily switch between 4 smart lighting modes and adjust settings.

Lighting Modes:

• Dim + Sensor Mode: The light remains dim and brightens to full intensity when motion is detected. It returns to dim after a set duration (20s, 30s, or 40s) of no motion.
• OFF + Sensor Mode: The light remains off and turns on to full intensity when motion is detected. It turns off completely after a set duration (20s, 30s, or 40s) of no motion.
• Dim + Lighting Mode: The light maintains a medium brightness for a set time (2H, +1H, 6H) and then dims until dawn.
• OFF + Lighting Mode: The light maintains a medium brightness for a set time (2H, +1H, 6H) and then turns off until dawn.

Using the Remote Control:

The remote allows you to:

• Turn the light ON/OFF.
• Select desired sensor mode and motion duration (20s, 30s, 40s).
• Select desired lighting mode and duration (2H, +1H, 6H).
• Adjust brightness levels (low, medium, high).

Figure 4: The remote control provides easy access to the 4 distinct lighting modes and duration settings.

Maintenance

The intelamp YL002-12C Solar Flood Light is built for durability and minimal maintenance.

• Cleaning: Periodically wipe the solar panel with a soft, damp cloth to remove dust, dirt, or debris that may hinder charging efficiency.
• Weather Resistance: The light is IP65 waterproof, designed to withstand heavy rain, snow, and harsh weather conditions. No special weather-related maintenance is typically required.
• Battery Life: The 6000mAh high-capacity battery provides long-lasting illumination. Ensure consistent direct sunlight exposure for optimal battery performance and longevity.

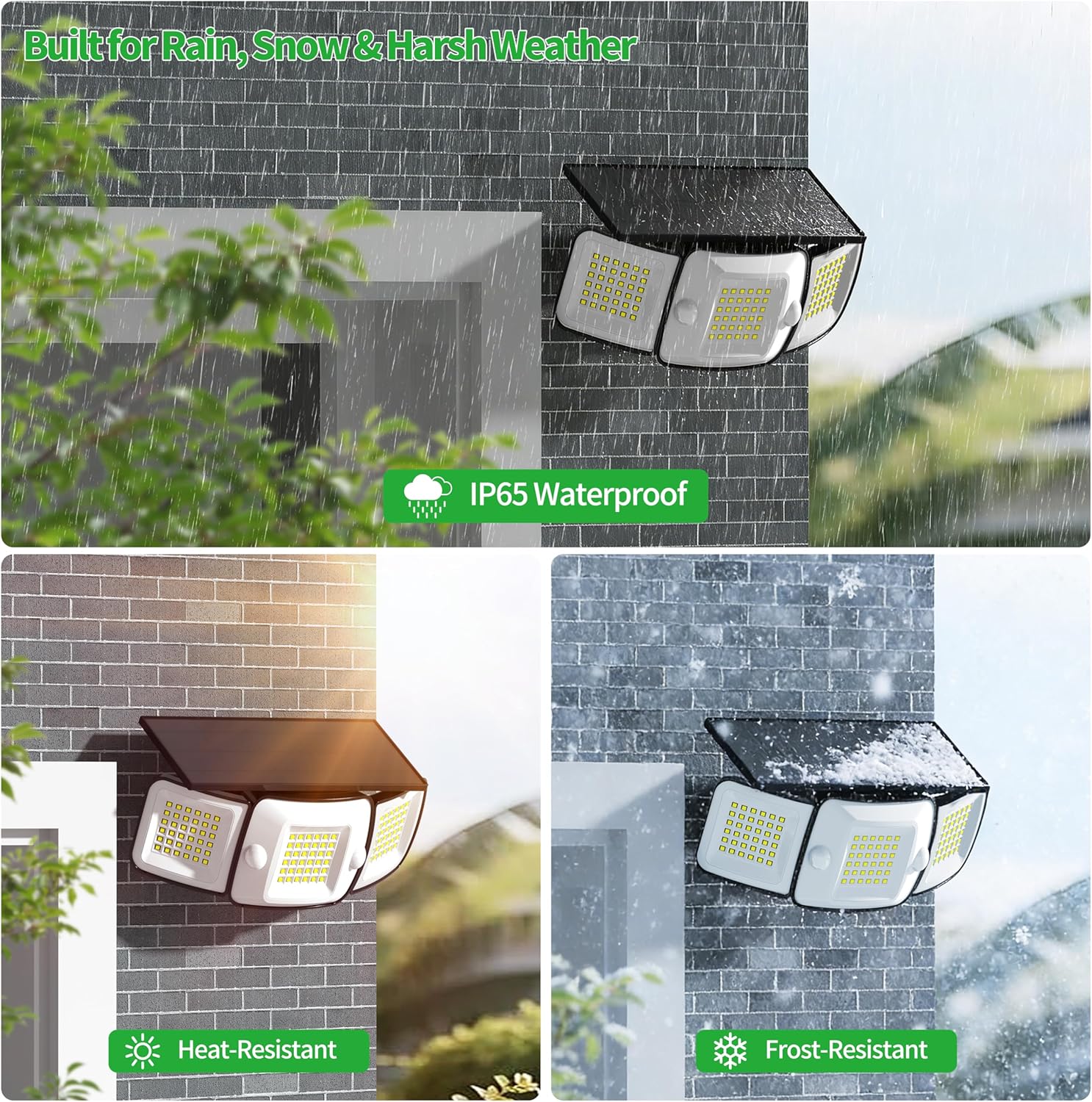

Figure 5: The IP65 waterproof design ensures reliable operation in various weather conditions, including rain and snow.

Troubleshooting

• Light does not turn on at night:
  • Ensure the solar panel is receiving adequate direct sunlight (6-8 hours) during the day.
  • Verify the light is switched ON via the remote or the manual button.
  • Check if the chosen lighting mode is appropriate for nighttime operation.
• Light does not stay on all night:
  • Insufficient charging due to limited sunlight or dirty solar panel. Clean the panel and ensure optimal sun exposure.
  • Battery capacity may be reduced in extremely cold weather.
• Motion sensor is not detecting or is too sensitive:
  • Ensure the motion sensors are not obstructed.
  • Adjust the angle of the light heads to optimize the detection range.
  • Environmental factors like heavy rain or strong winds can sometimes trigger the motion sensor.
• Remote control is not working:
  • Ensure the remote control has a working battery.
  • Operate the remote within close proximity (approx. 20 ft) to the light unit.

Specifications

Warranty Information

The intelamp YL002-12C Solar Flood Light comes with a 1-year manufacturer's limited warranty. Please retain your proof of purchase for any warranty claims. For detailed terms and conditions, refer to the warranty card included in your package or contact customer support.

Customer Support

For any questions, technical assistance, or warranty inquiries regarding your intelamp Solar Flood Light, please contact our customer support team:

• Online Support: Visit the official intelamp store on Amazon: intelamp Store
• Email: Refer to your product packaging or warranty card for direct email contact.

Our team is dedicated to providing prompt and helpful service.
