1. Introduction
This manual provides essential information for the safe and efficient use of your Litime 24V 230Ah LiFePO4 Battery. This high-capacity battery is designed for various applications including RVs, solar power systems, marine use, and off-grid energy storage. It features a 230Ah capacity and 5888Wh energy, offering extended power and reliable performance.
The battery incorporates a built-in 200A Battery Management System (BMS) for advanced safety and longevity, providing over 20 types of protection. Its IP65 rating and flame-retardant ABS case ensure durability and resistance to dust and water, making it suitable for diverse environmental conditions. The compact and lightweight design offers easier installation compared to traditional lead-acid batteries.
Image 1.1: Front view of the Litime 24V 230Ah LiFePO4 Battery, showing the brand logo, voltage, capacity, and safety warnings.
2. Safety Information
Please read and understand all safety instructions before installing or operating the battery. Failure to follow these instructions may result in serious injury, property damage, or voiding of the warranty.
- Risk of Fire, Explosion, or Burns: LiFePO4 batteries can pose risks if mishandled.
- DO NOT Short circuit: Ensure proper wiring and connections to prevent short circuits.
- DO NOT Reverse connections: Always connect positive to positive and negative to negative. Reverse polarity can cause severe damage.
- DO NOT Disassemble: The battery contains sensitive internal components. Disassembly voids the warranty and can be dangerous.
- DO NOT Throw into fire or incinerate: Exposure to high heat or fire can cause explosion.
- DO NOT Heat above 70°C (158°F): Operate and store the battery within specified temperature ranges.
- Water and Dust Protection: The battery has an IP65 rating, offering protection against dust and low-pressure water jets. However, avoid submerging the battery.
- Ventilation: Ensure adequate ventilation around the battery, especially during charging and discharging, to prevent heat buildup.
- Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses and insulated gloves, when handling batteries.
Image 2.1: Various safety certifications (UL, CE, FC, RoHS, UN38.3) indicating compliance with international safety standards.
3. Product Overview
3.1 What's Included
Upon unboxing, verify that all components are present:
- 1 x Litime 24V 230Ah LiFePO4 Battery
- 1 x Quick Start Guide
- 1 x Product Manual (this document)
- 2 x M8 Screws and Insulation Caps
- 2 x Gaskets
Image 3.1: Visual representation of the battery and included accessories: M8 screws, insulation caps, gaskets, quick start guide, and product manual.
3.2 Key Features
- High Capacity: 230Ah capacity and 5888Wh energy for extended power.
- Advanced BMS: Built-in 200A BMS with over 20 protection features for safety and longevity.
- Long Cycle Life: 4,000+ cycles at 100% Depth of Discharge (DOD), 6,000 cycles at 80% DOD, and 15,000 cycles at 60% DOD, ensuring a decade of lifetime.
- Durable Design: IP65 rated, flame-retardant ABS case for dust and water resistance.
- Compact & Lightweight: Approximately 33% lighter and 20% smaller than comparable 24V 230Ah lead-acid batteries.
- Scalable: Can be expanded to 4P2S configuration for up to 40 kWh capacity.
Image 3.2: Diagram illustrating the internal Battery Management System (BMS) and its protective functions.
Image 3.3: Visual comparison highlighting the Litime 24V 230Ah LiFePO4 battery's lighter weight (83 lbs) and higher energy (5888Wh) compared to a 12V 200Ah AGM battery (256 lbs, 2400Wh).
4. Specifications
| Attribute | Value |
|---|---|
| Brand | Litime |
| Model | L24V230-200-BASIC-8-A250 |
| Product Dimensions | 10.59"D x 20.47"W x 8.66"H |
| Item Weight | 82.9 pounds |
| Battery Capacity | 230 Amp Hours |
| Voltage | 24V |
| Continuous Output Power | 5888W |
| Number Of Cells | 8 |
| Resistance | 40 Milliohms |
| Terminal Type | M8 |
| BMS | 200A |
| Protection Class | IP65 |
| Cycle Life (100% DOD) | 4000+ cycles |
| Cycle Life (80% DOD) | 6000 cycles |
| Cycle Life (60% DOD) | 15000 cycles |
5. Setup and Installation
5.1 Pre-Installation Checks
- Inspect the battery for any visible damage. Do not install if damaged.
- Ensure all included accessories are present.
- Verify that your charging system (charger, solar charge controller, inverter) is compatible with LiFePO4 batteries and supports 24V systems.
- Confirm that the cables and connectors you plan to use are appropriately sized for the expected current draw.
5.2 Installation Steps
- Choose a Location: Select a dry, well-ventilated area that is protected from direct sunlight, extreme temperatures, and moisture. The IP65 rating provides protection, but optimal conditions prolong battery life.
- Secure the Battery: Place the battery on a stable, flat surface. If installing in a vehicle or marine environment, ensure it is securely fastened to prevent movement during operation.
- Connect Cables: Using the provided M8 screws and appropriate battery cables (not included), connect the positive (+) terminal of the battery to the positive (+) terminal of your load/charging system, and the negative (-) terminal of the battery to the negative (-) terminal of your load/charging system. Ensure connections are tight and secure.
- Insulate Terminals: Use the provided insulation caps to cover the terminals after connection to prevent accidental short circuits.
- System Integration: Connect your solar panels, inverter, or other components according to their respective manuals and system diagrams.

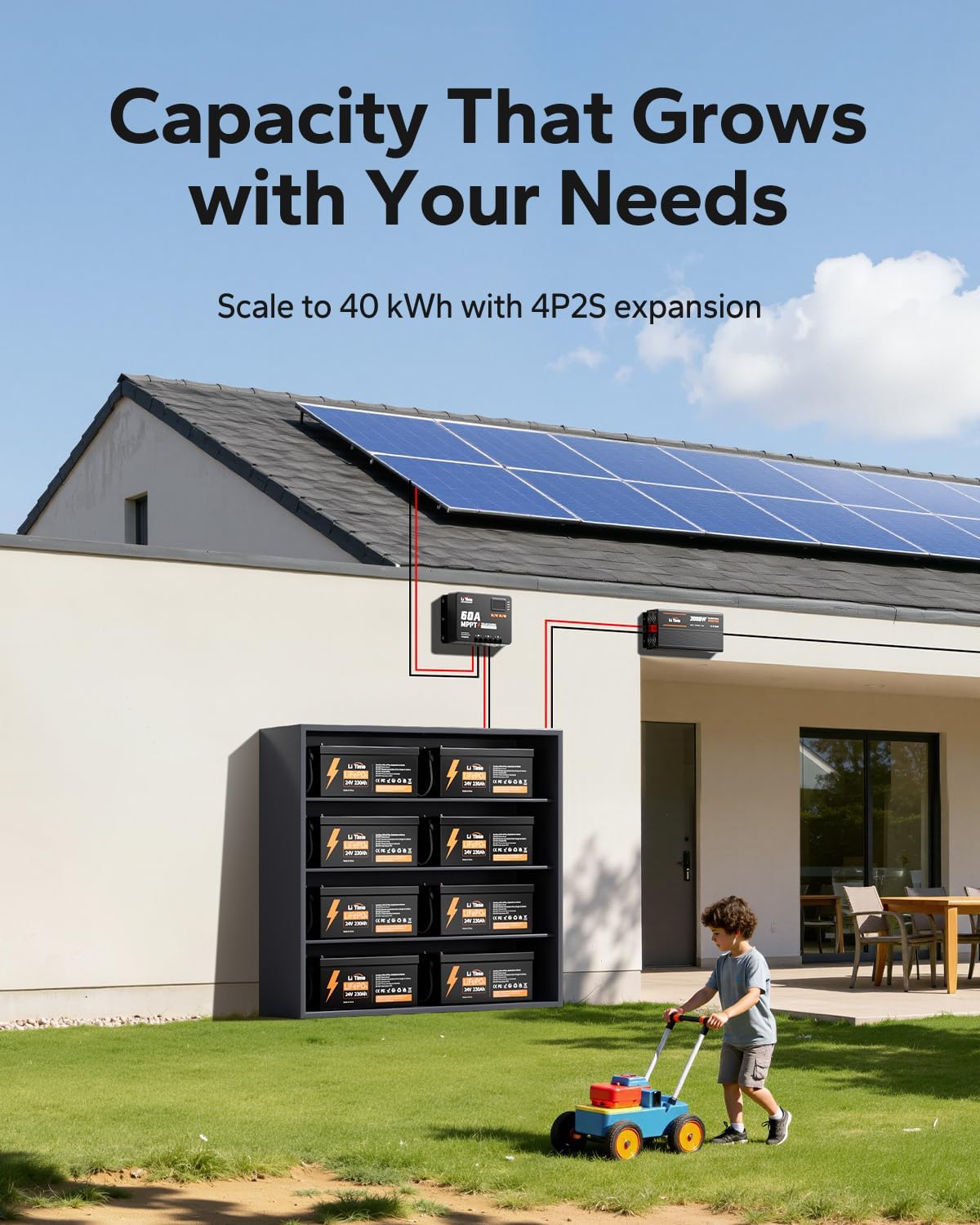

Image 5.1: An example of multiple Litime LiFePO4 batteries integrated into a home solar power backup system, demonstrating scalability.
5.3 Parallel and Series Connections
The Litime 24V 230Ah LiFePO4 battery supports parallel connections for increased capacity and series connections for increased voltage, up to a 4P2S configuration (4 parallel, 2 series) for a maximum of 40 kWh capacity. When connecting multiple batteries:
- Ensure all batteries are of the same brand, model, and capacity.
- Charge all batteries to the same voltage level before connecting them in parallel or series.
- Use appropriate bus bars and cables for multi-battery configurations.
- Consult a qualified electrician or refer to detailed wiring diagrams for complex setups.
6. Operating Instructions
6.1 Charging the Battery
Use a dedicated LiFePO4 charger that is compatible with 24V systems. Recommended charging parameters:
- Charging Voltage: 28.8V - 29.2V
- Max Charging Current: 200A (C/1 rate)
- Recommended Charging Current: 40A - 115A (C/5 to C/2 rate)
- Operating Temperature for Charging: 0°C to 45°C (32°F to 113°F)
If the battery enters an over-discharge protection state (0V), a lithium charger can be used to gently reactivate it.
Image 6.1: Illustration of different charging methods: LiFePO4 charger, solar panel with MPPT controller, alternator with DC-DC charger, and generator with charger.
6.2 Discharging the Battery
- Max Continuous Discharge Current: 200A
- Peak Discharge Current: 400A (for 3-5 seconds)
- Operating Temperature for Discharging: -20°C to 60°C (-4°F to 140°F)
The BMS will automatically cut off power if the battery is over-discharged, over-current, or experiences other fault conditions to protect the cells.
Image 6.2: Depiction of the battery providing backup power for household appliances like LED lights, TV, fridge, microwave, and space heater, indicating long runtimes.
6.3 Applications
This battery is suitable for a wide range of deep cycle applications:
- RV and Camper Power
- Solar Energy Storage Systems
- Marine Applications (trolling motors, onboard electronics)
- Off-Grid Cabins and Homes
- Home Energy Backup
Note: This battery is not designed for starting vehicles, golf carts, or jacks.
Image 6.3: A collage showing the battery's versatile applications, including trolling motors, off-grid cabins, outboard motors, home energy storage, and RVs.
7. Maintenance
LiFePO4 batteries require minimal maintenance compared to lead-acid batteries. Follow these guidelines to ensure optimal performance and longevity:
- Regular Inspection: Periodically check the battery terminals for corrosion or loose connections. Clean terminals if necessary.
- Temperature Management: Avoid operating or storing the battery in extreme temperatures. Ideal storage temperature is between 0°C and 25°C (32°F and 77°F).
- Storage: For long-term storage, charge the battery to approximately 50% State of Charge (SOC) and store it in a cool, dry place. Recharge every 3-6 months if stored for extended periods.
- Cleaning: Use a dry cloth to wipe the battery case. Do not use solvents or harsh chemicals.
- Avoid Deep Discharges: While the BMS protects against over-discharge, consistently avoiding very deep discharges can contribute to longer overall battery life.
8. Troubleshooting
If you encounter issues with your Litime LiFePO4 battery, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging | Charger incompatibility, loose connections, BMS protection activated (over-discharge) | Ensure charger is LiFePO4 compatible and 24V. Check all cable connections. If over-discharged (0V), use a compatible lithium charger to reactivate. |
| Battery not providing power | BMS protection activated (over-discharge, over-current, over-temperature), loose connections | Check battery voltage. If low, recharge. Reduce load if over-current. Allow battery to cool if over-temperature. Verify all connections. |
| Reduced capacity or runtime | Undercharging, extreme operating temperatures, aging | Ensure battery is fully charged. Operate within recommended temperature ranges. While LiFePO4 batteries have long lifespans, capacity will gradually decrease over many years of use. |
| Unusual heat during operation | Over-current, poor ventilation, internal fault | Reduce load. Ensure adequate ventilation around the battery. If excessive heat persists, discontinue use and contact support. |
For issues not covered here, please contact Litime customer support.
9. Warranty and Support
9.1 Warranty Information
Litime provides a 5-Year Service commitment for this product. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims.
Image 9.1: Graphic indicating Litime's 5-Years Service commitment.
9.2 Customer Support
For technical assistance, warranty claims, or any other inquiries, please contact Litime customer support:
- Email: service@litime.com
- Website: www.litime.com
When contacting support, please provide your product model number (L24V230-200-BASIC-8-A250) and a detailed description of the issue.
