Introduction
Welcome and thank you for choosing the INFANTI LUKE 360° Lifestyle Car Seat. This manual provides essential information for the correct installation, use, and maintenance of your car seat. Please read it thoroughly before use and keep it for future reference to ensure the safety and comfort of your child.
Important Safety Information
Always prioritize your child's safety. Failure to follow these instructions can result in serious injury or death.
- Always secure your child in the car seat using the 5-point harness system, even for short trips.
- Never leave your child unattended in the car seat.
- Ensure the car seat is correctly installed in your vehicle according to the instructions provided in this manual and your vehicle's owner's manual.
- Do not use the car seat if it has been involved in a collision, even if there is no visible damage. Replace it immediately.
- Do not modify the car seat or use accessories not approved by the manufacturer.
- For rear-facing installation, ensure the car seat does not interfere with the vehicle's front seat.
- Check that the harness straps are snug and not twisted, and that the chest clip is at armpit level.
Product Features
The INFANTI LUKE 360° Lifestyle Car Seat is designed with your child's safety and comfort in mind, offering a range of features for different growth stages.
- 360° Rotation: Facilitates easy access for placing and removing your child.
- ISOFIX System: Ensures secure and stable installation in your vehicle.
- Installation Flexibility: Supports both rear-facing (for infants) and forward-facing (for older children) positions.
- Adjustable Supports: Head and body supports are adjustable for optimal comfort and safety as your child grows.
- 4 Recline Positions: Provides comfortable seating for rest during travel.
- 5-Point Harness: A secure harness system for maximum protection.
- Durable Material: Made from 100% polyester for comfort and easy maintenance.
- Wide Weight Range: Suitable for children from 3 kg up to 36 kg.

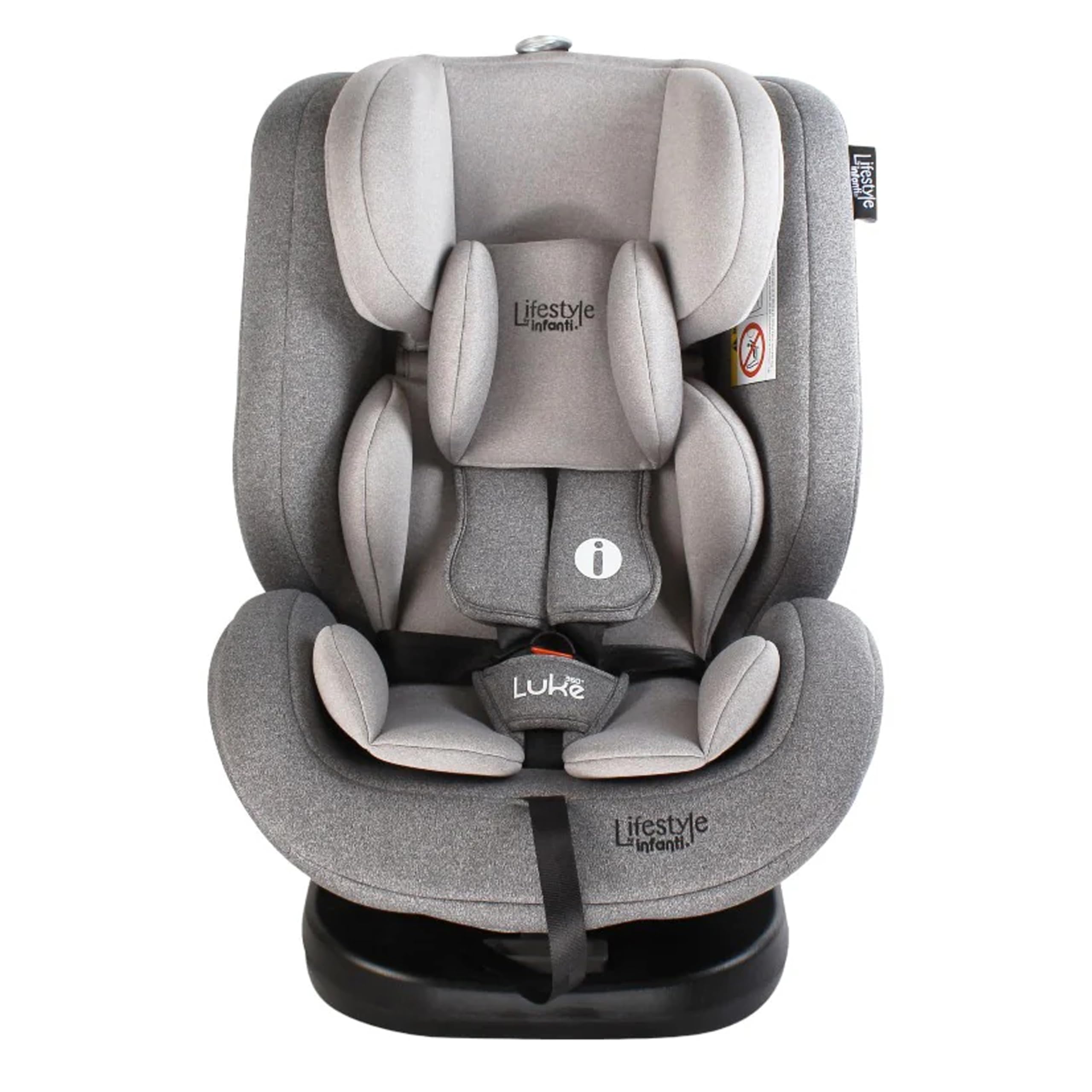

Figure 1: Front view of the INFANTI LUKE 360° Lifestyle Car Seat.
Figure 2: Key features of the car seat, including the 5-point harness, adjustable head support, ISOFIX system, and recommended usage for Group 0+, I, II, and III up to 36 kg.
Figure 3: Detailed view of the car seat's internal features, including padded and removable supports, adjustable head support, 5-point harness, and installation options.
Setup and Installation
ISOFIX System Installation
The ISOFIX system provides a rigid and secure connection between the car seat and your vehicle's chassis, minimizing installation errors.
- Locate the ISOFIX anchor points in your vehicle. These are usually found between the backrest and the seat cushion of the rear seats.
- Extend the ISOFIX connectors from the base of the car seat by pressing the release button (if applicable) and pulling them out.
- Align the ISOFIX connectors with the vehicle's anchor points and push firmly until you hear a distinct click on both sides. Check the indicators on the connectors (they should turn green) to confirm correct engagement.
- Push the car seat firmly against the vehicle's backrest to ensure a tight fit.
- Attach the Top Tether strap (if applicable for your installation) to the designated anchor point in your vehicle (usually on the back of the seat or in the trunk) and tighten it until the indicator shows it is secure.
Figure 4: The ISOFIX security system ensures a solid connection with the vehicle's anchors.
Harness Adjustment
The 5-point harness must be adjusted correctly for your child's safety.
- Place your child in the car seat.
- Bring the two central buckle pieces together and insert them into the main buckle until you hear a click.
- Pull the harness adjustment strap (located at the front of the seat) to tighten the harness until it is snug against your child's body. You should not be able to pinch any excess webbing at the shoulder.
- Position the chest clip at armpit level.
- To loosen the harness, press the release button located under the seat padding and pull the shoulder straps forward.
Operating Instructions
360° Rotation Feature
The 360° rotation allows you to easily turn the car seat towards the car door for convenient placement and removal of your child.
- Ensure the car seat is not in a reclined position that would obstruct rotation.
- Locate the rotation release lever, typically at the front base of the car seat.
- Press and hold the release lever, then rotate the seat to the desired position (e.g., facing the car door for loading/unloading, or to the appropriate rear-facing/forward-facing position for travel).
- Release the lever and ensure the seat locks securely into place before driving.
Figure 5: The 360° rotation feature for easy access and positioning.
Recline Positions
The car seat offers 4 recline positions to ensure your child's comfort during travel, especially for naps.
- Locate the recline adjustment lever, usually at the front or side of the car seat base.
- Press the lever and simultaneously push or pull the seat to the desired recline angle.
- Release the lever and ensure the seat is securely locked in the chosen recline position.
Maintenance
Regular cleaning and maintenance will prolong the life of your car seat.
- Fabric Covers: The fabric covers are removable and made of 100% polyester. They can be machine washed on a delicate cycle with cold water and mild detergent. Do not bleach or tumble dry. Air dry only.
- Harness Straps: Wipe harness straps with a damp cloth and mild soap. Do not immerse in water or machine wash, as this can weaken the webbing.
- Plastic Parts: Clean plastic parts with a damp cloth and mild soap. Do not use abrasive cleaners or solvents.
- Buckle: Periodically check the buckle for debris. Clean with a damp cloth.
- Storage: When not in use, store the car seat in a cool, dry place away from direct sunlight.
Troubleshooting
If you encounter any issues with your car seat, refer to the following common problems and solutions:
- Harness is difficult to tighten or loosen: Check for any twists in the harness straps. Ensure no fabric or debris is obstructing the adjustment mechanism.
- Car seat feels loose after installation: Re-check the ISOFIX connectors and Top Tether (if used) to ensure they are fully engaged and tightened. Push the car seat firmly into the vehicle seat. Refer to the installation section.
- 360° rotation is stuck: Ensure the car seat is in an upright position and not reclined. Check for any obstructions around the base. Press the rotation release lever firmly.
- Recline adjustment is difficult: Ensure no weight is on the seat when attempting to recline. Check for obstructions around the recline mechanism.
If problems persist, please contact Infanti customer support.
Technical Specifications
| Feature | Specification |
|---|---|
| Minimum Weight Recommendation | 3 Kilograms |
| Maximum Weight Recommendation | 36 Kilograms |
| Minimum Height Recommendation | 40 Centimeters |
| Maximum Height Recommendation | 63 Centimeters |
| Material Type | Polyester |
| Material Composition | 100% Polyester |
| Number of Recline Positions | 4 |
| Harness Type | 5 points |
| Installation Type | ISOFIX / Vehicle Seat Belt |
| Product Dimensions | 48 x 40 x 64 cm (Depth x Width x Height) |
| Product Weight | 12 Kilograms |
Figure 6: Assembled car seat with dimensions 40x48x64 cm.
Warranty and Support
This product is covered by a manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or visit the official Infanti website. Extended warranty options may also be available through third-party providers.
For technical support, spare parts, or any questions regarding the use of your INFANTI LUKE 360° Lifestyle Car Seat, please contact Infanti customer service through their official channels or the retailer where the product was purchased.
