KIMO 18 Gauge Cordless Brad Nailer User Manual

1. Introduction

Thank you for choosing the KIMO 18 Gauge Cordless Brad Nailer. This battery-powered tool is designed for efficient and precise fastening in various woodworking and home improvement projects. It offers the convenience of cordless operation, dual firing modes, and adjustable depth settings for optimal performance. Please read this manual thoroughly before operation to ensure safe and effective use of your new tool.

2. General Safety Instructions

Always follow basic safety precautions when using power tools to reduce the risk of fire, electric shock, and personal injury. Keep this manual for future reference.

• Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is grounded.
• Personal Safety: Always wear eye protection. Use appropriate safety equipment such as dust masks, non-skid safety shoes, hard hats, or hearing protection when necessary. Stay alert, watch what you are doing, and use common sense when operating a power tool.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Do not use the power tool if the switch does not turn it on and off. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
• Battery Pack Use and Care: Recharge only with the charger specified by the manufacturer. Do not use battery packs with any other power tools.

3. Package Contents

Verify that all items are present upon opening the package:

• KIMO 18 Gauge Cordless Brad Nailer
• 2 x 2.0Ah Lithium-Ion Batteries
• Battery Charger
• 5000pcs Brad Nails (various sizes)
• Hex Wrench (for adjustments)
• Carrying Bag

Image: The KIMO 18 Gauge Cordless Brad Nailer, including the tool itself, two batteries, a charger, a carrying bag, and a supply of nails.

4. Product Overview

The KIMO Cordless Brad Nailer is designed for ease of use and versatility. Its compact and ergonomic design allows for comfortable operation in various applications.

Key Features:

• Cordless Design: Provides freedom of movement without the need for air compressors or power cords.
• Dual Firing Modes: Switch between Single Firing for precise placement and Contact Firing for rapid, repetitive nailing.
• Adjustable Nailing Depth: Easily adjust the depth of nail penetration to suit different materials and project requirements.
• Double Safety Production: Features an on/off switch and a safety contact pin to prevent unintentional firing.
• Integrated LED Work Light: Illuminates the work area for improved visibility in dimly lit conditions.
• Ergonomic Rubber Handgrip: Ensures comfortable and secure handling during extended use.
• Portable Belt Hook: Allows for convenient carrying and quick access during projects.

Image: Comparison illustrating the freedom of movement offered by the cordless nail gun design versus a traditional corded or pneumatic nailer.

Image: Close-up view of the ergonomic design and rubberized handgrip for comfortable and secure handling.

Image: The KIMO Brad Nailer with its portable belt hook, demonstrating its convenience for carrying during work.

5. Setup

5.1 Battery Installation and Charging

1. Ensure the battery is fully charged before first use. Connect the charger to a power outlet and insert the battery. The indicator light on the charger will show charging status.
2. To install the battery, align the battery pack with the battery port on the tool and slide it in until it clicks securely into place.
3. To remove the battery, press the battery release button and slide the battery pack out.

Image: Illustration of the 12V Max Lithium-Ion batteries, highlighting their capacity and working time.

5.2 Loading Brad Nails

1. Ensure the tool is disconnected from the battery for safety.
2. Press the magazine release button to open the nail magazine.
3. Insert a strip of brad nails (3/4" to 2" length) into the magazine with the points facing forward.
4. Close the magazine until it locks into place.

5.3 Adjusting Nailing Depth

The nailing depth can be adjusted to ensure nails are flush with or slightly countersunk into the material.

1. Locate the depth adjustment screws on the nose of the tool.
2. Use the provided hex wrench to turn the screws. Turning clockwise increases the depth (nails go deeper), and counter-clockwise decreases the depth (nails are less countersunk or proud).
3. Test on a scrap piece of material to achieve the desired depth before working on your project.

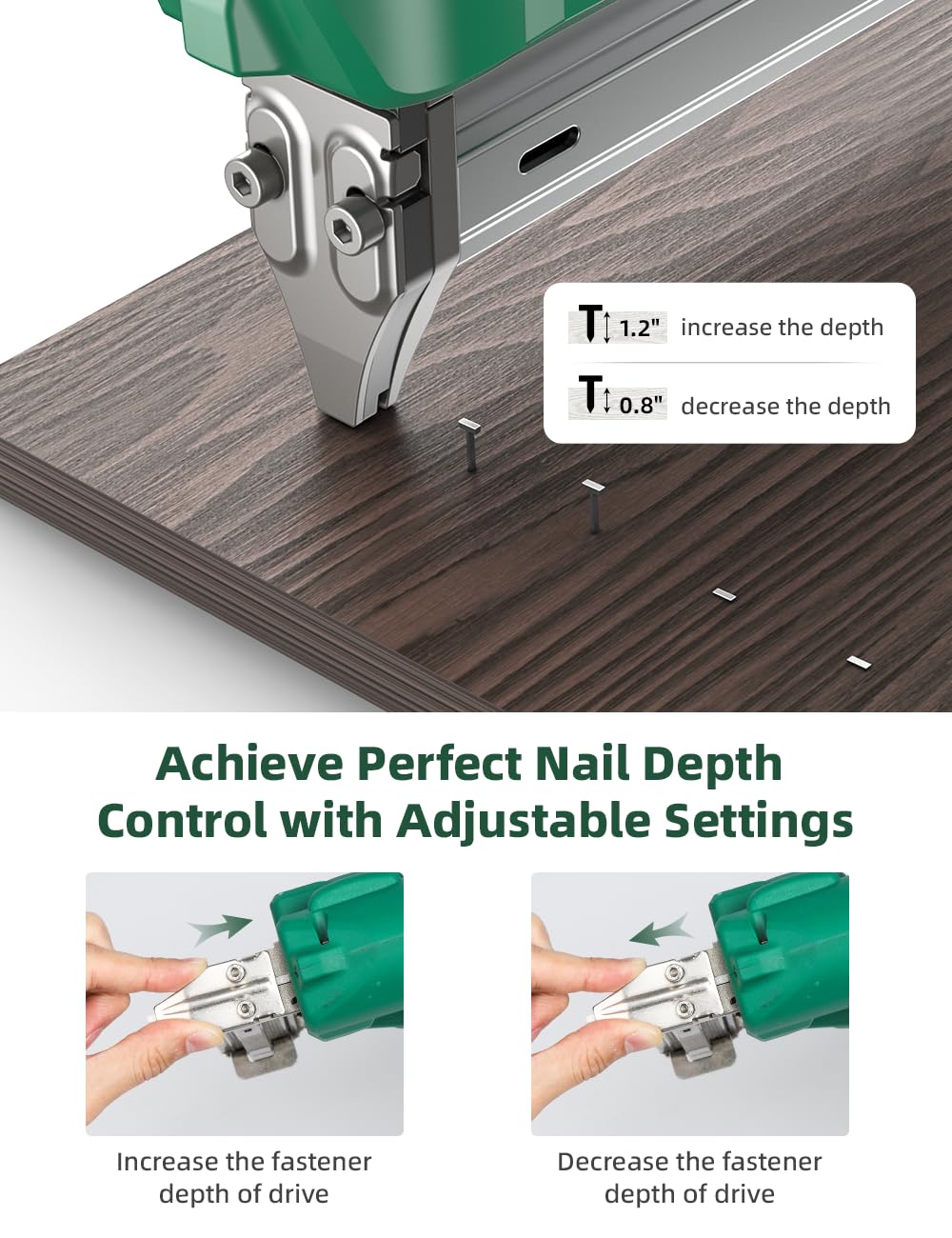

Image: Visual guide demonstrating how to increase or decrease the fastener depth of the drive using the adjustment screws on the nailer's nose.

6. Operating the Brad Nailer

6.1 Powering On/Off and Safety Lock

The tool features a double safety mechanism to prevent accidental firing.

• To activate the tool, ensure the battery is inserted and the safety lock switch is in the unlocked position.
• The tool will only fire when the safety contact pin on the nose is fully depressed against the workpiece and the trigger is pulled.
• Always engage the safety lock when the tool is not in use or when changing nails/making adjustments.

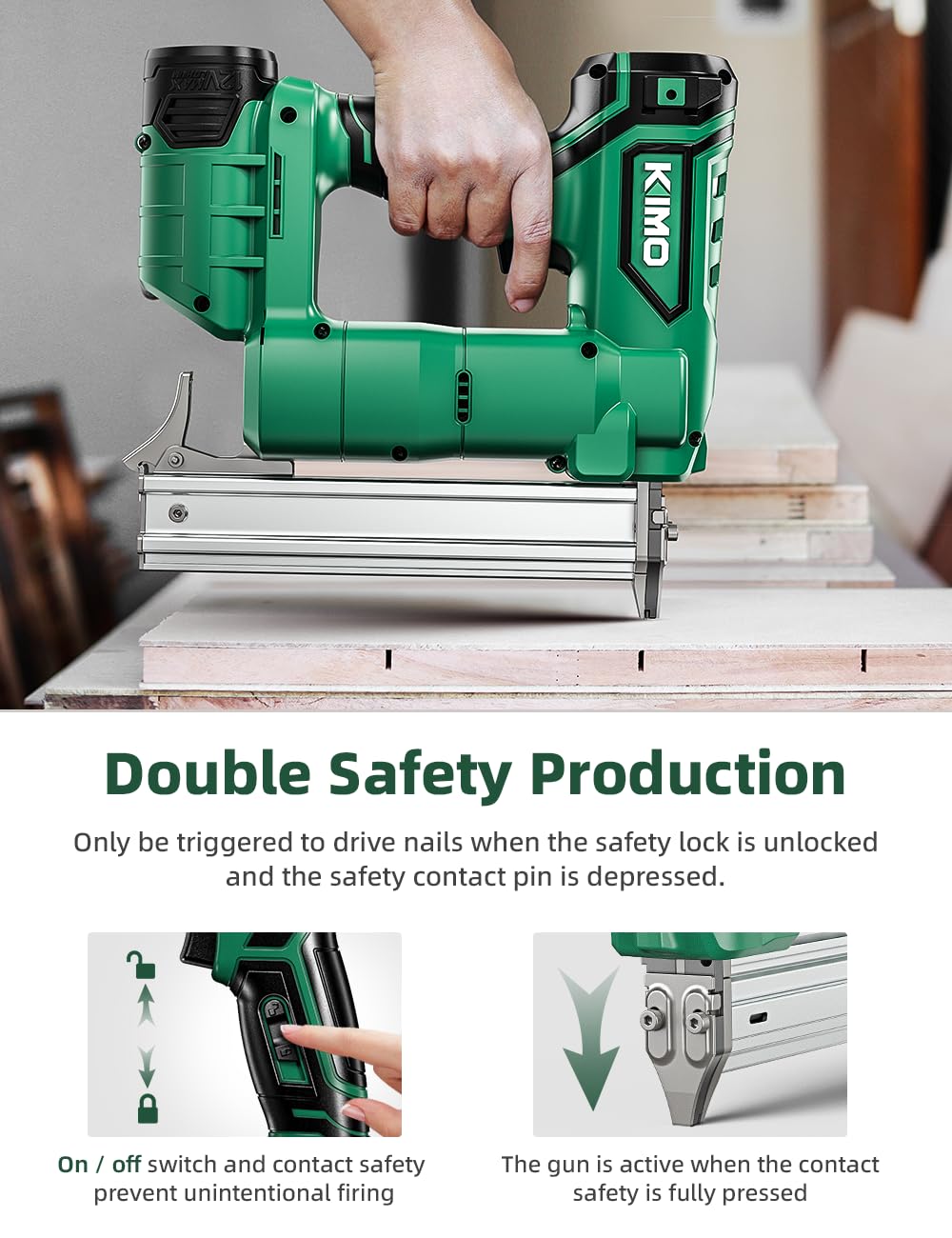

Image: Depiction of the double safety production system, showing the on/off switch and the safety contact pin that must be depressed for firing.

6.2 Selecting Firing Mode

The KIMO Brad Nailer offers two firing modes:

• Single Firing Mode: For precise placement. Depress the safety contact pin against the workpiece, then pull the trigger to fire one nail. Release the trigger and lift the tool to prepare for the next nail.
• Contact Firing Mode: For rapid, repetitive nailing. Hold the trigger, then depress the safety contact pin against the workpiece to fire a nail. Lift the tool and depress the contact pin again to fire another nail.

Image: Visual explanation of the two working modes: Single Firing for precision and Contact Firing for speed.

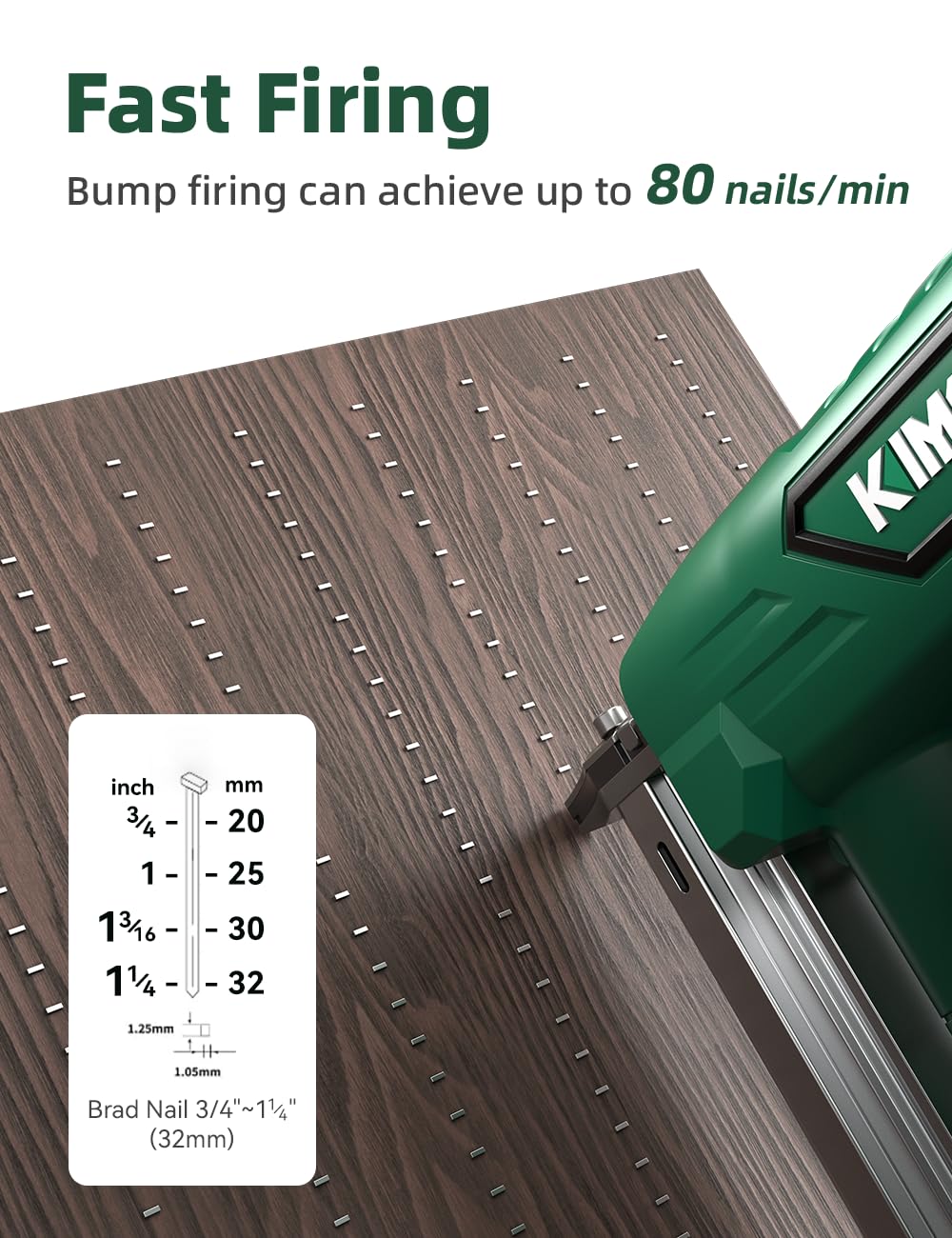

Image: Demonstration of the fast firing capability, showing multiple nails driven into a surface.

6.3 Using the LED Work Light

The integrated LED light illuminates the work surface, providing better visibility in low-light conditions. The light activates automatically when the tool is ready to fire or when the trigger is partially depressed.

Image: Close-up view of the LED work light illuminating the area where the nail will be driven.

7. Maintenance

Regular maintenance ensures optimal performance and extends the life of your tool.

• Cleaning: Keep the tool clean and free of dust and debris. Use a dry cloth to wipe down the exterior. Do not use harsh chemicals or abrasive cleaners.
• Nail Jam Clearing: If a nail jam occurs, disconnect the battery immediately. Refer to the product diagram for the nail magazine release and carefully remove any jammed nails. Do not force the tool.
• Storage: Store the tool and batteries in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the safety lock is engaged and the battery is removed before storage.

8. Troubleshooting

This section addresses common issues you might encounter.

9. Specifications

• Brand: K I M O.
• Model Number: 9419
• Product Dimensions: 9.05 x 9.05 x 0.04 inches; 9.4 Pounds
• Battery Type: Lithium Ion (2 included)
• Nail Gauge: 18 Gauge
• Nail Length Compatibility: 3/4" to 2"
• Material: Plastic, Metal
• Color: Green
• Manufacturer: K I M O.

10. Warranty and Support

KIMO products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official KIMO website. Keep your purchase receipt as proof of purchase.

For further assistance, you may contact KIMO customer service through their official channels. Details can typically be found on the product packaging or the manufacturer's website.
