Golpart Heavy-Duty Garment Rack (Model EA_419B) Instruction Manual

1. Introduction

Thank you for choosing the Golpart Heavy-Duty Garment Rack. This robust and versatile storage solution is designed to help you organize your clothing and accessories efficiently. Constructed from durable metal, it features adjustable shelves and multiple hanging rods to adapt to your specific needs. Please read this manual carefully before assembly and use to ensure proper installation and long-lasting performance.

2. Product Features

• Premium Heavy-Duty Construction: Made from sturdy black-coated steel, this rack measures 40cmD x 158cmW x 194cmH, offering a total capacity of 360KG. Each hanging bar supports up to 36KG, providing a secure and deformation-free storage solution.
• Durable Iron Pipe Design: High-quality iron piping with a powder-coated finish ensures stability and durability. Ideal for various spaces including bedrooms, wardrobes, or clothing stores.
• Customizable and Detachable Storage: Features a flexible sliding sleeve locking system. The 4 wire shelves can be adjusted in 2.54cm increments to meet unique storage requirements. Effortlessly modify shelf height by adjusting clips.
• Versatile and Multifunctional: Equipped with 3 hanging bars and 4 levels of adjustable wire shelves. Perfect for hanging suits, coats, pants, shirts, or heavy clothing in various configurations.
• Effortless Assembly: The clothing rack unit can be assembled in approximately 20 to 30 minutes. Two people are recommended for installation to ensure ease and efficiency.

3. Parts List

Please ensure all parts are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

Image: Overview of the garment rack components and dimensions.

4. Assembly Instructions

Follow these steps for proper assembly. It is recommended that two people assemble this unit.

1. Prepare the Base: Attach the adjustable feet to the bottom of the vertical poles. Ensure they are securely tightened.
2. Install Plastic Clips: For each pole, snap the two halves of a plastic clip together around the pole at your desired shelf height. Ensure the flange of the clip fits into the groove on the pole. The clips should be at the same height on all poles for a level shelf.
3. Attach Bottom Shelves: Carefully slide the wire shelves down over the poles until the sleeves of the shelves fit snugly onto the plastic clips. Apply firm, even pressure. If needed, use a rubber mallet (not included) to gently tap the shelves into place, ensuring they are level and secure.
4. Extend Poles (if necessary): If your design requires taller sections, connect additional pole segments using the connecting tubes. Secure them with plastic clips at the joints.
5. Install Additional Shelves and Hanging Bars: Repeat step 2 and 3 for all remaining wire shelves. For hanging bars, attach them to the designated slots on the poles or shelves using the provided screws and washers.
6. Attach Side Hooks: Secure the side hooks to the outer poles or shelves as desired for additional hanging space.
7. Install Anti-Tip Device: For enhanced safety, especially in households with children or pets, install the anti-tip device by drilling into a wall stud and securing the rack.

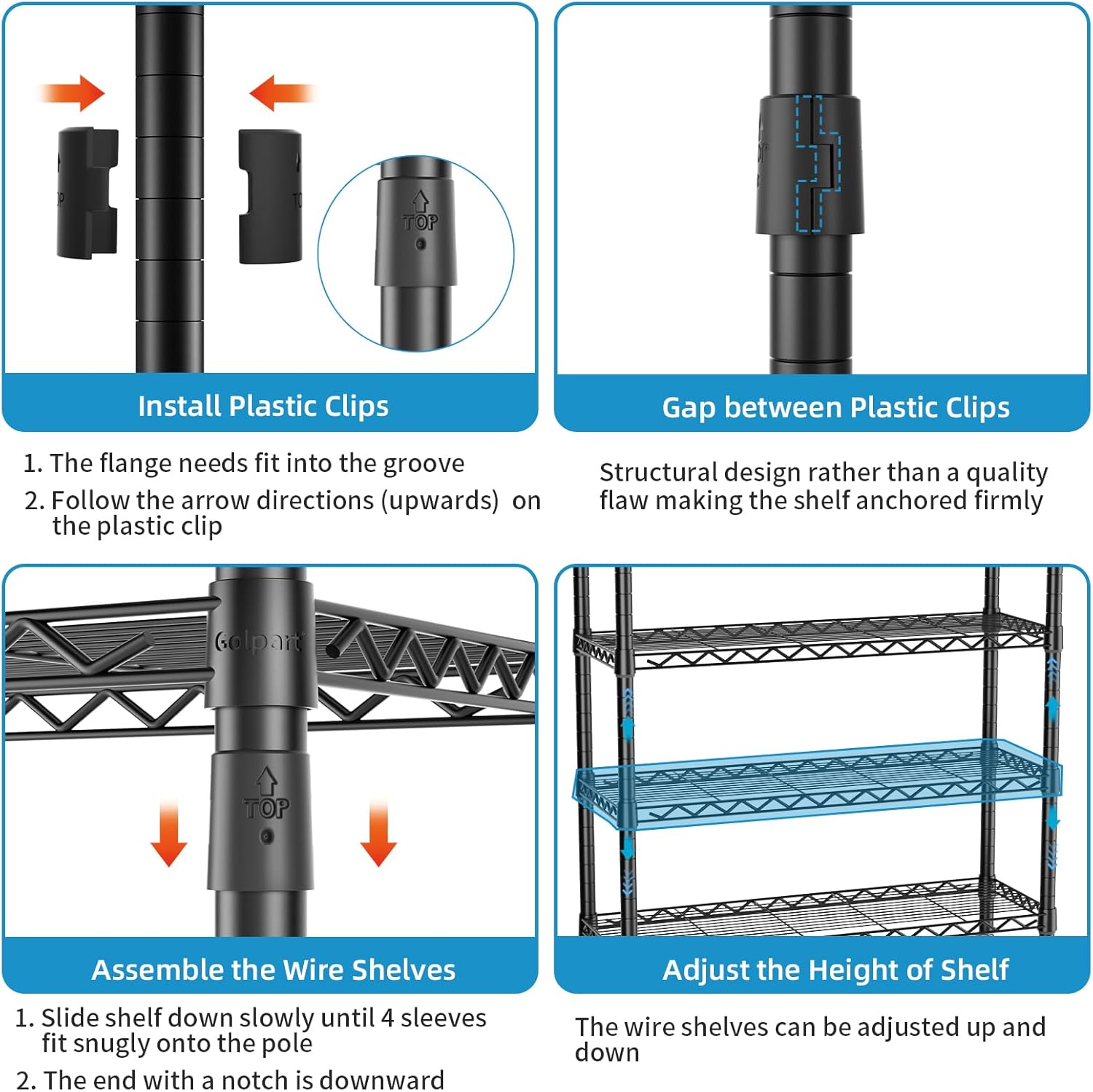

Image: Detailed steps for installing plastic clips and wire shelves.

Assembly Video Guide

Video: Universal metal garment rack assembly guide. This video demonstrates the general assembly process for similar metal shelving units.

Video: Installation guide for a clothing rack. This video provides additional visual aid for the installation process.

5. Operating Instructions

Once assembled, the Golpart Garment Rack offers flexible storage options:

• Hanging Clothes: Utilize the three hanging bars for shirts, dresses, coats, and pants. The adjustable height of the bars allows for accommodating garments of various lengths.
• Shelf Storage: Place folded clothing, shoes, bags, or storage boxes on the wire shelves. Adjust shelf heights as needed to maximize space for different items.
• Accessory Hooks: Use the side hooks for hanging belts, scarves, hats, or small bags.
• Configuration: The modular design allows for linear or L-shaped configurations to best fit your space.

Image: Garment rack in a linear configuration, showcasing its storage capacity.

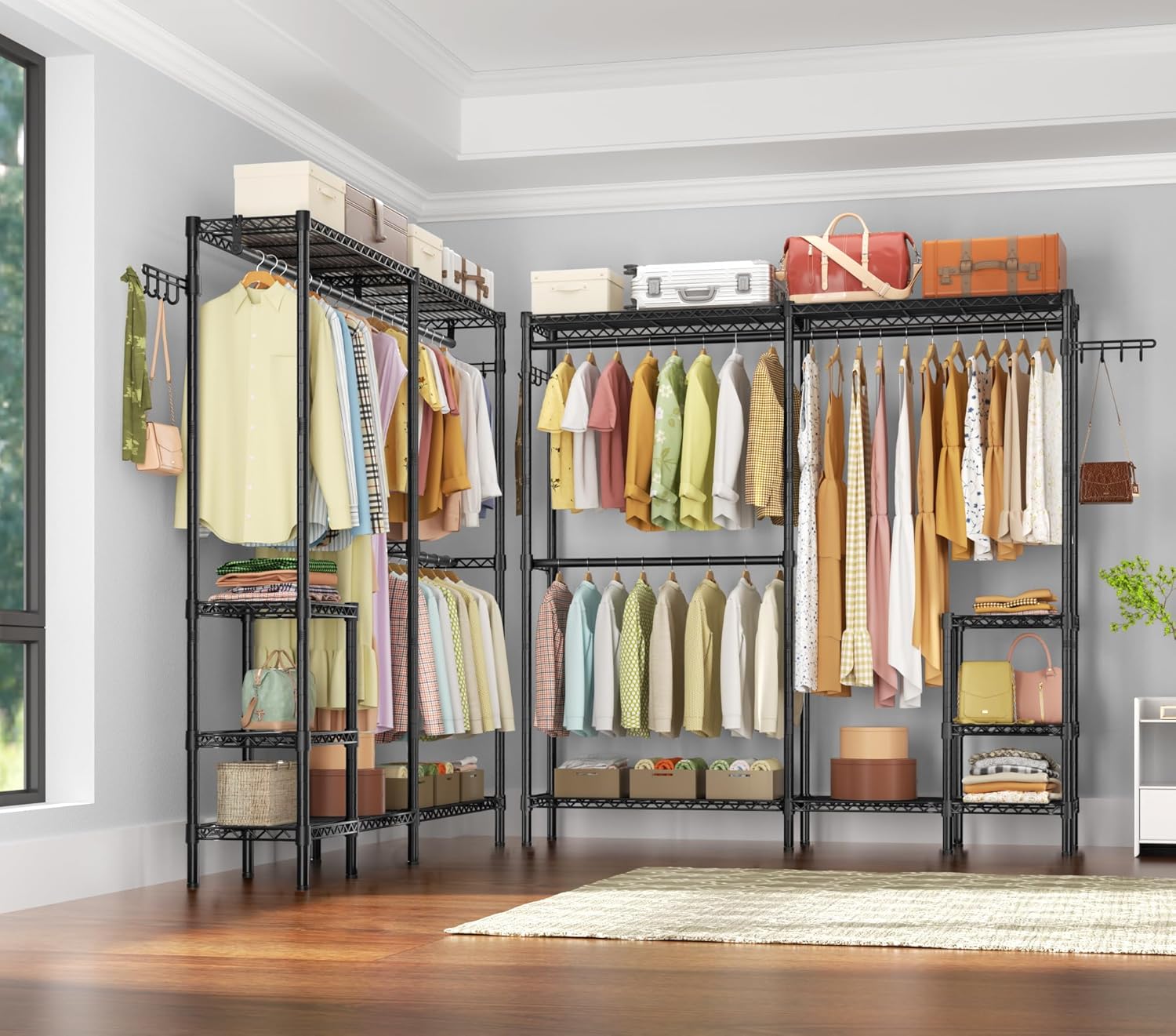

Image: Garment rack in an L-shaped configuration, ideal for corner spaces.

6. Maintenance

• Cleaning: Wipe down the metal surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Regular Checks: Periodically check all connections, screws, and plastic clips to ensure they remain tight and secure. Re-tighten if necessary.
• Weight Distribution: Distribute weight evenly across shelves and hanging bars to prevent tipping or damage. Do not exceed the maximum load capacity.
• Relocation: When moving the rack, empty it of all contents first to prevent structural stress or damage.

7. Troubleshooting

• Rack is Wobbly:
  • Ensure all plastic clips are fully seated in the pole grooves and that shelves are firmly pressed down onto the clips.
  • Check that all pole connections are secure.
  • Adjust the leveling feet at the bottom of the poles to stabilize the rack on uneven floors.
• Shelf is Not Level:
  • Verify that the plastic clips on all four poles supporting the shelf are at the exact same height.
  • Ensure the shelf sleeves are fully engaged with the plastic clips.
• Difficulty Sliding Shelves:
  • Ensure plastic clips are correctly installed and aligned.
  • Apply gentle, even pressure. A rubber mallet can assist in seating the shelves.

8. Specifications

9. Warranty and Support

For warranty information or customer support, please refer to the product packaging or contact the retailer where you purchased this item. Unauthorized modifications will void the warranty.
