Qaba Toddler Tricycle (Model 370-267V00WT) Instruction Manual

1. Introduction and Important Safety Information

Thank you for choosing the Qaba Toddler Tricycle. This manual provides essential information for the safe assembly, operation, and maintenance of your tricycle. Please read it thoroughly before use and retain it for future reference.

1.1 Safety Warnings

• Adult Supervision Required: Always monitor your children while they are riding the tricycle. Never leave a child unattended.
• Age and Weight Limits: This tricycle is designed for children aged 18 months to 5 years, with a maximum weight capacity of 55 lbs (25 kg). Do not exceed these limits.
• Protective Gear: Ensure the child wears appropriate safety gear, including a helmet, knee pads, and elbow pads, especially when learning to ride.
• Safe Riding Environment: Use the tricycle on flat, even surfaces away from traffic, steep inclines, stairs, swimming pools, and other hazards.
• Pre-Ride Check: Before each use, check that all bolts and fasteners are securely tightened, the wheels spin freely, and the steering is functional.
• No Modifications: Do not modify the tricycle in any way, as this may compromise its safety and void the warranty.

2. Package Contents

Carefully unpack all components and verify that all parts are present before beginning assembly. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

• Tricycle Frame
• Front Wheel
• Rear Wheels (2)
• Seat
• Handlebar
• Basket
• Bell
• Assembly Hardware (bolts, nuts, washers)
• Assembly Tool (wrench)

Figure 2.1: Overview of tricycle components. Ensure all parts shown are present in the package.

3. Setup and Assembly Instructions

Assembly is straightforward. Follow these steps carefully to ensure the tricycle is correctly and safely put together. A basic wrench is included for assembly.

1. Attach Rear Wheels: Securely attach the two rear wheels to the main frame using the provided hardware. Ensure they are firmly in place and spin freely.
2. Install Front Wheel and Fork: Insert the front wheel assembly into the main frame's fork. Ensure the steering mechanism is aligned correctly.
3. Mount Handlebar: Attach the handlebar to the front fork stem. Tighten the fasteners to prevent any wobbling.
4. Install Seat: Place the seat onto the frame and secure it. The seat height is adjustable; refer to Section 4.1 for adjustment details.
5. Attach Basket and Bell: Mount the basket to the front of the tricycle and attach the bell to the handlebar.
6. Final Check: Double-check all connections, bolts, and nuts to ensure they are tight and secure before allowing a child to use the tricycle.

Figure 3.1: The tricycle after assembly, with the included wrench for tightening components.

4. Operating Instructions

The Qaba Toddler Tricycle is designed for ease of use and comfort for young riders. Always ensure the child is supervised during operation.

4.1 Adjustable Seat

The tricycle features a 1.2-inch adjustable seat to accommodate children as they grow. To adjust the seat, locate the adjustment mechanism beneath the seat, loosen the fastener, slide the seat to the desired position, and securely tighten the fastener. Ensure the child's feet can comfortably reach the pedals.

Figure 4.1: Detail of the adjustable seat, allowing for a customized fit.

4.2 Riding the Tricycle

• Instruct the child to sit firmly on the seat and place their feet on the slip-resistant pedals.
• Encourage the child to push the pedals in a circular motion to move forward.
• Guide the child on how to steer using the handlebars.
• The integrated bell can be used for fun and to alert others to the child's presence.
• The front basket provides convenient storage for small toys or snacks during rides.

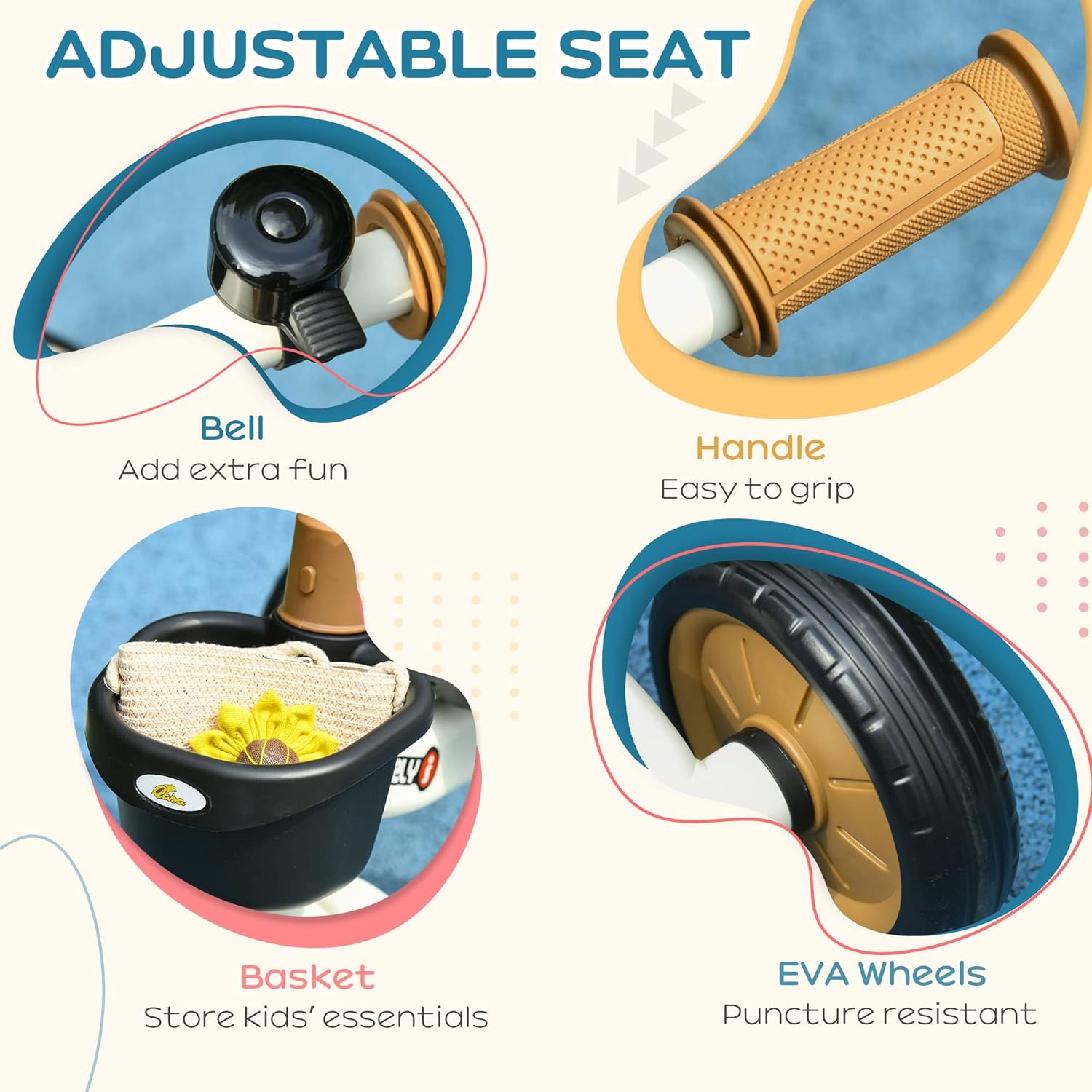

Figure 4.2: Key features of the tricycle, including the bell, basket, and handlebar grips.

Figure 4.3: A child demonstrating proper riding posture on the tricycle.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your Qaba Toddler Tricycle.

• Cleaning: Wipe down the tricycle with a damp cloth and mild soap as needed. Avoid harsh chemicals or abrasive cleaners.
• Inspections: Periodically check all bolts, nuts, and fasteners for tightness. Re-tighten any loose components.
• Wheels: The EVA wheels are puncture-resistant and require minimal maintenance. Ensure they are free of debris and spin smoothly.
• Storage: Store the tricycle in a dry, covered area to protect it from weather elements when not in use.

Figure 5.1: Detail of the durable, puncture-resistant EVA wheels.

Figure 5.2: The slip-resistant pedals are designed for secure foot placement.

6. Troubleshooting

If you encounter any issues with your Qaba Toddler Tricycle, refer to the following common solutions:

• Tricycle feels unstable: Check all assembly points, especially the handlebar and seat connections, to ensure they are securely tightened.
• Wheels do not spin freely: Inspect the wheels for any debris or obstructions. Ensure the wheel axles are not overtightened during assembly.
• Pedals are stiff: Check for any foreign objects obstructing the pedal mechanism. A small amount of lubricant can be applied to the pedal axle if necessary.
• Child cannot reach pedals: Adjust the seat position forward to ensure the child's legs can comfortably reach and operate the pedals.

If the issue persists after attempting these solutions, please contact customer support for further assistance.

7. Specifications

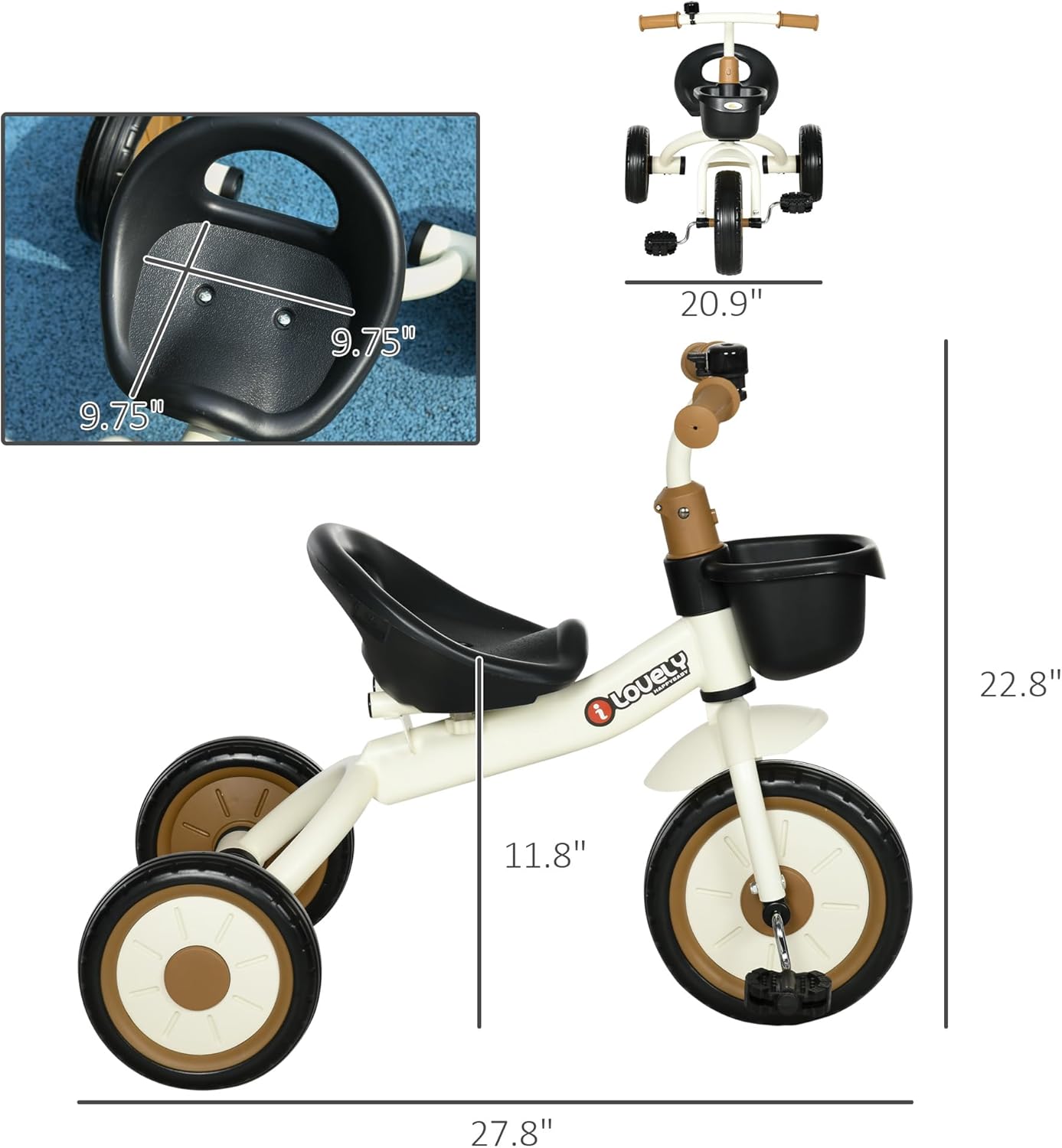

Figure 7.1: Detailed dimensions of the tricycle for reference.

8. Warranty Information

For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Qaba website. Warranty coverage typically includes manufacturing defects for a specified period from the date of purchase.

9. Customer Support

If you have any questions, require assistance with assembly, or need to report a missing/damaged part, please contact Qaba customer support. You can typically find contact information on the product packaging, the official Qaba website, or through your retailer.

Manufacturer: Aosom LLC
