Introduction
This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your Beko BDFN15420B freestanding dishwasher. Please read this manual thoroughly before using the appliance and retain it for future reference.

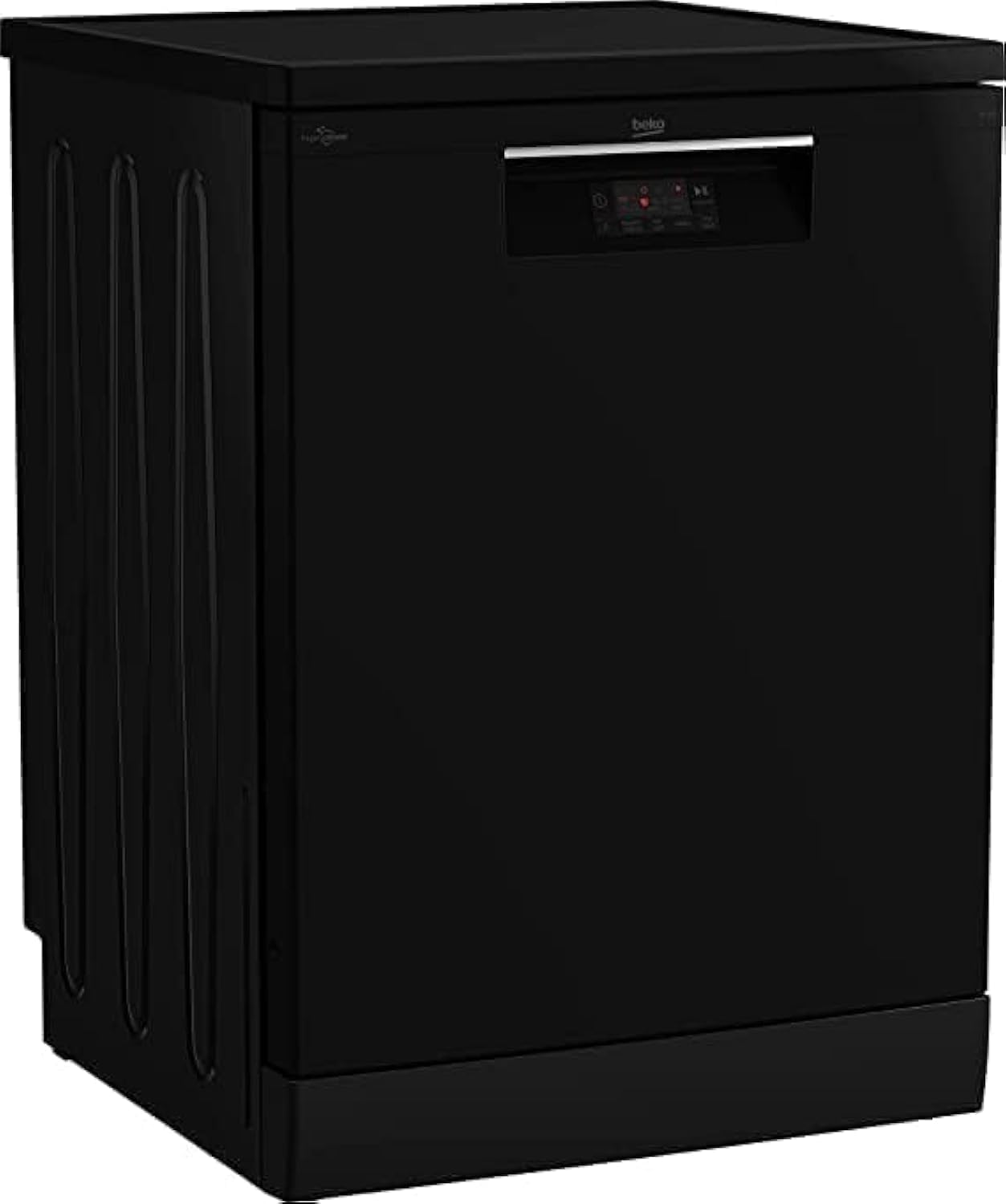

Image: Front-side view of the Beko BDFN15420B freestanding dishwasher in black, showcasing its sleek design and control panel.
Important Safety Information
Observe the following safety precautions to reduce the risk of fire, electric shock, injury to persons, or damage to the appliance.
- Electrical Safety: Ensure the appliance is properly grounded. Do not use extension cords. Disconnect power before servicing.
- Water Safety: Ensure water connections are secure to prevent leaks. Do not operate if the water inlet hose is damaged.
- Child Safety: Keep children away from the dishwasher, especially when the door is open. Detergents are corrosive.
- General Use: Only use detergents and rinse aids specifically designed for automatic dishwashers. Do not sit or stand on the open door.
Setup and Installation
Unpacking
Carefully remove all packaging materials. Inspect the dishwasher for any shipping damage. Report any damage to your retailer immediately. Keep packaging materials away from children.
Placement
Place the dishwasher on a level, stable floor. Ensure there is adequate space for the door to open fully. The appliance dimensions are approximately 60 cm (width) x 60 cm (depth) x 85 cm (height).

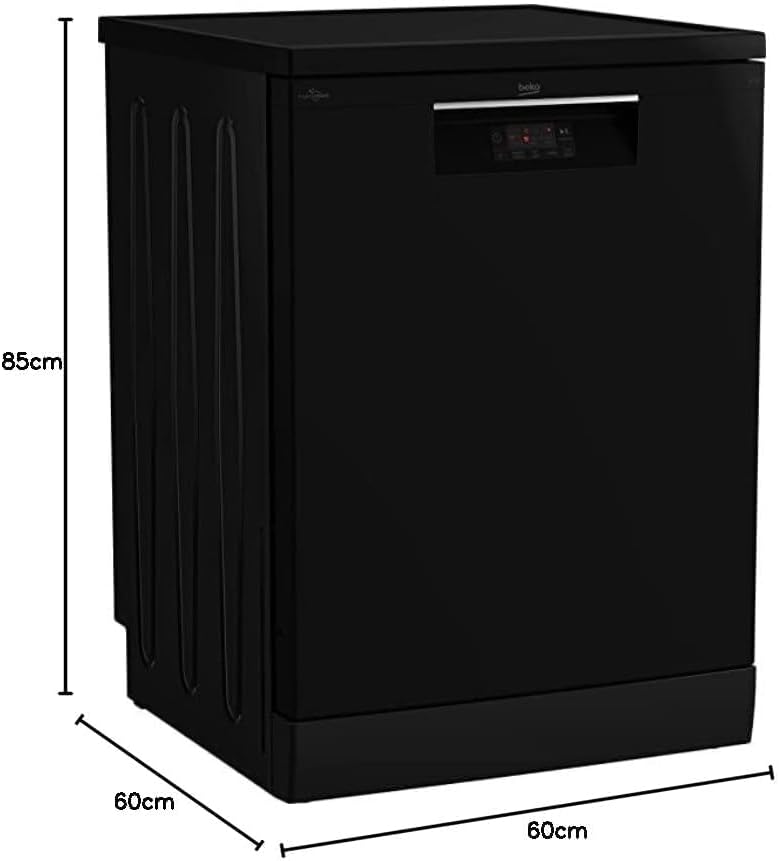

Image: Front-side view of the Beko BDFN15420B dishwasher with labeled dimensions: 85cm height, 60cm width, and 60cm depth. This illustrates the physical size of the appliance for installation planning.
Water and Electrical Connections
Connect the water inlet hose to a cold water supply tap. Ensure the drain hose is properly connected to a drain outlet, preventing kinks or blockages. Plug the power cord into a grounded electrical outlet (240 Volts). Refer to the installation diagram in the full manual for detailed instructions.
First Use
Before the first wash, fill the salt dispenser (if applicable to your model) and rinse aid dispenser. Run an empty cycle with detergent to clean the interior of the appliance.
Operating Instructions
Control Panel Overview
The control panel features push buttons for program selection, start/pause, and special functions. Indicator lights display program status, salt, and rinse aid levels.
Image: A close-up view of the dishwasher's control panel, showing the program selection buttons and digital display. This panel allows users to choose wash cycles and monitor the dishwasher's status.
Loading the Dishwasher
Proper loading ensures optimal cleaning performance. Scrape off large food particles before loading. Avoid overcrowding.
- Lower Basket: Ideal for large items like plates, bowls, pots, and pans.
- Upper Basket: Suitable for glasses, cups, small plates, and delicate items.
- Cutlery Basket: Place cutlery with handles down, except for knives and sharp utensils which should be placed handles up for safety.
Image: The interior of the Beko BDFN15420B dishwasher with the door open, revealing the upper and lower baskets loaded with various dishes, glasses, and cutlery. This demonstrates typical loading capacity and arrangement.
Image: A person is shown actively loading dishes into the lower rack of a Beko dishwasher, illustrating the practical use of the appliance's interior space.
Adding Detergent and Rinse Aid
Open the detergent dispenser and add the recommended amount of dishwasher detergent. Close the dispenser cover securely. Fill the rinse aid dispenser to the indicated level for improved drying and shine.
Image: A detailed view of the dishwasher's detergent dispenser compartment, showing where to add detergent for a wash cycle.
Program Selection
Your dishwasher offers 5 wash programs:
- Intensive: For heavily soiled dishes, pots, and pans.
- Normal: For everyday soiled dishes.
- Quick Wash: For lightly soiled dishes that need a fast wash.
- Rinse Only: For rinsing dishes that will be washed later.
- Eco: An energy-efficient program for normally soiled dishes.
Select the appropriate program using the control panel buttons.
Special Features
- Half Load: Optimizes water and energy consumption when the dishwasher is not fully loaded.
- Steam Gloss: Enhances drying performance and provides extra shine to glassware and dishes.
- Hygiene Intense: Provides a higher temperature wash and rinse for improved sanitization.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your dishwasher.
Cleaning Filters
The filter system should be cleaned regularly to prevent blockages and ensure efficient washing. Twist and remove the coarse filter, then separate the fine filter. Rinse both under running water. Reassemble and secure firmly.
Cleaning Spray Arms
Check the spray arm nozzles for blockages. If necessary, remove the spray arms and clear any debris from the holes using a thin object like a toothpick.
Exterior and Interior Cleaning
Wipe the exterior with a damp cloth. For the interior, periodically run a dishwasher cleaning cycle with a specialized cleaner or a cup of white vinegar placed in the upper rack.
Troubleshooting
Before contacting service, review the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishwasher does not start | Power supply issue, door not closed properly, program not selected. | Check power connection, ensure door is latched, select a program and press start. |
| Dishes are not clean | Improper loading, clogged spray arms, insufficient detergent, incorrect program. | Reload dishes correctly, clean spray arms and filters, use adequate detergent, select a more intensive program. |
| Water leakage | Loose hose connections, damaged door seal, excessive foam from detergent. | Check and tighten hose connections, inspect door seal for damage, use only recommended dishwasher detergent. |
| Dishwasher is noisy | Items hitting spray arms, foreign object in pump, improper installation. | Rearrange dishes, check for foreign objects, ensure dishwasher is level. |
Specifications
Key technical specifications for the Beko BDFN15420B dishwasher:
- Model: BDFN15420B
- Capacity: 14 Place Settings
- Number of Programs: 5 (Intensive, Normal, Quick Wash, Rinse Only, Eco)
- Special Features: Half Load, Steam Gloss, Hygiene Intense
- Installation Type: Freestanding
- Dimensions (H x W x D): 85 cm x 60 cm x 60 cm (approximate)
- Voltage: 240 Volts
- Annual Energy Consumption: 266.3 Kilowatt Hours
- Noise Level: 49 dB
- Controls Type: Push Button
- Color: Black
- Included Components: Cutlery Basket
Warranty and Support
Your Beko BDFN15420B dishwasher comes with a manufacturer's warranty. For specific terms and conditions, please refer to the warranty card included with your appliance or visit the official Beko website.
- Manufacturer Warranty: 5 years
- Extended Warranty Options: Additional 1-Year or 2-Year Extended Warranty by Salama Care may be available for purchase.
For technical assistance, spare parts, or to schedule a service appointment, please contact Beko customer support. Have your model number (BDFN15420B) and serial number ready when you call.
