1. Introduction
This manual provides essential information for the safe and efficient use of your Renogy 12V 100Ah Smart Lithium Iron Phosphate Battery PRO LT Series. Please read this manual thoroughly before installation and operation. Keep it for future reference.

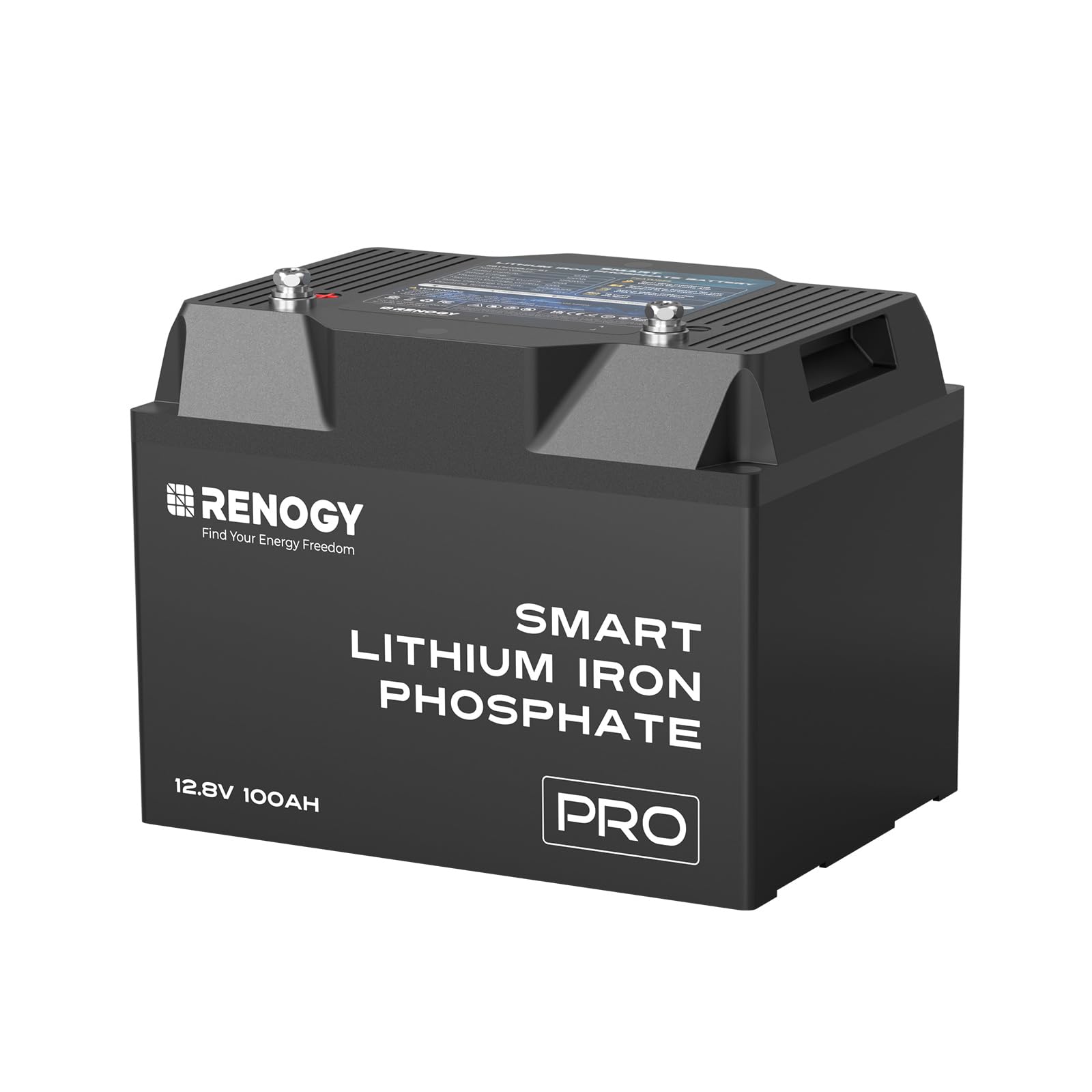

Image 1.1: Renogy 12V 100Ah Smart Lithium Iron Phosphate Battery PRO LT Series
2. Safety Information
Always observe the following safety precautions to prevent personal injury or damage to the battery and connected equipment.
- Do not disassemble, modify, or puncture the battery.
- Avoid short-circuiting the battery terminals.
- Do not expose the battery to fire, high temperatures, or direct sunlight.
- Keep the battery away from water and other liquids unless specifically designed for such environments (this model is IP67 rated, but avoid submersion).
- Use only compatible chargers and charging methods.
- Ensure proper ventilation during charging and discharging.
- Wear appropriate personal protective equipment (PPE) when handling batteries.
- In case of fire, use a Class D fire extinguisher. Water may not be effective.
Image 2.1: Illustration of potential risks from heat generation in batteries.
Image 2.2: The battery is designed with protection against various hazards including over-temperature, over-voltage, short circuits, and over-current.
3. Product Features
The Renogy 12V 100Ah Smart Lithium Iron Phosphate Battery PRO LT Series offers advanced features for reliable power storage:
- Dual Active Protection System: Features over 60 BMS protections and an active backup protection system. This system cuts the circuit in case of hardware failure, protecting the battery from continuous overheating. It responds 40 times faster than conventional systems, within 15 seconds.
- Integrated Self-Heating Function: Allows charging in cold environments (below 5°C). Heating starts automatically below 5°C and stops above 10°C. Requires a stable charging current of at least 4A per battery from the charging device for the heating function to operate.
- Bluetooth Monitoring: Built-in Bluetooth enables easy monitoring of battery parameters via the DC HOME app.
- UL94 V-0 Fire-Retardant Casing: Enhanced casing with a UL94 V-0 fire rating actively prevents the spread of vertical burning within 10 seconds, maximizing protection for the battery and your system.
- Wobble-Free Design: Features a robust internal structure to support cells and protect against vibration. Integrated mounting holes and a battery fix bracket ensure secure installation in RVs or other applications.
- Superior Durability & Protection: Offers a long cycle life of over 5000 cycles at 80% Depth of Discharge (DOD). It boasts an IP67 waterproof rating and ISO 9227 certified corrosion resistance, ensuring reliable performance in harsh environments.
Image 3.1: Overview of key features including dual safety, fire-retardant casing, heating, IP67 rating, Bluetooth, and app monitoring.
Image 3.2: The battery offers 200% more protection and 47% improved temperature tolerance compared to previous models.
Image 3.3: The battery's active backup protection responds to BMS or hardware failures 40 times faster, cutting the circuit within 15 seconds.
Image 3.4: The integrated heating function allows the battery to operate effectively in cold conditions, unlike systems requiring external heating.
Image 3.5: The battery features UL94 V-0 flame retardancy and 5 temperature sensors for comprehensive monitoring.
Image 3.6: The battery offers reliable performance with over 5000 cycles and holds UL and other safety certifications.
4. Package Contents
Verify that all items are included in your package:
- 1x Renogy 12V 100Ah Smart Lithium Iron Phosphate Battery PRO LT Series
- 1x User Manual
- 2x Terminal Bolts (short)
- 2x Long Terminal Bolts
Image 4.1: The package includes the battery unit, user manual, and two sets of terminal bolts.
5. Setup
5.1. Installation Location
Install the battery in a clean, dry, and well-ventilated area. Ensure the mounting surface is sturdy enough to support the battery's weight. The wobble-free design with integrated mounting holes allows for secure installation.
5.2. Wiring
Connect the battery terminals using appropriate cables and connectors. Ensure correct polarity (positive to positive, negative to negative). Tighten all connections securely to prevent loose contacts and potential hazards.
5.3. Parallel Connection
Multiple batteries can be connected in parallel to increase overall capacity. This model supports parallel connection of up to 8 units, expanding the total energy storage to 10.24 kWh (for 12.8V 800Ah configuration). Note: Series connection is not supported for this model.
Image 5.1: Diagram showing eight Renogy 12V 100Ah batteries connected in parallel to achieve 10.24 kWh.
6. Operating
6.1. Initial Charge
It is recommended to fully charge the battery before its first use.
6.2. Charging in Cold Weather
The integrated self-heating function allows charging even when the battery temperature is below 5°C. Ensure your charging device can provide a stable current of at least 4A per battery to activate the heating function.

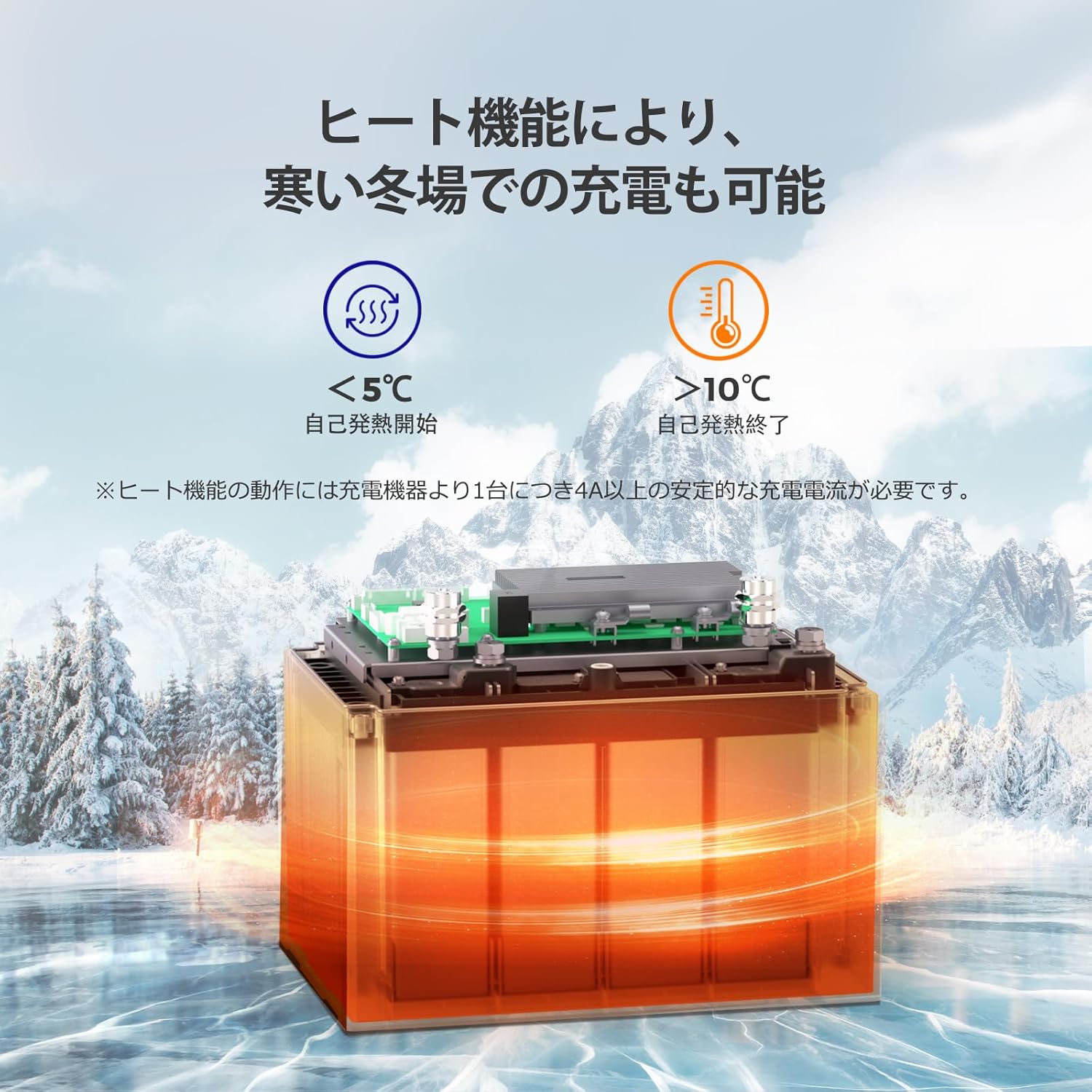

Image 6.1: The battery's heating function enables charging in cold winter conditions (heating starts below 5°C, stops above 10°C).
6.3. Battery Monitoring (Bluetooth)
Download the Renogy DC HOME app on your smartphone to monitor battery status, voltage, current, temperature, and other parameters in real-time via Bluetooth. This allows for convenient management and optimization of battery usage.

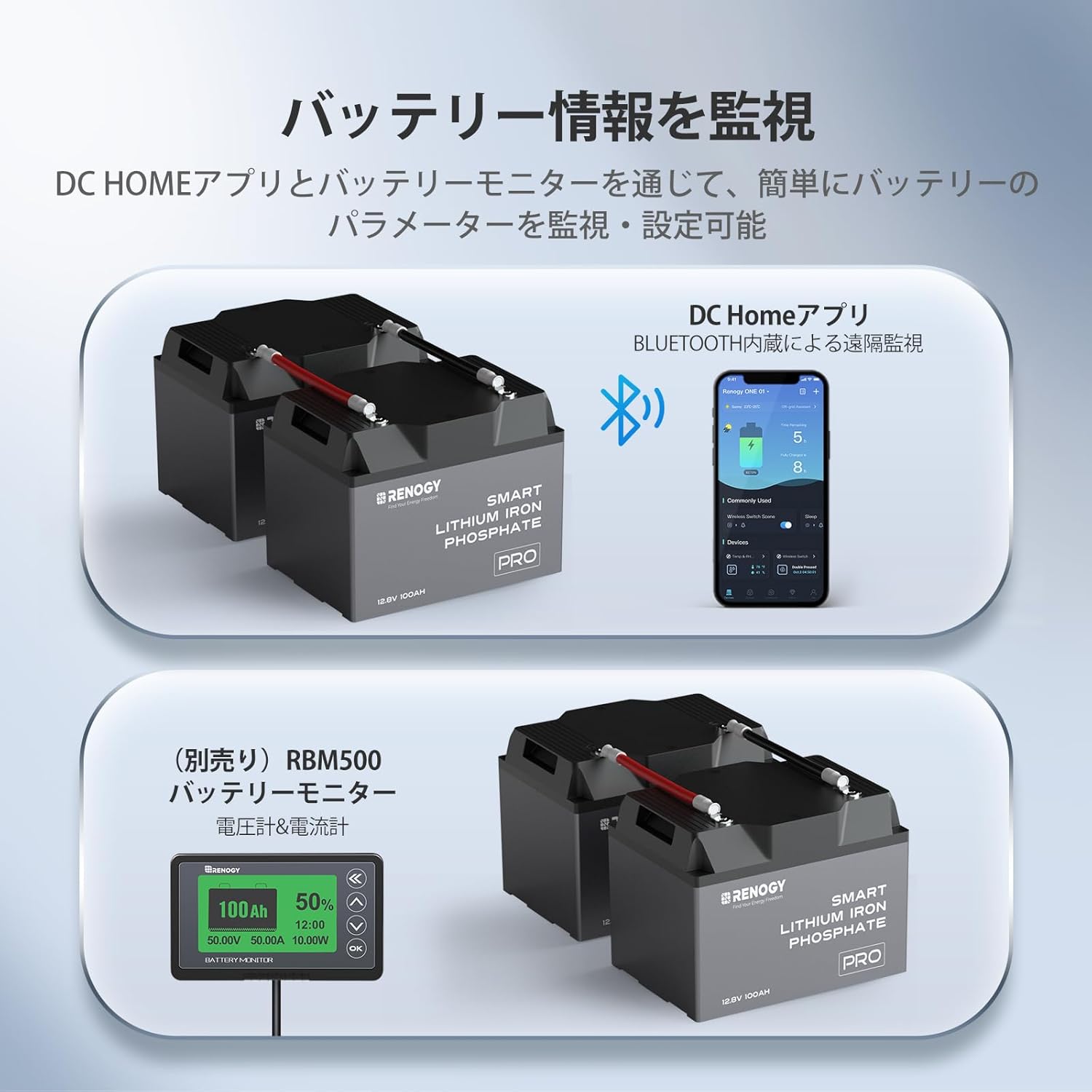

Image 6.2: Monitor battery information easily through the DC HOME app (Bluetooth) or an optional RBM500 battery monitor.
6.4. Rapid Charging Technology
The battery is designed to handle rapid charging. The recommended charging current is 50A, and the maximum continuous discharge current is 100A.

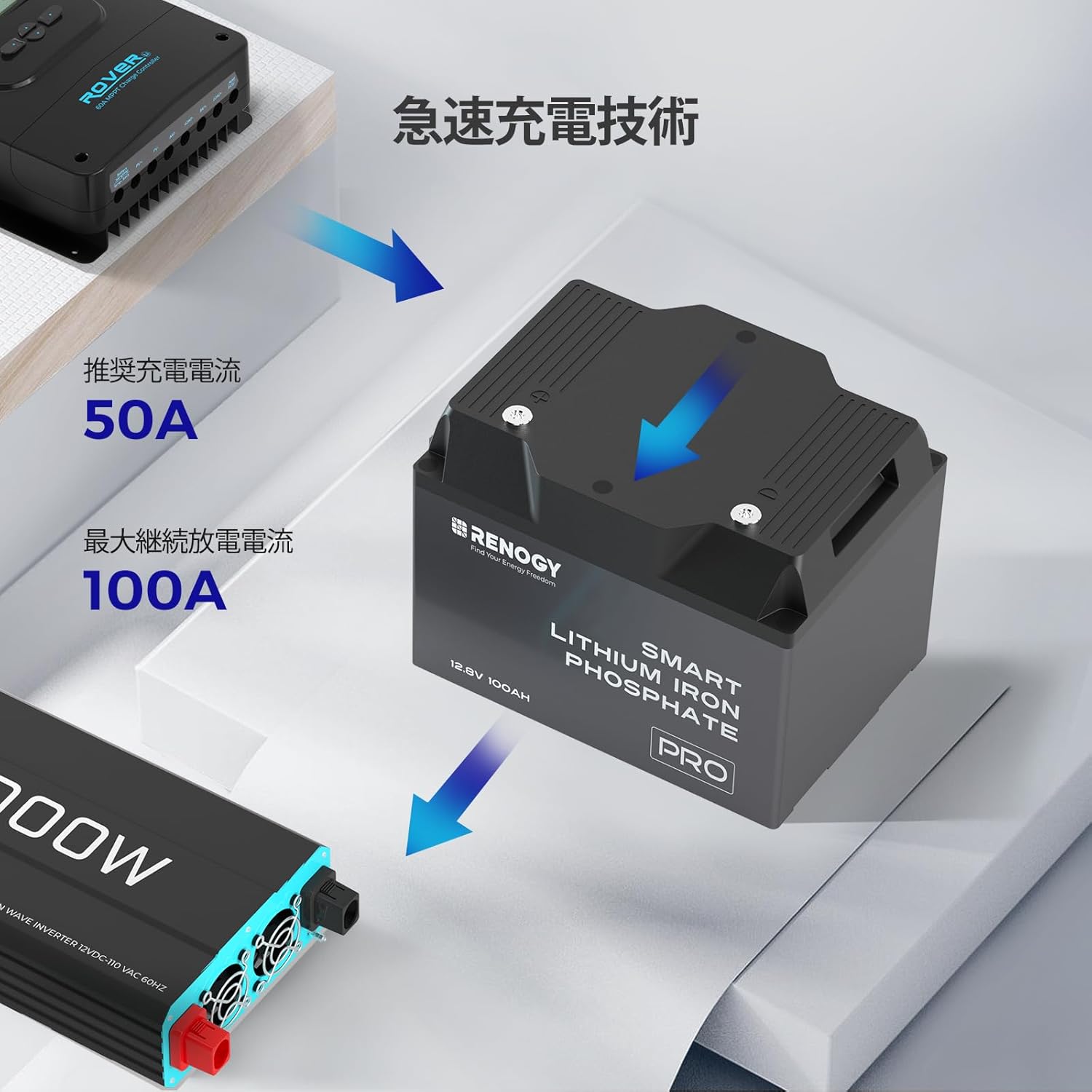

Image 6.3: Illustration of rapid charging technology, showing recommended 50A charging current and 100A maximum continuous discharge current.
7. Maintenance
- Regularly inspect the battery for any signs of damage, corrosion, or loose connections.
- Keep the battery terminals clean and free of debris.
- Store the battery in a cool, dry place when not in use for extended periods.
- Avoid fully discharging the battery for prolonged periods to maximize its lifespan.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging | Loose connections, faulty charger, battery temperature too low (without sufficient charging current for heating) | Check all connections. Verify charger functionality. Ensure charging current is sufficient for heating if ambient temperature is below 5°C. |
| Battery not discharging | Over-discharge protection activated, BMS fault | Charge the battery to reset protection. If issue persists, contact support. |
| Bluetooth connection issues | App not updated, Bluetooth disabled, battery too far | Ensure the DC HOME app is updated. Check device Bluetooth settings. Move closer to the battery. |
| Heating function not activating | Insufficient charging current, ambient temperature above 10°C | Ensure the charger provides at least 4A per battery. Heating only activates below 5°C. |
9. Specifications
| Feature | Specification |
|---|---|
| Brand | Renogy |
| Model Number | 12V 100Ah |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 12.8V |
| Capacity | 100Ah |
| Energy | 1280Wh |
| Cycle Life | 5000+ cycles (@80% DOD) |
| Max Continuous Discharge Current | 100A |
| Recommended Charging Current | 50A |
| Waterproof Rating | IP67 |
| Corrosion Resistance | ISO 9227 Certified |
| Fire Retardancy | UL94 V-0 Casing |
| Dimensions (L x W x H) | 26.8 x 19.3 x 20.5 cm |
| Weight | 10.5 kg |
| Operating Temperature (Discharge) | -20°C to 60°C |
| Operating Temperature (Charge) | 0°C to 45°C (with heating function: -20°C to 45°C) |
10. Warranty and Support
The Renogy 12V 100Ah Smart Lithium Iron Phosphate Battery PRO LT Series comes with a 5-year quality warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For technical support, warranty claims, or any questions regarding your product, please contact Renogy customer service. Refer to the contact information provided on the official Renogy website or your purchase documentation.
