AGARO Crest Portable Spot Cleaner User Manual

Introduction

Thank you for choosing the AGARO Crest Portable Spot Cleaner. This powerful and versatile machine is designed to effectively remove tough stains from carpets, upholstery, and auto interiors. With its strong suction and dual tank system, it provides a convenient solution for maintaining a clean home, especially for households with children and pets. Please read this manual thoroughly before operation to ensure safe and efficient use of your new cleaner.

Image: The AGARO Crest Portable Spot Cleaner, a compact white unit with two transparent tanks and a hose wrapped around its base.

Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.

• Do not immerse the appliance in water or other liquids.
• Do not use the appliance if the cord or plug is damaged.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Unplug from outlet when not in use and before cleaning.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

Package Contents

Verify that all items are present in the package:

• Main Unit
• Quick Release Cord Wrap
• Hose Connection Tool
• Standard Brush
• Self-Cleaning Brush
• Deep Stain Tool

Image: A visual representation of all included accessories: the main unit, quick release cord wrap, hose pipe, deep stain tool, gentle brush, and self-cleaning brush.

Setup

1. Fill the Clean Water Tank: Locate the 1.8L clean water tank (typically the larger, lighter-colored tank). Fill it with clean water. You may add a small amount of cleaning solution if desired, though the machine is designed to work effectively with water alone.
2. Attach the Hose: Connect the hose securely to the main unit.
3. Select the Cleaning Tool: Choose the appropriate cleaning tool for your task. Use the Deep Stain Tool for carpets and tough stains, and the Gentle Brush for more delicate surfaces like sofas and curtains.
4. Plug In: Plug the power cord into a suitable electrical outlet.

Image: A step-by-step guide illustrating how to prepare the cleaner by filling the tank, choosing the correct cleaning tool, and then cleaning by spraying, brushing, and suctioning.

Image: An illustration highlighting the dual tank system, showing the 1.8L Clean Water Tank and the 600ml Dirty Water Tank. A note indicates automatic shut-off when the dirty water tank is full.

Operating Instructions

Follow these steps for effective stain removal:

1. Pre-treat (Optional): For very tough or dried stains, you may pre-treat the area with a suitable cleaning solution before using the machine.
2. Spray: Position the cleaning tool over the stain. Press the trigger on the handle to spray water (and solution, if added) onto the stained area. Allow the water to penetrate and loosen the dirt.
3. Brush: Gently scrub the stained area with the brush attachment to agitate the dirt and help lift it from the fibers.
4. Suction: Release the spray trigger and press the cleaning tool firmly against the surface. Slowly pull the tool across the stained area to suction up the dirty water. Repeat as necessary until the stain is removed and the water being extracted appears clean.
5. Auto Shut-off: The machine will automatically shut off when the dirty water tank is full, preventing overflow and protecting the unit.

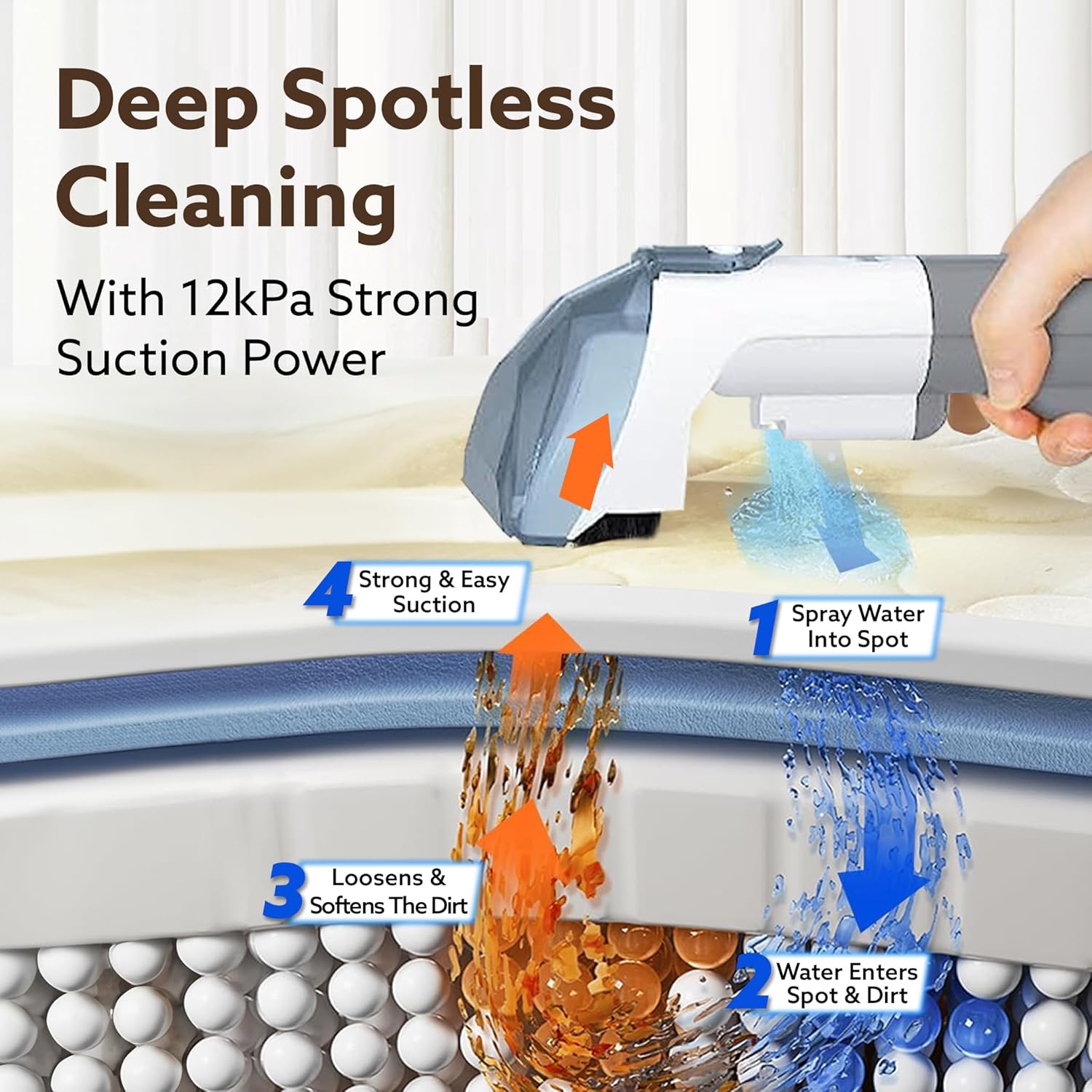

Image: A detailed diagram showing the four steps of deep cleaning: 1) Spray water into spot, 2) Water enters spot & dirt, 3) Loosens & softens the dirt, and 4) Strong & easy suction lifts the dirty water.

Image: The AGARO Crest Portable Spot Cleaner effectively removing tough stains from a carpet, with additional insets showing its use on a sofa and a curtain.

Maintenance

Proper maintenance ensures the longevity and performance of your cleaner:

• Empty and Clean Dirty Water Tank: After each use, empty the 600ml dirty water tank. Rinse it thoroughly with clean water to remove any residue.
• Clean the Hose: The cleaner is equipped with a hose cleaning cap. Use this feature to flush clean water through the hose after use to prevent odors and blockages.
• Clean Brush Heads: Remove and rinse the brush heads (Standard Brush, Self-Cleaning Brush, Deep Stain Tool) under running water. Ensure no debris is lodged in the bristles.
• Wipe Down Unit: Wipe the exterior of the main unit with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage: Store the cleaner in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure the tanks are empty and dry before storage.

Troubleshooting

Specifications

• Brand: AGARO
• Model: 34026
• Color: White
• Power: 450 Watts
• Suction Power: 12 kPa
• Clean Water Tank Capacity: 1.8 Liters
• Dirty Water Tank Capacity: 600 ml
• Item Weight: 8.16 pounds (approx. 3700 Grams)
• Product Dimensions: 12.6 x 9.25 x 11.81 inches
• Manufacturer: Universal Corporation Limited, Jiangsu, China

Warranty and Support

The AGARO Crest Portable Spot Cleaner comes with a 1 Year Warranty from the date of purchase. Please retain your proof of purchase for warranty claims.

For technical support, troubleshooting assistance, or warranty inquiries, please contact AGARO customer service. Refer to the contact information provided with your product packaging or visit the official AGARO website for the most up-to-date support details.

Note: The machine is designed to be washed with water and does not require detergents or chemicals for basic operation. Using unauthorized cleaning solutions may void your warranty.
