BUNOEM Dual Motor Height Adjustable Electric Standing Desk User Manual

Introduction

Thank you for choosing the BUNOEM Dual Motor Height Adjustable Electric Standing Desk. This manual provides essential information for the proper assembly, operation, maintenance, and troubleshooting of your new desk. Designed for ergonomic comfort and efficiency, this desk features a powerful dual-motor system, a spacious desktop with an integrated drawer, and convenient height adjustment capabilities. Please read this manual thoroughly before use to ensure safe and optimal performance.

An overview of the BUNOEM Dual Motor Height Adjustable Electric Standing Desk, showcasing its spacious oak desktop, black frame, and integrated drawer. The desk is set up with a laptop, monitors, and various office accessories.

Setup and Assembly

Before beginning assembly, please ensure all parts are present and undamaged. Refer to the 'What's in the Package?' section below for a complete list of components. Assembly is designed to be straightforward, but having a second person for certain steps, especially when handling the desktop, is recommended.

What's in the Package?

Carefully unpack all components and compare them against the provided parts list. The desktop consists of multiple boards designed for easy assembly.

This image displays all the components included in the BUNOEM Dual Motor Standing Desk package, including the desktop panels, dual motor legs, control panel, drawer, and various assembly hardware. It highlights that the desktop consists of four boards for easy assembly.

Assembly Tips:

• Follow the step-by-step instructions provided in the separate assembly guide included with your product.
• Ensure all screws and bolts are securely tightened, but do not overtighten.
• Connect all cables according to the diagram, ensuring they are not pinched or strained.
• When flipping the assembled desk, do so carefully with assistance to prevent damage or injury.

An annotated image detailing the dimensions of the BUNOEM standing desk (63 inches wide, 30 inches deep, 27-45 inches height adjustable). It also points out key features such as the integrated cup holder, desk hook for headphones, desktop cable grommets, and underdesk drawers for storage.

Operating Instructions

Your BUNOEM standing desk is equipped with a user-friendly control panel for seamless height adjustments and memory functions.

Control Panel Functions:

A detailed view of the desk's control panel, featuring an LED display for current height, up/down adjustment buttons, and four memory preset buttons (1, 2, 3, 4) for saving preferred sitting and standing heights. A long press function allows re-memory of heights.

• Up/Down Buttons (▲ / ▼): Press and hold to adjust the desk height continuously. Release to stop at your desired level.
• LED Display: Shows the current height of the desk in inches.
• Memory Buttons (1, 2, 3, 4): These buttons allow you to save and recall up to four preferred height settings.
• Saving a Memory Preset: Adjust the desk to your desired height. Press and hold one of the memory buttons (1, 2, 3, or 4) until the LED display flashes or indicates the height is saved.
• Recalling a Memory Preset: Simply press the corresponding memory button (1, 2, 3, or 4) once, and the desk will automatically move to the saved height.

Height Adjustment Range:

The desk offers a wide height adjustment range, from a minimum of 27 inches to a maximum of 45 inches, catering to various user heights and preferences for sitting or standing.

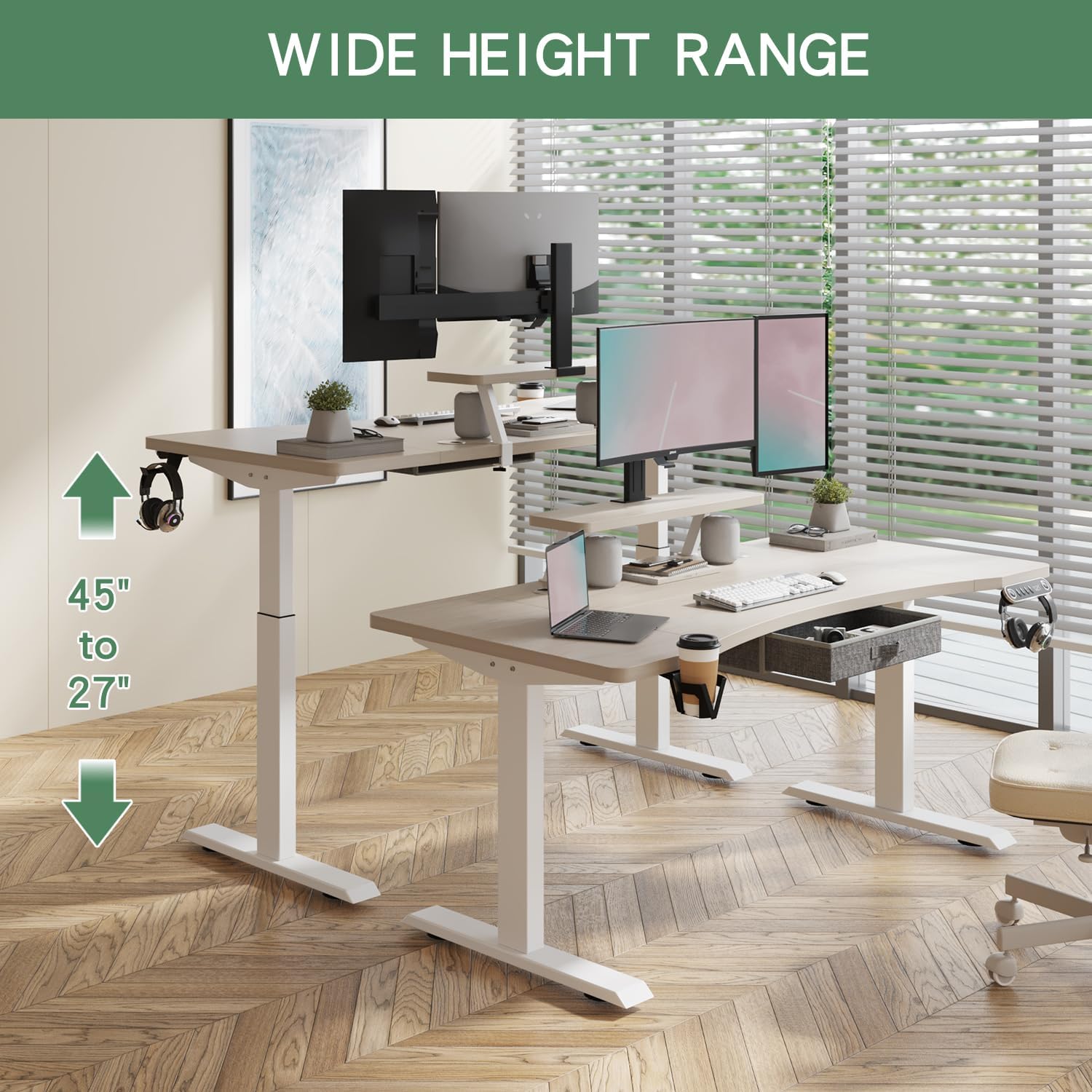

This image illustrates the extensive height adjustment range of the BUNOEM standing desk, capable of moving from a minimum height of 27 inches to a maximum height of 45 inches, accommodating various user preferences for sitting and standing positions.

Dual Motor System:

The BUNOEM desk is equipped with a dual-motor lift system, ensuring smooth, stable, and quiet height transitions (noise level less than 50dB). This robust system allows the desk to support a significant weight capacity of up to 265 lbs, providing reliable performance even with multiple monitors and equipment.

An X-ray style view of the desk's frame, highlighting the two powerful motors that drive the height adjustment mechanism. The dual-motor design ensures stronger load capacity, smoother, and more stable operation compared to single-motor systems.

This image highlights the quiet operation (less than 50dB noise) and smooth adjustment capabilities of the BUNOEM standing desk, attributed to its telescoping legs and efficient motor system.

Maintenance

Regular maintenance helps ensure the longevity and optimal performance of your BUNOEM standing desk.

• Cleaning: Wipe the desktop and frame with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish.
• Cable Management: Periodically check all cables to ensure they are securely connected and not pinched or tangled. Utilize the integrated cable grommets and wire brackets to keep wires neat and organized.
• Motor Care: The dual motors are designed for durability. Avoid overloading the desk beyond its specified weight capacity (265 lbs) to prevent strain on the motors.
• General Inspection: Routinely check all screws and connections to ensure they remain tight. Retighten if necessary.

Troubleshooting

If you encounter any issues with your BUNOEM standing desk, please refer to the common troubleshooting tips below. If the problem persists, contact customer support.

• Desk Not Moving:
  • Ensure the power cord is securely plugged into both the desk and a working wall outlet.
  • Check all cable connections between the control panel, motors, and power supply.
  • If an error code appears on the LED display, refer to the specific error code section in your detailed assembly manual (if available) or contact support.
• Uneven Movement:
  • Ensure the desk is placed on a flat, level surface.
  • Check that the weight on the desk is evenly distributed and not exceeding the maximum load capacity.
• Noise During Operation:
  • A slight hum is normal during operation (less than 50dB). If you hear unusual or loud noises, check for any obstructions under the desk or contact support.

Product Specifications

Warranty and Support

BUNOEM is committed to providing high-quality products and excellent customer service.

Warranty Information:

Your BUNOEM Dual Motor Height Adjustable Electric Standing Desk comes with a 3-year warranty. This warranty covers manufacturing defects and ensures peace of mind regarding the quality and durability of your product. Please retain your proof of purchase for warranty claims.

Technical Support:

We offer friendly and responsive technical support to assist you with any questions or issues regarding the installation or use of your desk. If you require assistance, please do not hesitate to contact our customer service team. We aim to reply to all inquiries within 24 hours.

For support, please refer to the contact information provided on your product packaging or the official BUNOEM website.
