1. Introduction
The ANDELI MCT-416 LED is a versatile 5-in-1 multi-function welding machine designed for various welding tasks. It supports 100V and 200V power inputs, offering flexibility for both household and professional use. This manual provides essential information for safe and effective operation, setup, and maintenance of your welding machine.
Key functions include CUT, MIG (CO2 / MIX / FLUX), Lift TIG, PULSE, and Arc welding. Its synergic function automatically sets optimal welding parameters based on wire diameter and plate thickness, making it user-friendly even for beginners. The low-frequency inverter technology ensures stable performance across different materials like iron, stainless steel, and low carbon steel.
2. Safety Instructions
Always prioritize safety when operating welding equipment. Failure to follow safety guidelines can result in serious injury or death.
- Wear appropriate personal protective equipment (PPE), including a welding helmet with proper shade, flame-resistant clothing, welding gloves, and safety shoes.
- Ensure adequate ventilation to avoid inhaling hazardous fumes.
- Keep a fire extinguisher nearby and know how to use it.
- Do not operate the machine in wet conditions or near flammable materials.
- Ensure proper grounding of the welding machine and workpiece.
- Disconnect power before performing any maintenance or changing accessories.
- The VRD (Voltage Reduction Device) should be ON in high-temperature environments for safety.
3. Package Contents
Verify that all items are present and undamaged upon unpacking:
Image: The ANDELI MCT-416 LED welding machine is shown with all its included accessories laid out. These include the main welding unit, MIG welding torch, plasma cutting torch, electrode holder, earth clamp, air filter, welding wire, gas nozzles, contact tips, and electrodes.
- 1x ANDELI MCT-416 LED Multi-Function Welder
- 1x MIG Welding Torch
- 1x Plasma Cutting Torch
- 1x Electrode Holder
- 1x Earth Clamp
- 1x Air Filter
- 1x 10ft Welding Gas Hose
- 2x Welding Wire
- 10x Contact Tips
- 2x Gas Nozzles
- 5x Electrodes
4. Setup
4.1 Power Connection
The MCT-416 LED is compatible with both 100V and 200V power sources. The machine automatically detects the input voltage. Ensure the power source is stable and meets the machine's requirements.
Image: The welding machine is shown with text indicating 100V and 200V compatibility, suitable for household and professional use respectively.
4.2 Torch and Clamp Connections
Connect the appropriate torch and clamps for your desired welding mode. Refer to the diagrams below for correct connections.

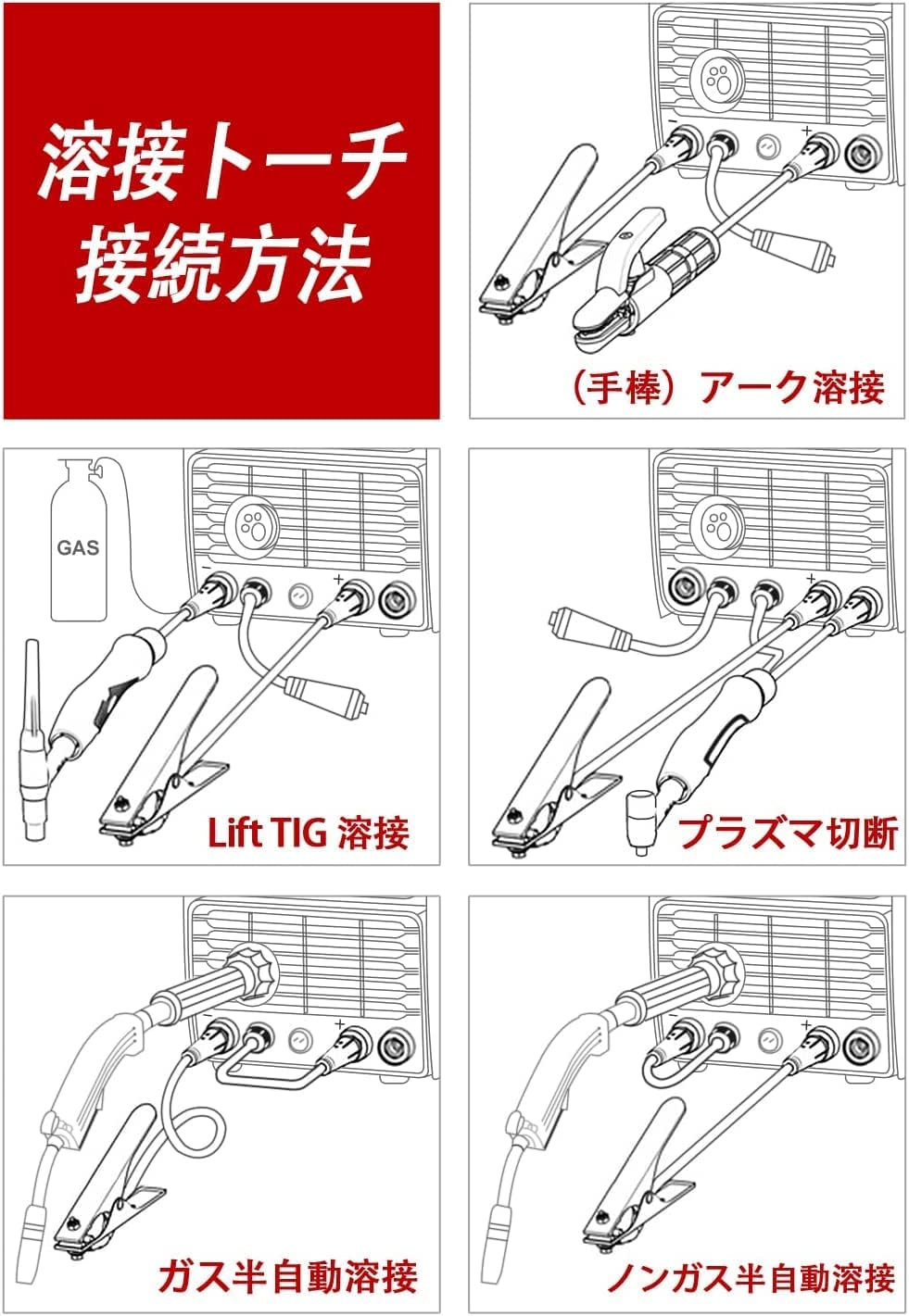

Image: Diagrams illustrating how to connect the welding torch and clamps for different modes: Arc welding, Lift TIG, Plasma cutting, Gas semi-automatic welding, and Non-gas semi-automatic welding.
4.3 Wire Spool Installation (for MIG modes)
The machine supports 1KG and 5KG wire spools. Ensure the wire is correctly installed in the feeder mechanism.
Image: The welding machine is shown next to 1KG and 5KG wire spools, indicating compatibility.
5. Operating Instructions
The MCT-416 LED features an intuitive LED screen for easy parameter adjustment. Use the parameter adjustment buttons and dials to set your desired welding conditions.
Image: Close-up of the LED display showing welding parameters and the 'Automatic Matching' feature for current, voltage, and wire feeder settings.
5.1 General Operation and Mode Selection
Use the mode selection button to choose between CUT, MIG (CO2 / MIX / FLUX), Lift TIG, PULSE, and Arc welding. The synergic function automatically sets optimal welding parameters, but you can fine-tune them using the dials.
Video: This video demonstrates the adjustment of welding parameters and usage methods for the ANDELI MCT-416P, covering various modes like MIG, Plasma Cutting, and TIG welding. It shows how to select modes, adjust settings like inductance, pre-flow, arc start timing, burn-back, and after-flow, and select wire size and shield gas. It also illustrates 2T, 4T, and Spot welding modes.
5.2 MIG Welding Mode (CO2 / MIX / FLUX)
For MIG welding, select the appropriate wire type (CO2, MIX, or FLUX) and wire diameter. The synergic function will suggest initial parameters, which can be further adjusted. Perform a test weld and fine-tune current and voltage for optimal results.
Video: This video demonstrates the usage of the MIG mode on a 4-in-1 semi-automatic welding machine. It shows how to select the wire type (Flux-cored wire), choose the appropriate wire size, perform test welds, and adjust welding current and voltage to achieve a good weld bead.
5.3 Lift TIG Welding Mode
For Lift TIG welding, ensure the TIG torch is connected correctly. Select Lift TIG mode and adjust the current. Touch the tungsten electrode to the workpiece and lift it slightly to initiate the arc. Maintain a consistent travel speed for a smooth weld bead.
Video: This video demonstrates the usage of the Lift TIG mode on a 4-in-1 semi-automatic welding machine. It shows how to select the TIG mode, adjust parameters, perform test welds, and execute continuous welding by smoothly moving the torch.
5.4 CUT (Plasma Cutting) Mode
For plasma cutting, connect the plasma torch and earth clamp. Set the current to the maximum for effective cutting. Press the torch switch and slowly move the torch along the material to cut. The cut surface should be clean with no slag.
Image: An exploded view of the non-high-frequency torch, showing its components: bracket, stand-off, tip, electrode, and torch head.
Image: A detailed diagram illustrating the IPT-40 blowback start mechanism, showing how the spring moves to open the circuit and create blowback for arc initiation.
5.5 Arc Welding Mode
For Arc welding, connect the electrode holder and earth clamp. Select Arc welding mode and adjust the current. Perform a test weld and adjust the current for a stable arc and good penetration. Remove slag after welding.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your welding machine.
- Cleaning: Regularly clean the machine's exterior and ventilation openings to prevent dust and debris buildup. Use compressed air to clear internal components if necessary, ensuring the machine is unplugged.
- Torch and Clamps: Inspect torches, cables, and clamps for wear, damage, or loose connections before each use. Replace worn-out contact tips, nozzles, and electrodes as needed.
- Wire Feeder: Keep the wire feeder mechanism clean and free of debris. Ensure the drive rollers are correctly sized for your wire and have adequate tension.
- Storage: Store the welding machine in a dry, clean environment away from direct sunlight, moisture, and extreme temperatures.
7. Troubleshooting
If you encounter issues, consult this section before contacting support.
| Problem | Possible Cause | Solution |
|---|---|---|
| No power | Loose power connection, tripped circuit breaker | Check power cable, reset breaker |
| No arc | Poor earth clamp connection, incorrect settings, worn electrode/tip | Ensure good contact, verify settings, replace consumables |
| Wire feeding issues | Incorrect drive roller tension, clogged liner, wrong wire size | Adjust tension, clean liner, use correct wire size |
| Poor weld quality | Incorrect parameters, dirty workpiece, improper technique | Adjust current/voltage, clean material, practice technique |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | ANDELI |
| Model Name | MCT-416 LED |
| Functions | CUT, MIG (CO2 / MIX / FLUX), Lift TIG, PULSE, Arc welding |
| Input Voltage | 100V/200V (Auto-sensing) |
| Max Amperage | 160AMP |
| Package Dimensions | 59 x 57.5 x 30 cm |
| Product Weight | 18.5 kg |
| ASIN | B0C6LN1LRQ |
Image: A detailed table showing various product parameters for the MCT-416 LED, including current, voltage, power factor, and cooling method for different welding modes (CUT, TIG, MMA, MIG).
9. Warranty and Support
The ANDELI MCT-416 LED Multi-Function Welder comes with a 2-year warranty. For technical support, warranty claims, or any questions regarding your product, please contact ANDELI customer service. Refer to the product packaging or the official ANDELI website for contact details.
ANDELI is committed to quality management, including CE certification, efficient customer service, factory inspections, and internal testing to ensure product reliability.
