1. Introduction
Thank you for choosing Tayogo Bone Conduction Headphones, Model S2-0530. These innovative open-ear wireless earphones are designed to provide high-fidelity sound through bone conduction technology, allowing you to enjoy audio while remaining aware of your surroundings. They are ideal for activities such as running, sports, fitness, and general daily use.
This manual provides detailed instructions on how to set up, operate, and maintain your headphones to ensure optimal performance and longevity.

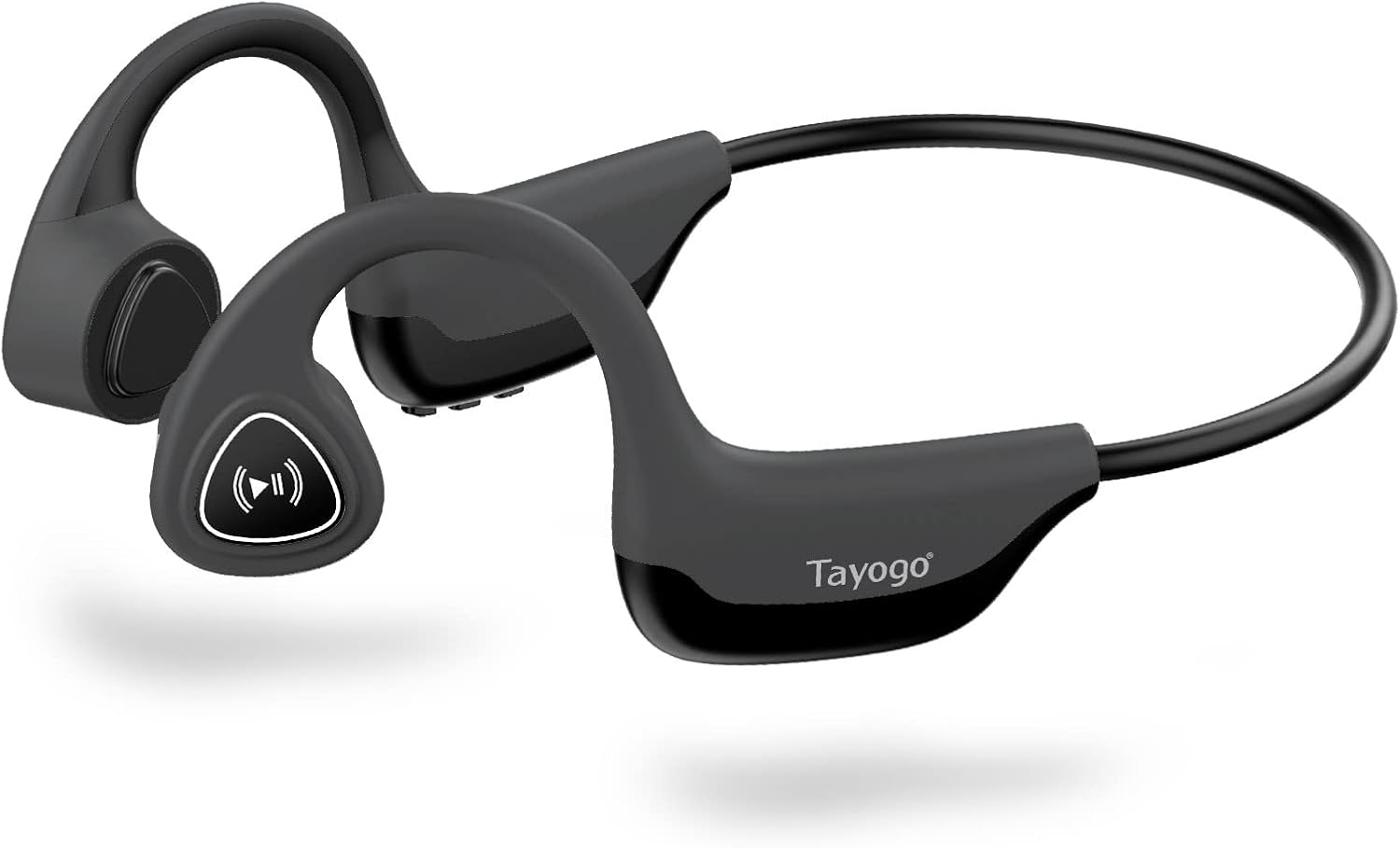

Figure 1: Tayogo Bone Conduction Headphones S2-0530
2. Product Features
- Innovative Bone Conduction Technology: Delivers sound through vibrations to your cheekbones, bypassing the eardrum. This allows for open-ear listening, enhancing situational awareness and comfort.
- Advanced Bluetooth 5.0 Connectivity: Ensures stable and efficient wireless connection with various Bluetooth-compatible devices, including smartphones, tablets, and smartwatches.
- Comfortable, Lightweight Design: Features a full wrap-around design that fits securely behind the ears, providing a stable and comfortable experience during extended wear and physical activities.
- High-Fidelity Sound and Built-in Microphone: Offers dynamic range and deep bass for a rich audio experience, along with an integrated microphone for clear, hands-free calls.
- Long-Lasting Battery Life: Equipped with a rechargeable battery providing up to six hours of continuous use on a single charge.
- Sweatproof Design: Built to withstand sweat and light splashes, making them suitable for workouts and outdoor activities.
Figure 2: Bone Conduction Design Principle
Figure 3: Sweatproof Feature and HIFI Sound Quality
3. Getting Started: Setup
3.1 Charging the Headphones
Before first use, fully charge your Tayogo headphones. A charging cable is included in the box.
- Locate the USB charging port on the control module of the headphones.
- Connect the charging cable to the headphones' USB port.
- Connect the other end of the charging cable to a USB power source (e.g., computer USB port, wall adapter).
- The LED indicator light will illuminate during charging and change color or turn off when fully charged. Refer to the "Physical Buttons and Indicators" section for LED behavior.
3.2 Powering On/Off
- To Power On: Press and hold the ON/OFF button (Power button) for approximately 3 seconds until the LED indicator flashes and you hear an audible prompt.
- To Power Off: Press and hold the ON/OFF button (Power button) for approximately 3 seconds until the LED indicator turns off and you hear an audible prompt.
3.3 Bluetooth Pairing
Pair your headphones with your Bluetooth-enabled device for wireless audio streaming.
- Ensure the headphones are powered off.
- Press and hold the ON/OFF button for approximately 5-7 seconds until the LED indicator flashes red and blue alternately, indicating pairing mode.
- On your device (smartphone, tablet, etc.), enable Bluetooth and search for new devices.
- Select "Tayogo S2-0530" or a similar name from the list of available devices.
- Once paired, the LED indicator will typically flash blue slowly, and you will hear a confirmation sound.
- If prompted for a password, enter "0000".
The headphones will automatically attempt to reconnect to the last paired device when powered on.
4. Operating Instructions
4.1 Wearing the Headphones
Place the headphones with the transducers resting on your cheekbones, just in front of your ears. The band should wrap around the back of your head.
Figure 4: Correct Wearing Position
4.2 Physical Buttons and Functions
The control module on the right side of the headphones houses the physical buttons for various functions.
Figure 5: Control Module Layout
Figure 6: Button Functions Overview
| Button/Indicator | Action | Function |
|---|---|---|
| ON/OFF Button (Power) | Press and hold for 3 seconds | Power On/Off |
| Press and hold for 5-7 seconds (from off) | Enter Bluetooth Pairing Mode | |
| Volume + / Next | Short Press | Increase Volume |
| Long Press | Next Track | |
| Volume - / Previous | Short Press | Decrease Volume |
| Long Press | Previous Track | |
| Multi-functional Button (Play/Pause/Assistant/Answer/Hang-up) | Single Press (during music) | Play/Pause Music |
| Single Press (incoming call) | Answer Call | |
| Single Press (during call) | Hang Up Call | |
| Long Press (incoming call) | Reject Call | |
| Double Press | Activate Voice Assistant (Siri, Google Assistant) | |
| LED Indicator | Solid Red | Charging |
| Blue (slow flash) | Connected/Operating Normally | |
| Red & Blue (alternating flash) | Pairing Mode | |
| Off | Fully Charged / Powered Off |
5. Maintenance
Proper maintenance ensures the longevity and optimal performance of your headphones.
- Cleaning: Wipe the headphones with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the charging port is dry before charging.
- Storage: Store the headphones in a cool, dry place away from direct sunlight and extreme temperatures.
- Battery Care: To preserve battery life, avoid fully discharging the headphones frequently. If storing for an extended period, charge them to about 50% every few months.
- Water Resistance: While sweatproof, these headphones are not designed for submersion in water. Avoid exposing them to heavy rain or swimming.
6. Troubleshooting
If you encounter issues with your Tayogo headphones, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Headphones won't power on. | Low battery. | Charge the headphones fully. |
| Power button not pressed long enough. | Press and hold the ON/OFF button for 3 seconds. | |
| Cannot pair with device. | Headphones not in pairing mode. | Ensure headphones are off, then press and hold ON/OFF button for 5-7 seconds until LED flashes red/blue. |
| Bluetooth is off on your device. | Enable Bluetooth on your device. | |
| Device is too far from headphones. | Keep devices within 10 meters (33 feet) range. | |
| No sound or low volume. | Volume too low on headphones or device. | Adjust volume on both headphones and connected device. |
| Headphones not properly connected. | Re-pair the headphones with your device. | |
| Sound quality is poor. | Interference or weak signal. | Move closer to your device or away from sources of interference. |
| Improper wearing position. | Ensure transducers are firmly on cheekbones. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Name | S2-0530 |
| Brand | Tayogo |
| Connectivity Technology | Bluetooth 5.0 |
| Wireless Communication Technology | Bluetooth |
| Ear Placement | Open Ear |
| Form Factor | Over Ear |
| Impedance | 8 Ohm |
| Special Features | Microphone Included, Wireless, Sweatproof |
| Included Components | Charging Cable |
| Color | Grey |
| Battery Life (Approx.) | Up to 6 hours of continuous use |
8. Warranty and Support
For detailed warranty information, please refer to the warranty card included with your purchase or visit the official Tayogo website. Keep your proof of purchase for warranty claims.
If you require further assistance or have questions not covered in this manual, please contact Tayogo customer support through their official channels.
You can often find support information on the manufacturer's website: Tayogo Store on Amazon
