ANYCUBIC Water Washable ABS-Like Resin V2 User Manual

1. Introduction to ANYCUBIC Water Washable ABS-Like Resin V2

The ANYCUBIC Water Washable ABS-Like Resin V2 is engineered for high-performance 3D printing, offering a balance of strength, toughness, and ease of use. This resin is designed for compatibility with most LCD and DLP photocuring 3D printers operating within the 365-405nm wavelength range. Its low odor formulation contributes to a more comfortable printing environment.

Key features include:

• Easy Washing: Low viscosity and high fluidity allow for cleaning with water, washing machines, or ultrasonic cleaners. Models are smooth post-wash, and supports are easily removed, simplifying post-processing.
• High Performance & Impact Resistance: Provides high strength, toughness, and impact resistance, making printed models stable and durable for long-term use in various applications.
• Low Odor & High Compatibility: Formulated for minimal odor, ensuring a comfortable printing experience. Compatible with a broad spectrum of 365-405nm light sources, suitable for beginners and most resin 3D printers.
• High Precision & Low Shrinkage: Exhibits low shrinkage and high molding accuracy, resulting in clear and vivid details with minimal warping or deformation, ideal for high-quality model creation.

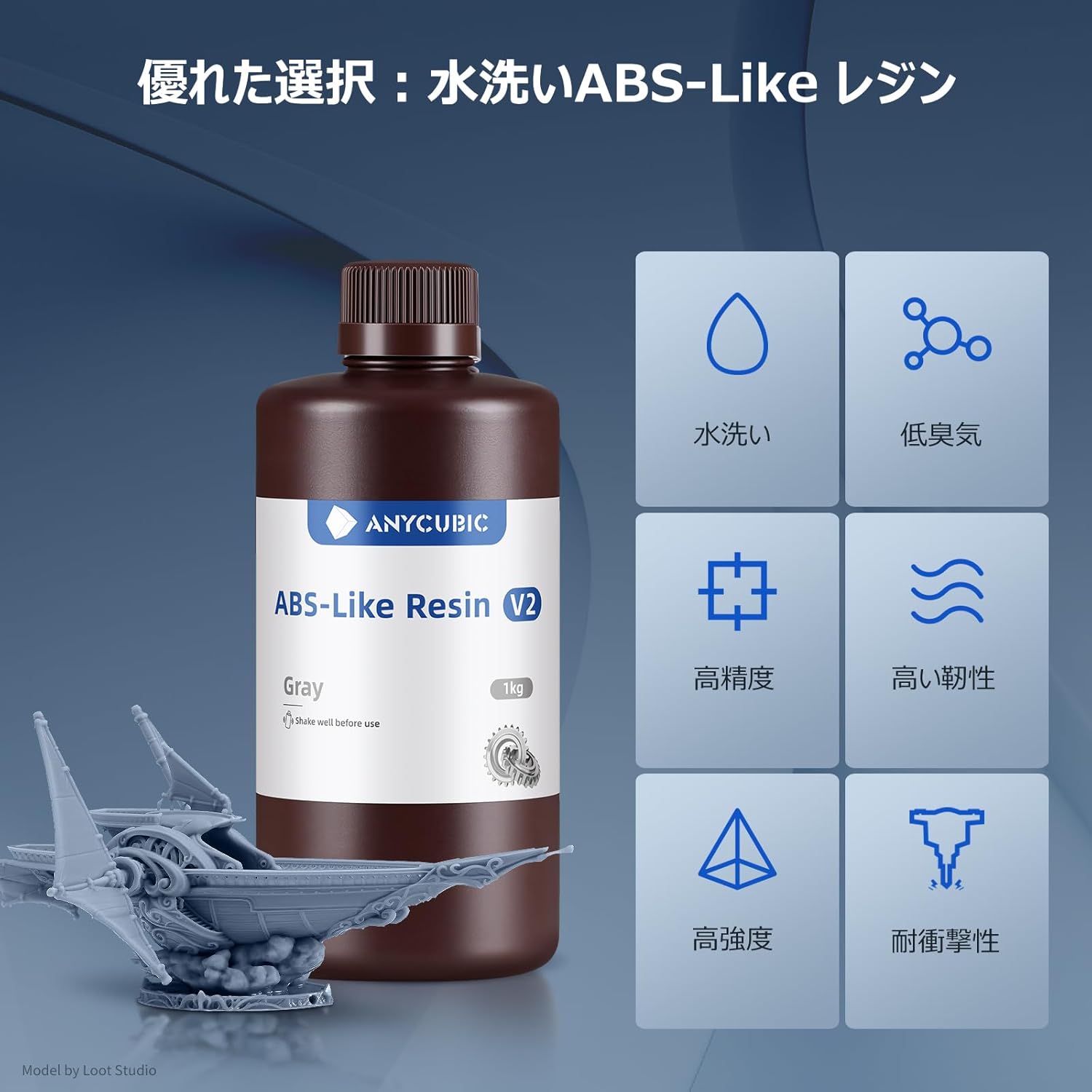

Image 1.1: ANYCUBIC Water Washable ABS-Like Resin V2 bottle highlighting its key features: water washable, low odor, high precision, high toughness, high strength, and impact resistance.

2. Setup and Preparation

Before beginning your 3D printing project with ANYCUBIC Water Washable ABS-Like Resin V2, proper setup and preparation are crucial for safety and optimal results.

2.1 Safety Precautions

• Always wear appropriate personal protective equipment (PPE), including gloves and safety glasses, when handling resin.
• Work in a well-ventilated area to minimize exposure to resin fumes.
• Avoid direct skin contact with liquid resin. In case of contact, wash thoroughly with soap and water.
• Keep the resin away from direct sunlight and heat sources. Store in a cool, dark place.
• Keep out of reach of children and pets.

2.2 Resin Preparation

1. Before each use, gently shake the resin bottle for at least 30 seconds to ensure all components are well mixed.
2. Allow the resin to sit for a few minutes after shaking to let any air bubbles dissipate.
3. Ensure your 3D printer's build plate and resin vat are clean and free from any debris or cured resin.
4. Carefully pour the desired amount of resin into the printer's resin vat. Do not overfill.

3. Operating Instructions

This section outlines the general operating procedures for printing with ANYCUBIC Water Washable ABS-Like Resin V2. Specific printer settings may vary, so always refer to your 3D printer's manual for detailed instructions.

3.1 Recommended Printing Parameters

Optimal exposure settings are crucial for successful prints. The following table provides recommended parameters for various Anycubic 3D printers. These are starting points and may require fine-tuning based on your specific printer, environment, and model complexity.

Image 3.1: Recommended printing parameters for various Anycubic 3D printer models, including layer height, exposure time, and lift speeds.

Note: These parameters are based on Anycubic lab tests and are for reference only. Actual settings may vary.

3.2 Printing Process

1. Load your 3D model into your preferred slicing software.
2. Apply appropriate supports as needed for your model's geometry.
3. Configure the printing parameters according to the recommendations above or your optimized settings.
4. Slice the model and transfer the file to your 3D printer.
5. Initiate the printing process on your 3D printer. Monitor the first few layers to ensure proper adhesion.

4. Maintenance and Post-Processing

Proper post-processing is essential to achieve the desired properties and finish for models printed with ANYCUBIC Water Washable ABS-Like Resin V2.

4.1 Washing

After printing, carefully remove the model from the build plate. The resin's water-washable nature simplifies cleaning.

• Rinse the printed model thoroughly with clean water. You can use a soft brush to gently remove any uncured resin from intricate details.
• For more efficient cleaning, use a dedicated resin washing machine or an ultrasonic cleaner filled with water.
• Ensure all residual uncured resin is removed from the model's surface.

Image 4.1: A 3D printed part being rinsed with water, demonstrating the water-washable feature of the resin.

4.2 Drying

After washing, it is critical to dry the model completely before curing to ensure optimal performance and prevent surface imperfections.

• Blow-dry the model with compressed air.
• Alternatively, wipe the model with a clean, dry cloth.
• Allow the model to air-dry completely in a well-ventilated area, away from direct UV light.

4.3 Curing

Post-curing enhances the mechanical properties and hardness of the printed model.

• Place the dried model in a UV curing chamber or under a UV lamp.
• Cure the model for the recommended time, typically a few minutes, depending on the UV light intensity and model thickness.
• Ensure all surfaces of the model are exposed to UV light for even curing.

Image 4.2: Visual representation of the post-processing workflow: washing the model, drying it, and then UV curing it to achieve final properties.

5. Troubleshooting Common Issues

This section addresses common problems encountered during 3D printing with resin and provides potential solutions.

5.1 Model Not Sticking to Build Plate

• Solution: Increase bottom layer exposure time. Ensure the build plate is properly leveled and clean. Lightly sand the build plate surface to improve adhesion if necessary.

5.2 Models Difficult to Remove from Build Plate

• Solution: This can occur if bottom exposure time is too long or if the model has a very large contact area with the plate. Try slightly reducing bottom exposure time. Use a plastic scraper or a specialized flexible build plate to aid removal. Avoid excessive force with metal tools to prevent damage to the build plate and model.

5.3 Print Failures (Partial Prints, Deformations)

• Solution: Check normal layer exposure time; it might be too low. Ensure the resin is well mixed. Verify that the FEP film in the resin vat is clean and not damaged. Add more supports to complex or overhanging parts of the model.

5.4 Brittle Models After Curing

• Solution: Ensure models are thoroughly washed and dried before curing. Over-curing can sometimes lead to brittleness; adjust curing times if necessary.

6. Product Specifications

7. Customer Support

For any questions, issues, or technical assistance regarding your ANYCUBIC Water Washable ABS-Like Resin V2, please contact ANYCUBICJP customer support. We are committed to providing reliable support to ensure your satisfaction.

Contact information can typically be found on the product packaging or the official ANYCUBIC website.
