Diversey Suma Oven and Grill Cleaner (Model 948049) User Manual

1. Introduction

This manual provides essential instructions for the safe and effective use of the Diversey Suma Oven and Grill Cleaner, Model 948049. This high-powered cleaning solution is designed to remove grease and heavily carbonized soils from various kitchen surfaces.

Key Features:

• Effectively removes grease and heavily carbonized soils.
• Formulated with oil- and grime-cutting additives to minimize scrubbing.
• Can be diluted for use in deep fryers.

2. Safety Information

WARNING: This product contains corrosive chemicals. Read all instructions and warnings carefully before use.

Personal Protective Equipment (PPE):

• Always wear long chemical-resistant gloves.
• Always wear chemical-splash goggles.
• Always wear protective footwear.

General Precautions:

• Food products and packaging materials must be removed from the area or carefully protected before cleaning.
• Wash hands and arms thoroughly after use.
• Do not spray on or allow contact with pilot lights, electrical connections, switches, light bulbs, heating elements, receptacles, or thermostats. Spray may cause electrical short circuits.
• Do not allow product to contact floor coverings, linoleum, aluminum, copper, chrome, painted surfaces, or plastics.
• Do not use on continuous or self-cleaning ovens.
• Keep from freezing.

First Aid:

In case of contact, refer to the product label for specific first aid instructions. Seek immediate medical attention if irritation persists or if ingested.

3. Ingredients

The Diversey Suma Oven and Grill Cleaner contains the following active ingredients:

• Sodium hydroxide
• 2-(2-butoxyethoxy)ethanol
• D-Glucopyranose, oligomers, decyl octyl, glycosides

4. Setup and Preparation

Before applying the cleaner, ensure the area is properly prepared and all safety measures are in place.

1. Ensure all food items and packaging are removed or protected from the cleaning area.
2. Don appropriate Personal Protective Equipment (PPE) including chemical-resistant gloves, splash goggles, and protective footwear.
3. Shake the bottle well before using to ensure proper mixture of ingredients.

Image 1: Front view of the Diversey Suma Oven and Grill Cleaner bottle, showing the brand logo and product name.

5. Operating Instructions

Follow these steps for effective cleaning of ovens, grills, and deep fryers.

For Ovens and Grills:

1. Ensure the oven or grill is cool.
2. Spray the cleaner directly onto the soiled surfaces.
3. Allow the product to penetrate the grease and carbonized soils for the recommended dwell time (refer to product label for specific times).
4. Wipe clean with a damp cloth or sponge. For heavily soiled areas, a non-abrasive scrubber may be used.
5. Rinse thoroughly with water to remove all cleaner residue.
6. Repeat if necessary for stubborn stains.

Image 2: Side view of the Diversey Suma Oven and Grill Cleaner bottle, highlighting the spray nozzle for application.

For Deep Fryers:

1. Drain oil from the fryer and scrape out any loose debris.
2. Dilute the cleaner according to label directions for fryer use.
3. Apply the diluted solution to the interior surfaces of the fryer.
4. Allow to soak for the recommended time.
5. Scrub as needed and drain the solution.
6. Rinse thoroughly with clean water multiple times until all residue is removed.

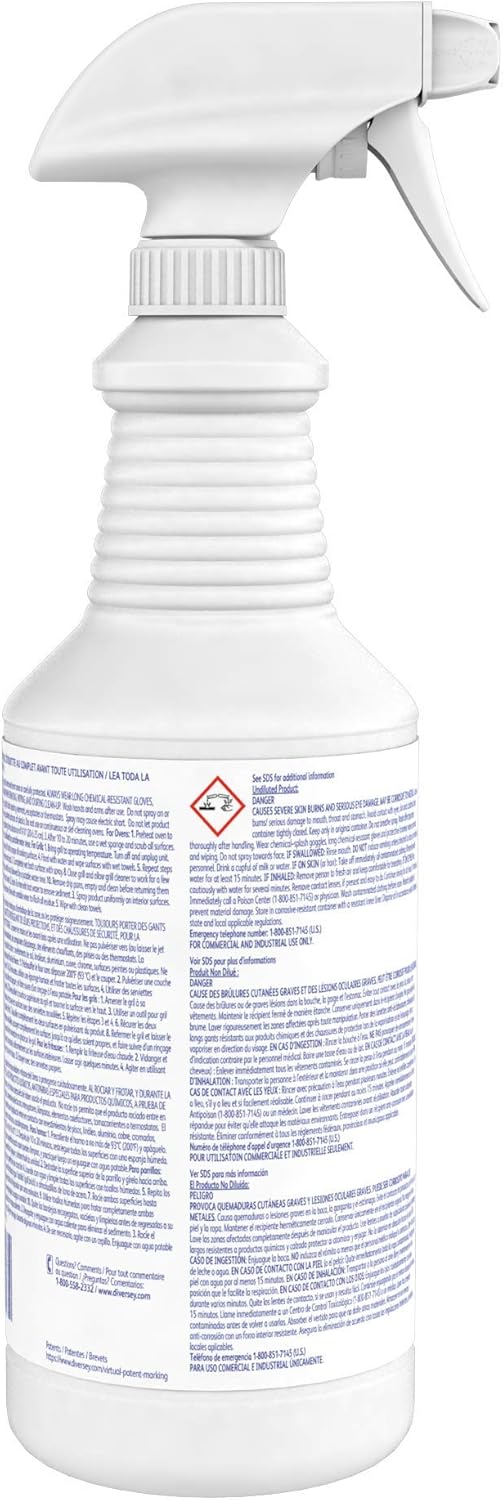

Image 3: Back view of the Diversey Suma Oven and Grill Cleaner bottle, displaying important safety warnings and usage instructions in multiple languages.

6. Maintenance and Storage

Proper maintenance and storage ensure the longevity and effectiveness of the product.

• After each use, ensure the spray nozzle is clean and the bottle is securely capped.
• Store the product in a cool, dry place, away from direct sunlight and out of reach of children and pets.
• Do not allow the product to freeze, as this may affect its efficacy.

7. Troubleshooting

If you encounter issues while using the Diversey Suma Oven and Grill Cleaner, consider the following:

• Ineffective Cleaning: Ensure the surface was cool before application. Verify the correct dwell time was observed. For deep fryers, confirm proper dilution ratio.
• Residue Remaining: Ensure thorough rinsing with clean water after cleaning. Multiple rinses may be required.
• Spray Nozzle Clogging: Rinse the nozzle with warm water if it becomes clogged.

8. Specifications

9. Contact and Support

For further assistance or inquiries regarding the Diversey Suma Oven and Grill Cleaner, please refer to the manufacturer's official website or contact their customer support.

• Manufacturer: Diversey
• Website: www.diversey.com (Note: This is a general link and may not be specific to product support.)
