HHH Vitacci Raven XL 250 Enduro Motorcycle User Manual

Introduction

Welcome to the user manual for your HHH Vitacci Raven XL 250 Enduro Motorcycle. This motorcycle is engineered for both on-road commuting and off-road adventures, offering a robust 250cc engine, a smooth-shifting 5-speed transmission, and reliable dual hydraulic disc brakes. This manual provides essential information to help you assemble, operate, maintain, and troubleshoot your motorcycle, ensuring a safe and enjoyable riding experience.

The Vitacci Raven XL 250 is designed with a strong power-to-weight ratio, making it an excellent choice for various terrains. Its inverted front forks and mono-shock rear suspension provide a comfortable ride on both paved roads and challenging trails.

Image: HHH Vitacci Raven XL 250 Enduro Motorcycle in red and black, showcasing its dual-sport design.

Setup and Assembly

Your Vitacci Raven XL 250 Enduro Motorcycle arrives approximately 70% assembled within a metal crate. Final assembly is required before operation. This typically includes attaching the tires, handlebars, and other minor components.

Uncrating and Initial Inspection

Carefully uncrate the motorcycle. Inspect all components for any signs of shipping damage. Ensure all parts listed in the packing list are present.

Image: The shipping crate for the Vitacci Raven motorcycle, indicating its arrival state.

Assembly Steps

1. Tire Installation: Mount the front and rear tires securely. Ensure proper inflation according to the specifications.
2. Handlebar Attachment: Install the handlebars, ensuring all controls are correctly positioned and tightened.
3. Fluid Checks: Verify engine oil levels, brake fluid levels, and fuel. Top up as necessary.
4. Pre-Ride Inspection: Before the first ride, double-check all bolts, nuts, and fasteners for tightness. Ensure all lights, signals, and brakes are functioning correctly.

Step-by-step assembly videos are available to assist with this process. It is recommended to have an experienced technician perform or supervise the assembly to ensure safety and proper function.

Operating Instructions

The Vitacci Raven XL 250 is equipped with a 5-speed manual transmission and an electric start system for ease of use.

Starting the Motorcycle

1. Ensure the motorcycle is in neutral.
2. Turn the ignition key to the 'ON' position.
3. Engage the choke if the engine is cold.
4. Press the electric start button.
5. Once the engine starts, gradually disengage the choke as the engine warms up.

Gear Shifting

The motorcycle features a 5-speed manual transmission. Shift gears smoothly using the clutch lever and foot shifter. Practice shifting in a safe, open area before riding in traffic.

Braking System

The Vitacci Raven XL 250 utilizes dual hydraulic disc brakes (front and rear) for effective stopping power. Apply both brakes simultaneously for optimal braking performance. Familiarize yourself with the feel of the brakes at different speeds.

Image: Close-up view of the front hydraulic disc brake system.

Image: Close-up view of the rear hydraulic disc brake system.

Maintenance

Regular maintenance is crucial for the longevity and safe operation of your motorcycle. Adhere to the recommended service intervals outlined in the full service manual (if provided separately) or consult a qualified mechanic.

Key Maintenance Areas:

• Oil Changes: Perform regular engine oil changes as specified by the manufacturer.
• Chain Lubrication and Adjustment: Keep the drive chain clean, lubricated, and properly tensioned.
• Brake System Check: Regularly inspect brake pads for wear and check brake fluid levels.
• Tire Pressure and Wear: Maintain correct tire pressure and inspect tires for wear or damage.
• Fastener Tightness: Periodically check all nuts, bolts, and fasteners for proper tightness, especially after off-road use.

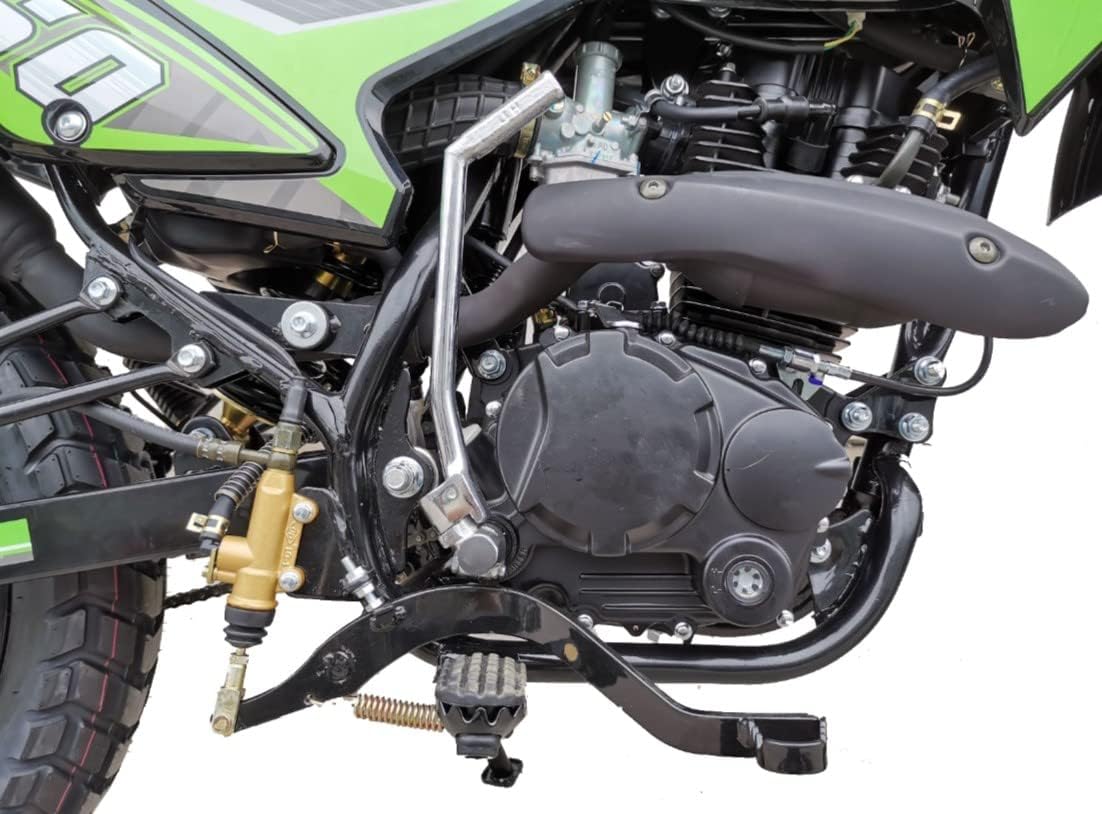

Image: Close-up view of the motorcycle engine, highlighting components requiring regular inspection.

Troubleshooting

This section addresses common issues you might encounter with your Vitacci Raven XL 250 Enduro Motorcycle.

Engine Not Starting:

• Check fuel level.
• Ensure the kill switch is in the 'RUN' position.
• Verify the motorcycle is in neutral.
• Check battery charge.

Fuel Gauge or Gear Indicator Malfunction:

If the fuel gauge or gear indicator is not functioning correctly, first check all electrical connections related to these components. In some cases, these may require professional inspection or adjustment after initial assembly.

Oil or Gas Leaks:

Immediately address any observed oil or gas leaks. Check all fluid lines, connections, and seals for proper seating and tightness. If a leak persists, discontinue use and consult a qualified mechanic. Leaks can pose a fire hazard and indicate a serious mechanical issue.

Specifications

Warranty Information

The HHH Vitacci Raven XL 250 Enduro Motorcycle comes with a 30-day warranty for replacement parts. This warranty covers manufacturing defects in parts for a period of 30 days from the date of purchase. Please retain your proof of purchase for any warranty claims.

Customer Support

For any questions regarding assembly, operation, maintenance, or troubleshooting that are not covered in this manual, please contact customer support. You can find contact information on the official HHH brand store page or through your point of purchase.

Additionally, all documents required for registration, including the title, are included with your purchase and will be mailed to you by USPS after the motorcycle is shipped out.
