Swiss Pro+ Cordless Vacuum Cleaner

Introduction

Thank you for choosing the Swiss Pro+ Cordless Vacuum Cleaner, Model SP-VCG10S. This manual provides essential information for the safe and efficient use, maintenance, and troubleshooting of your new vacuum cleaner. Please read it thoroughly before first use and keep it for future reference.

Safety Instructions

To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using an electrical appliance:

• Read all instructions before using the appliance.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with a damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
• Do not use without dust cup and/or filters in place.
• Store the appliance indoors.

Package Contents

Please check the box for the following items:

• Main Vacuum Unit
• Aluminum Extension Tube
• Flexible Low-Reach Tube
• High-Efficiency Brush Head with LED Front Light
• 2-in-1 Crevice Brush
• Crevice Nozzle
• Wall Mount Tools
• Power Adapter/Charger
• User Manual

Product Overview

The Swiss Pro+ Cordless Vacuum Cleaner is designed for versatile cleaning, functioning as both a stick vacuum and a handheld unit. It features a powerful motor and a multi-layer filtration system.

Setup

Assembly

1. Attach the Extension Tube: Insert the aluminum extension tube firmly into the main vacuum unit until it clicks into place.
2. Attach the Brush Head: Connect the high-efficiency brush head to the other end of the extension tube, ensuring it locks securely.
3. Handheld Configuration: For handheld use, detach the extension tube and directly attach desired accessories (e.g., 2-in-1 crevice brush, crevice nozzle) to the main vacuum unit.

Charging the Battery

Before first use, fully charge the vacuum cleaner's battery. The battery capacity is 2200mAh.

1. Connect the power adapter to the charging port on the main vacuum unit.
2. Plug the adapter into a wall outlet.
3. The charging indicator light will illuminate. Allow the unit to charge until the indicator shows a full charge (refer to the indicator light behavior in your specific model's guide, usually a solid light or change in color).

Operating Instructions

Power On/Off

Press the power button located on the main unit to turn the vacuum cleaner on or off. The vacuum will start in its standard cleaning mode.

Using Attachments

• High-Efficiency Brush Head: Ideal for general floor cleaning. The integrated LED front light illuminates dark areas, making dust visible under furniture or in corners.

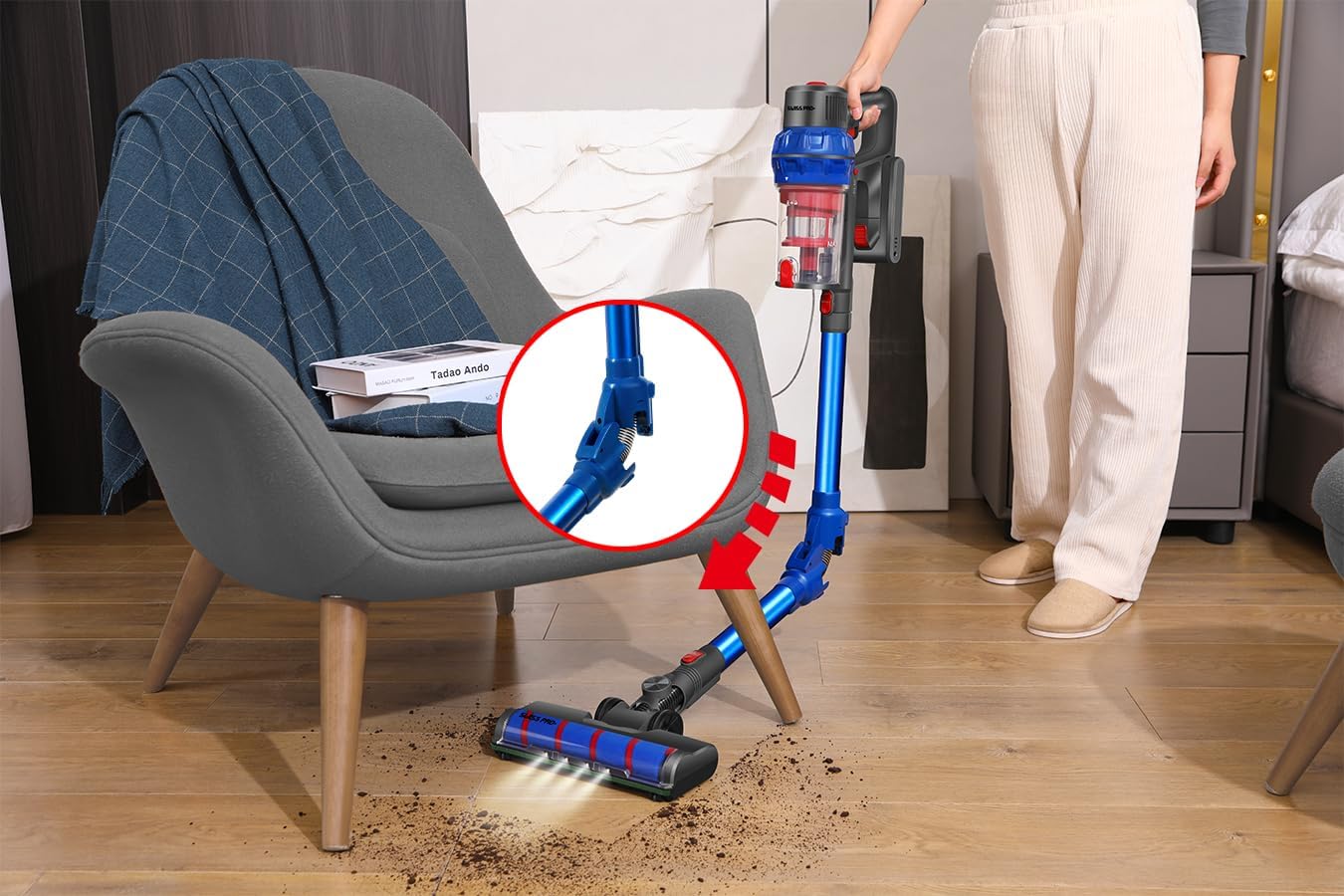

• Flexible Low-Reach Tube: Attach this tube between the main unit/extension tube and the brush head to easily clean under low-lying furniture without bending.
• 2-in-1 Crevice Brush: Use for cleaning tight spaces, corners, and delicate surfaces like upholstery or keyboards.
• Crevice Nozzle: Perfect for reaching extremely narrow gaps and edges.

Maintenance

Emptying the Dust Cup

The dust cup has a capacity of 0.8 liters. Empty it regularly to maintain optimal suction power.

1. Ensure the vacuum cleaner is turned off and unplugged from charging.
2. Locate the dust cup release button, usually near the handle.
3. Press the button to detach the dust cup from the main unit.
4. Hold the dust cup over a trash bin and open the bottom flap to release the collected debris.
5. Close the flap and reattach the dust cup to the main unit, ensuring it clicks securely.

Cleaning the Filters

The vacuum cleaner is equipped with a 4-layer filter system. Regular cleaning of the filters is crucial for maintaining performance and air quality.

1. Remove the dust cup as described above.
2. Carefully remove the filter components from inside the dust cup.
3. Tap the filters gently over a trash bin to remove loose dust.
4. If washable, rinse the filters under cold running water until the water runs clear. Do not use detergents.
5. Allow the filters to air dry completely for at least 24 hours before reassembling. Do not use a dryer or other heating devices.
6. Reassemble the dry filters and dust cup, then reattach to the main unit.

Note: Replace filters periodically as recommended by the manufacturer or if you notice a decrease in suction power even after cleaning.

Troubleshooting

If you encounter issues with your vacuum cleaner, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Swiss Pro+ customer support.

Specifications

Warranty and Support

This Swiss Pro+ product comes with an International Warranty. For detailed warranty terms and conditions, please refer to the warranty card included in your package or visit the official Swiss Pro+ website.

For technical support, service, or inquiries, please contact Swiss Pro+ customer service through the contact information provided on your warranty card or the official brand website.
