PURPLE LEAF Patio Umbrella Base SBL4150 Instruction Manual

1. Introduction and Overview

This manual provides detailed instructions for the assembly, filling, and maintenance of your PURPLE LEAF SBL4150 Patio Umbrella Base. This weighted base is designed to provide stability for compatible PURPLE LEAF offset patio umbrellas.

Figure 1: The PURPLE LEAF SBL4150 Patio Umbrella Base.

2. Product Features

• Dimensions: 40.94" Length x 40.55" Width x 7.48" Height. A cross base is included.
• Large Capacity: Designed to be filled with approximately 90% sand and 10% water, achieving a total weight of about 330 lbs when fully injected.
• Durable Material: Constructed from heavy-duty, weather-resistant plastic (HDPE) for long-term outdoor use. Features include fade resistance, UV protection, and recyclability.
• 2-Plate Design: The base consists of two plates, each equipped with its own fill port and a twist cap to ensure a water-tight seal.
• Integrated Handles: Features a handle design for easier movement of the base when empty.

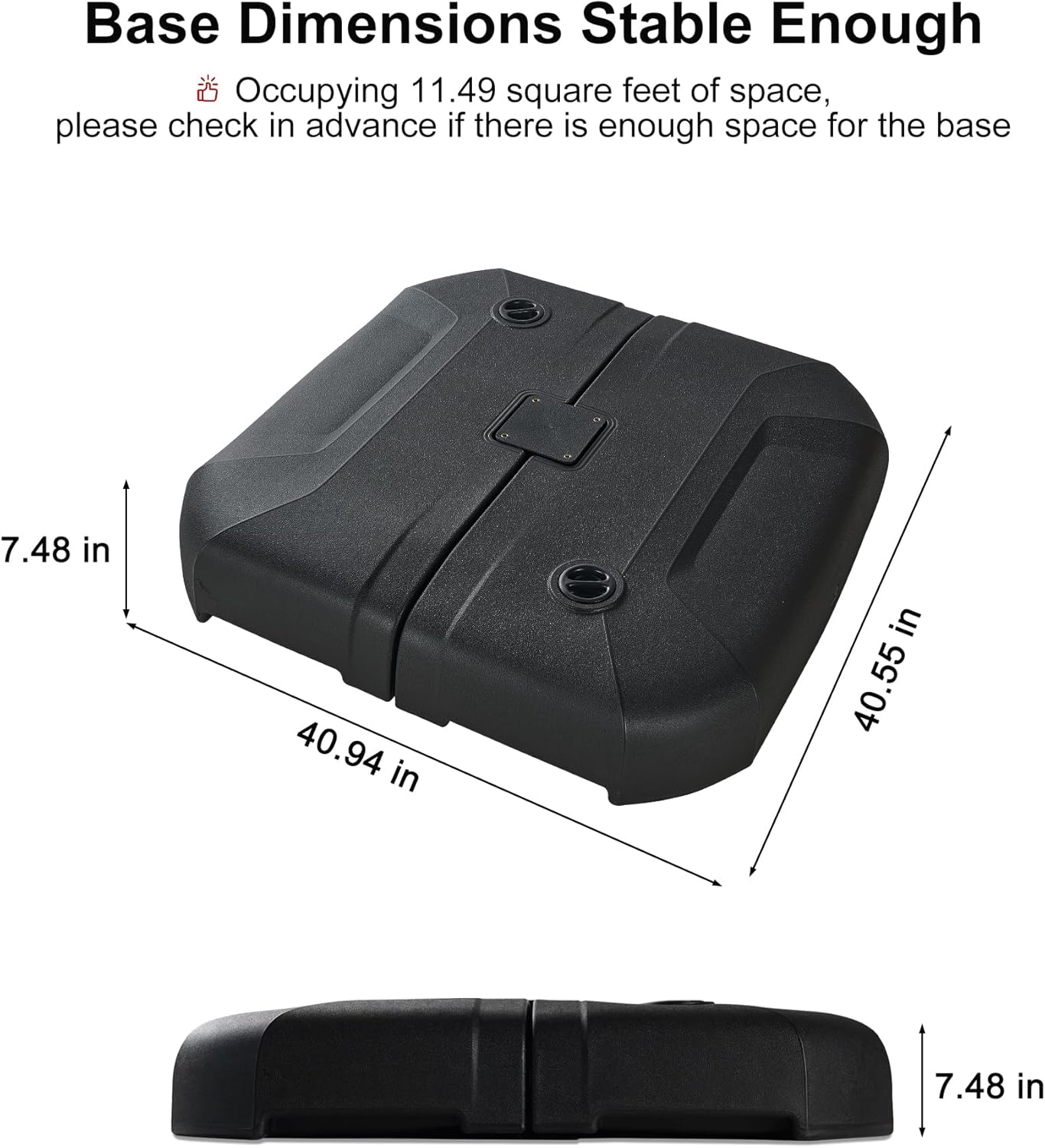

Figure 2: Base dimensions for planning placement.

3. Setup Instructions

1. Unpack Components: Carefully remove all parts from the packaging. Verify that you have the Cantilever Umbrella Base (1), Crossbar (2), Fixed Base (1), and Screw Pack (1).
2. Assemble Cross Base: Connect the two crossbars to form the base structure.
3. Position the Base: Place the assembled base in your desired outdoor location. Consider the dimensions (40.94" L x 40.55" W) to ensure adequate space.
4. Attach Umbrella Pole: Secure your compatible PURPLE LEAF offset patio umbrella pole to the fixed base using the provided screw pack. Ensure all connections are tight and stable.
5. Fill the Base: Proceed to the 'Filling the Base' section for instructions on weighting the base.

Figure 3: Integrated handles for easier positioning of the empty base.

4. Filling the Base

Properly filling the base is crucial for stability and safety. The base is designed to hold approximately 330 lbs when filled with a mixture of sand and water.

1. Locate Fill Ports: Identify the fill ports on each of the two base plates. These are typically covered with twist caps.
2. Recommended Filling: For optimal weight and stability, it is recommended to fill the base with 90% sand and 10% water.
3. Filling Procedure: Carefully pour sand into the fill ports until each section is approximately 90% full. Then, add water to fill the remaining 10% of the capacity. Ensure a tight seal by securely fastening the twist caps.
4. Preventing Mold: To prevent mold or algae growth inside the water-filled sections, consider adding a small amount of white vinegar or bleach to the water.

Figure 4: Fill ports for adding sand and water to the base.

5. Compatibility

This SBL4150 Patio Umbrella Base is specifically designed for PURPLE LEAF offset patio oversize umbrellas. Ensure your umbrella model is compatible to guarantee proper fit and stability.

Figure 5: Examples of compatible PURPLE LEAF offset patio umbrellas.

6. Maintenance

• Cleaning: Clean the base periodically with mild soap and water to remove dirt and debris. Avoid harsh chemicals that may damage the plastic.
• Winter Storage: In freezing climates, it is recommended to drain the water from the base before winter to prevent ice expansion from damaging the material. Sand can remain in the base.
• Inspection: Regularly inspect the base and all connections for any signs of wear, damage, or loosening. Tighten screws as needed.

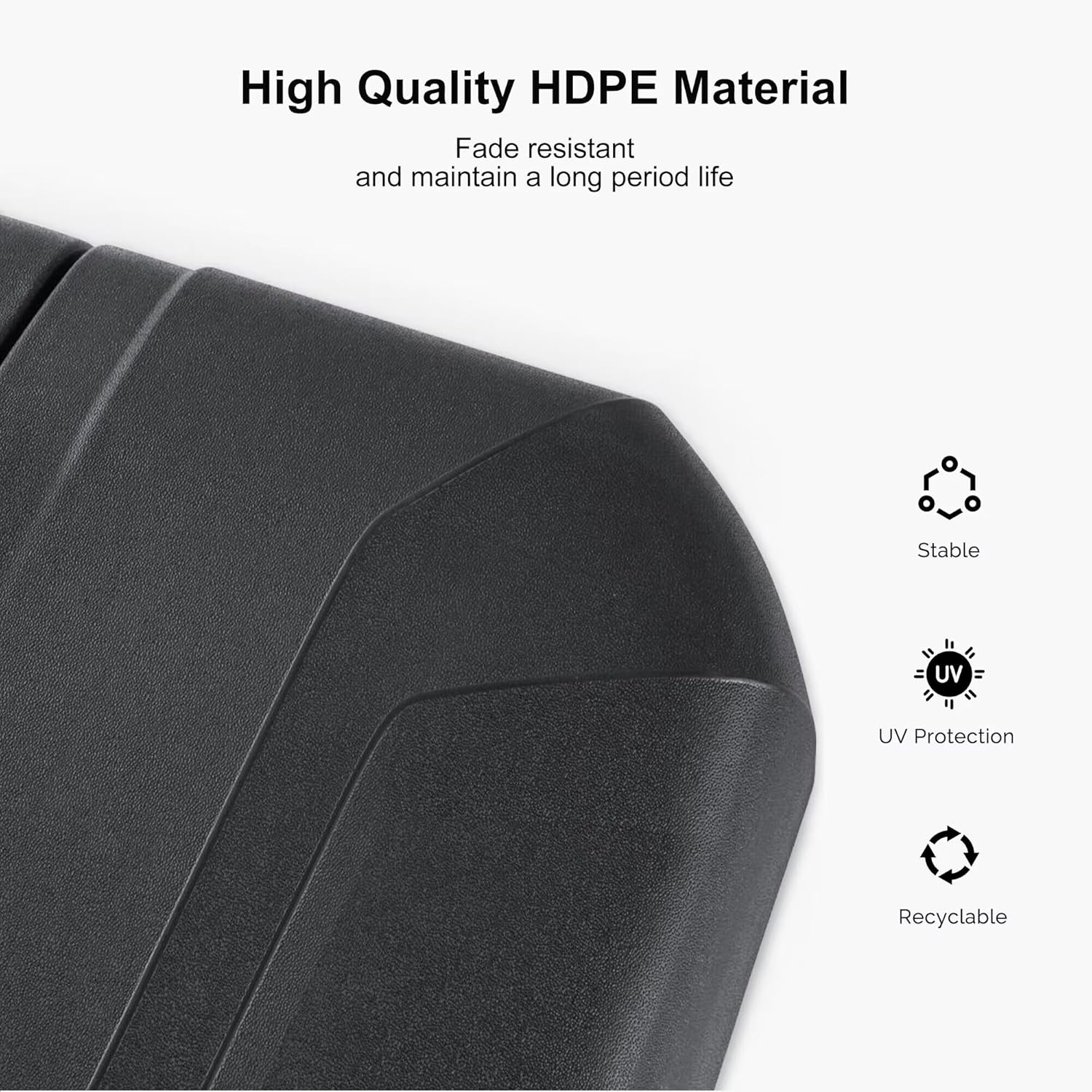

Figure 6: The base is made from high-quality HDPE material, offering stability, UV protection, and recyclability.

7. Specifications

8. Warranty and Support

For warranty information, product support, or any inquiries regarding your PURPLE LEAF Patio Umbrella Base SBL4150, please contact PURPLE LEAF customer service directly. Refer to the product packaging or the official PURPLE LEAF website for contact details.
