1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your AEG DPB3622S semi-integrated extractor hood. Please read these instructions carefully before using the appliance and retain them for future reference.
2. Safety Information
Always adhere to local regulations regarding the discharge of exhaust air. Ensure adequate ventilation in the room when the range hood is used simultaneously with appliances burning gas or other fuels. The appliance must be installed by a qualified person in accordance with all applicable standards and regulations.
- Disconnect the appliance from the power supply before any cleaning or maintenance.
- Do not flambé under the range hood.
- Regularly clean the grease filters to prevent fire hazards.
- The appliance is intended for domestic use only.
3. Product Overview
The AEG DPB3622S is a semi-integrated extractor hood designed to efficiently remove cooking odors and steam from your kitchen. It features energy-efficient LED lighting and user-friendly electronic controls.
Figure 1: Overall view of the AEG DPB3622S semi-integrated extractor hood installed under a cabinet.
Key Features:
- LED Lighting: Provides bright, energy-efficient illumination for your cooking area with a long lifespan.
- Reliable Motor: Ensures efficient extraction and removal of cooking odors.
- Washable Grease Filter: Easy to remove and clean, maintaining optimal performance.
- Electronic Controls: Convenient buttons for adjusting fan speed and lighting.
Figure 2: Close-up of the electronic control panel with fan speed and light buttons.
Figure 3: Detail of the integrated LED lighting, providing clear visibility over the cooking surface.
4. Setup and Installation
The AEG DPB3622S extractor hood is designed for semi-integrated installation. For optimal performance and safety, professional installation is recommended. Utilize AEG's PerfectFit solutions for a streamlined installation process, which can reduce mounting steps and offer tool-free options.
Installation Guidelines:
- Refer to the provided dimension diagram for precise measurements and clearances.
- Ensure the mounting surface is strong enough to support the weight of the appliance.
- Connect the exhaust ducting according to local building codes. The hood supports both ducted and recirculating ventilation.
- Maintain the minimum distance between the cooking surface and the lower part of the hood as specified in the diagram.

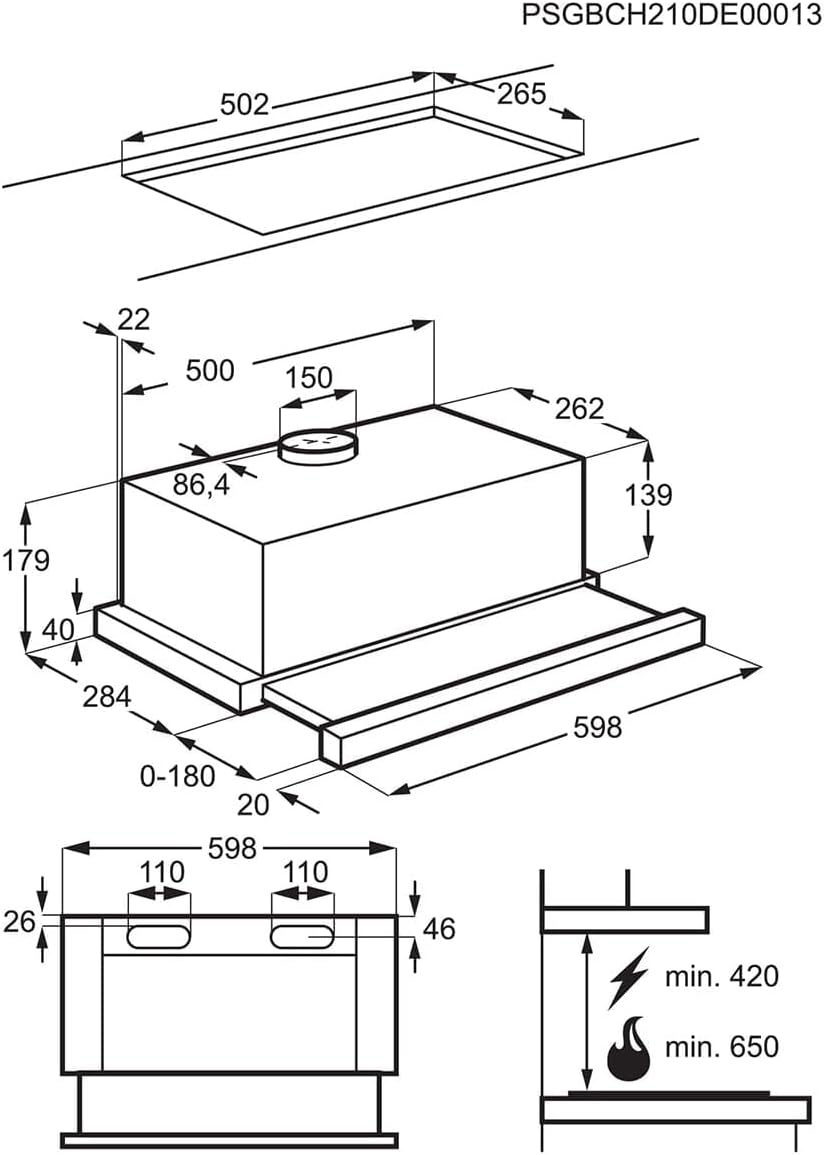

Figure 4: Technical drawing showing product dimensions and minimum installation clearances.
5. Operating Instructions
The extractor hood is operated via electronic push-buttons located on the front panel.
Fan Speed Control:
- Press button '1' for low fan speed, suitable for light cooking.
- Press button '2' for medium fan speed, for general cooking tasks.
- Press button '3' for high fan speed, for intense cooking or strong odors.
- Press button '0' to turn off the fan.
Lighting Control:
- Press the light button (indicated by a light bulb symbol) to turn the LED lights on or off.
6. Maintenance
Regular maintenance ensures the longevity and efficient operation of your extractor hood.
Cleaning the Grease Filter:
The metal grease filter captures airborne grease particles. For optimal performance, clean the filter regularly, typically every 2-4 weeks depending on usage.
- To remove the filter, locate the release catches and pull down.
- The filter is dishwasher safe. Use a gentle cycle with a mild detergent.
- Alternatively, wash by hand in hot water with a degreasing agent.
- Ensure the filter is completely dry before re-installing.
Cleaning the Exterior:
Clean the exterior surfaces with a soft cloth and a non-abrasive cleaner. Avoid using harsh chemicals or abrasive pads that could damage the finish.
LED Lighting:
The LED lights have a long operational life and are not user-serviceable. If a light fails, contact qualified service personnel.
7. Troubleshooting
Before contacting service, review the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Hood not operating | No power supply | Check power connection and circuit breaker. |
| Poor extraction performance | Clogged grease filters | Clean or replace grease filters. |
| Poor extraction performance | Blocked or restricted ducting | Inspect ducting for obstructions. |
| Lights not working | Faulty LED module | Contact qualified service personnel. |
| Excessive noise | Loose components or improper installation | Ensure all parts are securely fastened. Consult installation guide. |
8. Specifications
Technical specifications for the AEG DPB3622S extractor hood:
| Feature | Specification |
|---|---|
| Model Number | DPB3622S (942 022 671) |
| Type | Semi-integrated (pull-out) |
| Airflow Capacity | 330 m³/hour |
| Ventilation Type | Ducted/Recirculating |
| Number of Speeds | 3 |
| Noise Level (Max) | 64 dB |
| Lighting Type | LED (2 lamps) |
| Wattage | 90 watts |
| Filter Type | Metal (Aluminium) |
| Energy Efficiency Class | C |
| Fluid Dynamic Efficiency Class | D |
| Lighting Efficiency Class | E |
| Grease Filtering Efficiency Class | D |
| Product Dimensions (WxDxH) | 59.8 x 28.4 x 17.9 cm |
| Weight | Approx. 1 kg |
| Voltage | 220 Volt |
| Controls | Button |
9. Warranty and Support
For warranty information, please refer to the warranty card included with your product or visit the official AEG website. In case of technical issues or if you require assistance beyond the troubleshooting steps, please contact AEG customer support or an authorized service center. Ensure you have your model number (DPB3622S) and serial number ready when contacting support.
