1. Product Overview
The Nutone 30" Stainless Steel Range Hood (Model NCS330SSC) is designed to enhance your kitchen environment by effectively removing smoke, steam, and cooking odors. This model features a powerful yet quiet 250 CFM blower and dual halogen lighting to illuminate your cooking surface. Its fully enclosed bottom design facilitates easy cleaning. The unit supports both ducted and non-ducted installation configurations.
Key Features:
- Whisper-quiet blower for a peaceful cooking experience.
- Fully enclosed bottom design allows for easy cleaning.
- Supports easy ducted or non-ducted installation.
- Dishwasher-safe aluminum filter for ducted setups.
- Dual halogen lighting creates a bright, well-lit cooktop.
Image 1.1: Front view of the Nutone 30" Stainless Steel Range Hood, showcasing its sleek design and integrated lighting.
2. Safety Information
Please read all instructions carefully before installation and operation to prevent injury or damage. Keep this manual for future reference.
- Electrical Safety: Ensure the power supply is disconnected before installation, cleaning, or servicing. All electrical wiring must be performed by a qualified electrician in accordance with local codes and ordinances.
- Installation: Install the range hood according to the provided instructions and ensure it is securely mounted. Do not install if any parts are damaged.
- Ventilation: Ensure proper ventilation in the room when the range hood is used simultaneously with appliances burning gas or other fuels.
- Cleaning: Clean the range hood and filters regularly to prevent grease buildup, which can be a fire hazard.
- Children and Pets: Keep children and pets away from the appliance during operation and maintenance.
- Flammable Materials: Do not use or store flammable materials near the range hood.
3. Setup and Installation
The Nutone NCS330SSC range hood offers flexible installation options for both ducted and non-ducted configurations. Proper installation is crucial for optimal performance and safety.
3.1. Before You Begin:
- Unpack all components and verify against the packing list.
- Inspect the unit for any shipping damage.
- Ensure you have all necessary tools and additional materials (e.g., ducting, charcoal filter for non-ducted setup - HPF30, sold separately).
- Turn off power at the circuit breaker before beginning any electrical work.
3.2. Installation Types:
This range hood can be installed as either a ducted or non-ducted (recirculating) system. The choice depends on your kitchen's ventilation setup.
- Ducted Installation: Vents air directly outside through existing ductwork. Uses the included dishwasher-safe aluminum filter.
- Non-Ducted Installation: Filters air through a charcoal filter (HPF30, sold separately) and recirculates it back into the kitchen. This option is suitable when external venting is not possible.

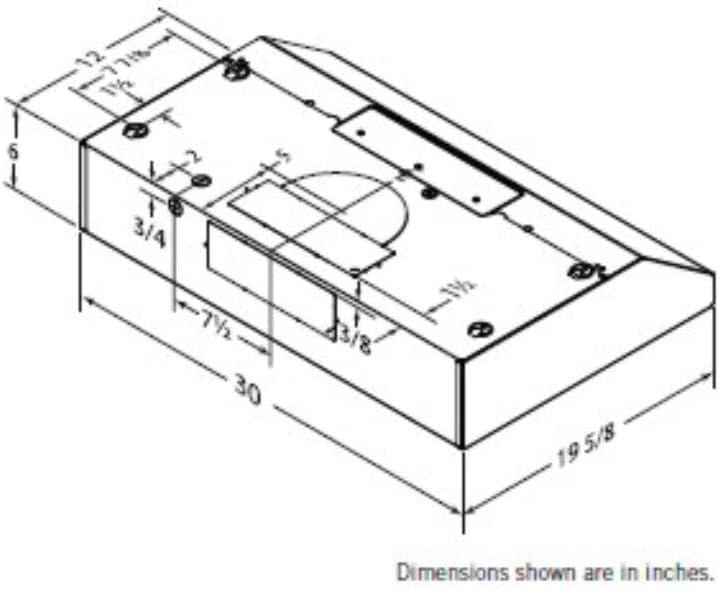

Image 3.1: Dimensional drawing of the range hood, indicating key measurements for installation planning.
For detailed step-by-step installation instructions, refer to the separate installation guide included with your product or visit the official Nutone support website.
4. Operating Instructions
The Nutone NCS330SSC range hood is designed for simple operation.

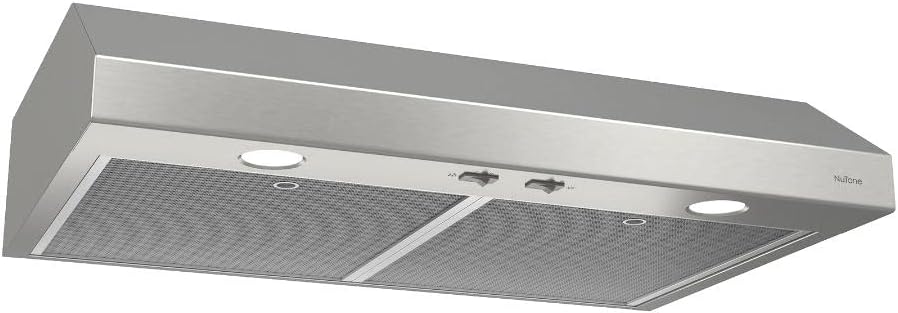

Image 4.1: Underside view of the range hood, highlighting the fan and light controls, and the mesh filters.
4.1. Fan Operation:
Locate the fan speed control knob on the front panel of the range hood. Turn the knob to select your desired fan speed (e.g., Low, Medium, High) to effectively remove smoke and odors from your cooking area. For optimal performance, turn on the fan a few minutes before cooking and leave it on for a few minutes after cooking is complete.
4.2. Lighting Operation:
The range hood is equipped with dual halogen lighting. Locate the light switch or knob on the front panel. Turn it on to illuminate your cooktop. The lights provide bright, clear visibility for all your cooking tasks. (Note: Halogen bulbs are sold separately and must be installed before use).
5. Maintenance and Cleaning
Regular maintenance and cleaning will ensure the longevity and optimal performance of your Nutone range hood.
5.1. General Cleaning:
- Exterior: Clean the stainless steel exterior with a soft cloth and a non-abrasive stainless steel cleaner. Always wipe in the direction of the grain.
- Interior: The fully enclosed bottom design allows for easy wiping of interior surfaces. Use a mild detergent and a damp cloth.
- Before Cleaning: Always ensure the power to the range hood is turned off at the circuit breaker before performing any cleaning or maintenance.
5.2. Filter Cleaning/Replacement:
- Aluminum Grease Filters (Ducted): The included aluminum mesh filters are dishwasher-safe. Remove them by gently pushing the latch and pulling down. Clean them regularly (e.g., monthly, depending on cooking frequency) to prevent grease buildup.
- Charcoal Filters (Non-Ducted): For non-ducted installations, a charcoal filter (HPF30, sold separately) is used. These filters are not washable and must be replaced periodically (e.g., every 3-6 months, depending on usage). Refer to the charcoal filter's specific instructions for replacement.
6. Troubleshooting
If you experience issues with your range hood, consult the following table before contacting customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not operate. | No power supply; Fan switch off; Motor malfunction. | Check circuit breaker/fuse; Turn fan switch on; Contact qualified service technician. |
| Lights do not work. | Bulbs loose or burnt out; Light switch off; Electrical connection issue. | Ensure bulbs are securely seated or replace them; Turn light switch on; Check wiring (qualified electrician). |
| Poor ventilation. | Clogged filters; Obstruction in ductwork (ducted); Incorrect filter type (non-ducted). | Clean or replace filters; Check ductwork for blockages; Ensure charcoal filter is installed for non-ducted use. |
| Excessive noise. | Loose mounting; Fan blade obstruction; Motor issue. | Ensure unit is securely mounted; Check for foreign objects in fan; Contact service technician. |
7. Specifications
Detailed technical specifications for the Nutone NCS330SSC Range Hood.
| Model Number | NCS330SSC |
| Brand | Nutone |
| Product Dimensions | 34.5 x 30 x 8 inches (Length x Width x Height) |
| Item Weight | 20.3 pounds |
| Material | Stainless Steel (Finish: Brushed) |
| Air Flow Capacity | 250 Cubic Feet Per Minute (CFM) |
| Light Source Type | Halogen (Bulbs sold separately) |
| Filter Type | Mesh (Dishwasher-safe aluminum for ducted; Charcoal filter HPF30 for non-ducted, sold separately) |
| UPC | 026715236770 |
8. Warranty and Support
For warranty information, product registration, or technical support, please refer to the warranty card included with your product or visit the official Nutone website. You may also contact Nutone customer service directly for assistance with product inquiries, parts, or service.
Nutone Official Website: www.nutone.com
Please have your model number (NCS330SSC) and purchase date available when contacting support.
