1. Product Overview
The Ibergrif Tap Water Filter System M91007 is designed to provide cleaner, healthier water directly from your faucet. This system utilizes multi-layer filtration technology to reduce common tap water impurities.
Key Features:
- Multi-layer Filtration: Effectively removes rust, sediment, impurities, chlorine, and heavy metals from tap water.
- Extended Filter Life: Recommended filter replacement every 3-6 months. Replacement filters are available (Model: M91007-1).
- Easy Installation: Tool-free installation with 5 included adapters to fit most standard faucets.
- User-Friendly Operation: Features a simple switch to alternate between filtered and unfiltered water modes.
- Versatile Use: Suitable for daily drinking, cooking, cleaning, and washing needs in both kitchen and bathroom settings.
Figure 1: Ibergrif Tap Water Filter System M91007
2. Package Contents
Verify that all components are present in the package before proceeding with installation.
- 1 x Ibergrif Tap Water Filter System (Model M91007)
- 5 x Faucet Adapters (various sizes for internal and external threads)
- Gaskets and sealing rings
- User Manual
Figure 2: All components included in the Ibergrif Tap Water Filter System package.
3. Specifications
| Feature | Detail |
|---|---|
| Model Number | M91007 |
| Dimensions (L x W x H) | 13.5 x 5.3 x 11 cm |
| Weight | 513 grams |
| Material | Carbon Fiber (filter media) |
| Filter Life | 3-6 months (depending on water quality and usage) |
| Certification | NSF |
| Benefits | Removes lead, reduces chlorine |
Figure 3: Product dimensions and included faucet adapters.
4. Installation Guide
4.1 Before Installation
Ensure your faucet is compatible with the Ibergrif filter system. The package includes 5 different adapters to fit most standard faucets with internal or external threads. This system is not suitable for pull-out, manual, spray, or sensor faucets.
Figure 4: Faucet compatibility guide.
4.2 Installation Steps
No tools are required for installation. Follow these steps:
- Unscrew the existing aerator from your faucet.
- Select the appropriate adapter from the provided set that matches your faucet's thread type and size.
- Attach the chosen adapter to your faucet. Ensure a snug fit to prevent leaks.
- Screw the Ibergrif filter unit onto the installed adapter. Hand-tighten only.
- Turn on the water and check for any leaks. If leaks occur, re-tighten or try a different adapter/gasket.
- Flush the filter with cold water for 5 minutes before first use to remove any carbon dust.
Figure 5: Step-by-step installation instructions.
5. Operating Instructions
The Ibergrif Tap Water Filter System features a simple lever or button to switch between filtered and unfiltered water modes.
Water Flow Modes:
- Filtered Water Mode: Use this mode for drinking, cooking, and other applications where purified water is desired.
- Unfiltered Water Mode: Use this mode for washing dishes, cleaning, or other tasks where filtered water is not necessary. This helps to prolong the life of your filter cartridge.

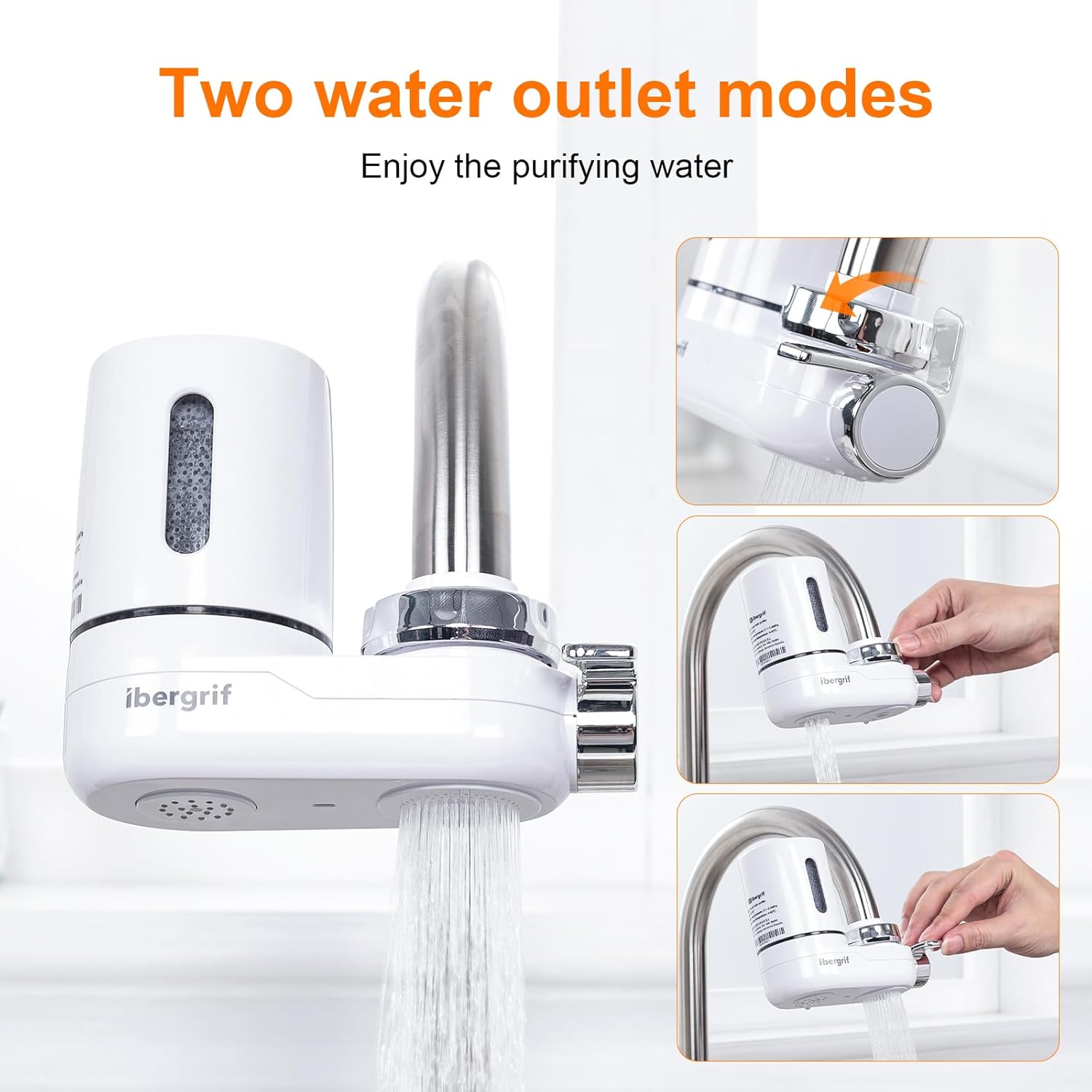

Figure 6: Switching between filtered and unfiltered water modes.
Figure 7: Enjoying purified water for drinking.
6. Maintenance
Filter Replacement:
The filter cartridge should be replaced every 3 to 6 months, depending on your water quality and usage frequency. A noticeable decrease in water flow or a return of unpleasant tastes/odors indicates it's time for a replacement.
- Replacement filters are available under model number M91007-1.
- To replace the filter, unscrew the filter housing, remove the old cartridge, insert the new one, and screw the housing back on. Ensure all seals are correctly seated to prevent leaks.
- After replacing the filter, flush with cold water for 5 minutes.
Figure 8: Ibergrif replacement filter cartridge (Model M91007-1).
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaks from the connection point. | Incorrect adapter, loose connection, damaged gasket. | Ensure the correct adapter is used and tightened securely by hand. Check gaskets for proper seating and damage. Replace if necessary. |
| Reduced water flow. | Clogged filter cartridge. | Replace the filter cartridge (Model M91007-1). |
| Unpleasant taste or odor in filtered water. | New filter initial flush not completed, filter cartridge exhausted. | Flush new filter for 5 minutes. If problem persists or filter is old, replace the filter cartridge. |
| Filter does not fit faucet. | Incompatible faucet type, incorrect adapter used. | Refer to the faucet compatibility guide (Figure 4). Try all included adapters. If still incompatible, the faucet type may not be supported. |
8. Warranty and Support
For warranty information, technical support, or to purchase replacement parts, please contact Ibergrif customer service. Refer to the product packaging or the official Ibergrif website for contact details.
