GoolRC WLtoys 284131 RC Drift Car User Manual

1. Introduction

Thank you for choosing the GoolRC WLtoys 284131 RC Drift Car. This 1:28 scale, 4WD electric drifting car is designed for high-speed performance and precise control. This manual provides essential information for the safe operation, proper setup, and maintenance of your vehicle to ensure optimal performance and longevity.

Image 1: Overview of the GoolRC WLtoys 284131 RC Drift Car highlighting its 2.4GHz control, 30km/h speed, LED lights, 4WD, and 130 brush motor.

2. Safety Guidelines

Please read and understand all safety instructions before operating the RC car. Failure to follow these guidelines may result in injury or damage to the product.

• Age Recommendation: This product is recommended for users 16 years and up.
• Operating Environment: Operate the car in open, clear areas away from people, pets, and obstacles. Avoid public roads, wet conditions, and extreme temperatures.
• Battery Safety: Use only the specified batteries and charger. Do not overcharge, short-circuit, or puncture batteries. Discontinue use if batteries show signs of damage or swelling.
• Supervision: Adult supervision is recommended for younger operators.
• Moving Parts: Keep fingers, hair, and loose clothing away from moving parts such as wheels and gears.
• Modifications: Do not modify the car or its components unless explicitly instructed. Unauthorized modifications may void the warranty and compromise safety.

3. Package Contents

Verify that all items listed below are included in your package:

• 1x Remote Control Car
• 1x Remote Controller
• 2x Car Battery (7.4V 400mAh Lithium)
• 1x Charging Cable
• 1x Other Fittings (e.g., tools, spare parts)
• 1x User Manual (this document)

Image 2: The GoolRC WLtoys 284131 RC Drift Car, remote controller, and two batteries as typically packaged.

4. Product Features

The GoolRC WLtoys 284131 RC Drift Car incorporates several design elements for enhanced performance and user experience:

• Full Simulation Structure Design: Provides a realistic driving experience with precise remote control, enabling high-speed driving, rapid acceleration, deceleration, braking, and turning.
• High Speed Performance: Equipped with a 7.4V 400mAh high-performance lithium battery and a 130 brushed motor, achieving speeds up to 30km/h for effective drifting.

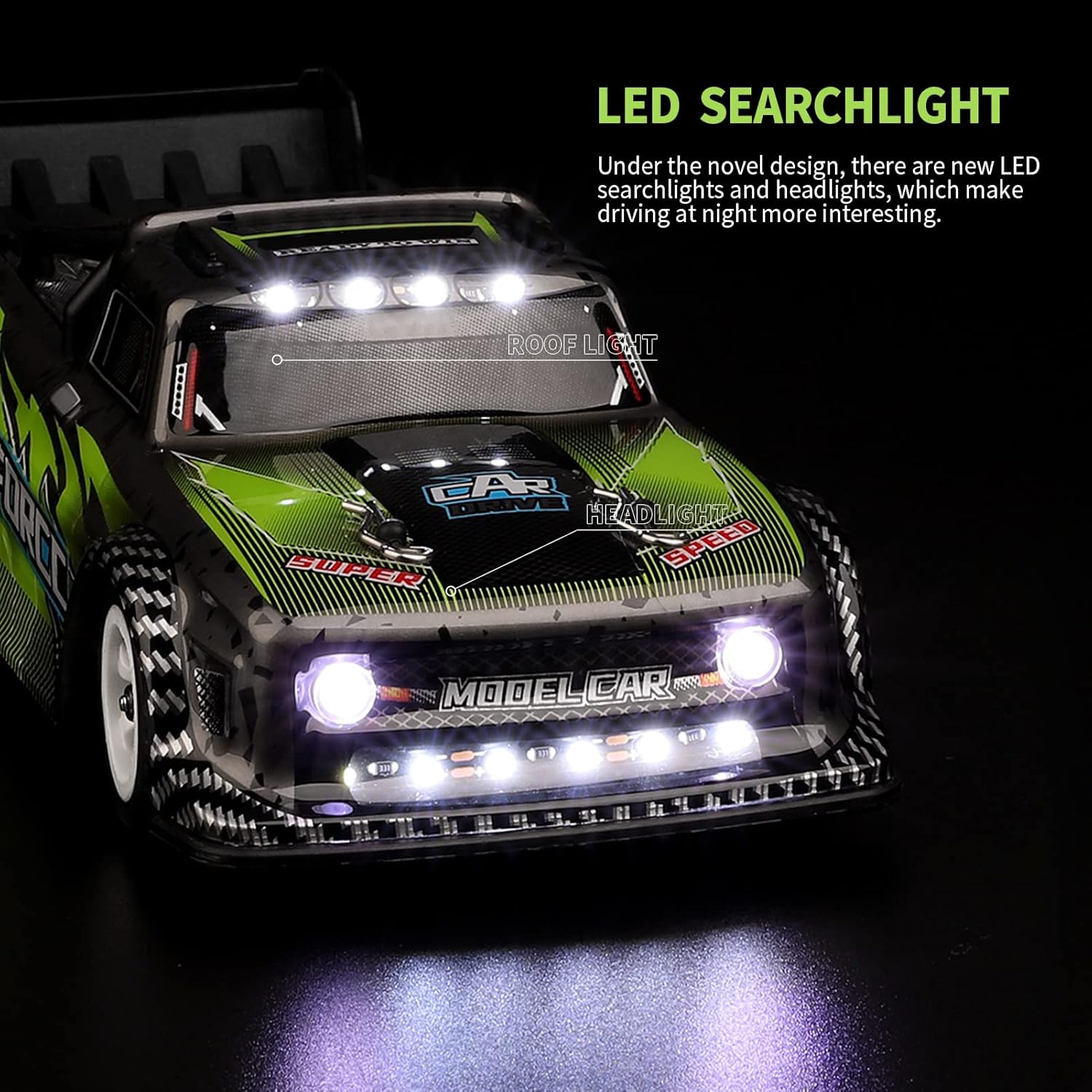

• Bright LED Lighting: Features front and rear headlights, along with top searchlights, for improved visibility and an enhanced aesthetic during night operation.
• All-Terrain Rubber Tires: Designed for strong ground adhesion and friction resistance, suitable for various surfaces.
• Independent Suspension: Front and rear wheels feature independent suspension for smooth cornering and stable body posture, adapting to varied terrain.
• Precise Control: Utilizes a 5-wire and 3-wire digital steering gear for smoother steering and stable cornering.
• Metal Chassis: Durable metal chassis design for increased robustness.

5. Initial Setup

5.1 Battery Charging

1. Connect the provided charging cable to a USB power source (e.g., computer USB port, USB wall adapter).
2. Connect the car battery to the charging cable.
3. Allow the battery to charge fully. The indicator light on the charger will typically change color or turn off when charging is complete. Charging time is approximately 50 minutes per battery.
4. Do not leave batteries unattended while charging.

5.2 Car Battery Installation

1. Ensure the RC car's power switch is in the OFF position.
2. Locate the battery compartment on the RC car.
3. Carefully open the compartment and connect a fully charged battery to the car's power connector.
4. Place the battery securely within the compartment and close the cover.

5.3 Remote Controller Setup

1. Install 4x AA batteries (not included) into the remote controller's battery compartment, observing correct polarity.
2. Turn on the remote controller using the power switch. The power indicator light should illuminate.
3. Turn on the RC car's power switch. The car and remote should automatically pair. If not, refer to the troubleshooting section.

Image 8: The 2.4GHz remote controller with its various functions labeled.

6. Operating Your RC Car

6.1 Basic Controls

• Throttle Trigger: Pull the trigger to move forward. Push the trigger forward to brake or reverse.
• Steering Wheel: Rotate the steering wheel left or right to control the car's direction.
• ST-TRIM (Steering Trim): Adjust this dial if the car does not drive straight when the steering wheel is centered.
• TH-D/R (Throttle Dual Rate): Adjust this dial to limit the maximum throttle output, useful for beginners or in confined spaces.

6.2 Driving Tips

• Start slowly to get accustomed to the controls.
• Practice steering and throttle control in an open area.
• For drifting, initiate a turn while applying throttle, then counter-steer to maintain the drift.
• Be mindful of battery life. Performance may decrease as the battery drains.

7. Maintenance and Care

• Cleaning: After each use, gently clean the car to remove dirt, dust, and debris. Use a soft brush or cloth. Avoid water or harsh chemicals.
• Inspection: Regularly inspect the wheels, suspension, and chassis for any loose screws, damaged parts, or wear. Tighten screws as needed.
• Storage: Store the car and remote in a cool, dry place away from direct sunlight and extreme temperatures. Remove batteries from both the car and remote if storing for extended periods.
• Battery Care: Store batteries partially charged (around 50%) if not used for a long time. Do not store fully charged or fully discharged.

8. Troubleshooting Guide

9. Technical Specifications

10. Warranty and Customer Support

GoolRC products are manufactured to high-quality standards. For warranty information, technical support, or replacement parts, please contact the retailer where you purchased the product or visit the official GoolRC website. Please retain your proof of purchase for warranty claims.

For additional support, you may visit the GoolRC store page: GoolRC Store
