SURAIELEC 300W Landscape Transformer User Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your SURAIELEC 300W Landscape Transformer. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.

The SURAIELEC 300W Landscape Transformer features a durable stainless steel housing and fully encased construction, making it moisture-proof, outdoor weatherproof, and corrosion resistant for years of reliable use. Its potted toroidal core design ensures high efficiency and quiet operation.

Key features include:

• Versatile Lighting Control: Switch between Manual ON/OFF, Photocell Auto ON/OFF, Photocell ON/Timer OFF, and Programmable Timer ON/OFF modes for customized lighting schedules.
• Reliable Performance: A built-in battery backup retains timer and clock settings during power outages.
• Flexible Outdoor Installation: Detachable photo sensor with a 6-foot cable for automatic dusk-to-dawn operation. Suitable for both indoor and outdoor use.
• Durable Construction: Made from 304L stainless steel for corrosion resistance and weatherproofing.
• Safe and Stable Power Conversion: Converts 120V to 12V AC/15V AC with multi-tap outputs and includes an automatic circuit breaker to prevent overloads.

Safety Information

WARNING: If the installation involves wiring through the building structure, there is a risk of fire. A special wiring method is required. Consult a qualified electrician.

CAUTION:

• Only for installation in or on non-combustible materials.
• Non-combustible material spacing on pouring surface.
• Suitable for indoor and outdoor use.
• Please read the installation instructions before wiring.
• For low-voltage landscape lighting and accessories only.
• Not suitable for diving equipment.
• The door must be closed. Do not use with a dimmer.

Image: Front view of the SURAIELEC 300W Landscape Transformer, showing the control panel and internal wiring area, along with important safety warnings regarding installation and usage.

Product Overview

The SURAIELEC 300W Landscape Transformer is designed for efficient and reliable low-voltage landscape lighting. It features a robust construction and intelligent control options.

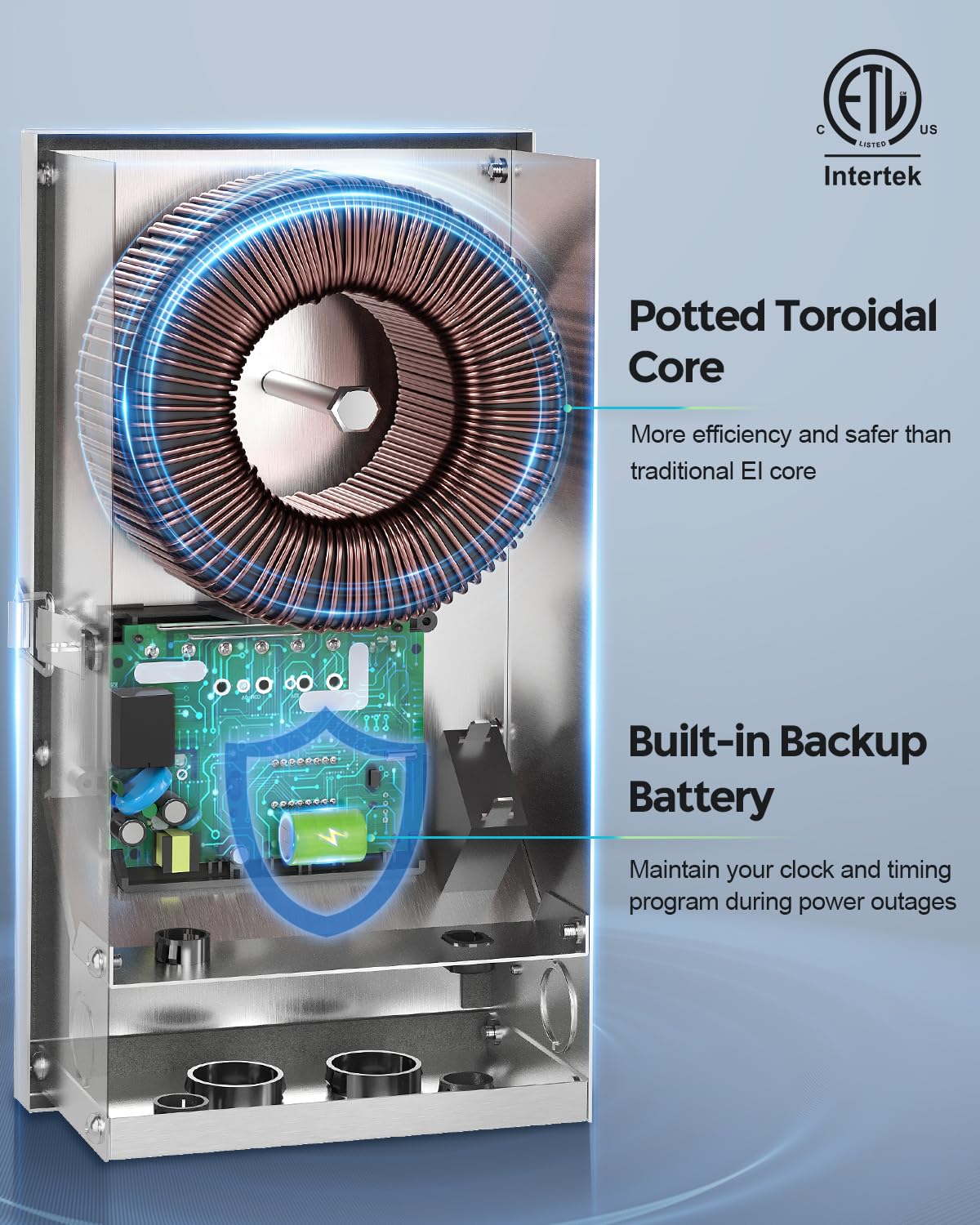

Image: An internal view of the transformer highlighting the Potted Toroidal Core, which offers higher efficiency and safety compared to traditional EI cores, and the Built-in Backup Battery, designed to maintain clock and timing programs during power outages.

Image: A detailed view of the transformer's lower section, showing the 12V AC and 15V AC multi-tap output terminals, the manual reset circuit breaker, and the connection point for the detachable photo sensor. This unit provides 300W of power.

Setup and Installation

This transformer is suitable for both indoor and outdoor wall-mount installations. Ensure the mounting surface is non-combustible.

Mounting the Transformer

1. Select a suitable wall location that is non-combustible and allows for proper ventilation.
2. Use the two mounting holes on the back of the unit to mark drilling points. The holes are 2 inches apart.
3. Securely mount the transformer to the wall using appropriate screws and anchors (included).

Image: A diagram illustrating the physical dimensions of the transformer (11.6" H x 6.1" W x 3.3" D), the 2-inch spacing of the two mounting holes, the 1-inch tool-less grommet, the 5ft SJTW 18AWG power cord, the 6ft photocell sensor cable, and the included mounting hardware (screws and anchors).

Wiring Connections

1. Ensure the transformer is unplugged from the power source before making any connections.
2. Connect your low-voltage landscape lighting cables to the appropriate 12V AC or 15V AC output terminals. Use the COM (common) terminals for the return wire.
3. Insert the detachable photocell sensor cable into its designated port.
4. Route all cables through the tool-less grommets to maintain weather resistance.
5. Once all connections are secure, close the transformer door and plug the unit into a standard 120V AC outlet.

Image: Two scenarios showing the SURAIELEC transformer installed: one mounted on a garage wall indoors, and another mounted on an exterior house wall during rain, demonstrating its suitability for both indoor and outdoor use due to its 304 stainless steel shield.

Operating Instructions

The transformer features a digital display and control buttons for easy operation. Press the "MENU" button to cycle through the four lighting modes.

Image: A close-up of the transformer's control panel, featuring a digital display and buttons for MENU, UP/DOWN arrows, and ENTER. The image highlights the four available lighting modes: Manual ON/OFF, Photocell Auto ON/OFF, Photocell ON/Timer OFF, and Programmable Timer ON/OFF.

Setting the Clock and Timer

1. Press the "MENU" button until the clock setting appears.
2. Use the UP/DOWN arrows to adjust the hour and minute.
3. Press "ENTER" to confirm and move to the next setting (e.g., AM/PM, DST).
4. Follow similar steps to set your desired timer schedules for the "Photocell ON/Timer OFF" or "Programmable Timer ON/OFF" modes.

Lighting Modes

• Manual ON/OFF: Lights are controlled manually by pressing the ON/OFF button.
• Photocell Auto ON/OFF: Lights turn on automatically at dusk and turn off at dawn, detected by the photocell sensor.
• Photocell ON/Timer OFF: Lights turn on at dusk and turn off after a set duration programmed by the user.
• Programmable Timer ON/OFF: Lights turn on and off at specific times set by the user, independent of the photocell.

Image: A visual representation of the transformer's ability to automatically turn lights on at sunset and off at sunrise, either by using the detachable photocell sensor or by setting a programmable timer. The image shows a landscape lighting setup in both evening (lights on) and daytime (lights off) scenarios.

Maintenance

The SURAIELEC 300W Landscape Transformer is designed for minimal maintenance due to its durable stainless steel construction and fully encased design.

• Cleaning: Periodically wipe the exterior of the transformer with a damp cloth to remove dirt and debris. Do not use abrasive cleaners or solvents.
• Photocell Sensor: Ensure the photocell sensor is clean and unobstructed for accurate light detection.
• Connections: Occasionally check all wiring connections to ensure they remain secure.
• Circuit Breaker: If the circuit breaker trips, unplug the transformer, reduce the load on the circuit, and then press the reset button.

Troubleshooting

If you encounter issues with your transformer, refer to the following common problems and solutions:

Specifications

Warranty and Support

SURAIELEC stands behind the quality of its products. For warranty information, technical support, or any inquiries regarding your 300W Landscape Transformer, please contact SURAIELEC customer service directly.

Please retain your proof of purchase for warranty claims.
