Victoper LED Rechargeable Headlamp TG-TD06901 User Manual

Introduction

Thank you for choosing the Victoper LED Rechargeable Headlamp, model TG-TD06901. This headlamp is designed to provide reliable illumination for various activities such as running, camping, fishing, cycling, and other outdoor pursuits. This manual provides essential information for the safe and effective use of your headlamp, including setup, operation, maintenance, and troubleshooting.

Safety Information

• Do not look directly into the LED light when it is on, as this may cause temporary vision impairment.
• Keep the headlamp away from children.
• Do not attempt to disassemble or modify the headlamp, as this will void the warranty and may cause damage or injury.
• Use only the provided charging cable or a certified Type-C cable for charging.
• Avoid exposing the headlamp to extreme temperatures or direct sunlight for prolonged periods.
• Although the headlamp is IPX4 waterproof, it is not designed for submersion in water.

Package Contents

Please check the package for the following items:

• 1 x Victoper LED Rechargeable Headlamp (Model TG-TD06901)
• 1 x Type-C USB Charging Cable
• 1 x User Manual

Product Overview

The Victoper TG-TD06901 headlamp features a powerful 2500 lumen output, 8 lighting modes, and a 60-degree adjustable head. It is designed for comfort and durability with an IPX4 waterproof rating.

Image: Overview of the Victoper LED Headlamp, highlighting its light bulbs, control buttons, battery indicator, charging port, and adjustable headband.

Key Features:

• Brightness: Up to 2500 Lumens.
• Light Modes: 8 distinct lighting modes, including white high/low, red light, and red SOS strobe.
• Adjustable Angle: 60-degree adjustable head for directing light.
• Waterproof Rating: IPX4, resistant to splashing water from any direction.
• Sensing Mode: Hands-free operation with motion sensor.
• Rechargeable: Built-in Lithium-polymer battery, charged via Type-C USB.
• Lightweight: Weighs approximately 60 grams.

Setup

1. Charging the Headlamp

Before first use, fully charge the headlamp. The battery provides up to 8 hours of use on a single charge, with a full charge taking approximately 3 hours.

1. Locate the Type-C charging port on the side of the headlamp.
2. Connect the provided Type-C USB cable to the headlamp and plug the other end into a USB power source (e.g., wall adapter, power bank, computer USB port).
3. The battery level indicator lights will show charging progress. All indicator lights will be solid when fully charged.

Image: The headlamp connected to a USB cable for charging, with battery level indicators visible.

2. Adjusting the Headband

The elastic and anti-slip headband is adjustable to ensure a comfortable and secure fit for various head sizes.

• Place the headlamp on your head.
• Use the adjustable buckles on the side of the headband to tighten or loosen it until it feels snug but not too tight.
• Ensure the headlamp unit is centered on your forehead.

Operating Instructions

1. Power On/Off and Mode Switching (Fixed Mode)

The headlamp features a main power button to cycle through its 8 fixed lighting modes.

1. To Turn On: Press the main power button (usually marked with a power symbol) once. The headlamp will turn on in the last used mode.
2. To Cycle Modes: Press the main power button repeatedly to cycle through the 8 available modes:
   • XPG Strong White Light
   • 2*COB Strong White Light
   • 2*COB Red Light
   • XPG Weak White Light
   • 2*COB Weak White Light
   • 2*COB Strobe Mode (Red)
3. To Turn Off: Press and hold the main power button for approximately 2 seconds.

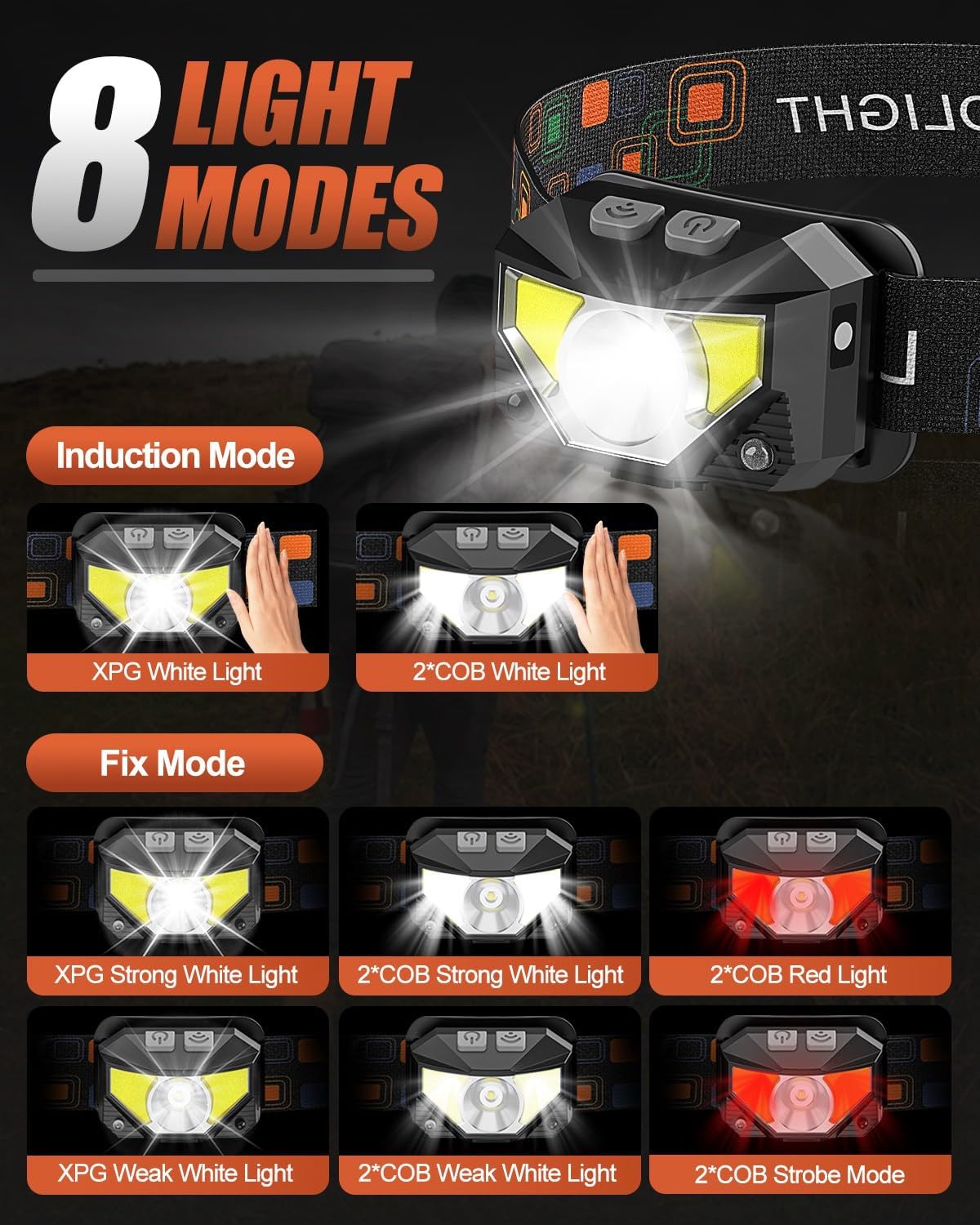

Image: Visual representation of the 8 different lighting modes, including induction mode options and fixed mode options for white and red light.

2. Sensing Mode (Motion Sensor)

The sensing mode allows for hands-free operation by detecting hand gestures. The sensing distance is approximately 20 meters.

1. To Activate Sensing Mode: Press the dedicated sensor mode button (usually marked with a wave icon). The headlamp will typically switch to a high white light mode.
2. To Operate: Wave your hand in front of the sensor to turn the light on or off.
3. To Deactivate Sensing Mode: Press the sensor mode button again to return to fixed mode operation.

Image: Illustration of the sensing mode, showing a hand gesture activating the light, and the instruction for a long press to turn off the headlamp.

3. Adjusting the Beam Angle

The headlamp unit can be tilted up or down by up to 60 degrees to direct the light precisely where needed.

• Gently hold the headlamp unit and tilt it to your desired angle.
• The mechanism is designed to hold the chosen angle securely.

Image: The headlamp demonstrating its 60-degree adjustable tilt function and highlighting its IPX4 waterproof capability.

Maintenance

Cleaning:

• Wipe the headlamp body with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Ensure the charging port cover is securely closed after charging to maintain IPX4 water resistance.

Storage:

• Store the headlamp in a cool, dry place away from direct sunlight.
• For long-term storage, charge the battery to about 50% every 3-6 months to prolong battery life.

Troubleshooting

Specifications

Warranty and Support

Victoper products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Victoper website. Please retain your proof of purchase for warranty claims.
