AEG Ultimate 7000 Series Cordless Stick Vacuum Cleaner User Manual

Introduction

Thank you for choosing the AEG Ultimate 7000 Series Cordless Stick Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

The Ultimate 7000 is designed for powerful floor-to-ceiling cleaning. Weighing only 2.2 kg, its ergonomic design ensures comfortable handling. This model also features sustainably selected materials, with at least 60% recycled plastic used in its construction.

Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.

• Do not use the vacuum cleaner outdoors or on wet surfaces.
• Do not allow it to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with a damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or vacuum cleaner with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Store the appliance indoors in a cool, dry place.

Package Contents

Upon unpacking, please ensure all components are present and in good condition:

• Main Unit (Motor and Dustbin Assembly)
• Extension Wand
• Main Floor Nozzle
• Crevice Tool
• Dusting Brush
• Wall Mount / Charging Dock
• Power Adapter / Charger
• User Manual (this document)

Image: The AEG Ultimate 7000 Series Cordless Stick Vacuum Cleaner main unit, extension wand, main floor nozzle, and various attachments including a crevice tool and dusting brush.

Setup

1. Assembly

1. Insert the extension wand into the main unit until it clicks securely into place.
2. Attach the main floor nozzle to the other end of the extension wand, ensuring it clicks firmly.
3. For handheld use, attach desired accessories (crevice tool, dusting brush) directly to the main unit.

2. Initial Charging

Before first use, fully charge the vacuum cleaner's battery. The battery is rechargeable and provides a runtime of up to 50 minutes when fully charged.

• Connect the power adapter to the charging port on the main unit or the wall mount.
• Plug the power adapter into a wall outlet.
• The charging indicator lights will illuminate, showing the charging status. A full charge takes approximately 4.5 hours.

Image: The easily removable and lightweight UltraHD Lithium high-performance battery of the vacuum cleaner.

3. Wall Mount Installation (Optional)

The included wall mount allows for convenient storage and charging.

• Choose a suitable location near a power outlet.
• Mark the drilling points on the wall using the mount as a template.
• Drill holes and insert wall plugs (if necessary).
• Secure the wall mount to the wall using appropriate screws.
• Connect the power adapter to the wall mount's charging port.

Image: The wall mount accessory for convenient storage and charging of the vacuum cleaner.

Operating

1. Powering On/Off

Press the power button located on the handle of the main unit to turn the vacuum cleaner on or off. The vacuum cleaner operates with one speed setting.

2. Using Attachments

• Main Floor Nozzle: Ideal for cleaning various floor types, including hard floors and carpets.
• Crevice Tool: Perfect for reaching tight spaces, corners, and along edges.
• Dusting Brush: Use for delicate surfaces, upholstery, and removing dust from furniture.

3. Ergonomics and Performance

The Ultimate 7000 Series is designed to be lightweight and powerful, making cleaning effortless. Its ergonomic design ensures comfortable handling during extended cleaning sessions.

Image: A person demonstrating the ease of use and lightweight nature of the AEG Ultimate 7000 Series Cordless Stick Vacuum Cleaner for effective cleaning.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.

1. Emptying the Dustbin

Empty the dustbin regularly, preferably after each use, to maintain strong suction power. Locate the dustbin release button, detach the dustbin, and empty its contents into a waste bin.

2. Cleaning the Filters

The Ultimate 7000 Series features a 5-stage filtration system, including a HEPA filter, designed to capture up to 99.9% of fine dust particles (0.3-10 µm). All filters are washable.

1. Cyclone Dirt Separation: This initial stage separates larger debris.
2. Sieve Filter: Captures medium-sized particles.
3. 2-Layer Motor Protection Filter: Protects the motor from fine dust.
4. Fine Dust Exhaust Filter (HEPA Filter): Captures microscopic particles and allergens, ensuring cleaner exhaust air.

To clean the filters:

• Remove the dustbin and then carefully remove all filters.
• Tap off loose dirt from the filters.
• Rinse the filters under cold running water until the water runs clear. Do not use detergents.
• Allow all filter components to air dry completely for at least 24 hours before reassembling. Do not use a dryer or direct heat.
• Reassemble the dry filters and place them back into the dustbin, then reattach the dustbin to the main unit.

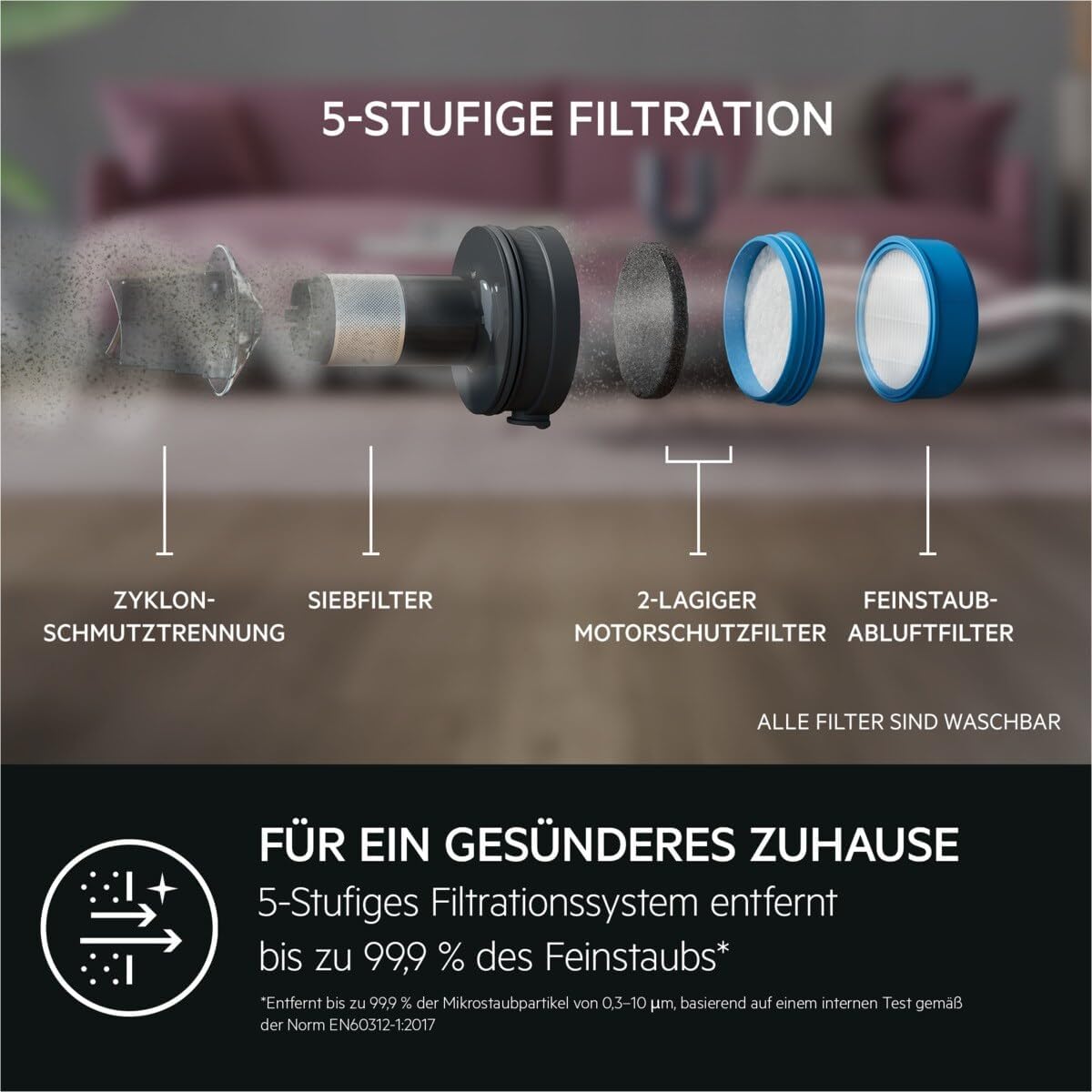

Image: A visual breakdown of the 5-stage filtration system, including cyclone dirt separation, sieve filter, 2-layer motor protection filter, and fine dust exhaust filter (HEPA filter). All filters are washable for a healthier home.

3. Cleaning the Brush Roll

Periodically check the brush roll in the main floor nozzle for tangled hair or debris. Use scissors to cut away any tangled hair and remove it. The brush roll can often be removed for easier cleaning by following the instructions in the floor nozzle section of the full manual (if available).

4. Battery Care

To maximize battery life:

• Always fully charge the battery before first use.
• Avoid completely draining the battery before recharging.
• Store the vacuum cleaner in a cool, dry place when not in use.

Troubleshooting

If you encounter issues with your vacuum cleaner, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact customer support.

Specifications

Warranty and Support

For warranty information, please refer to the warranty card included with your product or visit the official AEG website. Warranty terms and conditions may vary by region.

If you require further assistance, have questions about your product, or need to arrange for service, please contact AEG customer support through their official website or the contact information provided in your product packaging. Please have your model name (AP71UB14GG) and item model number (900402148) ready when contacting support.
