1. Introduction
Welcome to the Mabe CHM11BPL Horizontal Freezer User Manual. This document provides essential information for the safe and efficient operation, installation, maintenance, and troubleshooting of your new Mabe freezer. Please read this manual thoroughly before using the appliance and retain it for future reference.
2. Safety Information
Your safety and the safety of others are paramount. Please observe all safety warnings and instructions to prevent personal injury or property damage.
- Electrical Safety: Ensure the freezer is connected to a grounded electrical outlet with the correct voltage. Do not use extension cords or adapters.
- Placement: Position the freezer on a level, stable surface, away from direct sunlight, heat sources, and excessive moisture. Allow adequate ventilation around the unit.
- Child Safety: This appliance features a security lock to prevent children from opening it unsupervised. Always engage the lock when not in use, especially if children are present.
- Flammable Materials: Do not store explosive substances or flammable materials inside or near the freezer.
- Maintenance: Always unplug the freezer before cleaning or performing any maintenance.
3. Product Overview
The Mabe CHM11BPL is a versatile horizontal freezer designed for efficient cooling, freezing, and preserving of food items. It features a robust design and user-friendly controls.
Figure 3.1: Front view of the Mabe CHM11BPL horizontal freezer. This image displays the appliance's clean white exterior, the Mabe brand logo on the lid and front, and the temperature control dial located at the bottom right.

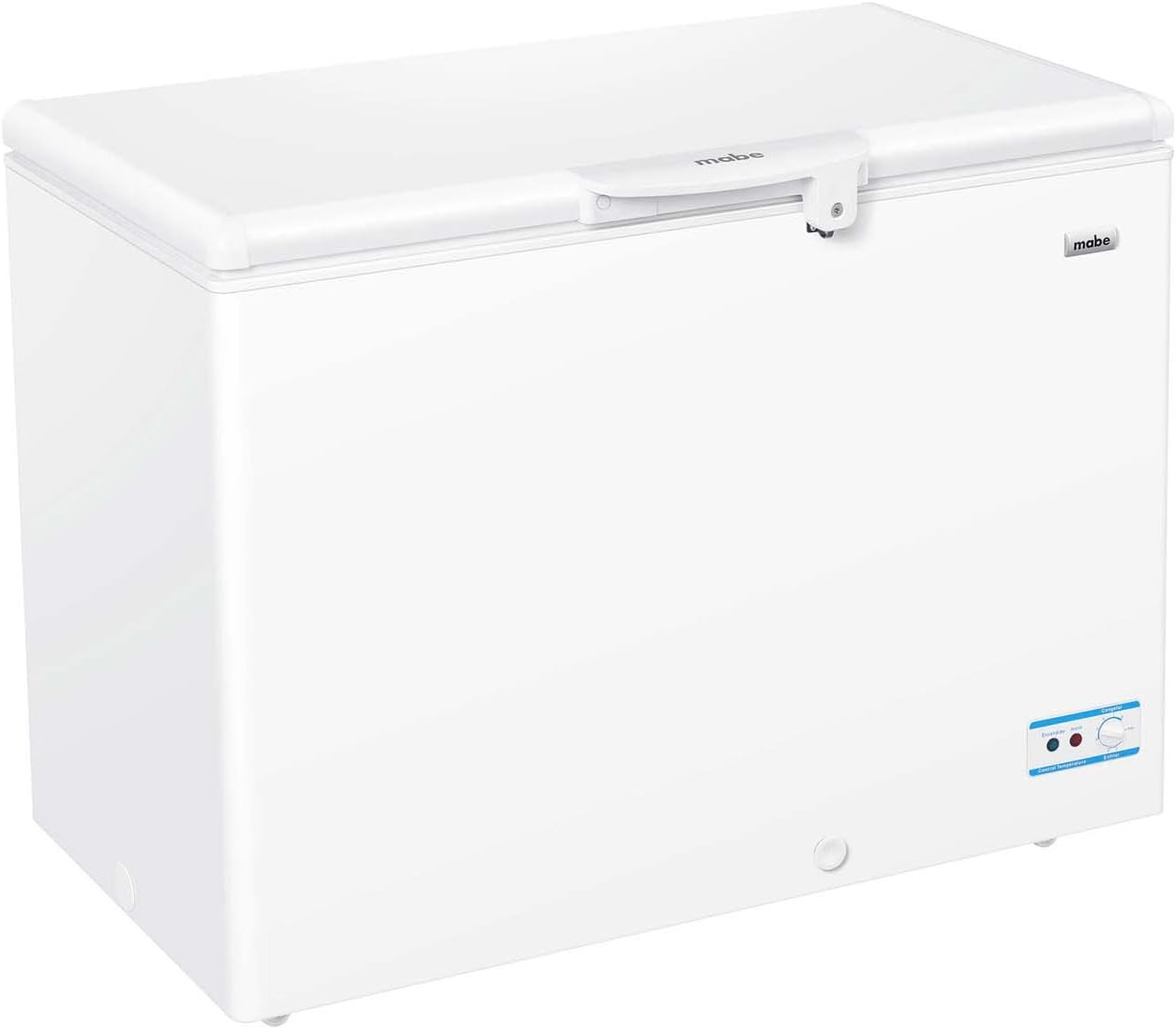

Figure 3.2: Angled view of the Mabe CHM11BPL horizontal freezer. This perspective highlights the top lid with its integrated handle and security lock mechanism, along with the smooth side panel of the unit.

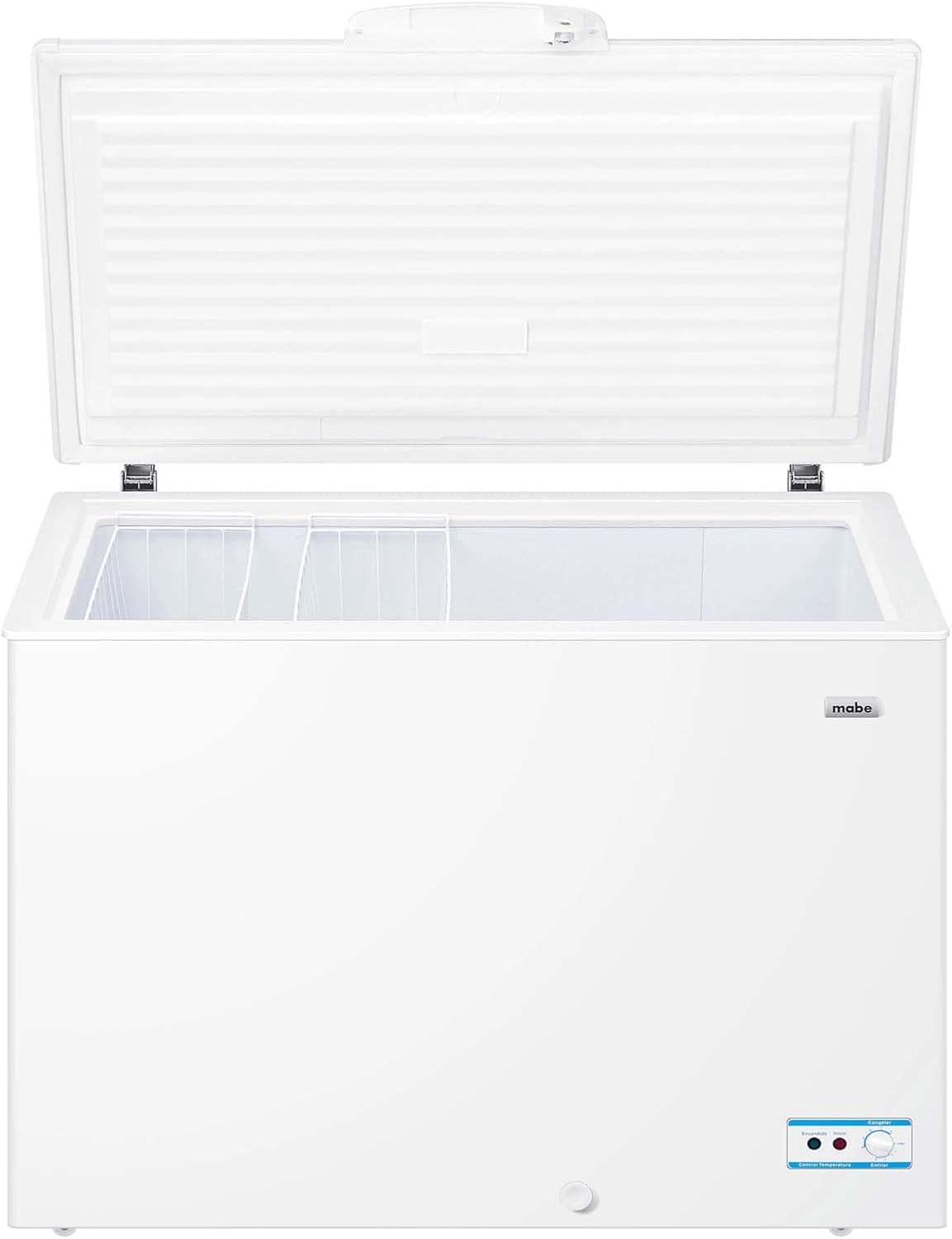

Figure 3.3: Top-down view of the Mabe CHM11BPL horizontal freezer with the lid open. This image shows the spacious interior, including a removable divider that helps organize stored items, and the internal walls of the freezer compartment.
4. Setup and Installation
Follow these steps for proper setup and installation of your freezer.
- Unpacking: Carefully remove all packaging materials, including tape and protective films. Inspect the freezer for any shipping damage.
- Placement: Choose a location with a solid, level floor capable of supporting the freezer's weight when fully loaded. Ensure there is at least 10 cm (4 inches) of space around the sides and back for proper air circulation. Avoid placing it near heat sources or in direct sunlight.
- Initial Cleaning: Before first use, clean the interior and exterior of the freezer with a mild detergent and warm water. Rinse thoroughly and dry completely.
- Power Connection: Plug the freezer into a dedicated, grounded 120V/60Hz electrical outlet. Do not use extension cords or multi-outlet adapters.
- Initial Cooling: After plugging in, allow the freezer to operate empty for at least 4 hours to reach its optimal operating temperature before loading food.
5. Operating Instructions
Your Mabe CHM11BPL freezer offers flexible operation modes.
- Triple Function: This freezer is designed with a triple function system, allowing it to operate in three modes:
- Cool: For chilling beverages or items that require refrigeration but not freezing.
- Preserve Frozen: Maintains already frozen items at a stable temperature.
- Freeze: Actively freezes fresh food items.
- Temperature Control: The freezer features 9 temperature levels, accessible via a dial on the front of the unit. Rotate the dial to select the desired cooling intensity. Higher numbers typically indicate colder settings.
- Security Lock: Use the integrated security lock to prevent unauthorized access, especially important in households with children. Insert the key and turn to lock or unlock the lid.
6. Maintenance and Cleaning
Regular maintenance ensures optimal performance and longevity of your freezer.
- Defrosting: Over time, frost will accumulate. Defrost the freezer when the frost layer reaches about 0.5 cm (0.2 inches) thick. To defrost:
- Unplug the freezer.
- Remove all food items and store them in another freezer or cooler.
- Open the drain plug located at the bottom of the freezer to allow water to escape. Place a shallow pan or towel underneath to collect the water.
- Leave the lid open to accelerate defrosting. Do not use sharp objects or heating devices to remove ice.
- Once defrosted, clean the interior, dry thoroughly, and replace the drain plug before plugging the unit back in.
- Interior Cleaning: Clean the interior regularly with a solution of mild detergent and warm water. Wipe dry with a soft cloth.
- Exterior Cleaning: Wipe the exterior surfaces with a damp cloth and mild detergent. Dry thoroughly.
- Automatic Cleaning Function: This feature assists in maintaining internal hygiene. Refer to the specific instructions on the appliance for activating and utilizing this function.
7. Troubleshooting
Before contacting service, review these common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Freezer does not operate | No power supply; Power cord unplugged; Circuit breaker tripped. | Check power outlet; Ensure cord is securely plugged in; Reset circuit breaker. |
| Freezer is not cold enough | Temperature setting too high; Door opened too frequently; Excessive frost buildup; Poor ventilation. | Adjust temperature to a colder setting; Minimize door openings; Defrost the unit; Ensure adequate space around the freezer. |
| Excessive noise | Freezer is not level; Objects vibrating against the unit; Normal operating sounds. | Adjust leveling feet; Ensure nothing is touching the freezer; Some compressor sounds are normal. |
| Water on floor | Drain plug not properly sealed; Excessive humidity. | Ensure drain plug is securely in place; Reduce humidity in the room if possible. |
8. Specifications
Key technical specifications for the Mabe CHM11BPL Horizontal Freezer.
- Model Number: CHM11BPL5
- Capacity: 320 Liters (approximately 11 Cuft)
- Dimensions (L x W x H): 62 cm x 111 cm x 84 cm (24.4 in x 43.7 in x 33.1 in)
- Weight: 49 Kilograms (108 lbs)
- Color: White
- Temperature Control: 9 levels, Dual Temperature Control
- Special Features: Triple Function (Cool, Preserve Frozen, Freeze), Security Lock, Drain Plug, Automatic Cleaning Function
9. Warranty and Support
For warranty information and customer support, please refer to the warranty card included with your product or visit the official Mabe website. Keep your purchase receipt as proof of purchase for any warranty claims.
If you require technical assistance or have questions not covered in this manual, please contact Mabe customer service.
