Mastela 4-in-1 Baby Swing and Detachable Rocker Instruction Manual

Introduction

Thank you for choosing the Mastela 4-in-1 Baby Swing and Detachable Rocker. This manual provides essential information for the safe and proper assembly, operation, and maintenance of your product. Please read all instructions carefully before use and keep this manual for future reference.

This versatile baby swing is designed to offer comfort and convenience with features like adjustable swing speeds, a detachable food tray, a portable rocker, Bluetooth app control, and built-in music.

Important Safety Warnings

• ALWAYS use the restraint system. Ensure it is correctly fitted and adjusted.
• NEVER leave the child unattended.
• DO NOT use this product once your child can sit up unaided or weighs more than 40 pounds (approximately 18 kg).
• This product is not intended for prolonged periods of sleep.
• DO NOT move or lift the product with the child in it.
• Keep away from open flames and other sources of strong heat.
• Ensure all assembly components are securely fastened before each use.
• Only use replacement parts supplied or approved by the manufacturer.

Package Contents

Please check that all components are present before assembly. If any parts are missing or damaged, do not use the product and contact customer service.

• Main Swing Frame
• Seat Unit with 5-point harness
• Detachable Food Tray
• Sunshade and Breathable Mesh Canopy
• Hanging Toys (2 pieces)
• Power Adapter (Wired Electric Power Source)
• Instruction Manual

Setup and Assembly

1. Assembling the Frame

Unfold the main swing frame. Ensure all locking mechanisms click into place securely. The frame is made of durable metal.

2. Attaching the Seat Unit

Align the seat unit with the frame's attachment points. Press firmly until you hear a click, indicating it is locked. The seat features a 5-point harness for child safety.

Figure 1: The Mastela baby swing with the seat unit securely installed.

3. Installing the Sunshade and Toys

Attach the sunshade canopy to the designated slots on the seat unit. The breathable mesh design promotes air circulation. Hang the two attractive toys from the canopy bar.

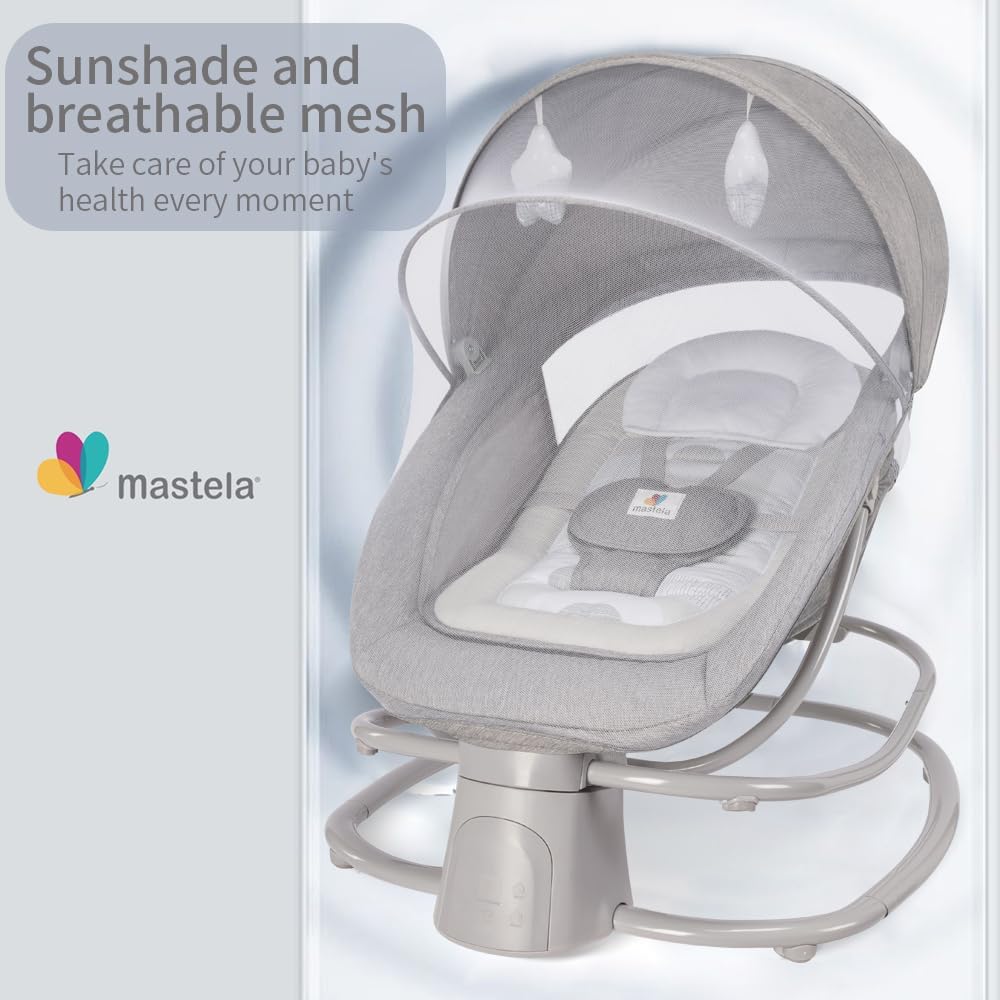

Figure 2: Sunshade and toy installation. The sunshade provides protection and the toys engage the child.

4. Attaching the Detachable Food Tray

Slide the detachable food tray into the slots on the front of the seat until it locks into place. This tray can be removed for cleaning or when not needed.

Figure 3: Detachable food tray attachment. The tray provides a convenient surface for feeding or play.

5. Power Connection

Connect the power adapter to the swing's power input and then plug it into a standard electrical outlet. The swing operates via a wired electric power source.

Operating Instructions

1. Control Panel and Bluetooth App

The swing can be controlled via its integrated touch screen panel or through a dedicated Bluetooth application available for iOS and Android devices.

Figure 4: Control panel and Bluetooth app interface. The app allows remote control of swing functions.

• Power On/Off: Press the power button on the control panel or within the app.
• Swing Speed Adjustment: Select from 5 adjustable swing speeds to find the most comfortable setting for your child.
• Music Playback: Choose from 15 built-in melodies or connect your phone via Bluetooth/USB to play your own music.
• Timer Function: Set the swing to operate for 15, 30, or 45 minutes using the timer button. The default swing time is 60 minutes, after which it automatically stops.

2. Adjusting the Backrest and Seat

The seat and backrest angles are adjustable to provide optimal comfort and support for your baby. Refer to the markings on the side of the seat for adjustment points.

Figure 5: Adjustable seat and backrest. Adjust to suit your child's comfort.

3. Detachable Rocker Function

The seat unit can be detached from the main swing frame to function as a portable, independent rocker. This allows for use both indoors and outdoors. To detach, locate the release buttons on the sides of the seat attachment points, press them, and lift the seat.

The rocker can be moved left and right, or locked into a stationary position.

4. Folding for Storage or Travel

The swing is designed to fold conveniently for easy storage or transport. Follow the instructions in the assembly section in reverse to fold the frame.

Maintenance and Care

• Cleaning: Wipe the frame and plastic parts with a damp cloth and mild soap. Do not use abrasive cleaners. The fabric seat cover may be removable for machine washing (check care label for specific instructions).
• Fabric Care: The side mesh design ensures good air circulation. Regularly check for any tears or damage to the fabric.
• Harness: Keep the 5-point harness clean and free from food debris. Ensure buckles are functioning correctly.
• Storage: When not in use, store the swing in a clean, dry place, away from direct sunlight and extreme temperatures.
• Inspection: Periodically inspect all parts for wear, damage, or loose fasteners. Tighten any loose screws. Discontinue use if any part is broken or missing.

Troubleshooting

Specifications

• Model Number: 08114
• Brand: Mastela
• Material: Metal frame
• Color: Grey 114
• Product Dimensions (L x W x H): 70.1 cm x 55.1 cm x 74.9 cm (27.6 in x 21.7 in x 29.5 in)
• Item Weight: 5.8 kg (12.8 lbs)
• Maximum Recommended Weight: 40 lbs (approximately 18 kg)
• Power Source Type: Corded Electric
• Assembly Required: Yes
• Number of Compatible Seats: 1
• Special Features: Bluetooth App Control, 5 Swing Speeds, 15 Built-in Melodies, USB Music Playback, 3-Stage Timer (15/30/45 min), Detachable Rocker, Adjustable Backrest, 5-Point Harness, Detachable Food Tray, Foldable Design, Sunshade with Breathable Mesh.

Figure 6: Product dimensions including length, width, and height.

Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase receipt or visit the official Mastela website. Keep your proof of purchase for any warranty claims.

This product comes with a 30-day return policy.
