1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your HOMEPILOT Classic s10 roller shutter motor. Please read this manual thoroughly before installation and use, and keep it for future reference.
The HOMEPILOT Classic s10 is an auto-learning tubular motor designed for roller shutters, featuring a soft stop function, precise position detection, and torque monitoring. Its Plug & Play design simplifies installation by automatically detecting end points, ensuring optimal protection for your roller shutter system.
2. Safety Instructions
WARNING: Improper installation or use can lead to serious injury or damage to the product. Always follow local electrical codes and safety regulations.
- Installation must be performed by a qualified electrician or technician.
- Disconnect power before performing any installation, maintenance, or repair work.
- Ensure the motor is compatible with your roller shutter system's weight and dimensions. Refer to the specifications.
- Keep children and pets away from the operating roller shutter.
- Do not operate the roller shutter if any part is damaged or malfunctioning.
- The motor is designed for indoor use or protected outdoor environments (IP44 rating).
3. Product Overview and Features
The HOMEPILOT Classic s10 motor offers advanced features for reliable and convenient roller shutter operation:
- Auto-Learning Function: Automatically detects end points, simplifying installation.
- Soft Stop: Ensures smooth and quiet operation, extending the lifespan of the roller shutter system.
- Block Detection: Protects the roller shutter slats from damage by detecting obstructions during operation.
- Sensitive Obstacle Detection: Stops the motor if an obstacle is encountered, preventing damage to objects or injury.
- Precise Position Detection and Torque Monitoring: Guarantees accurate and consistent performance.
- Automatic Slat Length Compensation: Adjusts for material wear and temperature fluctuations, ensuring full opening.
- Universal Motor Head: Allows tool-free installation and broad compatibility.

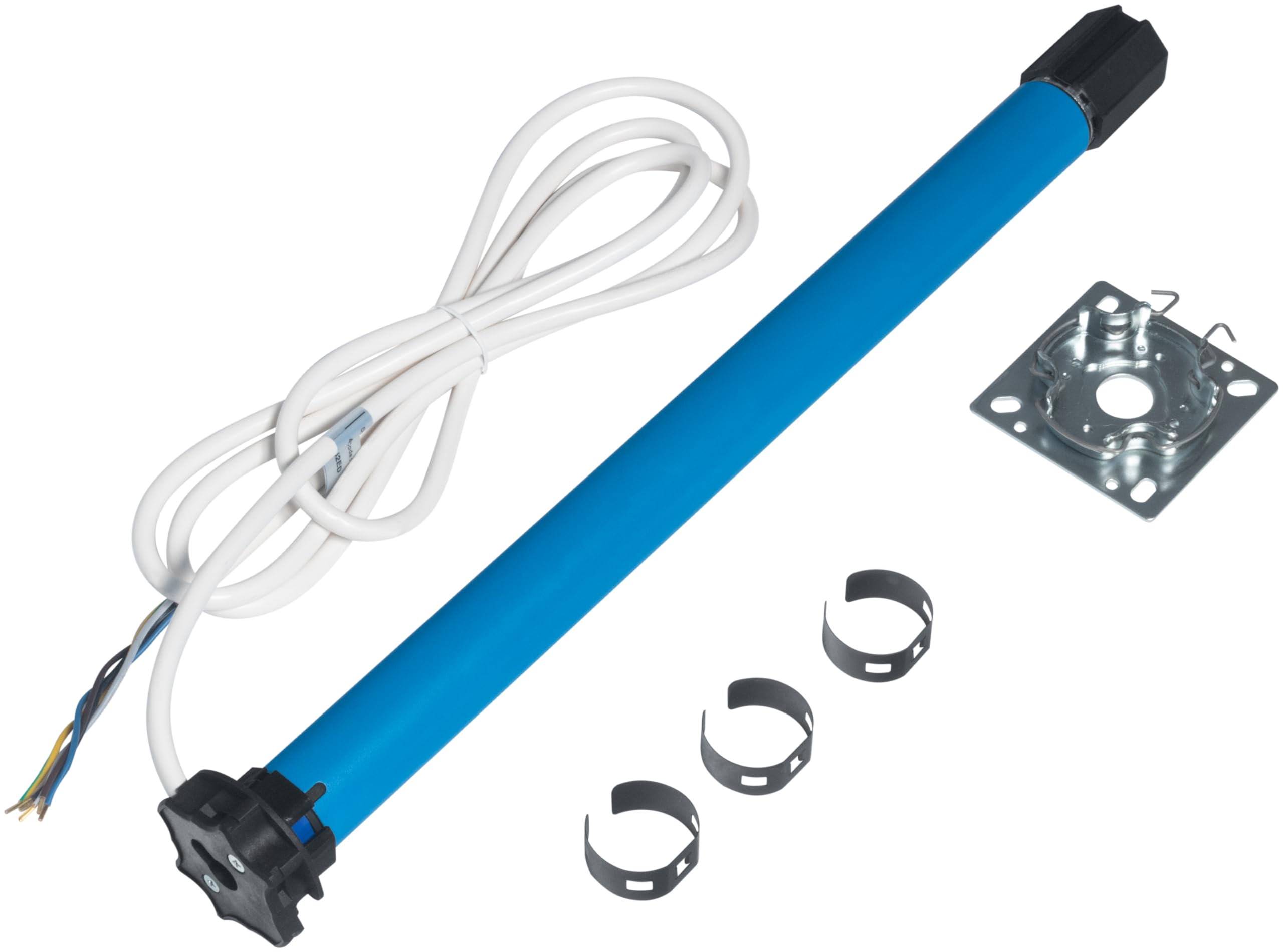

Figure 1: HOMEPILOT Classic s10 Roller Shutter Motor.
4. Specifications
| Specification | Value |
|---|---|
| Brand | HOMEPILOT |
| Model Name | Rollladenmotor classic s10 |
| Product Code | 10264010 |
| Dimensions | 10 Nm / SW40 |
| Voltage | 230 Volt |
| Wattage | 121 watts |
| Horsepower | 16.75 Watt |
| Speed | 16 RPM |
| Material | Metal |
| Color | Blue |
| Item Weight | 2.07 Kilograms |
| Certification | CE |
Figure 2: Detailed Technical Data for the HOMEPILOT Classic s10 Motor.
5. Installation
The HOMEPILOT Classic s10 motor is designed for efficient Plug & Play installation. Ensure you have the necessary tools and safety equipment before starting.
5.1 Pre-Installation Checks
- Verify that the roller shutter shaft is clean and free of obstructions.
- Confirm the roller shutter's weight and dimensions are within the motor's capacity (e.g., 10 Nm / SW40). Refer to the selection guide below.
- Ensure rigid shaft connectors or fastening springs, along with stoppers or a stop bar, are installed for auto-learning functionality.
Figure 3: Inserting the motor into the roller shutter shaft.
Figure 4: Motor Selection Guide. Choose the appropriate motor based on your roller shutter's profile weight, window height, and width.
5.2 Wiring
Connect the motor according to the wiring diagram provided with your product. Ensure all connections are secure and insulated. The motor is designed to be connected in parallel if needed.
5.3 Setting Limit Switches (End Points)
The Classic s10 motor features auto-learning for end points. If manual adjustment is required, use the adjustment screws on the motor head. Rotate the screws in the indicated direction to adjust the upper and lower limits.
Video 1: Demonstrates how to adjust the limit switches (end points) for a roller shutter motor. This process ensures the shutter stops precisely at the desired open and closed positions.
6. Operation
Once installed and calibrated, your HOMEPILOT Classic s10 motor is ready for operation. It can be controlled via a connected switch or a compatible smart home system.
6.1 Auto-Learning Process
The motor automatically detects its end points during the first few cycles of operation, provided rigid shaft connections or fastening springs and a stop bar are correctly installed. No complex manual settings are required for basic operation.
6.2 Basic Control
- Up/Open: Activates the motor to raise the roller shutter.
- Down/Close: Activates the motor to lower the roller shutter.
- Stop: Halts the roller shutter at its current position.
Video 2: Product summary video demonstrating the features and benefits of the HOMEPILOT roller shutter motor.
7. Maintenance
The HOMEPILOT Classic s10 motor requires minimal maintenance. Regular checks can help ensure its longevity and optimal performance.
- Periodically inspect the roller shutter slats and guides for any damage or obstructions.
- Keep the area around the roller shutter clear of debris.
- Do not lubricate the motor or its internal components.
- Clean the motor's exterior with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
8. Troubleshooting
If you encounter issues with your HOMEPILOT Classic s10 motor, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not respond. | No power, faulty wiring, remote control battery low. | Check power supply. Verify wiring connections. Replace remote control batteries. |
| Roller shutter stops unexpectedly. | Obstacle detected, motor overheating, incorrect limit settings. | Remove any obstructions. Allow motor to cool down. Re-calibrate limit switches if necessary. |
| Roller shutter does not fully open/close. | Incorrect limit settings, slat length compensation needed. | Adjust limit switches. Allow motor to complete several cycles for automatic slat length compensation. |
| Unusual noise during operation. | Obstruction in guides, worn components. | Inspect guides for obstructions. If noise persists, contact customer support. |
If the problem persists after attempting these solutions, please contact HOMEPILOT customer support.
9. Warranty and Support
HOMEPILOT products are manufactured to high-quality standards and come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official HOMEPILOT website.
For technical assistance, spare parts, or further inquiries, please contact HOMEPILOT customer support:
- Website: Visit HOMEPILOT Store on Amazon
- Contact Information: Refer to your product packaging or the HOMEPILOT website for the most up-to-date contact details.
