maylit Under Cabinet Lights Instruction Manual

Introduction

Thank you for choosing the maylit Ultra Thin Under Cabinet Lights. This 6-piece set provides super bright warm white (2700K) illumination, perfect for enhancing visibility and ambiance in various indoor spaces. Designed for easy installation and versatile control, these lights are an efficient lighting solution for your home or workspace.

Image: Overview of the maylit Under Cabinet Lights 6-pack, including the light bars, power adapter, and remote control.

Safety Information

• Ensure the power supply is disconnected before installation or maintenance.
• This product is designed for indoor use only. Do not expose to water or high humidity.
• Use only the provided power adapter. Using an incompatible adapter may damage the product or pose a safety risk.
• Keep out of reach of children.
• Do not attempt to disassemble or modify the lights. This will void the warranty and may cause damage or injury.

Package Contents

Verify that all components are present before beginning installation:

• 6 x 12-inch Ultra Thin LED Light Bars
• 1 x Power Adapter with In-line Dimmer Switch
• 1 x IR Wireless Remote Control
• Mounting Hardware (Double-sided tapes and screws)
• Connecting Cables

Setup and Installation

The maylit Under Cabinet Lights offer flexible installation options using either double-sided adhesive tapes or screws, depending on your surface material. The ultra-thin design (0.25 inches) ensures a discreet and clean look.

Step-by-Step Installation:

1. Plan Layout: Determine the desired placement for each light bar and the routing of connecting cables. Ensure the power adapter can reach a power outlet.
2. Clean Surface: Thoroughly clean and dry the installation surface to ensure optimal adhesion for the tapes or secure mounting for screws.
3. Connect Light Bars: Connect the LED light bars using the provided connecting cables. The system is designed to daisy-chain multiple bars together.
4. Mount Light Bars:
   • Using Adhesive Tapes: Peel the protective backing from the double-sided tapes and firmly press each light bar onto the cleaned surface.
   • Using Screws: Position the light bars and use the provided screws to secure them to the surface. Pre-drilling pilot holes may be necessary for certain materials to prevent damage to the screws.
5. Secure Cables: Use the included cable clips to neatly route and secure all connecting cables and the power adapter cable, ensuring a tidy appearance.
6. Connect Power: Plug the power adapter into a standard electrical outlet.

Image: Visual representation of the simple 3-step installation process: Clean the surface, peel the adhesive, and paste the light bar.

Installation Video:

Video: A demonstration of the quick and easy installation process for the under cabinet lights.

Operating Instructions

Your maylit Under Cabinet Lights can be controlled via the included IR wireless remote or the mini in-line dimmer switch.

Using the Mini In-line Dimmer Switch:

• On/Off: Click the button on the in-line dimmer to turn the lights on or off.
• Stepless Dimming (1%-100%): Long press the button to smoothly adjust the brightness from 1% to 100%.

Image: A hand demonstrating the use of the in-line dimmer switch to adjust light brightness.

Using the IR Wireless Remote Control:

• On/Off: Press the "ON" or "OFF" buttons.
• Brightness Adjustment: Use the up/down arrow buttons for 6 fixed brightness levels. Long press for 1%-100% stepless dimming.
• Light Modes:
  • Dynamic Mode: The lights will beat rhythmically.
  • Night Mode: Sets the lights to a suitable brightness for sleeping.
• Timer Function: Select from 5 timing off options (e.g., 30m, 1h, 2h, 3h, 4h) to automatically turn off the lights. Press "C" to clear the timer.

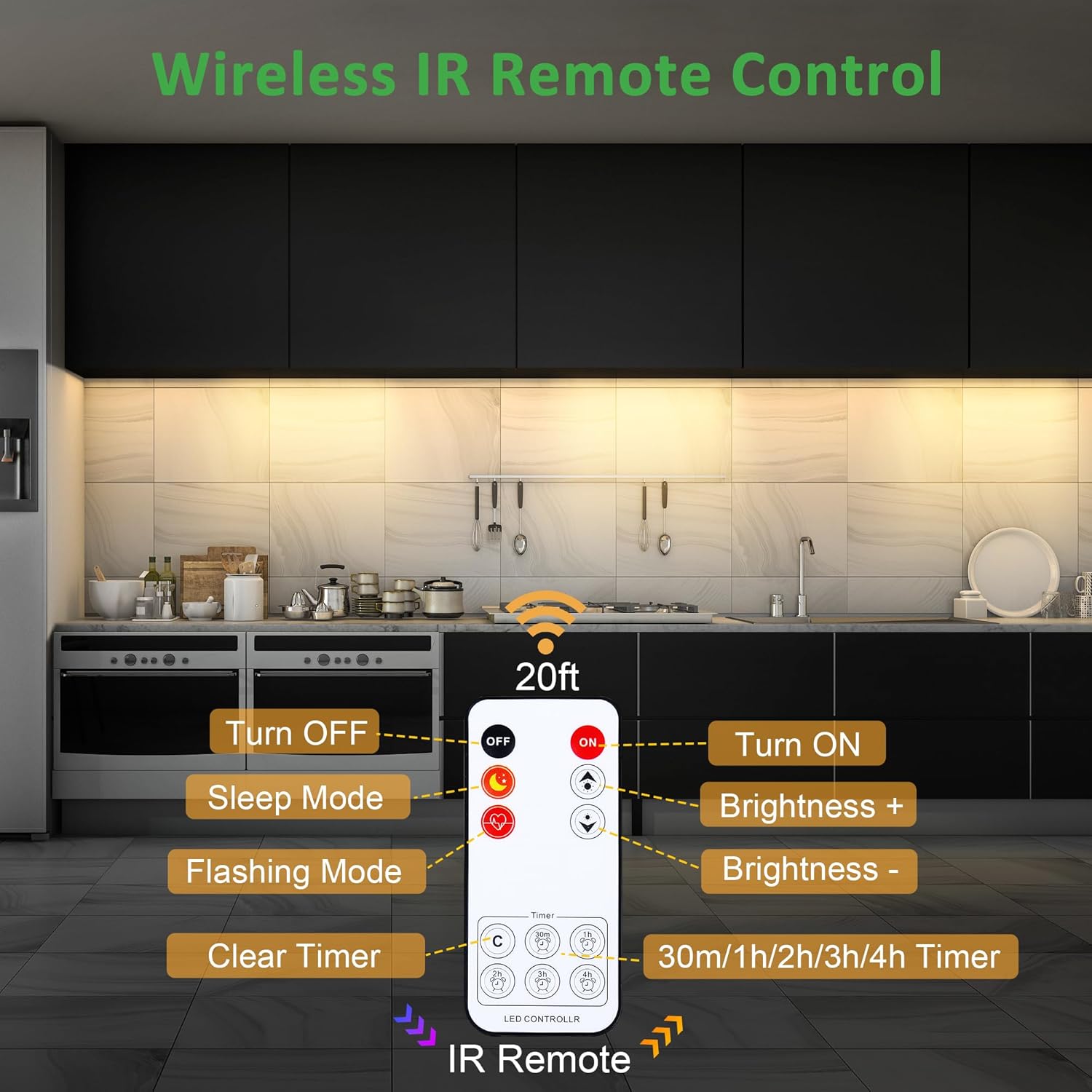

Image: The wireless IR remote control, highlighting buttons for power, brightness, modes, and timer settings.

Maintenance

To ensure the longevity and optimal performance of your maylit Under Cabinet Lights, follow these simple maintenance guidelines:

• Cleaning: Gently wipe the light bars with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
• Power Disconnection: Always unplug the power adapter from the outlet before cleaning or performing any maintenance.
• Avoid Water: As the product is not water-resistant, avoid direct contact with water or cleaning solutions.

Troubleshooting

If you encounter any issues with your maylit Under Cabinet Lights, please refer to the following common troubleshooting steps:

If the problem persists after trying these steps, please contact maylit customer support for further assistance.

Specifications

Warranty and Support

The maylit Under Cabinet Lights come with a Limited Warranty. For detailed warranty information, product support, or any inquiries, please contact maylit customer service through the retailer's platform or the official maylit website.

We are committed to providing satisfaction to our customers and will address any concerns within 24 hours.
