1. Introduction
Welcome to the user manual for your SAMEBIKE LO26 Plus Folding Electric Bike. This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your new e-bike. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize the lifespan of your bicycle.
The SAMEBIKE LO26 Plus is a versatile 26-inch adult electric bike designed for various terrains, featuring a powerful 48V 14AH removable battery, hydraulic disc brakes, and a convenient folding design.
2. Safety Information
Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Adhere to all local traffic laws and regulations. Perform a pre-ride inspection before each use.
- Helmet Use: Always wear a certified bicycle helmet.
- Pre-Ride Check: Before each ride, check tire pressure, brake function, battery level, and ensure all quick releases and fasteners are secure.
- Weather Conditions: Exercise caution when riding in wet conditions, as braking distance may increase.
- Weight Limit: Do not exceed the maximum load capacity of 350 lbs (approximately 158 kg).
- Battery Safety: Do not attempt to open or modify the battery pack. Charge the battery only with the provided charger in a well-ventilated area.
- Children: This e-bike is designed for adults. Keep out of reach of children.
3. What's in the Box
Upon unpacking, please verify that all components are present:
- SAMEBIKE LO26 Plus Electric Bicycle (90% pre-assembled)
- Battery (may be pre-installed or separate)
- Charger
- User Manual (this document)
- Assembly Tools (basic tools for final assembly)
4. Setup and Assembly
Your SAMEBIKE LO26 Plus arrives 90% pre-assembled. The remaining steps typically involve attaching the front wheel, handlebars, pedals, and seat post. Refer to the detailed assembly instructions provided in the separate assembly guide for step-by-step visuals.
- Unfolding the Frame: Carefully unfold the main frame until it locks into place. Secure the folding mechanism latch.
- Handlebar Installation: Insert the handlebar stem into the fork tube and tighten the retaining bolts. Adjust the handlebar angle for comfort.
- Front Wheel Attachment: Install the front wheel into the fork dropouts, ensuring the disc brake rotor aligns correctly with the caliper. Secure with the quick-release skewer or axle nuts.
- Pedal Installation: Identify the left (L) and right (R) pedals. The left pedal threads counter-clockwise, and the right pedal threads clockwise. Tighten securely.
- Seat Post and Saddle: Insert the seat post into the frame's seat tube. Adjust the saddle height for comfortable pedaling and secure with the quick-release lever.
- Battery Installation/Charging: If the battery is separate, install it into its compartment. Fully charge the battery before first use (4-6 hours).
Image: The SAMEBIKE LO26 Plus Electric Bike in its fully assembled, unfolded state, showcasing its robust frame and fat tires.
5. Operating Instructions
5.1 Powering On and Off
To power on the e-bike, press and hold the power button on the intelligent LCD display. To power off, press and hold the same button again.
5.2 Intelligent LCD Display
The intelligent LCD display provides real-time information about your ride and bike status. It includes indicators for power, mileage, speed, PAS level, headlight, boost mode, cruise indication, and battery level. The display also features a USB charging port for your devices.
Image: Close-up of the intelligent LCD display on the SAMEBIKE LO26 Plus handlebars, showing various indicators like speed, battery, and PAS level, along with control buttons and a USB charging port.
For more information, visit the official website: www.gzsamebike.com
5.3 Working Modes
The SAMEBIKE LO26 Plus offers three distinct working modes to suit your riding preference:
- Pure Electric Mode: Engage the throttle for motor-only propulsion without pedaling. Ideal for effortless cruising.
- Pedal-Assist Mode (PAS): The motor provides assistance as you pedal. You can adjust the level of assistance via the LCD display. This mode extends battery range and reduces rider effort.
- Work Riding Mode (Pedal Only): Ride the bike like a traditional bicycle, using only your pedal power. The motor remains off in this mode.
5.4 Shifting Gears
The bike is equipped with a Shimano 21-speed shifting system. Use the gear shifters on the handlebars to change gears according to terrain and desired speed. Shift smoothly to avoid strain on the drivetrain.
5.5 Braking System
The SAMEBIKE LO26 Plus features hydraulic disc brakes for powerful and consistent stopping power. Apply both front and rear brakes simultaneously for optimal control and shorter stopping distances. Avoid sudden, hard braking, especially with the front brake only.
Image: Detailed view of the hydraulic disc brake system, highlighting the brake rotor and caliper, illustrating the superior stopping power compared to mechanical brakes.
6. Features Overview
- 26"x3.0" Fat Tires: These wide tires provide excellent grip and stability across various terrains, including city roads, sand, snow, and mountain trails. They enhance balance and shock absorption.
Image: Close-up of the 26"x3.0" fat tire, demonstrating its robust tread pattern and suitability for diverse terrains like city roads, sand, snow, and mountain paths.
- 48V/15AH Removable Lithium Battery: The high-capacity 18650 battery provides ample power for commuting and longer rides. Its removable design allows for convenient off-bike charging. Charging time is approximately 4-6 hours.
- Full Suspension System: Equipped with adjustable front suspension and hydraulic rear shock absorbers, the bike effectively minimizes shocks and vibrations, ensuring a comfortable ride even on challenging surfaces.

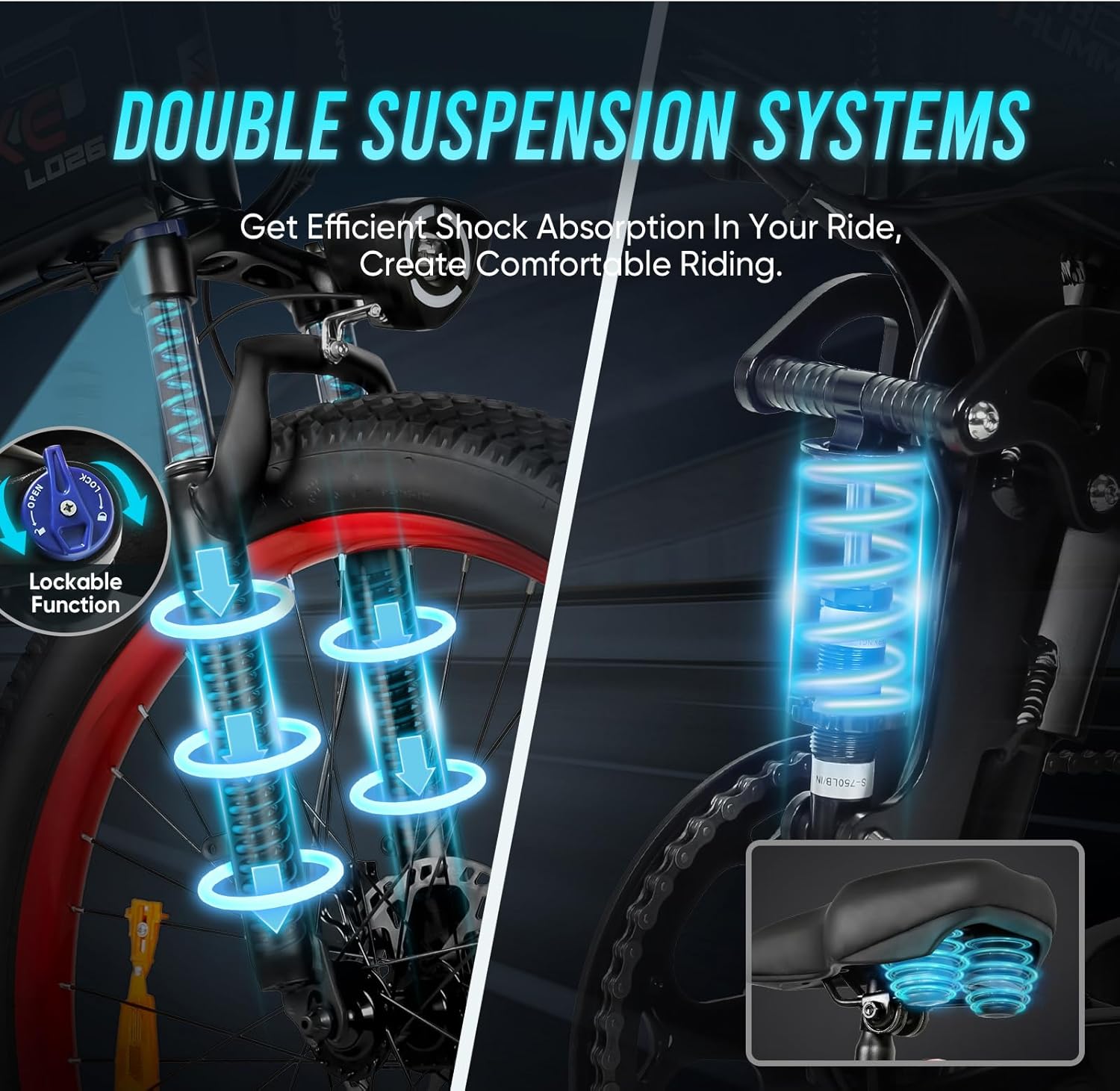

Image: Illustration of the double suspension system, showing the front fork suspension with a lockable function and the rear hydraulic shock absorber for efficient shock absorption and comfortable riding.
- Folding Design: The convenient folding mechanism allows for easy storage and transport, making it suitable for commuters or those with limited space.
Image: A person demonstrating the folding design of the SAMEBIKE LO26 Plus, easily placing the folded bike into the trunk of a car, highlighting its portability.
- Integrated Lighting: The bike includes an LED headlight for improved visibility during night rides and a rear reflector for safety.
Image: Close-up view of the integrated LED headlight and the rear reflector, emphasizing the bike's safety features for low-light conditions.
7. Maintenance
Regular maintenance is crucial for the longevity and performance of your e-bike.
- Cleaning: Clean the bike regularly with a damp cloth. Avoid high-pressure washing directly on electrical components.
- Lubrication: Lubricate the chain and other moving parts periodically to ensure smooth operation and prevent rust.
- Tire Pressure: Maintain recommended tire pressure for optimal performance and safety. Check before each ride.
- Brake Inspection: Regularly check brake pads for wear and brake levers for proper tension. Adjust or replace as needed.
- Battery Care: Store the battery in a cool, dry place. If storing for extended periods, charge it to 50-70% every 2-3 months.
- Fastener Check: Periodically check all bolts and fasteners for tightness, especially after the first few rides.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike not powering on | Low battery; loose battery connection; faulty power button. | Charge battery; ensure battery is securely seated; contact support if issue persists. |
| Motor not assisting | PAS level too low; brake lever engaged; motor cable disconnected. | Increase PAS level; release brake levers; check motor cable connection. |
| Brakes squealing or weak | Contaminated brake pads/rotors; worn pads; loose caliper. | Clean rotors/pads; replace worn pads; tighten caliper bolts. |
| Gears not shifting smoothly | Derailleur out of adjustment; stretched cable; dirty drivetrain. | Adjust derailleur; replace cable; clean and lubricate drivetrain. |
9. Specifications
| Feature | Detail |
|---|---|
| Model | LO26 Plus Black |
| Bike Type | Multi-Use Electric Bike |
| Age Range | Adult |
| Wheel Size | 26 Inches |
| Tire Size | 26" x 3.0" Fat Tire |
| Frame Material | Aluminum |
| Frame Size | Large |
| Suspension Type | Dual (Front & Rear Hydraulic) |
| Brake Type | Hydraulic Disc |
| Number of Speeds | 21 (Shimano) |
| Power Source | Electric Motor |
| Battery | 48V 14AH/15AH Removable Lithium Battery (18650 cells) |
| Charging Time | 4-6 hours |
| Max Load Capacity | 350 lbs (approx. 158 kg) |
| Special Feature | Foldable |
| Included Components | Electric bicycle, Charger |
10. Warranty and Support
SAMEBIKE provides a 1-year warranty for the LO26 Plus electric bicycle. This warranty covers manufacturing defects and significant component failures under normal use conditions.
For any warranty claims, technical support, or inquiries regarding replacement parts, please contact SAMEBIKE customer service. Wearing parts can be purchased at cost price.
Please retain your proof of purchase for warranty validation.
