1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your FAME EVIDENCE Tankless Electric Water Heater. Please read these instructions carefully before installation and use, and retain them for future reference.
The FAME EVIDENCE electric water heater is designed to provide instant hot water for showering, featuring four temperature levels: cold, warm, hot, and super hot. Its automatic operation activates upon water flow and adjusts temperature based on water pressure.
2. Important Safety Information
Failure to follow these safety instructions could result in electric shock, fire, property damage, or personal injury.
- Electrical Installation: This appliance requires a dedicated electrical circuit. It must be installed directly to the electrical distribution protection box. A 40 Amp circuit breaker and 10 AWG wiring are required. Do not use extension cords or plug into standard outlets.
- Professional Installation: Installation should be performed by a qualified electrician or plumber in accordance with all local and national electrical and plumbing codes.
- Water Pressure: Ensure adequate water pressure for proper operation. The heater automatically adjusts temperature based on water pressure.
- Grounding: The unit must be properly grounded to prevent electric shock.
- Insulation: The FAME electric shower heater is designed with complete insulation and surge protection, meeting international safety standards. Do not tamper with the internal components.
- Water Temperature: Be aware of the selected temperature setting to avoid scalding. Always test water temperature before use.
- Maintenance: Disconnect power before performing any maintenance or cleaning.
- Children: Keep children away from the appliance during operation and installation.

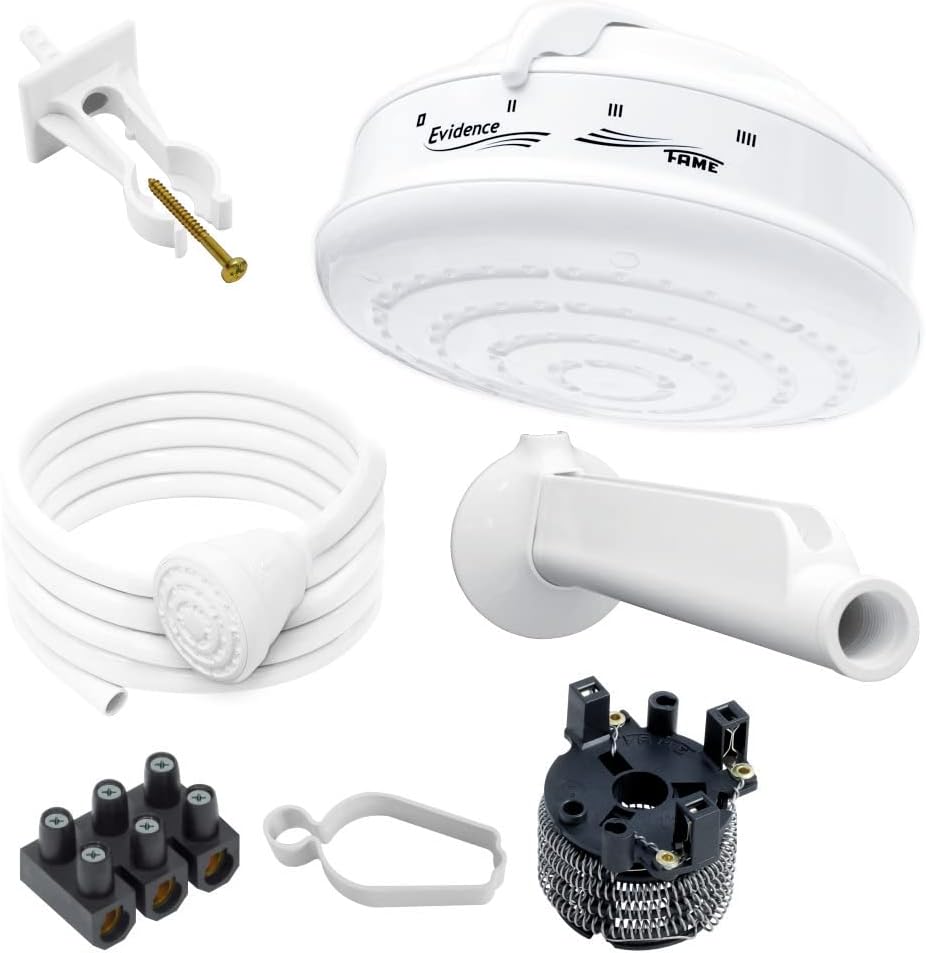

3. Package Contents
Verify that all the following components are included in your package:
- FAME EVIDENCE Electric Water Heater Unit

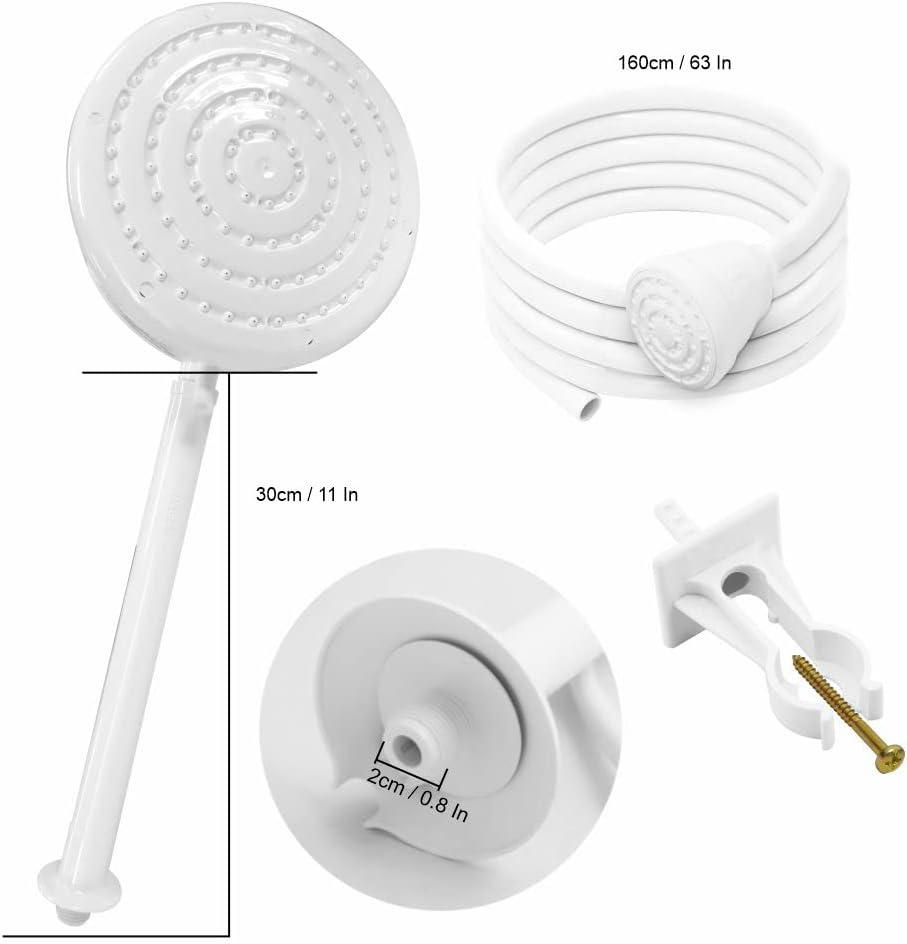

- 8-inch Shower Head
- 5.2-foot Hand Hose with "Bidet" and Support
- 30 cm long Installation Tube (reinforced thermoplastic)
- Cable Cover
- Wire Connector
- Additional Replacement Resistance (spare part)
4. Technical Specifications
| Feature | Specification |
|---|---|
| Product Type | Instant Electric Water Heater |
| Brand | FAME |
| Model | EVIDENCE (10313) |
| Voltage | 110V |
| Rated Power | 4400W |
| Rated Frequency | 50/60Hz |
| Temperature Levels | 4 (Cold, Warm, Hot, Super Hot) |
| Material (Body) | Polypropylene |
| Conductive Parts | Copper, copper and silver alloys |
| Product Dimensions (W x H) | 18.7" x 11.02" |
| Item Depth | 20 cm |
| Item Weight | 2.16 lbs |
| Mounting Type | Wall |
| Country of Origin | Brazil |
5. Installation (Setup)

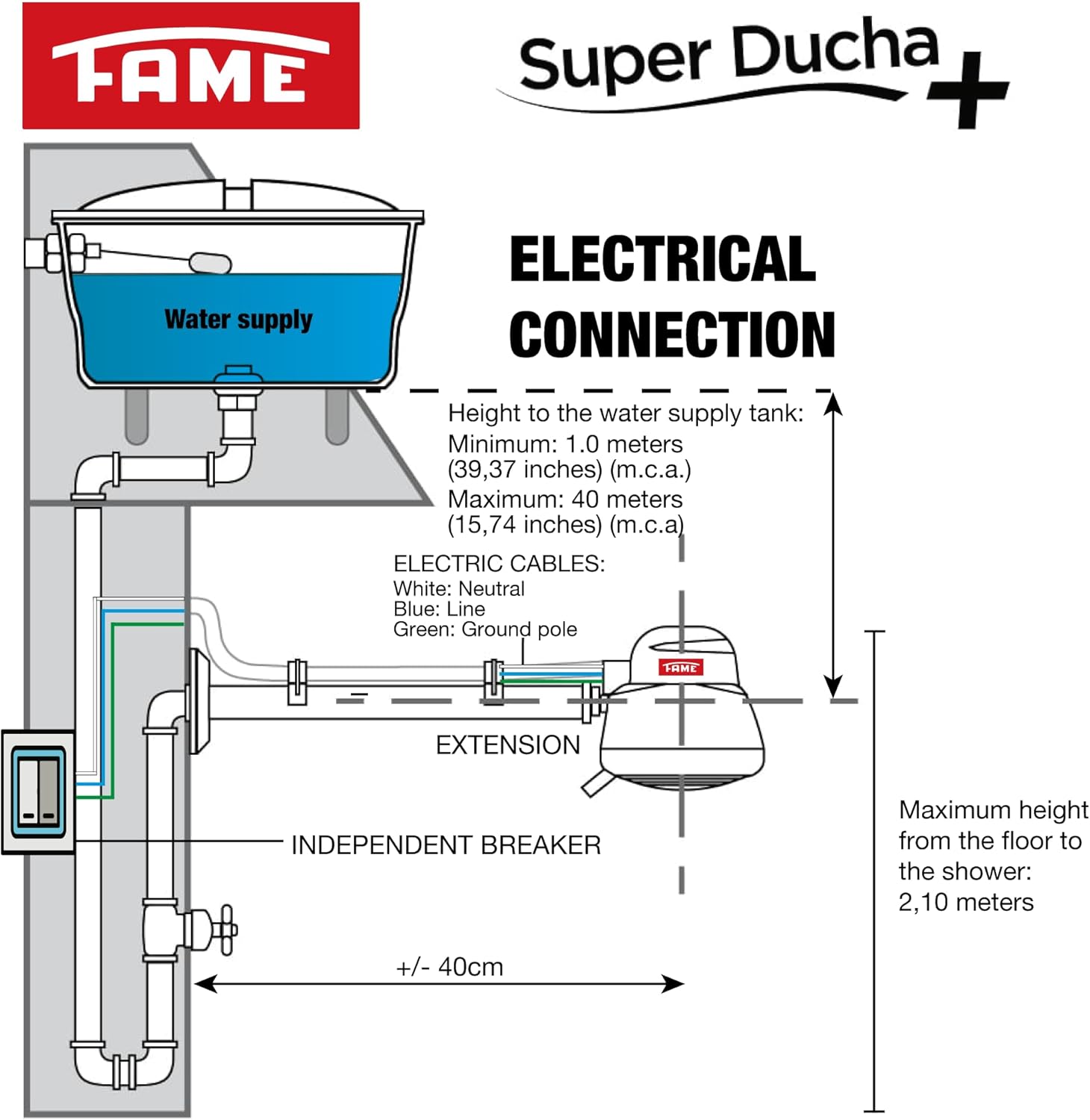

Proper installation is critical for the safe and efficient operation of your FAME EVIDENCE water heater. Refer to the electrical connection diagram below.
5.1. Pre-Installation Requirements
- Electrical Circuit: A dedicated 110V circuit with a 40 Amp circuit breaker is mandatory.
- Wiring: Use 10 AWG wiring for the electrical connection.
- Water Supply: Ensure a stable water supply. The minimum height to the water supply tank should be 1.0 meter (39.37 inches) and maximum 40 meters (15.74 inches).
- Mounting Location: The shower must be wall-mounted. The maximum height from the floor to the shower should be 2.10 meters.
- Distance from Wall: Allow sufficient space for the shower head and installation tube. The included installation tube is 30 cm long.
5.2. Electrical Connection
- Turn off Power: Before starting any electrical work, ensure the main power supply to the circuit is OFF at the breaker panel.
- Connect Wiring: Connect the electrical cables from your dedicated circuit to the water heater using the provided wire connector.
- White: Neutral
- Blue: Line
- Green: Ground pole
The FAME heater must be installed directly to the electrical distribution protection box. Do not use a standard plug or switch for connection.
- Install Cable Cover: Secure the cable cover over the electrical connections for protection and aesthetics.
5.3. Plumbing Connection
- Connect Installation Tube: Attach the 30 cm reinforced thermoplastic installation tube to the water inlet of the shower unit.
- Connect Water Supply: Connect the installation tube to your cold water supply line. Ensure all connections are watertight to prevent leaks.
- Install Shower Head: Attach the 8-inch shower head to the outlet of the main unit.
- Install Hand Hose: If desired, connect the 5.2-foot hand hose with its "Bidet" attachment and support.
6. Operation
The FAME EVIDENCE water heater is designed for simple, automatic operation.
6.1. Initial Use
- Before turning on the electrical power, open the water tap and allow water to flow through the shower unit for a few minutes to ensure it is completely filled with water and to purge any air from the system.
- Once water is flowing steadily, close the tap.
- Turn on the electrical power to the unit at the circuit breaker.
6.2. Temperature Selection
The shower unit features a selector switch for four temperature levels:
- Cold: No heating.
- Warm: Low heating. Offers up to 60% energy savings in this position.
- Hot: Medium heating.
- Super Hot: Maximum heating.
To select a temperature, rotate the selector switch on the main shower unit to the desired setting. The heater will automatically activate when water flows and will adjust the temperature based on the selected setting and water pressure.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your water heater.
7.1. Cleaning
- Exterior: Clean the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Shower Head Nozzles: Periodically check and clean the shower head nozzles to prevent mineral buildup and ensure consistent water flow. You can gently rub the rubber nozzles to dislodge deposits.
7.2. Resistance Replacement
The heating element (resistance) may need replacement over time due to wear or mineral buildup. Your package includes a spare resistance.
- Turn off Power: Absolutely ensure the electrical power to the unit is OFF at the circuit breaker before attempting to replace the resistance.
- Disassemble: Carefully follow the manufacturer's instructions (usually found within the unit's internal packaging or a separate leaflet) for disassembling the shower head to access the heating element.
- Replace: Remove the old resistance and install the new one, ensuring it is securely anchored.
- Reassemble: Reassemble the unit, ensuring all seals are properly seated.
- Test: Before turning on power, open the water tap to fill the unit with water. Then, turn on the power and test operation.
8. Troubleshooting
If you encounter issues with your FAME EVIDENCE water heater, refer to the following common problems and solutions:
- No Hot Water:
- Check if the circuit breaker is tripped. Reset if necessary.
- Ensure the water supply is on and flowing adequately.
- Verify the temperature selector is not set to "Cold".
- The heating element (resistance) may be faulty and require replacement.
- Water Not Hot Enough:
- Increase the temperature setting on the selector switch.
- Reduce water flow slightly to allow more time for heating.
- Check for low water pressure.
- The heating element may be partially damaged or calcified.
- Water Leaks:
- Turn off water supply and power immediately.
- Check all plumbing connections for tightness.
- Inspect seals and gaskets for damage.
- No Water Flow:
- Check if the main water supply is turned on.
- Inspect for blockages in the water inlet or shower head.
If problems persist after attempting these solutions, contact a qualified technician or the manufacturer's customer support.
9. Warranty and Support
For warranty information, please refer to the documentation provided with your purchase or contact the retailer. Keep your proof of purchase for warranty claims.
For technical support or further assistance, please contact FAME customer service through their official channels.
