Casatema Star Plus Bunk Bed with Window User Manual

1. Product Overview

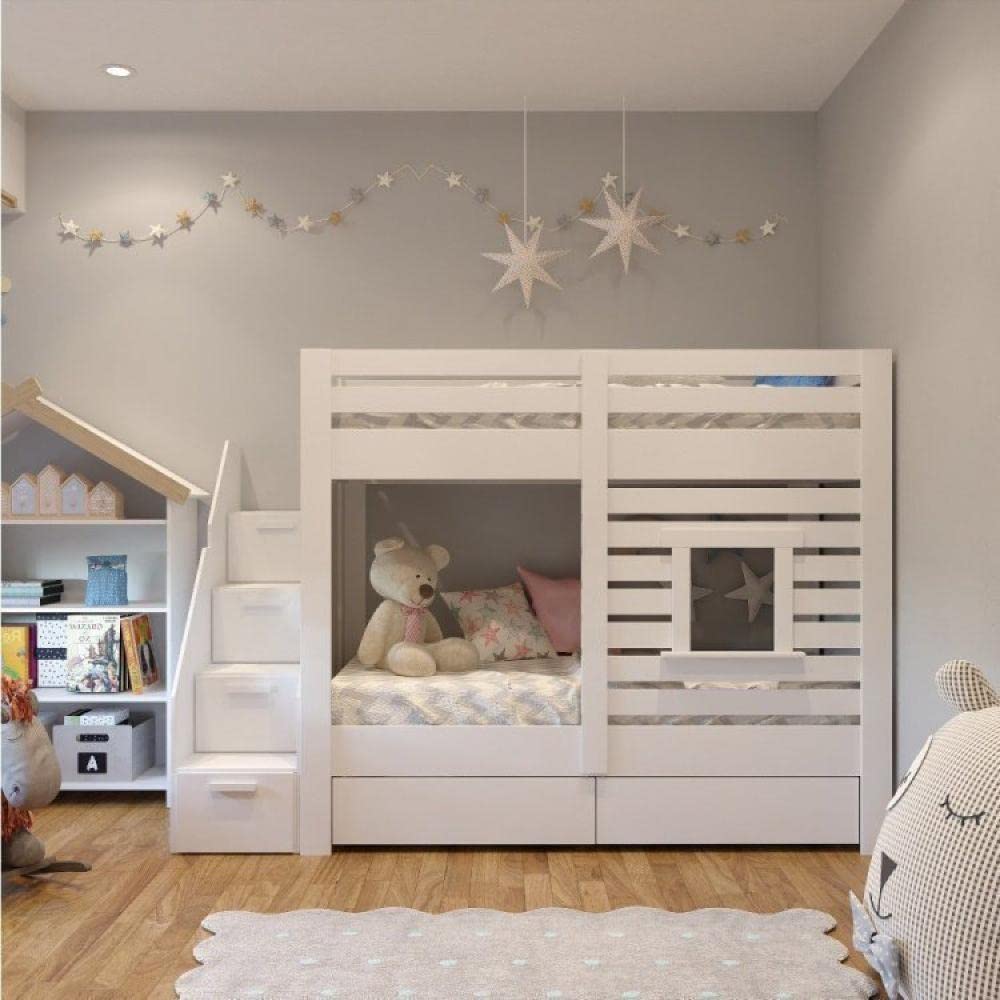

The Casatema Star Plus Bunk Bed with Window is designed to offer a functional and engaging sleeping solution for children's rooms. Its modern and exclusive design is particularly suitable for smaller spaces. This bunk bed features integrated storage with two drawers and four hinged doors, providing ample space for organizing items. A unique window on the lower bed adds a playful element, transforming the bed into a 'little house' for imaginative play.

This product is constructed from wood, primarily MDP 15mm, with solid wood slats for mattress support, and finished in polished or laminated white.

2. Safety Information

Important Safety Warning:

• Do not exceed the maximum recommended weight limits for any part of the bed.
• Regularly verify the bed's stability after assembly and during use. Adjust feet or tighten fasteners as necessary.
• Exercise caution with pressure points and sharp edges during assembly and daily use.
• Always use the provided guardrails on the top bunk.
• The top bunk is not suitable for children under six years of age.
• Ensure mattresses fit snugly to prevent entrapment.
• Do not attach or hang items on any part of the bunk bed that are not designed for use with the bed; for example, but not limited to, hooks, belts, or jump ropes.
• Consult this user manual for proper assembly and maintenance instructions.

3. Components List

Before beginning assembly, ensure all components are present and undamaged. Refer to the diagrams below for identification.

Figure 3.1: Labeled components including the panel with window, protection rail, two drawers, and four hinged doors.

Figure 3.2: Material details, highlighting MDP 15mm construction and solid wood slats for the bed base.

Key components include:

• Bunk bed frame (MDP 15mm)
• Solid wood slats for both beds
• Integrated staircase with storage (4 niches with hinged doors)
• Two under-bed drawers with wheels
• Protection rail for the top bunk
• Panel with window for the lower bunk
• Assembly hardware (screws, dowels, connectors)

4. Setup and Assembly Instructions

Assembly of the Casatema Star Plus Bunk Bed is required. It is recommended that two adults perform the assembly to ensure safety and proper construction.

1. Unpack and Organize: Carefully unpack all components and hardware. Lay them out on a clean, soft surface to prevent scratches. Identify each part using the provided diagrams.
2. Assemble Bed Frames: Begin by assembling the main frames for both the upper and lower bunks according to the detailed instructions provided in the separate assembly guide (not included in this manual). Ensure all connections are secure.
3. Install Slats: Secure the solid wood slats into both bed frames. Ensure they are evenly spaced and firmly attached.
4. Attach Staircase: Connect the integrated staircase to the main bunk bed structure. Verify that the staircase is stable and securely fastened.
5. Install Drawers and Doors: Assemble and install the two under-bed drawers with their wheels. Attach the four hinged doors to the staircase storage niches.
6. Attach Protection Rail and Window Panel: Secure the protection rail to the top bunk and the decorative window panel to the lower bunk.
7. Final Inspection: Once assembled, thoroughly check all screws, bolts, and connections to ensure they are tight and secure. The bed must be stable and level.

For detailed, step-by-step assembly diagrams, please refer to the specific assembly manual included with your product packaging.

5. Operating Instructions

This bunk bed is designed for sleeping and light play. Adhere to the following guidelines for safe operation:

• Mattress Placement: Place an 88x188 cm mattress (not included) on each bed. Ensure the mattress fits snugly within the frame.
• Weight Limits: Observe the following maximum weight capacities:

Figure 5.1: Supported weight limits for the bunk bed components.

• Up to 100 kg per bed.
• Up to 4 kg per drawer.
• Up to 100 kg per step on the staircase.
• Up to 20 kg inside each staircase storage niche.
• Staircase Use: Use the staircase for climbing to and from the top bunk. Do not jump on the steps.
• Storage Use: The drawers and staircase niches are for storing lightweight items such as clothes, toys, or books. Do not overload them.

6. Maintenance and Care

Proper maintenance will extend the life and appearance of your bunk bed.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid using abrasive cleaners, harsh chemicals, or solvents, as these can damage the finish.
• Regular Checks: Periodically check all fasteners (screws, bolts) and tighten them if they have become loose. Loose fasteners can compromise the bed's stability and safety.
• Avoid Moisture: Protect the bed from excessive moisture and direct sunlight, which can cause warping or fading.
• Moving the Bed: When moving the bed, lift it rather than dragging it to prevent damage to the frame and floor.

7. Troubleshooting

If you encounter any issues with your bunk bed, refer to these common solutions:

• Squeaking Noises: Squeaking often indicates loose fasteners. Re-tighten all screws and bolts on the bed frame and slats.
• Instability/Wobbling: Ensure the bed is placed on a level surface. Check all connections for tightness. If the issue persists, disassemble and reassemble, carefully following the instructions.
• Drawers Sticking: Check if the drawer runners are clean and free of obstructions. Ensure the drawers are correctly aligned on their tracks.
• Damaged Parts: If any part is damaged or missing, do not attempt to use the bed. Contact the retailer or manufacturer for replacement parts.

8. Specifications

Detailed specifications for the Casatema Star Plus Bunk Bed:

Figure 8.1: Overall dimensions of the bunk bed.

9. Warranty and Support

For information regarding the product warranty, please refer to the documentation provided by your retailer at the time of purchase. Standard return policies typically allow for returns within 7 days of receipt. For extended warranty options or specific support inquiries, please contact your point of purchase or the Casatema customer service directly.
