Introduction

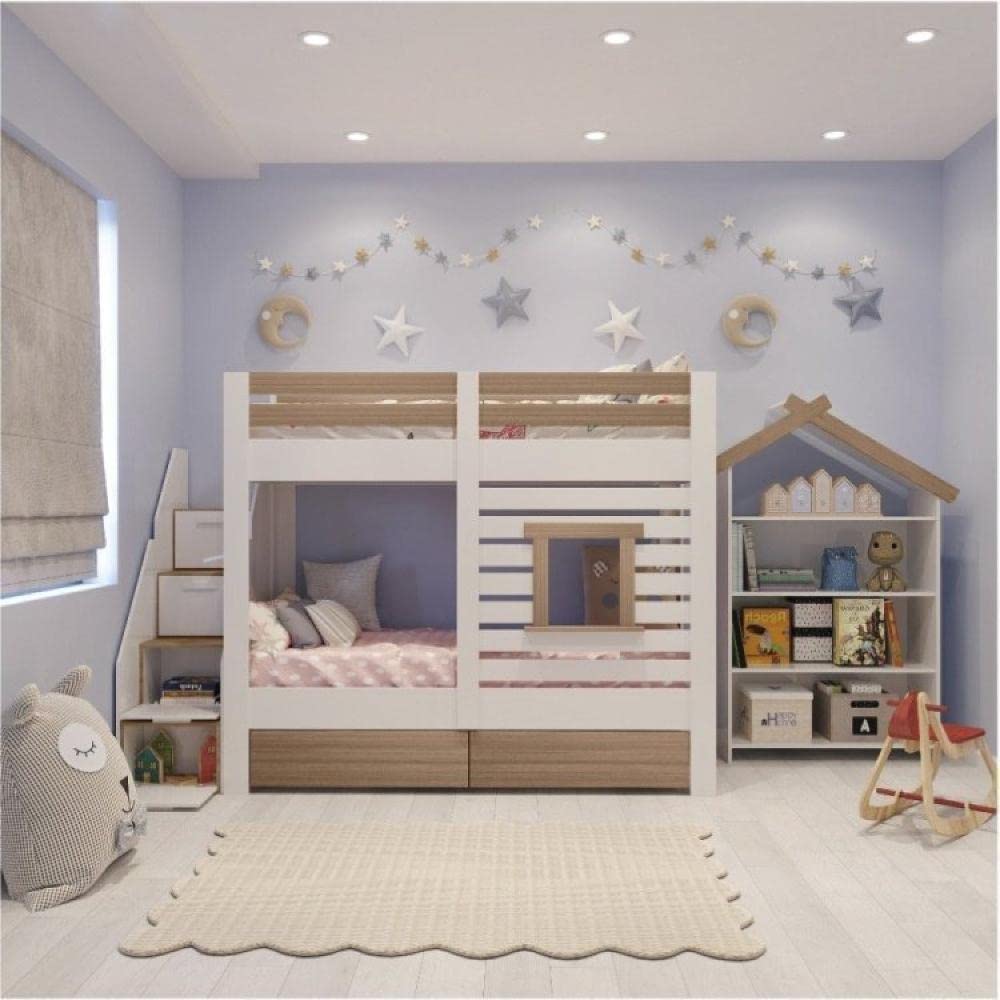

Thank you for choosing the Casatema Star Plus Children's Bunk Bed with Window. This modern and functional bunk bed is designed to create a playful and organized space for children, especially suitable for smaller rooms. It features a unique design with a lower bed window, transforming it into a charming playhouse, along with integrated storage including four doors and two drawers for clothes and other items. This manual provides essential information for safe assembly, usage, and maintenance of your new bunk bed.
Safety Information
Please read all instructions carefully before assembly and use. Keep this manual for future reference.
- Important: Exercise caution with the window on the lower bed. Ensure it is securely installed and stable before allowing children to use the bed.
- Always follow the recommended weight limits to prevent injury or damage.
- Ensure all screws and fasteners are tightened securely during assembly and checked periodically.
- Do not allow children to play unsupervised on or around the bunk bed.
- Keep small parts out of reach of children during assembly.
- This bunk bed is intended for children. Adult supervision is recommended.
Weight Capacity:
- Up to 100 kg per bed.
- Up to 4 kg per drawer.
- Up to 100 kg per step.
- Up to 20 kg inside each niche (storage compartment).
Figure 1: Weight capacity details for the Casatema Star Plus Bunk Bed. Each bed supports up to 100 kg, each drawer up to 4 kg, each step up to 100 kg, and each niche up to 20 kg.
Package Contents
Before beginning assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Bunk bed frame components (panels, posts, slats)
- 2 Drawers with wheels
- 4 Doors for niche compartments
- Fixed protective rail
- Panel with window
- Assembly hardware (screws, dowels, connectors)
- Instruction manual (this document)
Figure 2: Key components of the Casatema Star Plus Bunk Bed, including the fixed protective rail, window panel, two drawers, and four doors.
Setup and Assembly
Assembly is required for this product. It is recommended to have two adults for assembly. Please follow the detailed assembly instructions provided in the separate assembly guide (if applicable) or refer to the diagrams below. Ensure you have adequate space and the necessary tools (e.g., screwdriver, hammer) before starting.
- Unpack all components and verify against the package contents list.
- Assemble the main bed frames first, ensuring all connections are secure.
- Attach the protective rail to the upper bunk.
- Install the window panel on the lower bunk.
- Assemble and insert the drawers into their designated compartments.
- Attach the doors to the niche compartments on the steps.
- Once fully assembled, check all fasteners for tightness and stability.
Figure 3: Dimensional overview of the Casatema Star Plus Bunk Bed. Overall dimensions are 194.3 cm (length) x 166.2 cm (height). The steps are 136.5 cm high and 96 cm deep. Drawers are 85.9 cm wide.
Operating and Usage
The Casatema Star Plus Bunk Bed is designed for comfortable and functional use by children. It accommodates mattresses of 88x188 cm (not included).
- Beds: The bunk bed features an upper and lower sleeping area. Ensure mattresses fit snugly within the frame.
- Stairs with Storage: The integrated stairs provide safe access to the upper bunk and include four niche compartments with doors for storage.
- Drawers: Two large drawers on wheels are located under the lower bed, offering ample space for toys, bedding, or clothes.
- Window Panel: The window on the lower bed adds a playful element. Ensure it is not used for climbing or excessive force.
Maintenance
Proper care will extend the life and appearance of your bunk bed.
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
- Inspection: Periodically check all screws, bolts, and fasteners to ensure they are tight. Re-tighten if necessary.
- Material: The bunk bed is made from wood (MDP 15 mm with Perfect Wood finish). Protect it from excessive moisture and direct sunlight.
Figure 4: Material detail of the bunk bed, featuring MDP 15 mm with a Perfect Wood finish.
Troubleshooting
If you encounter any issues with your bunk bed, refer to the following common solutions:
- Wobbling/Instability: Check all assembly points. Ensure all screws and bolts are fully tightened. Make sure the bed is on a level surface.
- Drawers not sliding smoothly: Check for any obstructions in the drawer tracks. Ensure the wheels are clean and properly aligned.
- Damaged parts: Do not attempt to repair severely damaged structural parts. Contact customer support for replacement parts.
Specifications
| Brand | Casatema |
| Model | Star Plus |
| Material | Wood (MDP 15 mm) |
| Finish Type | White / Perfect Wood |
| Style | Modern |
| Included Components | 4 doors, 2 drawers |
| Target Audience | Children |
| Assembly Required | Yes |
| Form Factor | Bunk Bed |
| Item Shape | Rectangular |
| Item Weight | 132.9 Kilograms |
| Recommended Mattress Size | 88 x 188 cm (not included) |
Warranty and Support
Specific warranty information for the Casatema Star Plus Bunk Bed is not provided in this manual. Please refer to your purchase documentation or contact the retailer/manufacturer directly for warranty details and customer support.
For assistance with assembly, missing parts, or other inquiries, please contact Casatema customer service through their official website or the retailer where the product was purchased.
