Jocca 10L 1700W Touch Screen Air Fryer Instruction Manual

1. Important Safety Instructions

Before using the Jocca Air Fryer, please read all instructions carefully and retain them for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Electrical Safety: Ensure the voltage indicated on the appliance matches your local mains voltage before connecting. Do not operate the appliance with a damaged cord or plug. Keep the power cord away from hot surfaces.
• Hot Surfaces: The appliance surfaces become hot during use. Always use oven mitts or gloves when handling hot components. Do not touch hot surfaces directly.
• Placement: Place the air fryer on a stable, heat-resistant surface, away from walls and other appliances to allow for adequate ventilation. Do not place near flammable materials.
• Supervision: This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play with the appliance.
• Cleaning: Always unplug the appliance and allow it to cool completely before cleaning. Do not immerse the main unit in water or any other liquid.
• Usage: This appliance is for household use only. Do not use outdoors. Do not use for purposes other than intended.

2. Product Overview

The Jocca 10L 1700W Air Fryer is designed for healthy cooking with hot air circulation. It features a touch screen control panel and multiple pre-set programs.

Main Unit

Figure 2.1: Front view of the Jocca 10L Air Fryer. The appliance features a sleek black and stainless steel design with a viewing window and a prominent 'JOCCA' brand logo.

Figure 2.2: The air fryer with its front door open, showing the spacious interior cooking chamber and the removable drip tray at the bottom.

Figure 2.3: A detailed view of the touch screen control panel, displaying various icons for pre-set programs, temperature, and timer settings.

Accessories

Figure 2.4: The Jocca Air Fryer accompanied by its full set of accessories, including a mesh basket, rotisserie spit, rotisserie forks, and grill rack.

• Mesh Basket: Ideal for roasting smaller items like nuts, coffee beans, or for making fries.


Figure 2.5: A cylindrical mesh basket, designed for even cooking and tumbling of food items.

• Rotisserie Spit and Forks: Used for roasting whole chickens or larger cuts of meat.


Figure 2.6: The rotisserie spit, a long metal rod with pointed ends for securing food.



Figure 2.7: A set of rotisserie skewers, designed to hold multiple food items for even cooking.

• Rotisserie Handle: For safe removal of the hot rotisserie spit or mesh basket.


Figure 2.8: The rotisserie handle, a metal tool with a U-shaped grip for safely lifting and removing hot rotisserie accessories.

• Grill Rack: For grilling or dehydrating food items.

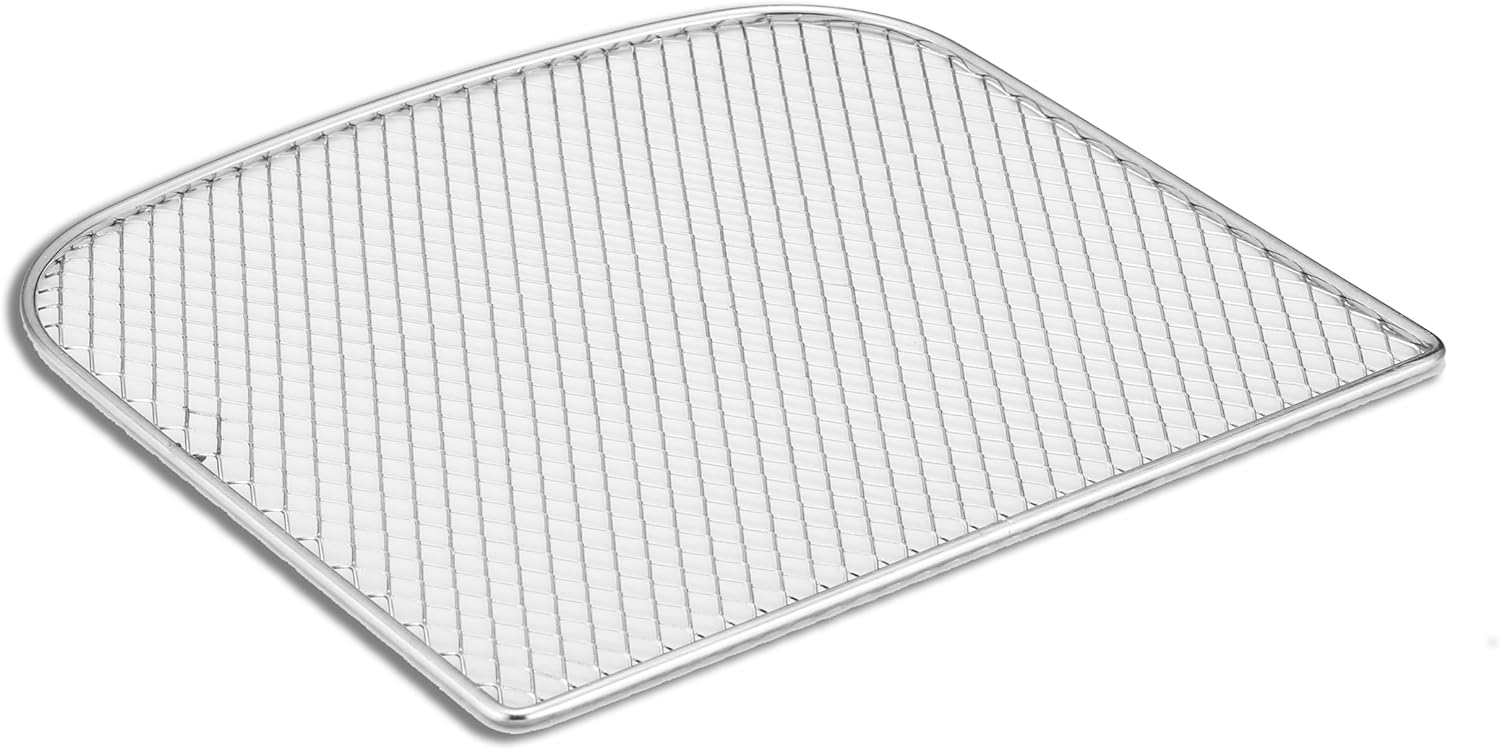

Figure 2.9: A square grill rack with a fine mesh pattern, suitable for various cooking tasks.

• Drip Tray: Collects excess oil and food particles, making cleanup easier.

3. Setup and First Use

Unpacking

1. Carefully remove the air fryer and all accessories from the packaging.
2. Remove any protective films or stickers from the appliance.
3. Inspect the appliance for any damage. Do not use if damaged.

Initial Cleaning

1. Wipe the exterior of the air fryer with a damp cloth.
2. Wash all removable accessories (mesh basket, rotisserie spit, forks, grill rack, drip tray) with warm, soapy water. Rinse thoroughly and dry completely.
3. Wipe the interior of the appliance with a damp cloth.

Placement

1. Place the air fryer on a stable, level, and heat-resistant surface.
2. Ensure there is at least 10 cm (4 inches) of clear space around the back and sides of the appliance, and 30 cm (12 inches) above, for proper air circulation.
3. Do not place the appliance directly under wall cabinets.

First Use (Burn-off)

During the first use, a slight odor or smoke may be emitted. This is normal and will dissipate quickly. It is recommended to run the air fryer empty for about 10-15 minutes before cooking food.

1. Plug the power cord into a grounded electrical outlet.
2. Set the temperature to 200°C (390°F) and the timer to 15 minutes.
3. Allow the appliance to run until the timer expires.
4. Unplug and let it cool down completely before proceeding with cooking.

4. Operating Instructions

Control Panel

The Jocca Air Fryer features a touch screen control panel for easy operation.

• Power Button: Turns the appliance on/off and starts/pauses cooking.
• Temperature Control: Adjusts the cooking temperature.
• Time Control: Adjusts the cooking time.
• Pre-set Programs: Icons representing 8 different cooking functions (e.g., fries, chicken, fish, steak, pizza, cake, dehydrate, reheat).
• Rotisserie Function: Activates the rotation for rotisserie accessories.

Basic Operation

1. Place food inside the air fryer, ensuring it does not exceed the MAX fill line or obstruct the heating element.
2. Close the door securely.
3. Plug the appliance into a grounded electrical outlet. The display will illuminate.
4. Using Pre-set Programs: Tap the desired pre-set program icon. The appliance will automatically set the recommended time and temperature. You can adjust these settings manually if needed.
5. Manual Operation: Tap the temperature and time icons to set your desired cooking temperature and time.
6. Press the Power button to start cooking.
7. To pause cooking, press the Power button again. Press it once more to resume.
8. The appliance will beep when cooking is complete.
9. Carefully remove cooked food using heat-resistant utensils.

Using Accessories

• Rotisserie Spit/Mesh Basket: Insert the rotisserie spit or mesh basket into the designated slots inside the cooking chamber. Ensure it is securely locked in place. Activate the rotisserie function on the control panel for continuous rotation.
• Grill Rack: Place the grill rack on the support rails inside the air fryer. Ensure the drip tray is placed at the bottom to catch any drippings.

5. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your Jocca Air Fryer.

1. Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool down completely before cleaning.
2. Main Unit (Exterior): Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.
3. Main Unit (Interior): Wipe the interior with a soft, damp cloth. For stubborn food residue, use a mild dish soap solution. Ensure the interior is completely dry before next use.
4. Accessories: All removable accessories (mesh basket, rotisserie spit, forks, grill rack, drip tray) are generally dishwasher safe. Alternatively, wash them with warm, soapy water, rinse thoroughly, and dry completely. The non-stick coating on the drip tray should be handled with care to prevent scratching.
5. Heating Element: Gently clean the heating element with a soft brush to remove any food particles. Do not use water or liquid directly on the heating element.
6. Storage: Store the cleaned and dried air fryer in a cool, dry place.

6. Troubleshooting

If you encounter issues with your Jocca Air Fryer, refer to the following common problems and solutions:

7. Specifications

8. Warranty and Support

Warranty Information

This Jocca Air Fryer is covered by a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration of the warranty. Keep your proof of purchase for warranty claims.

Customer Support

For technical assistance, spare parts, or any questions regarding your Jocca Air Fryer, please contact Jocca customer support. Contact details can typically be found on the official Jocca website or on the product packaging.

Please note: Information regarding spare parts availability was not provided in the product details.
