1. Introduction

This manual provides essential information for the A ABSOPRO Engine Variable Timing Oil Control Valve Solenoid, OE Number 10921AA220. This component is designed for specific Subaru BRZ models from 2013 to 2015. It is crucial for the proper functioning of your vehicle's engine timing system.

The Variable Valve Timing (VVT) solenoid plays a vital role in optimizing engine performance and fuel efficiency by precisely controlling the flow of oil to the camshaft phasers, thereby adjusting valve timing.

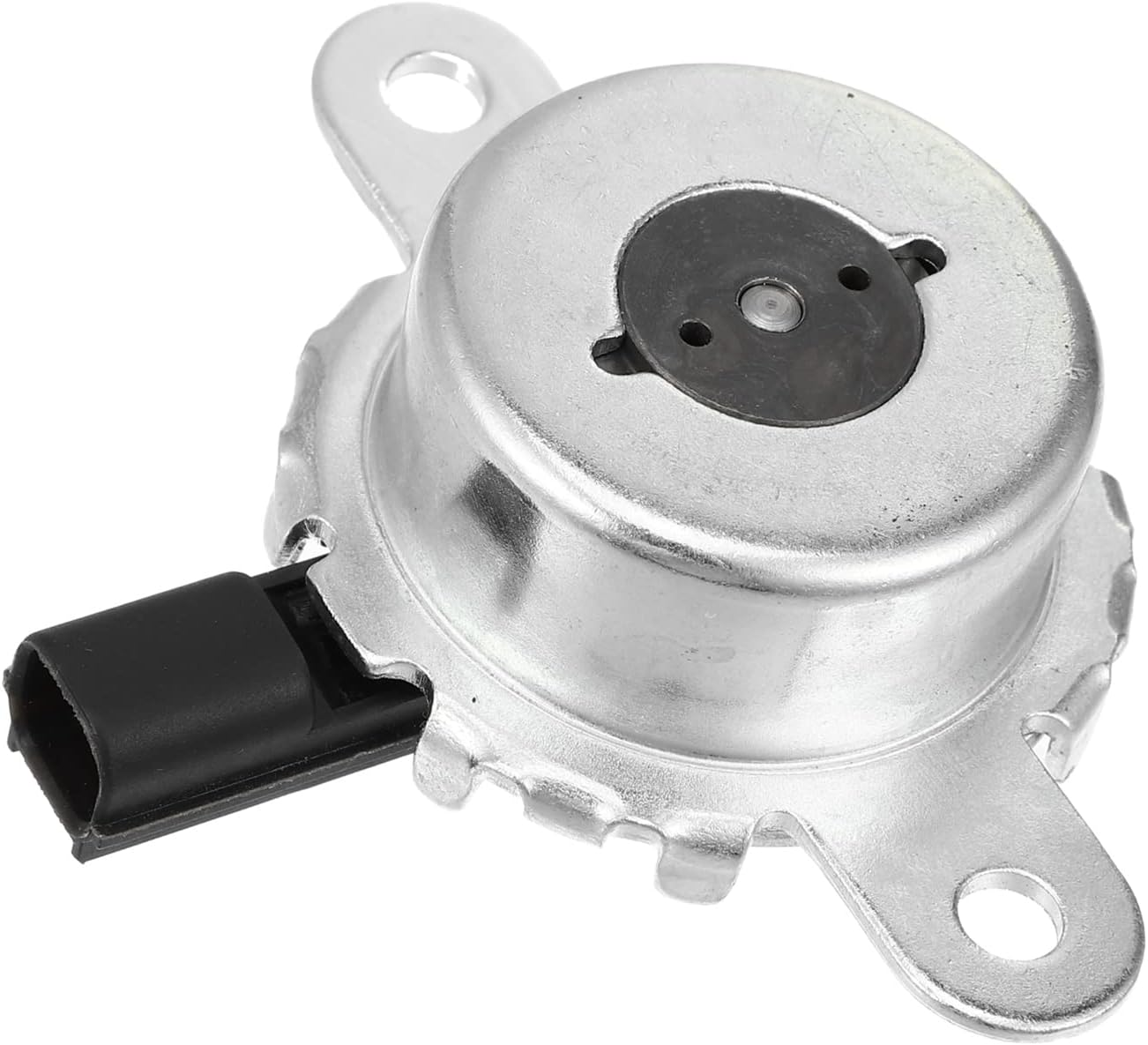

Figure 1.1: Overview of the A ABSOPRO Variable Timing Oil Control Valve Solenoid.

2. Product Specifications

Below are the detailed specifications for the A ABSOPRO Variable Timing Oil Control Valve Solenoid:

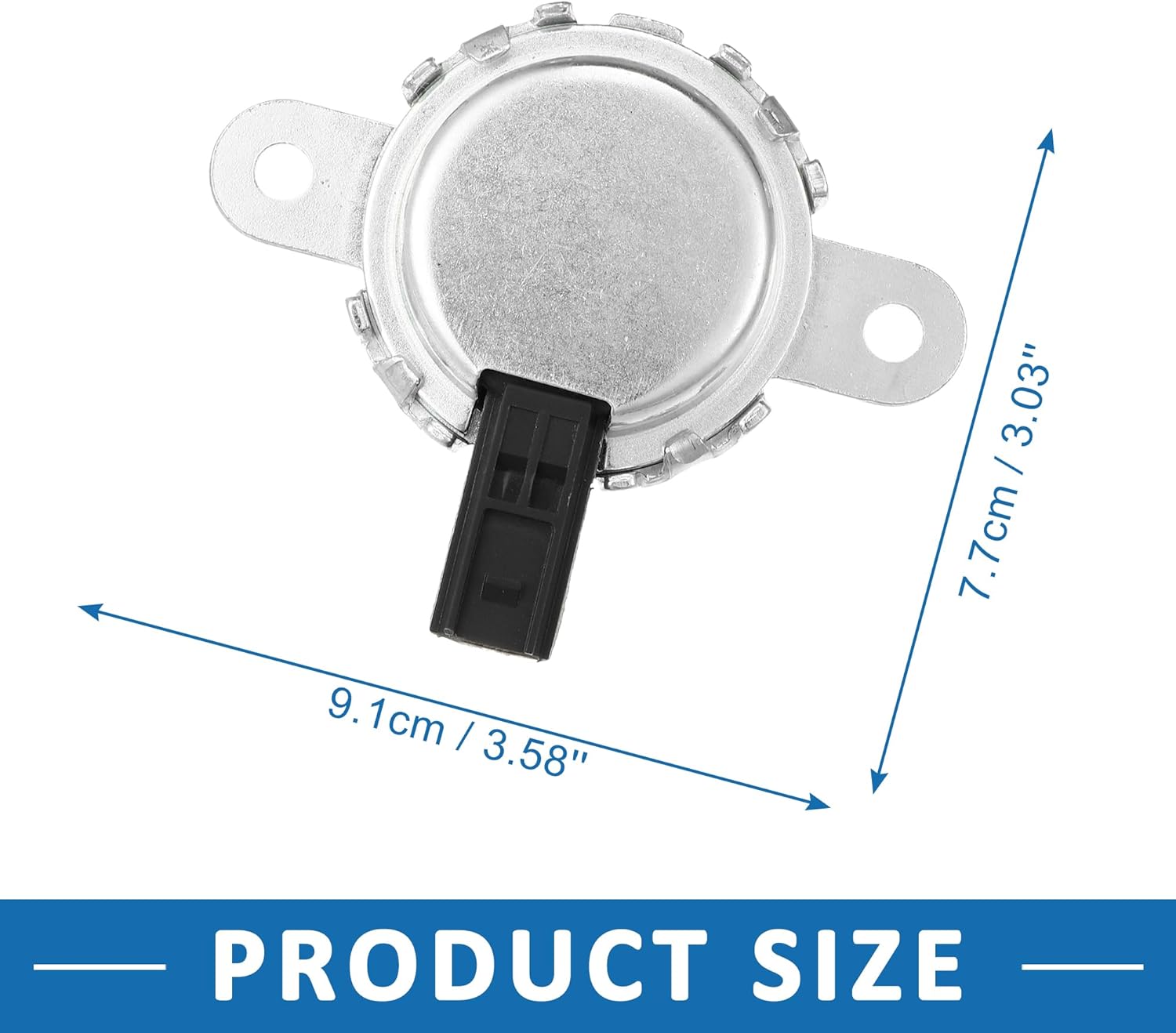

Figure 2.1: Product dimensions showing length and width.

3. Functionality and Operation

The Variable Valve Timing (VVT) system is an advanced engine technology that allows the engine's computer (ECU) to adjust the timing of the intake and exhaust valves. This adjustment optimizes engine performance across various RPMs and loads, improving fuel efficiency, reducing emissions, and increasing power output.

The VVT oil control valve solenoid is a critical component within this system. It is typically located in the cylinder head and acts as an electronically controlled hydraulic valve. The ECU sends signals to the solenoid, which then regulates the flow of engine oil to the camshaft phasers. By controlling the oil pressure and flow, the solenoid can advance or retard the camshaft's position, thereby changing the valve timing.

Proper operation of this solenoid ensures that the engine's intake and exhaust valve timing is precisely controlled, leading to optimal combustion efficiency and overall engine health.

4. Installation Guide

Warning: Professional installation is highly recommended for this component. Improper installation can lead to engine damage or malfunction.

Before beginning the installation, ensure the vehicle's engine is cool and the battery is disconnected to prevent electrical hazards.

1. Preparation: Gather necessary tools, including wrenches, sockets, and a torque wrench. Locate the existing VVT solenoid on your Subaru BRZ engine. Refer to your vehicle's service manual for the exact location.
2. Disconnect Electrical Connector: Carefully disconnect the electrical connector from the old VVT solenoid.
3. Remove Old Solenoid: Using the appropriate wrench or socket, unbolt and carefully remove the old VVT solenoid from its housing. Be prepared for a small amount of oil to drain.
4. Inspect and Clean: Inspect the solenoid's mounting surface and the surrounding area for any debris or old gasket material. Clean thoroughly if necessary.
5. Install New Solenoid: Apply a thin layer of clean engine oil to the O-rings of the new A ABSOPRO solenoid. Carefully insert the new solenoid into its housing, ensuring it seats properly.
6. Secure Solenoid: Reinstall the retaining bolt(s) and tighten them to the manufacturer's specified torque. Refer to your vehicle's service manual for torque specifications. Overtightening can damage the solenoid or engine components.
7. Reconnect Electrical Connector: Reconnect the electrical connector firmly to the new solenoid.
8. Final Steps: Reconnect the vehicle's battery. Start the engine and check for any leaks or abnormal noises. It may be necessary to clear any stored diagnostic trouble codes (DTCs) using an OBD-II scanner.

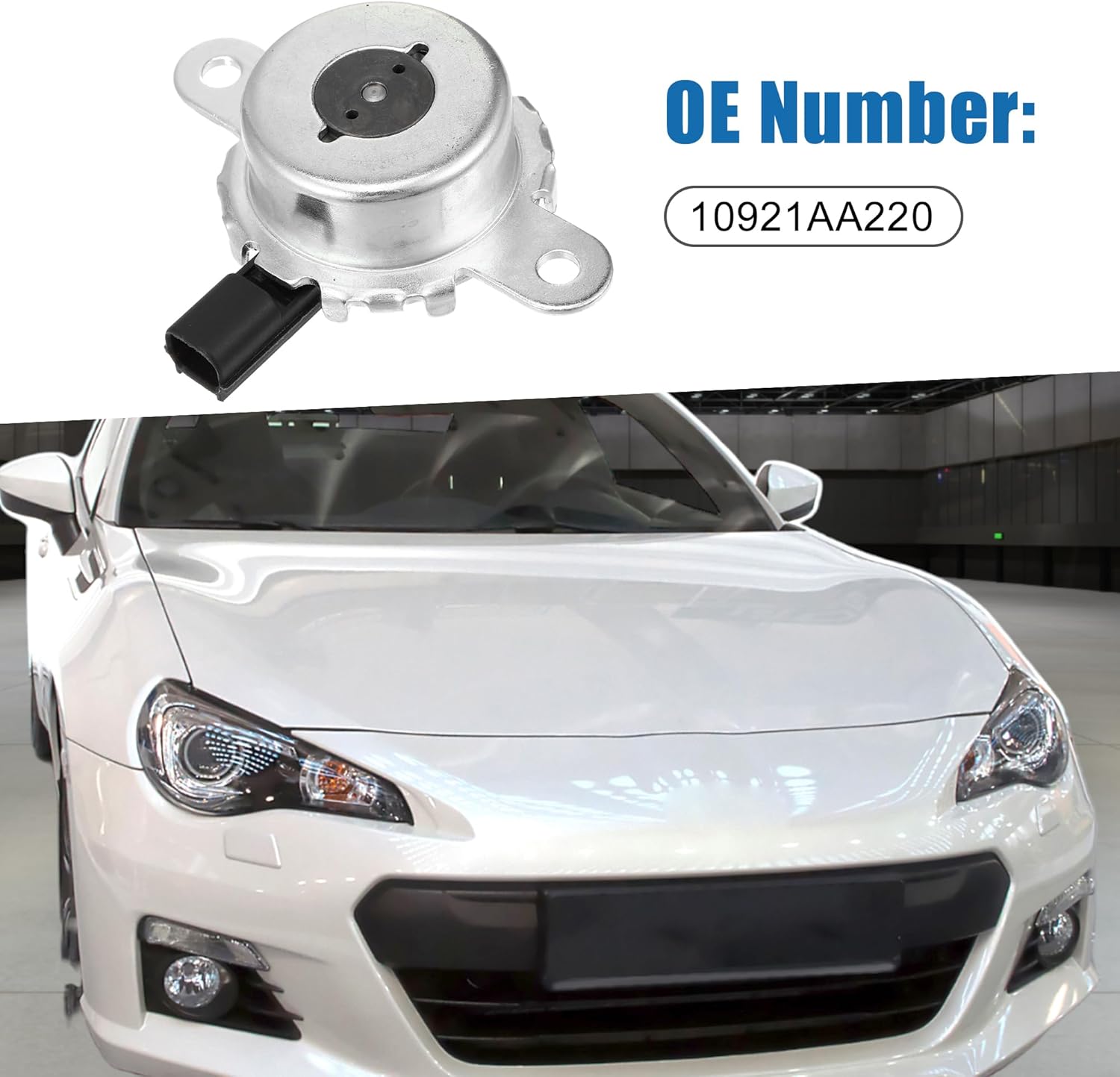

Figure 4.1: The VVT Solenoid and its OE number, indicating compatibility with Subaru BRZ.

Figure 4.2: Detailed views of the solenoid, including the electrical connector and mounting points, essential for correct installation.

5. Maintenance

The longevity and proper functioning of your VVT oil control valve solenoid are highly dependent on the quality and cleanliness of your engine oil. While the solenoid itself does not require routine maintenance, adhering to your vehicle's recommended oil change schedule is paramount.

• Regular Oil Changes: Ensure engine oil and oil filter changes are performed at the intervals specified in your Subaru BRZ owner's manual. Dirty or sludgy oil can clog the small passages within the VVT solenoid, leading to malfunction.
• Use Recommended Oil: Always use the type and viscosity of engine oil recommended by Subaru for your BRZ. Using incorrect oil can affect the hydraulic operation of the VVT system.
• Monitor Oil Level: Regularly check your engine oil level and top up as needed to ensure the VVT system has sufficient oil pressure to operate correctly.

By maintaining a clean and properly lubricated engine, you can significantly extend the life of your VVT solenoid and ensure optimal engine performance.

6. Troubleshooting

If you experience issues after installing the VVT solenoid or if your vehicle exhibits symptoms of a failing VVT system, consult the following troubleshooting guide. Note that these are general guidelines, and professional diagnosis is always recommended.

Always consult a certified mechanic for complex diagnostic and repair procedures.

7. Warranty and Support

For specific warranty terms and conditions regarding your A ABSOPRO Engine Variable Timing Oil Control Valve Solenoid, please refer to the purchase documentation or contact the seller directly. Warranty coverage typically addresses manufacturing defects.

If you require technical support or have questions about the product, please reach out to the A ABSOPRO customer service team through the retailer where the product was purchased or visit the official A ABSOPRO store page on Amazon for contact information.
