1. Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Ibergrif M22025 3-Mode Shower Head. This product features a three-stage filtration system, high-pressure water delivery, and a water-saving design, ensuring a comfortable and hygienic showering experience. Please read this manual thoroughly before use and retain it for future reference.
2. Safety Information
Please observe the following safety guidelines to prevent injury or damage to the product:
- Ensure the water supply is turned off before installation or maintenance.
- Do not use abrasive cleaners or harsh chemicals on the shower head, as this may damage the finish or internal components.
- Verify all connections are secure to prevent leaks.
- This product is designed for standard household water pressure. Do not expose to excessively high pressures.
3. Package Contents
Carefully unpack the box and ensure all the following items are present:
- Ibergrif M22025 Shower Head
- Replaceable PP Cotton Filter
- Mineral Balls (various types for filtration)
- Sealing Washer
- Mounting Accessories (if applicable, for wall mount)
Image: The Ibergrif M22025 shower head shown with its packaging and all included components, such as the shower head itself, various types of mineral balls for the filtration system, and a replaceable PP cotton filter.
Image: A top-down view of all individual components of the Ibergrif M22025 shower head laid out on a white surface, including the shower head, filter elements, and bags of mineral balls.
4. Product Features
- Three-Stage Filtration System: This shower head incorporates three different mineral stones to effectively remove impurities, absorb chloride ions, and maintain the water's pH balance. It is equipped with a replaceable PP cotton filter that blocks nearly 99% of harmful substances, ensuring cleaner and healthier water.
- High-Pressure, Water-Saving Design: Utilizing precision laser drilling technology with 0.3mm micro-nozzles, the shower head increases water flow and pressure by over 200% while achieving up to 35% water savings. The spray is delicate and soft, preventing stinging sensations.
- 3 Spray Modes: Easily switch between three distinct spray modes to suit your showering preferences.
- Easy to Clean: The anti-limescale silicone nozzles prevent mineral buildup and are simple to clean, ensuring consistent performance.

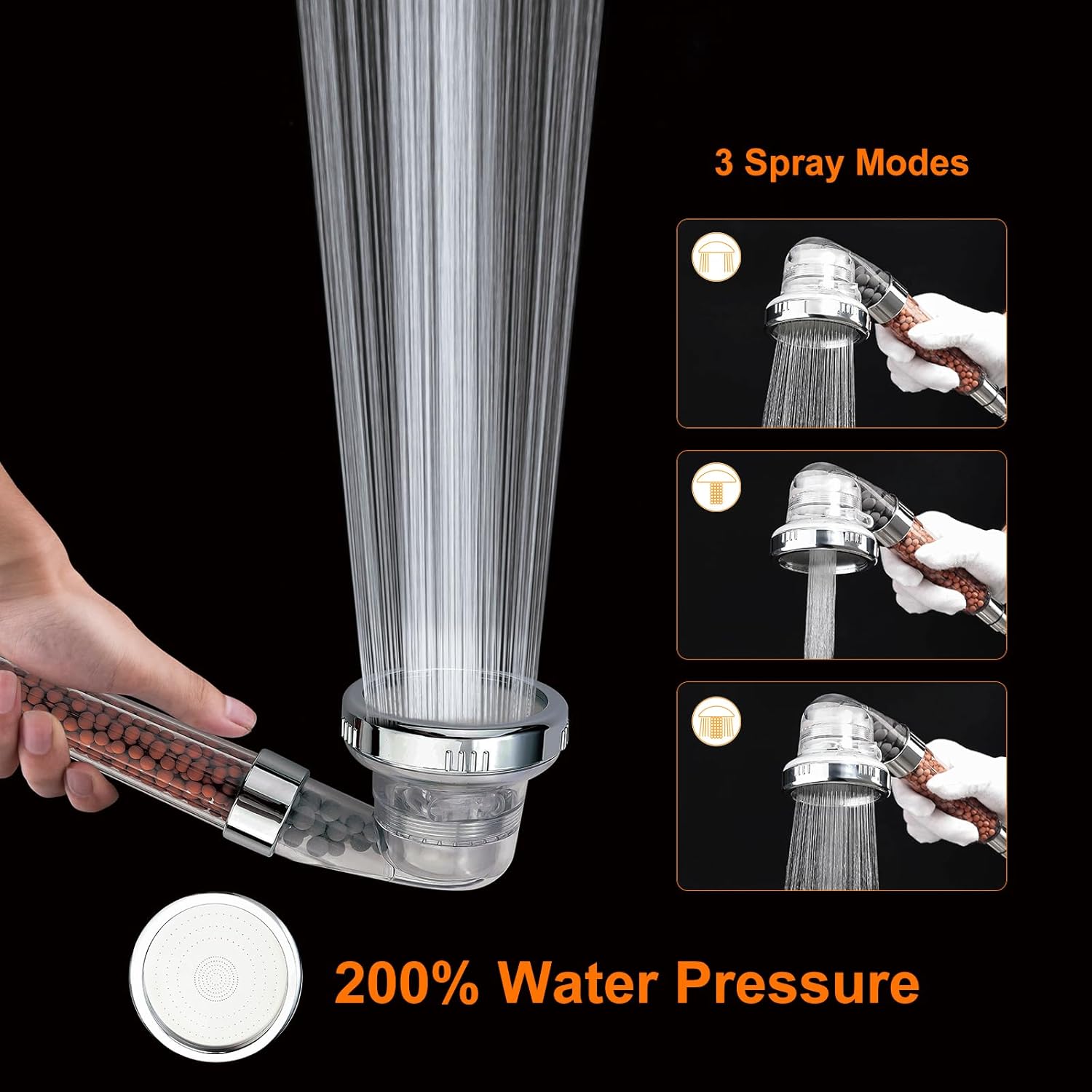

Image: The Ibergrif M22025 shower head in action, illustrating its three distinct spray modes (Rainfall, Jetting, Massage) and highlighting its high-pressure water delivery.

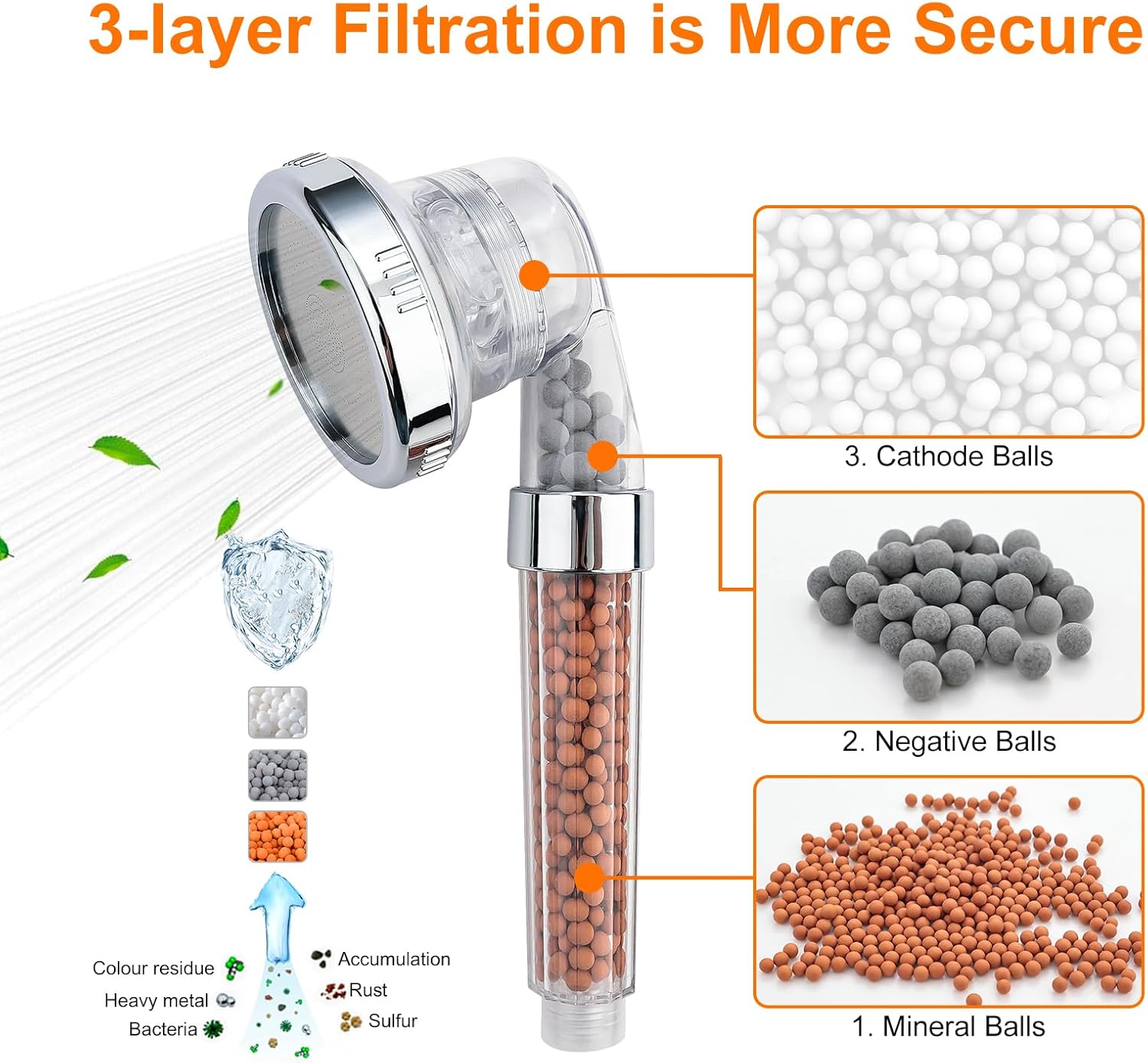

Image: A detailed diagram showing the internal structure of the Ibergrif M22025 shower head's 3-layer filtration system, identifying Mineral Balls, Negative Balls, and Cathode Balls, and illustrating how they purify water from impurities like heavy metals, rust, and bacteria.
Image: An exploded view of the Ibergrif M22025 shower head, demonstrating how its various components, including the Anio Mineral Balls, Filter Element, and Infrared Mineral Stones, can be removed and replaced for maintenance of the triple filtration system.
5. Setup and Installation
The Ibergrif M22025 shower head is designed for easy installation with standard G1/2" shower hoses.
- Turn off Water Supply: Locate the main water shut-off valve for your shower and turn it off completely.
- Remove Old Shower Head: Unscrew your existing shower head from the shower hose by turning it counter-clockwise. You may need a wrench if it's too tight.
- Prepare New Shower Head: Ensure the sealing washer is properly seated inside the connector of the Ibergrif M22025 shower head.
- Attach New Shower Head: Screw the Ibergrif M22025 shower head onto your shower hose by turning it clockwise. Hand-tighten first, then use a wrench for a final quarter-turn to ensure a snug fit without overtightening.
- Check for Leaks: Turn the water supply back on slowly and check for any leaks around the connection point. If leaks occur, tighten slightly more or re-check the sealing washer.
Image: Technical drawing showing the dimensions of the Ibergrif M22025 shower head, including its length (8.5" / 215mm), head diameter (3.1" / 80mm), and standard G1/2" connection size.
6. Operating Instructions
The Ibergrif M22025 shower head offers three distinct spray modes:
- Rainfall Mode: Provides a wide, gentle spray for a relaxing shower.
- Jetting Mode: A focused, powerful stream ideal for rinsing or targeted cleaning.
- Massage Mode: A pulsating spray for a stimulating and invigorating experience.
To switch between modes, simply rotate the shower head's spray plate or the designated selector on the head. The mechanism is designed for smooth and easy transitions.
7. Maintenance
7.1 Cleaning the Shower Head
The Ibergrif M22025 features anti-limescale silicone nozzles for easy cleaning:
- Regularly wipe the nozzles with a soft cloth to remove any mineral deposits.
- For stubborn limescale, gently rub the silicone nozzles with your finger or a soft brush to dislodge buildup.
- Avoid using harsh chemicals, abrasive pads, or brushes that could scratch the finish.
7.2 Filter Replacement
The PP cotton filter and mineral balls should be replaced periodically to maintain optimal filtration performance. The frequency depends on your water quality and usage.
- Turn off Water Supply: Ensure the water supply to the shower is turned off.
- Unscrew Shower Head: Carefully unscrew the shower head from the hose.
- Disassemble Filter Section: Twist and separate the transparent handle section from the main shower head.
- Remove Old Filter/Minerals: Discard the used PP cotton filter and any depleted mineral balls.
- Insert New Filter/Minerals: Place the new PP cotton filter and fresh mineral balls into their respective compartments as shown in the product diagrams.
- Reassemble and Reattach: Reassemble the shower head components, ensuring all seals are correctly seated. Screw the shower head back onto the hose.
- Check for Leaks: Turn on the water supply and check for leaks.
8. Troubleshooting
- Low Water Pressure:
- Check if the main water supply valve is fully open.
- Inspect the shower head nozzles for limescale buildup and clean them.
- Consider replacing the PP cotton filter and mineral balls if they are old or heavily discolored.
- Leaking from Connection:
- Ensure the shower head is securely tightened to the hose.
- Verify that the sealing washer is correctly positioned and not damaged. Replace if necessary.
- Difficulty Changing Spray Modes:
- Ensure there is no debris or mineral buildup obstructing the mode selector mechanism. Clean if necessary.
9. Specifications
| Attribute | Detail |
|---|---|
| Brand | Ibergrif |
| Model Number | M22025 |
| Product Dimensions (L x W x H) | 21.5 x 8 x 12.7 cm; 390 grams |
| Material | Plastic |
| Color | Silver |
| Style | Modern |
| Finish Type | Brushed |
| Shape | Round |
| Installation Method | Wall Mount (standard hose connection) |
| Number of Settings | 3 |
| Special Features | Detachable, 3-Stage Filtration, High Pressure, Water Saving, Anti-Limescale Nozzles |
| Components Included | Mounting accessories (if applicable) |
| Country of Origin | Spain |
10. Warranty and Support
Ibergrif products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your purchase or visit the official Ibergrif website. For technical support or inquiries, please contact Ibergrif customer service through their official channels.
