1. Introduction
Thank you for choosing the Sundown Audio U-10 V2 D4 10-inch U-Series Subwoofer. This manual provides essential information for the proper installation, operation, and maintenance of your new subwoofer. Please read these instructions carefully before proceeding with installation to ensure optimal performance and longevity of your product.
The U-Series subwoofers are engineered for high performance, featuring advanced design elements to deliver powerful and accurate bass reproduction in car audio systems.
2. Product Features
- Black Aluminum 3-inch Voice Coil Former: Designed for superior heat dissipation, enhancing durability during extended use.
- High Temperature Round-Wire CCAW Voice Coil: Utilizes high-temperature black adhesive for increased thermal stability.
- Double Stitched Surround: Provides enhanced durability and excursion capability.
- Heavy Duty Cast Basket: Offers robust structural integrity and reduces resonance.
- Spring Loaded Terminals: Accommodate up to 8 gauge wire for secure and efficient electrical connections.
- Stitched-on Double-XL Tinsel Leads: Ensures reliable power transfer to the voice coil.
- Rear Vented Pole Piece & Rear Drilled Gap-Venting: Contributes to effective cooling of the voice coil.
- Innovative High-Velocity Cast Aluminum Vented Frame Spacer Ring: Further aids in cooling and structural rigidity.
- Magnet ID Shorting Ring & Top-Plate Cooling Channels: Advanced thermal management features.
- Cast Aluminum Surround Bolt-On Rings: Provides secure mounting for the surround.
- Optimized for Small Ported or Bandpass Enclosures: Designed for versatile enclosure applications.
3. What's in the Box
- 1 x Sundown Audio U-10 V2 D4 10-inch Subwoofer
- Tinsel Leads (pre-installed)
4. Setup and Installation
Proper installation is crucial for the performance and longevity of your subwoofer. If you are unsure about any part of the installation process, it is recommended to seek assistance from a professional car audio installer.
4.1 Safety Precautions
- Always disconnect the vehicle's battery before beginning any electrical work.
- Wear appropriate safety gear, including eye protection.
- Ensure all wiring is properly insulated and secured to prevent short circuits and damage.
- Mount the subwoofer securely within its enclosure to prevent movement during vehicle operation.
4.2 Mounting the Subwoofer
The subwoofer should be mounted into a properly constructed enclosure. Ensure the mounting surface is flat and rigid. Use appropriate screws to secure the subwoofer to the enclosure, tightening them evenly to create a good seal.
Image: Angled view of the Sundown Audio U-10 V2 D4 subwoofer, showcasing its robust construction and terminals.
5. Wiring Configurations (Dual 4-Ohm)
The U-10 V2 D4 features dual 4-ohm voice coils, offering flexibility in wiring to achieve different final impedances. It is critical to match the subwoofer's final impedance to your amplifier's stable operating impedance. Consult your amplifier's manual for its stable impedance ratings.
5.1 Parallel Wiring (2-Ohm Final Impedance)
For a 2-ohm final impedance, connect the positive (+) terminal of Voice Coil 1 to the positive (+) terminal of Voice Coil 2. Then, connect the negative (-) terminal of Voice Coil 1 to the negative (-) terminal of Voice Coil 2. Finally, connect the combined positive terminals to the amplifier's positive output and the combined negative terminals to the amplifier's negative output.
5.2 Series Wiring (8-Ohm Final Impedance)
For an 8-ohm final impedance, connect the positive (+) terminal of Voice Coil 1 to the amplifier's positive output. Connect the negative (-) terminal of Voice Coil 1 to the positive (+) terminal of Voice Coil 2. Finally, connect the negative (-) terminal of Voice Coil 2 to the amplifier's negative output.
Image: Close-up view of the spring-loaded terminals on the Sundown Audio U-10 V2 D4 subwoofer, illustrating connection points for wiring.
6. Enclosure Recommendations
The Sundown Audio U-10 V2 D4 is optimized for specific enclosure types and volumes to achieve its best performance. Adhering to these recommendations will ensure optimal sound quality and subwoofer longevity.
6.1 Recommended Enclosure Volumes
- Sealed Enclosure: 0.5 cubic feet
- Ported Enclosure: 1.0 cubic feet
6.2 Ported Enclosure Specifics
- Recommended Tuning: 35 Hz
- Recommended Port Area: 16 square inches
6.3 Physical Dimensions
Consider the following dimensions when designing or selecting an enclosure:
- Outside Diameter: 10.94 inches
- Cut-Out Diameter: 9.17 inches
- Mounting Depth: 7.007 inches
- Displacement: 0.21 cubic feet
Image: Diagram illustrating the key dimensions of the Sundown Audio U-10 V2 D4 subwoofer, including depth, outside diameter, and cut-out diameter.
7. Operating Guidelines
7.1 Break-in Period
Allow a break-in period of approximately 20-30 hours of normal listening at moderate volumes before operating the subwoofer at its maximum potential. This allows the suspension components to loosen and settle, optimizing performance and extending lifespan.
7.2 Amplifier Gain Setting
Set your amplifier's gain correctly. The gain control is not a volume knob; it matches the amplifier's input sensitivity to the output voltage of your head unit. Incorrect gain settings can lead to clipping and damage to the subwoofer. It is recommended to use an oscilloscope or consult a professional for proper gain setting.
7.3 Crossover Settings
Utilize a low-pass filter (LPF) on your amplifier or head unit to ensure the subwoofer only reproduces low frequencies. A typical LPF setting for a subwoofer is between 60 Hz and 100 Hz, depending on your system and personal preference. Avoid sending full-range audio signals to the subwoofer.
7.4 Avoiding Overdriving
While the U-10 V2 D4 is designed for high power handling, continuous operation at extreme volumes or with a distorted signal can cause damage. If you hear distortion, reduce the volume immediately. Overdriving can lead to voice coil overheating and mechanical failure.
8. Maintenance
The Sundown Audio U-10 V2 D4 subwoofer requires minimal maintenance. Periodically inspect the subwoofer for any signs of damage, such as tears in the surround or cone, or loose connections. Keep the subwoofer free from dust and debris. Do not apply any chemicals or solvents to the cone or surround.
9. Troubleshooting
If you experience issues with your subwoofer, perform the following basic checks before seeking professional assistance:
- No Sound:
- Check all wiring connections from the amplifier to the subwoofer.
- Verify the amplifier is powered on and receiving a signal.
- Ensure the head unit is sending an audio signal to the amplifier.
- Check amplifier fuses.
- Distorted Sound:
- Reduce amplifier gain.
- Check for proper crossover settings.
- Ensure the subwoofer is not overdriven.
- Inspect the subwoofer cone and surround for physical damage.
- Overheating:
- Ensure the amplifier is stable at the subwoofer's impedance.
- Verify proper enclosure volume and tuning.
- Avoid prolonged operation at maximum volume with distorted signals.
10. Specifications
The following table details the technical specifications of the Sundown Audio U-10 V2 D4 subwoofer:
| Parameter | Value |
|---|---|
| Model Name | U-10 V2 D4 |
| Speaker Type | Subwoofer |
| Subwoofer Diameter | 10 Inches |
| Material | Aluminum (Voice Coil Former) |
| Speaker Maximum Output Power | 1750 Watts RMS |
| Nominal Impedance | Dual 4-Ohm Voice Coils |
| RE (Ohms) | 6.1 |
| FS (Hz) | 41.1 |
| VAS (L) | 11.5 |
| Qes | 0.39 |
| Qms | 3.21 |
| Qts | 0.35 |
| Le (mH) | 3.71 |
| BL (NA) | 29.7 |
| Mms (Grams) | 219.7 |
| Cms (uM/N) | 0.07 |
| Sens (dB @ 1w/1m) | 84.9 dB |
| Mounting Depth | 7.007 inches |
| Outside Diameter | 10.94 inches |
| Cut-Out Diameter | 9.17 inches |
| Displacement | 0.21 cubic feet |
| Item Weight | 59 Pounds |

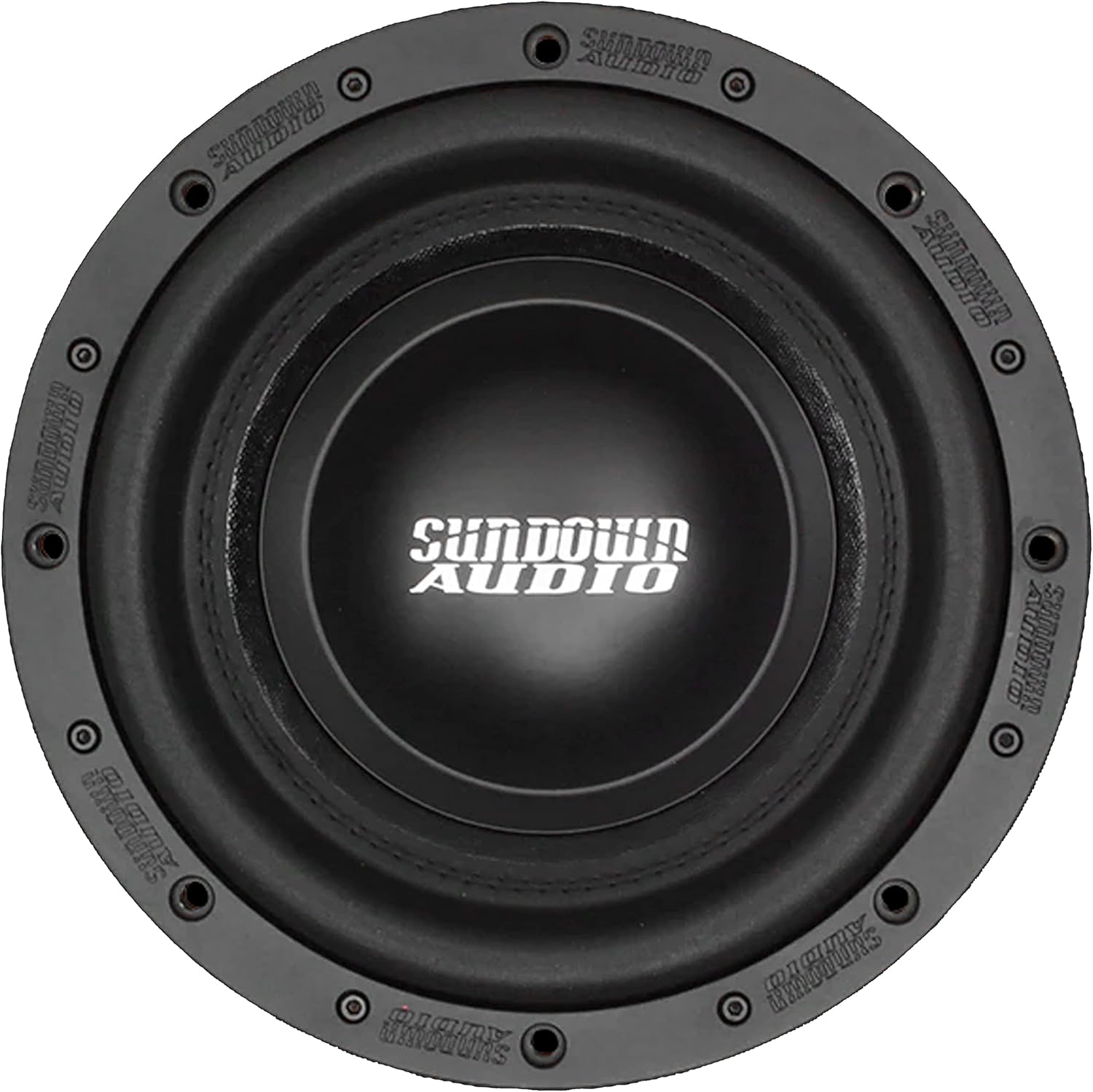

Image: Top-down view of the Sundown Audio U-10 V2 D4 subwoofer, showing the cone and surround.
Image: Bottom view of the Sundown Audio U-10 V2 D4 subwoofer, highlighting the robust magnet assembly and vented pole piece.
11. Warranty and Support
The Sundown Audio U-10 V2 D4 subwoofer comes with a limited warranty. Please retain your proof of purchase for warranty claims. The specific terms and duration of the warranty may vary. For detailed warranty information or technical support, please contact Sundown Audio directly or visit their official website.
You can find more information and contact details on the Sundown Audio Store.
12. Important Safety Information
- Do not expose the subwoofer to excessive moisture or extreme temperatures.
- Ensure adequate ventilation around the subwoofer and amplifier to prevent overheating.
- High sound pressure levels can cause permanent hearing damage. Listen responsibly.
- Always secure the subwoofer and its enclosure within the vehicle to prevent injury in case of sudden stops or accidents.
