1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Sanotechnik Balaton 2 Complete Shower Cabin. Please read these instructions carefully before assembly and use, and retain them for future reference.
The Sanotechnik Balaton 2 is an all-in-one shower solution designed for modern bathrooms, featuring 4mm ESG safety glass, black aluminum profiles, a single-lever mixer, and a hand shower.
2. Safety Information
Always observe the following safety precautions:
- Ensure all water and electrical connections are performed by qualified professionals.
- Verify that the installation surface is level and capable of supporting the weight of the shower cabin and water.
- Handle glass panels with extreme care to prevent breakage and injury.
- Do not use abrasive cleaners or tools that could scratch the glass or aluminum profiles.
- Keep small children away from the shower cabin during installation.
3. Package Contents
Before beginning installation, verify that all components are present and undamaged. The package typically includes:
- Shower tray (14cm high acrylic)
- 4mm ESG safety glass panels (for door, fixed part, and white back wall)
- Black aluminum profiles
- Corner sliding door system with double-guided, foldable rollers
- Single-lever mixer
- Adjustable hand shower with hose and holder
- Glass shelf
- Mounting hardware and seals
4. Setup and Installation
Installation requires careful attention to detail. It is recommended that two people perform the assembly.
4.1 Site Preparation
- Ensure the installation area is clean, dry, and level.
- Verify that water supply lines (hot and cold) and drainage are correctly positioned according to the diagram.
- The shower cabin dimensions are 90 x 90 x 203 cm. Allow sufficient space for assembly and access.
4.2 Water Connections
Refer to the connection diagram for water inlet and outlet points.
Figure 1: Water Connection Diagram. A1/A2 represent warm/cold water inlets, and D1/D2 indicate drainage connections. The drainage connection may vary by approximately 100mm.
- Connect the hot water supply to the designated inlet (A1/A2).
- Connect the cold water supply to the designated inlet (B1/B2).
- Ensure all connections are watertight using appropriate seals and tools.
- Connect the drainage pipe to the shower tray outlet (D1/D2).
4.3 Assembly Steps (General Overview)
- Position the shower tray on the prepared, level surface.
- Install the back wall panels and side profiles.
- Mount the single-lever mixer and hand shower system onto the back panel.
- Install the fixed glass panels.
- Assemble and install the sliding door mechanism and glass doors.
- Attach the door handles and glass shelf.
- Apply silicone sealant where necessary to ensure water tightness, as per manufacturer guidelines.

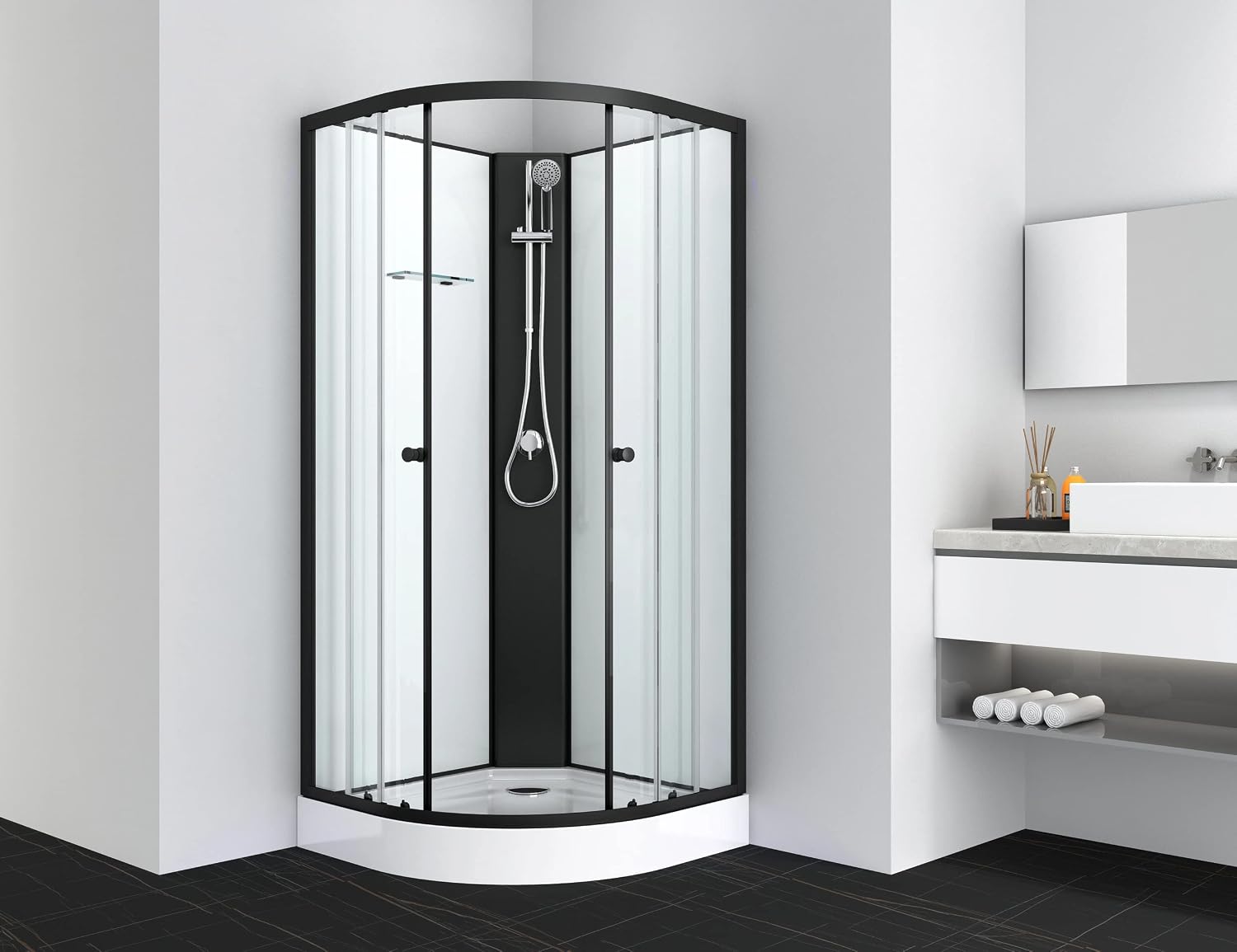

Figure 2: Assembled Sanotechnik Balaton 2 Shower Cabin. This image shows the complete unit with black profiles, clear glass doors, and the internal shower fittings.
Figure 3: Internal Shower Fittings. This image highlights the adjustable hand shower and the single-lever mixer for water temperature and flow control.
Figure 4: Sliding Door Rollers. This image shows the double-guided, foldable rollers designed for smooth and quiet operation of the corner sliding doors.
5. Operating Instructions
The Sanotechnik Balaton 2 shower cabin is designed for straightforward operation.
- Water Flow and Temperature: Use the single-lever mixer to control both water flow and temperature. Move the lever left for hot water, right for cold water, and up/down for flow intensity.
- Hand Shower: The hand shower is adjustable in height on its rail. To adjust, press the button on the shower holder and slide it to the desired position.
- Sliding Doors: Gently slide the corner doors open or closed. The double-guided rollers ensure smooth and quiet movement.
6. Maintenance and Cleaning
Regular cleaning and maintenance will prolong the life and appearance of your shower cabin.
- Glass Panels: Clean glass panels regularly with a soft cloth and a non-abrasive glass cleaner. For stubborn water spots, a vinegar-water solution can be effective.
- Profiles and Fittings: Wipe aluminum profiles and chrome fittings with a soft, damp cloth. Avoid harsh chemicals or abrasive sponges that can damage the finish.
- Shower Tray: Clean the acrylic shower tray with mild soap and water. Do not use abrasive cleaners or wire brushes.
- Rollers: Periodically check the sliding door rollers for smooth operation. Clean any accumulated dirt or soap residue. The foldable rollers allow for easier cleaning.
- Seals: Inspect seals regularly for wear and tear. Replace damaged seals to prevent leaks.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water Leakage | Improperly sealed joints; damaged seals; loose connections. | Check all silicone seals and water connections. Reapply sealant or tighten connections as needed. Inspect and replace damaged seals. |
| Sliding Doors Stick or are Noisy | Dirt or soap residue on rollers/tracks; misaligned rollers. | Clean rollers and tracks thoroughly. Ensure rollers are properly seated and aligned. |
| Low Water Pressure | Clogged shower head; issues with household water supply. | Clean the shower head nozzles. Check household water pressure. |
| Water Temperature Issues | Problem with water heater; mixer cartridge issue. | Consult a qualified plumber. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | PS11B |
| Dimensions (L x W x H) | 90 x 90 x 203 cm |
| Weight | 75 kg |
| Glass Thickness | 4 mm ESG Safety Glass |
| Frame Material | Aluminum (Black Profiles) |
| Shower Tray Material | Acrylic (14 cm high) |
| Door Type | Corner Sliding Doors (2 doors, 4 panels) |
| Fittings | Single-lever mixer, adjustable hand shower, glass shelf |
| Installation Type | Assembly required |
Figure 5: Technical Drawing with Dimensions. This diagram provides detailed measurements for the shower cabin, including height, width, and depth, crucial for installation planning.
9. Warranty and Support
For warranty information and technical support, please contact Sanotechnik customer service or refer to the official Sanotechnik website. Keep your proof of purchase for warranty claims.
In case of technical questions regarding assembly, it is recommended to contact customer support directly.
