TOOLCRAFT TO-7762929 VOLTCRAFT VC-22 Electrician's DIY Tool Kit Instruction Manual

1. Introduction

Thank you for choosing the TOOLCRAFT TO-7762929 VOLTCRAFT VC-22 Electrician's DIY Tool Kit. This 50-piece kit is designed for electricians and DIY enthusiasts, providing a comprehensive set of durable and robust tools, including a VOLTCRAFT VC-22 digital multimeter. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your new tool kit.

Figure 1: The TOOLCRAFT TO-7762929 VOLTCRAFT VC-22 Electrician's DIY Tool Kit, open and organized within its protective case.

2. Safety Instructions

Always prioritize safety when working with electrical tools. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• VDE Certified Tools: The VDE certified tools in this kit are designed for working on live electrical circuits up to 1000V AC. Always verify the VDE marking on each tool before use.
• Inspect Tools: Before each use, inspect all tools for damage, especially insulation on VDE tools. Do not use damaged tools.
• Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses and insulated gloves, when working with electricity.
• De-energize Circuits: Whenever possible, de-energize circuits and verify with the multimeter before beginning work.
• Proper Use: Use each tool only for its intended purpose.
• Storage: Store tools in a dry, secure place, out of reach of children.
• Multimeter Safety: Refer to the specific instructions for the VOLTCRAFT VC-22 digital multimeter for detailed safety guidelines regarding its operation.

3. Package Contents

Your TOOLCRAFT TO-7762929 kit includes 50 pieces, carefully selected for electrical work. The main components are:

• VOLTCRAFT VC-22 Digital Multimeter with test leads
• VDE Insulated Screwdrivers (various sizes and types)
• VDE Insulated Pliers (e.g., combination pliers, long-nose pliers, diagonal cutters)
• Wire Stripper
• Voltage Tester
• Terminal Blocks
• Electrical Insulation Tape
• Cable Ties
• Tool Bag/Case
• Other assorted small tools and accessories

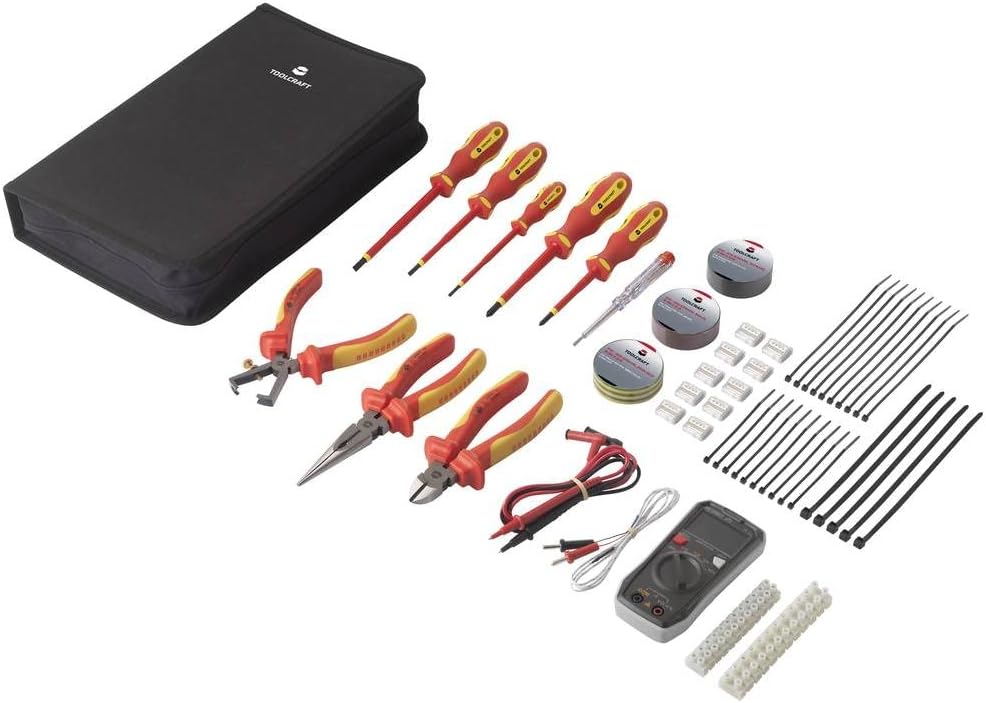

Figure 2: All 50 components of the TOOLCRAFT TO-7762929 kit, including the multimeter, screwdrivers, pliers, and various accessories, displayed outside the case.

4. Setup

The TOOLCRAFT TO-7762929 kit is designed for immediate use.

1. Unpack: Carefully remove all tools and accessories from the packaging.
2. Inspect: Visually inspect each tool for any signs of damage that may have occurred during transit.
3. Multimeter Preparation: The VOLTCRAFT VC-22 digital multimeter typically comes with batteries pre-installed or included. If not, refer to the multimeter's specific manual for battery installation instructions. Connect the test leads to the appropriate ports on the multimeter (usually COM and VΩmA).
4. Organize: Place the tools back into the provided tool bag, utilizing the elastic straps and compartments for organized storage and easy access.

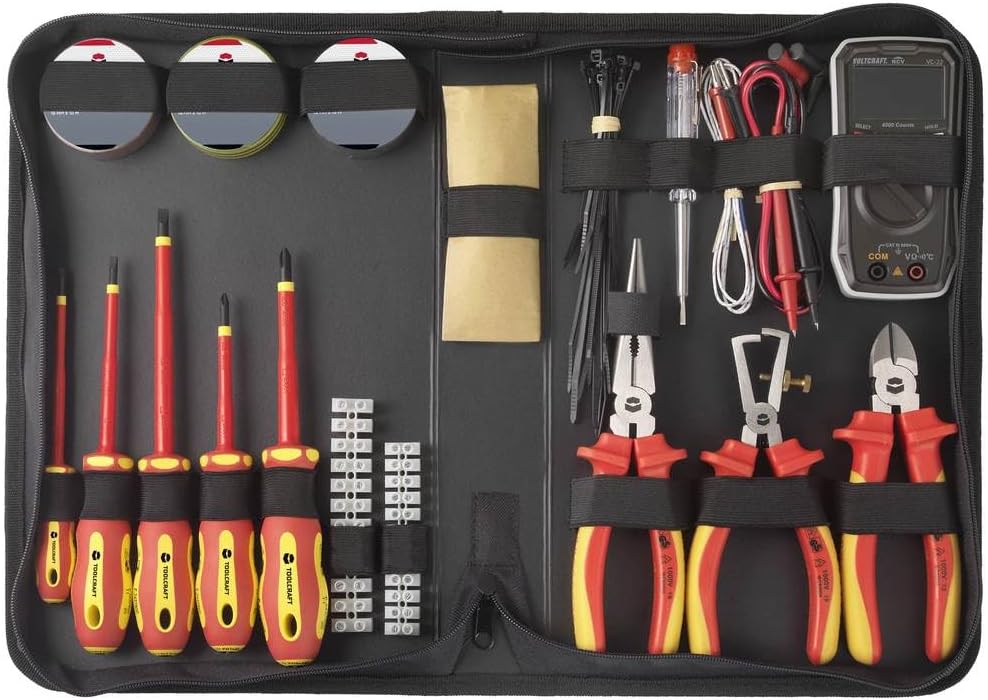

Figure 3: A detailed view of the TOOLCRAFT TO-7762929 kit, highlighting the organized arrangement of VDE screwdrivers, pliers, and the digital multimeter within the case.

5. Operating Instructions

This section provides general guidance on using the tools in your kit. Always refer to specific project requirements and local electrical codes.

5.1. Using VDE Insulated Tools

• Screwdrivers: Select the correct tip size and type (Phillips, flathead, etc.) for the screw. Ensure a firm grip and apply even pressure to prevent stripping.
• Pliers: Use combination pliers for gripping and cutting wires. Long-nose pliers are ideal for bending and manipulating wires in tight spaces. Diagonal cutters are for precise wire cutting.
• Wire Stripper: Adjust the stripper to the correct wire gauge. Insert the wire, squeeze the handles, and pull to remove insulation without damaging the conductor.
• Voltage Tester: Use to quickly check for the presence of AC voltage in outlets, switches, and wires. Follow the tester's specific instructions for accurate readings.

5.2. Using the VOLTCRAFT VC-22 Digital Multimeter

The VOLTCRAFT VC-22 digital multimeter is a versatile tool for measuring voltage, current, resistance, and continuity.

1. Power On: Turn the rotary switch to the desired measurement function (e.g., V~ for AC voltage, V- for DC voltage, Ω for resistance).
2. Connect Leads: Insert the black test lead into the "COM" jack and the red test lead into the "VΩmA" jack for most measurements.
3. Measure:
   • Voltage: Connect the test leads in parallel across the component or circuit to be measured.
   • Resistance/Continuity: Ensure the circuit is de-energized. Connect the test leads across the component.
   • Current: Ensure the circuit is de-energized. Connect the multimeter in series with the circuit. Caution: Incorrect current measurement can damage the multimeter or cause injury.
4. Read Display: The measurement will be shown on the digital display.
5. Power Off: Always turn the multimeter off when not in use to conserve battery life.

For detailed instructions on specific functions and advanced features of the VOLTCRAFT VC-22, please refer to its dedicated user manual.

6. Maintenance

Proper maintenance ensures the longevity and reliability of your tools.

• Cleaning: After each use, wipe down tools with a clean, dry cloth. For stubborn grime, a mild detergent solution can be used, ensuring tools are thoroughly dried afterward. Do not use abrasive cleaners or solvents.
• Inspection: Regularly inspect VDE insulation for cracks, cuts, or wear. Replace any tool with damaged insulation immediately.
• Storage: Store all tools in the provided tool bag in a dry, cool environment, away from direct sunlight and corrosive substances.
• Multimeter Batteries: If the multimeter displays a low battery indicator, replace the batteries promptly according to its specific manual. Remove batteries if storing the multimeter for extended periods.

Figure 4: The TOOLCRAFT TO-7762929 tool kit securely closed in its durable black bag, ready for storage or transport.

7. Troubleshooting

This section addresses common issues you might encounter.

• Multimeter Not Powering On:
  • Check if the rotary switch is in an "OFF" position.
  • Verify battery installation and charge level. Replace batteries if necessary.
• Inaccurate Multimeter Readings:
  • Ensure test leads are correctly inserted into the appropriate jacks for the measurement type.
  • Confirm the rotary switch is set to the correct function and range.
  • Check test leads for damage or poor connection.
• Damaged Tool Insulation:
  • Immediately discontinue use of any VDE tool with compromised insulation.
  • Replace the tool to maintain safety standards.

8. Specifications

9. Warranty and Support

TOOLCRAFT products are manufactured to high-quality standards.

• Spare Parts Availability: Spare parts are available for 1 year from the date of purchase.
• Customer Support: For technical assistance, warranty claims, or further inquiries, please contact your retailer or the official TOOLCRAFT customer support channels. Refer to the product packaging or the TOOLCRAFT website for contact information.
