Product Overview
The ZAFRO 12000 BTU Portable Air Conditioner is a versatile 3-in-1 unit designed to provide cooling, dehumidification, and fan functions for rooms up to 550 sq. ft. It features a powerful compressor, low noise operation, and convenient controls for optimal comfort.
Image: The ZAFRO portable air conditioner unit shown with its remote control, highlighting its compact design and digital display.
Setup and Installation
Follow these steps for proper setup and installation of your portable air conditioner.
Package Contents
Before beginning, ensure all components are present:
Image: A visual representation of the package contents, including the main unit, exhaust hose, window kit, remote control, and drainage hose.
- Portable Air Conditioner Unit
- Window Exhaust Kit (Window Slider Kit, Exhaust Hose, Hose Adapters)
- Remote Control
- Drainage Hose (for dehumidification)
Unit Placement
Place the unit on a flat, stable surface. Ensure there is at least 20 inches (50 cm) of clear space around the unit for proper airflow and operation.
Window Kit Installation
The window kit is designed for installation in double/single-hung windows and sliding slash windows. The kit is adjustable from 26 inches to 50 inches.
Image: Illustrations demonstrating how to install the exhaust pipe and window kit in both vertical (double/single-hung) and horizontal (sliding slash) window types.
- Assemble the window slider kit to fit your window opening.
- Connect one end of the exhaust hose to the unit's exhaust port and the other end to the window kit adapter.
- Ensure all connections are secure to prevent air leakage.
Operating Instructions
Your ZAFRO portable air conditioner offers multiple modes and features for customized comfort.
Control Panel and Display
Image: A detailed view of the unit's top control panel, showing touch buttons for power, mode, fan speed, timer, temperature adjustment, and swing function.
Remote Control
The included remote control allows convenient operation from a distance of up to 196 inches.
Image: The portable air conditioner unit positioned next to a desk, with a person using the remote control. Dimensions of the unit are overlaid.
Operating Modes

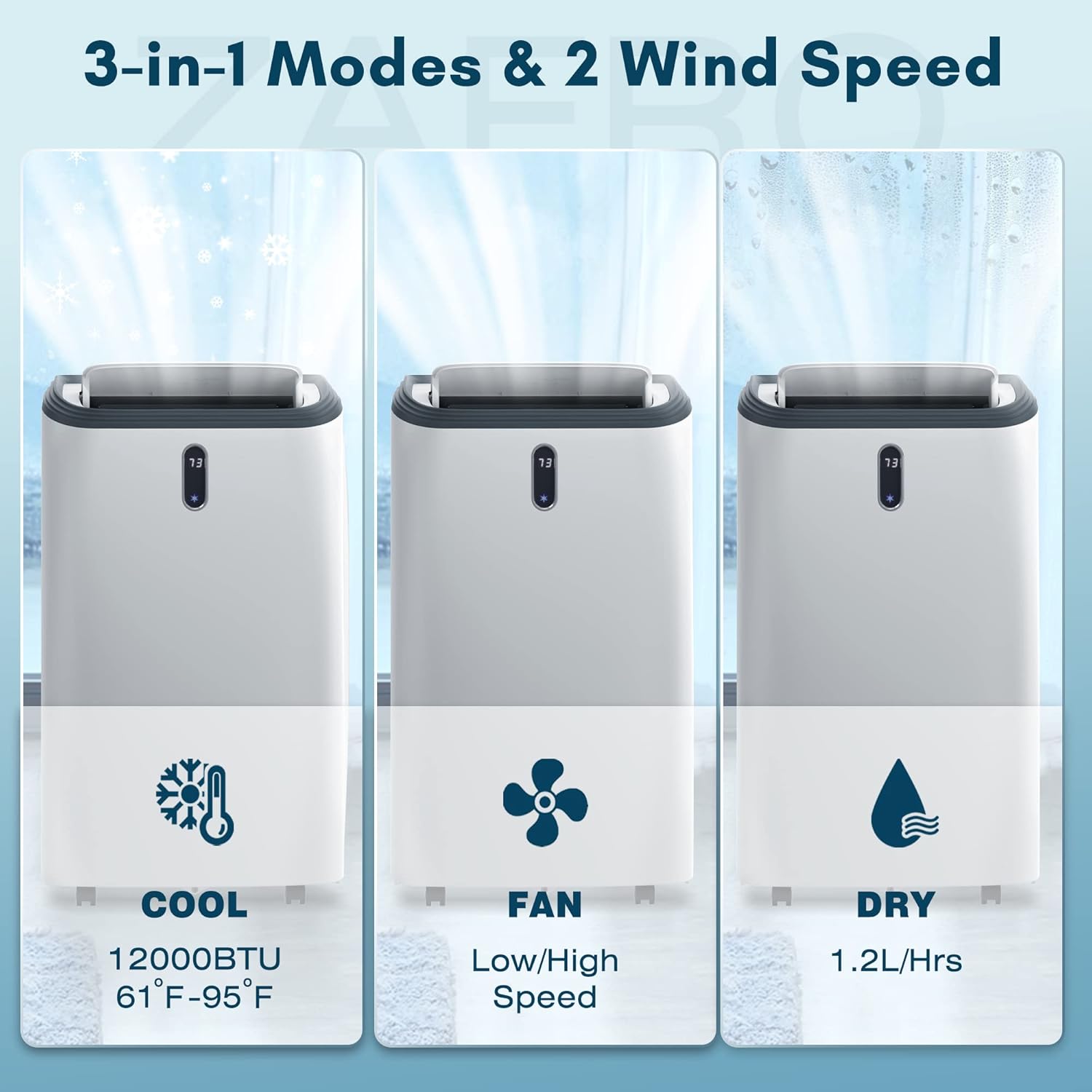

Image: A graphic displaying the three primary operating modes: Cool (12000 BTU, 61°F-95°F), Fan (Low/High Speed), and Dry (1.2 L/Hrs dehumidification).
- Cool Mode: Provides powerful cooling with 12000 BTU capacity. Set desired temperature between 61°F and 95°F (17°C-35°C).
- Dehumidifier Mode (Dry): Removes excess moisture from the air at a rate of 1.2-1.3 L/H.
- Fan Mode: Circulates air with three adjustable wind speeds (Low, Medium, High).
Special Features
- Sleep Mode: Operates at a low noise level (≤ 52dB) for quiet nights. The temperature will increase by 2°F per hour to ensure comfortable sleep.
- 24-Hour Timer: Program the unit to turn on or off automatically within a 24-hour period.
- Auto Swing Function: The air outlet baffle automatically swings up and down by 15-80° to evenly distribute cool air throughout the room, improving cooling efficiency.
- Automatic Defrost: Prevents ice buildup on the evaporator coils.
- Automatic Restart: The unit will automatically restart with previous settings after a power outage.
Image: A person sleeping in bed, with icons indicating the unit's low noise level (≤53dB), 24-hour timer, and auto shut-off features for a high-quality sleep experience.
Image: A close-up of the top of the air conditioner showing the air outlet baffle swinging, with arrows indicating an 80-degree vertical swing for even air distribution.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your unit.
Air Filter Cleaning
The unit is equipped with a detachable and reusable air filter. It is recommended to clean the filter once a week during operation to maintain air quality and efficiency.
- Turn off and unplug the unit before cleaning.
- Remove the air filter from its housing.
- Wash the filter with warm, soapy water. Rinse thoroughly.
- Allow the filter to air dry completely before reinserting it into the unit.
Water Drainage
During dehumidification or prolonged cooling, water will collect in the internal reservoir. The unit has a continuous drainage option using the provided drainage hose.
- For continuous drainage, connect the drainage hose to the drain port and route it to a floor drain or suitable container.
- If not using continuous drainage, the unit will stop operating when the reservoir is full and indicate a full tank. Manually drain the water by removing the drain plug and allowing water to flow into a pan.
Storage
When storing the unit for an extended period:
- Ensure all water is drained from the unit.
- Clean the air filter.
- Store the unit in a dry, upright position, preferably in its original packaging.
Troubleshooting
If you encounter issues with your ZAFRO portable air conditioner, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on | No power supply; Power cord unplugged; Full water tank | Check power outlet; Plug in power cord securely; Drain water tank |
| Unit does not cool effectively | Windows/doors open; Air filter dirty; Exhaust hose not properly installed; Room size too large | Close all windows/doors; Clean air filter; Ensure exhaust hose is sealed; Use in recommended room size (up to 550 sq. ft.) |
| Unit is noisy | Unit not on a level surface; Air filter dirty; Obstruction in fan | Place unit on a flat surface; Clean air filter; Check for and remove any obstructions |
| Water leaks from unit | Drain plug loose; Drainage hose not connected properly | Secure drain plug; Ensure drainage hose is tightly connected and not kinked |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
| Feature | Detail |
|---|---|
| Model Number | A4212-12K |
| Cooling Capacity | 12000 BTU |
| Coverage Area | Up to 550 Sq. Ft. |
| Product Dimensions (D x W x H) | 15.35" x 17.6" x 31.3" |
| Item Weight | 65.7 pounds |
| Noise Level | ≤ 52 dB |
| Voltage | 115 Volts |
| Dehumidification Capacity | 50 Pints (1.2-1.3 L/H) |
| Color | White |
| Special Features | Defrost, Dehumidifier, Portable |
Warranty and Support
Your ZAFRO Portable Air Conditioner comes with a 1-year manufacturer's warranty.
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact ZAFRO customer support. Refer to the product packaging or the official ZAFRO website for the most current contact information.
