Kenwood kHealthyFrY Digital Air Fryer XXL 5.5L (Model HFP50.000BK) User Manual

1. Introduction

Thank you for purchasing the Kenwood kHealthyFrY Digital Air Fryer XXL 5.5L. This appliance is designed to cook a variety of foods using rapid hot air circulation, offering a healthier alternative to traditional deep frying with minimal oil. Please read this manual thoroughly before first use to ensure safe and optimal operation.

Image 1.1: Kenwood kHealthyFrY Digital Air Fryer XXL 5.5L, a sleek black appliance with a digital display.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the appliance is placed on a stable, heat-resistant surface.
• Do not block any ventilation openings.

3. Product Overview

3.1 Components

The Kenwood kHealthyFrY Digital Air Fryer consists of the main unit, a removable non-stick basket, and a handle for easy operation.

Image 3.1: The air fryer with its non-stick basket partially removed, showing the interior cooking area.

Image 3.2: Diagram highlighting key features including the touchscreen display, removable non-stick basket, hot rapid air circulation system, suitable XXL capacity (5.5L / 2.4kg), and non-slip feet with overheat protection.

3.2 Control Panel

The appliance features a digital touchscreen display for precise control over cooking settings.

Image 3.3: Close-up view of the digital touchscreen control panel, showing temperature and time settings, along with various preset cooking icons.

• Temperature Display: Shows the current or set temperature.
• Time Display: Shows the remaining or set cooking time.
• Preset Icons: Dedicated icons for common food items (e.g., fries, chicken, fish, cake) with pre-programmed time and temperature settings.
• Power Button: To turn the appliance on/off.
• Temperature Control Buttons: To adjust the cooking temperature.
• Time Control Buttons: To adjust the cooking time.
• Mode/Menu Button: To cycle through preset programs or manual settings.

4. Setup

4.1 Unpacking

1. Remove all packaging materials from the appliance.
2. Check that all parts are present and undamaged.
3. Keep packaging materials out of reach of children.

4.2 Initial Cleaning

1. Wipe the exterior of the appliance with a damp cloth.
2. Wash the removable basket and pan with hot water, dish soap, and a non-abrasive sponge.
3. Rinse thoroughly and dry all parts completely before use.

4.3 Placement

• Place the air fryer on a stable, level, and heat-resistant surface.
• Ensure there is adequate space (at least 10 cm) around the appliance for proper air circulation.
• Do not place the appliance near flammable materials or heat sources.

5. Operating Instructions

5.1 Pre-heating

1. Plug the appliance into a grounded wall outlet. The power button will illuminate.
2. Press the power button to turn on the display.
3. Set the desired temperature and time for pre-heating (e.g., 180°C for 3-5 minutes).
4. Press the start button (if available, or the power button again) to begin pre-heating.

5.2 Loading Food

1. Carefully pull out the basket from the air fryer.
2. Place ingredients into the basket. Do not overfill the basket to ensure even cooking.
3. Slide the basket back into the air fryer until it clicks into place.

5.3 Manual Cooking Settings

1. After loading food, press the power button to activate the display.
2. Use the temperature control buttons to set the desired cooking temperature (range: 80°C to 200°C).
3. Use the time control buttons to set the desired cooking time (up to 60 minutes).
4. Press the start button to begin the cooking process.

5.4 Using Preset Programs

The air fryer includes 7 preset programs for various food types.

1. After loading food, press the power button to activate the display.
2. Press the Mode/Menu button repeatedly or select the desired preset icon directly on the touchscreen.
3. The display will show the pre-programmed time and temperature for the selected food.
4. You can adjust the time and temperature manually even after selecting a preset, if desired.
5. Press the start button to begin cooking.

Image 5.1: Infographic detailing key features such as 5.5L XXL capacity, one oil spoon usage, LCD touch screen display, auto shut-off, wide adjustable temperature (80°C to 200°C), 60-minute timer, recipe book inclusion, and 1800 Watts power.

5.5 Shaking/Turning Food

For some recipes, especially smaller items or those requiring even browning, it is recommended to shake or turn the food halfway through the cooking process.

• Carefully pull out the basket during cooking. The appliance will pause automatically.
• Shake the basket or use non-abrasive tongs to turn the food.
• Slide the basket back into the air fryer. Cooking will resume automatically.

5.6 Auto Shut-Off

The air fryer features an auto shut-off function for added safety. Once the set cooking time has elapsed, the appliance will automatically turn off and emit an audible signal.

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your air fryer.

6.1 Before Cleaning

• Always unplug the air fryer from the power outlet.
• Allow the appliance to cool down completely before cleaning.

6.2 Cleaning the Basket and Pan

• The non-stick basket and pan are dishwasher safe. Alternatively, they can be washed by hand.
• Use hot water, dish soap, and a non-abrasive sponge or brush.
• For stubborn food residue, soak the basket and pan in hot water with dish soap for approximately 10-15 minutes before cleaning.
• Ensure all parts are thoroughly dry before reassembling or storing.

6.3 Cleaning the Exterior

• Wipe the exterior of the air fryer with a damp cloth.
• Do not use abrasive cleaning agents or scouring pads, as these can damage the surface.
• Never immerse the main unit in water or any other liquid.

6.4 Storage

• Ensure the air fryer is clean and dry before storing.
• Store the appliance in a cool, dry place.

7. Troubleshooting

If you encounter issues with your Kenwood kHealthyFrY Digital Air Fryer, please refer to the following table for common problems and solutions.

8. Specifications

• Brand: Kenwood
• Model Number: HFP50.000BK
• Capacity: 5.5 Liters / 2.4 kg
• Power: 1800 Watts
• Voltage: 240 Volts
• Temperature Range: 80°C - 200°C
• Timer: Up to 60 minutes
• Control Method: Touch Screen Digital Display
• Material: Plastic (exterior), Non-stick coating (basket/pan)
• Product Dimensions: 30.5 x 43.2 x 31.8 cm
• Item Weight: 6.41 Kilograms
• Special Features: Temperature Control, Auto Shut-Off, Non-stick Coating

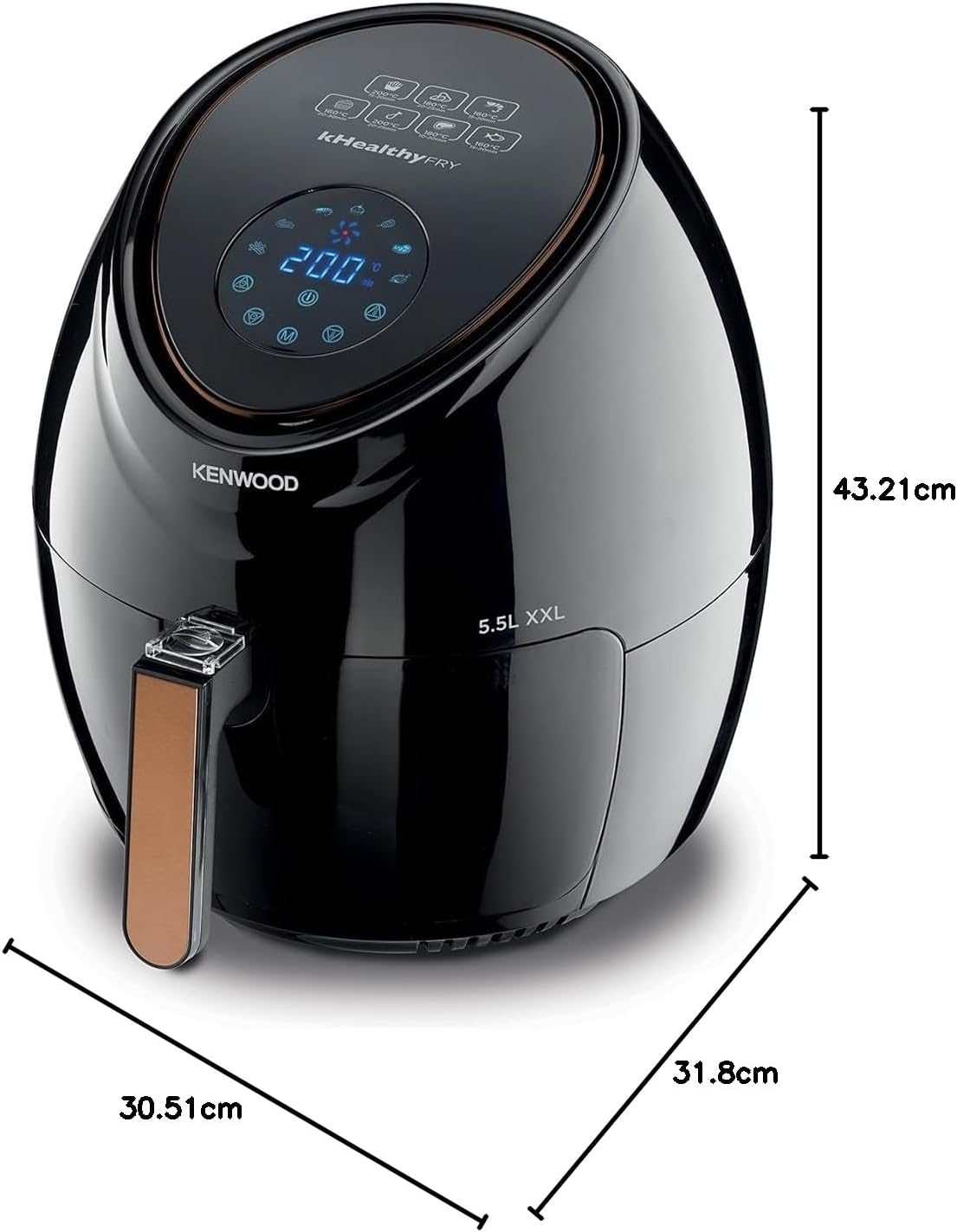

Image 8.1: Diagram illustrating the dimensions of the Kenwood kHealthyFrY Digital Air Fryer: 30.51 cm (width), 43.21 cm (height), and 31.8 cm (depth).

9. Warranty and Support

This Kenwood kHealthyFrY Digital Air Fryer (Model HFP50.000BK) comes with an International Warranty. Please refer to the warranty card included with your product for specific terms and conditions, including the warranty period and coverage details.

For technical support, service, or warranty claims, please contact your local Kenwood authorized service center or the retailer from whom you purchased the product. Keep your proof of purchase for warranty validation.
