Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of your ClimaTek V20C Replacement for Broan 2 Stage 120V Vacuum Blower Motor. Please read these instructions thoroughly before proceeding with installation or use to ensure proper function and longevity of the product.
Important Safety Information
WARNING: Risk of Electric Shock. Disconnect power before servicing.
- Always disconnect power to the appliance before installing, servicing, or cleaning the motor.
- Installation should be performed by a qualified technician in accordance with all local electrical codes.
- Ensure proper grounding to prevent electric shock.
- Do not operate the motor if it is damaged or if any wires are frayed.
- Keep hands and loose clothing away from moving parts during operation.
- This motor is designed for specific applications. Do not use it for purposes other than its intended use.
Product Overview
The ClimaTek V20C is a 2-stage, 120V vacuum blower motor designed as a replacement part for compatible Broan units. It is engineered to provide reliable performance for applications requiring efficient air movement.

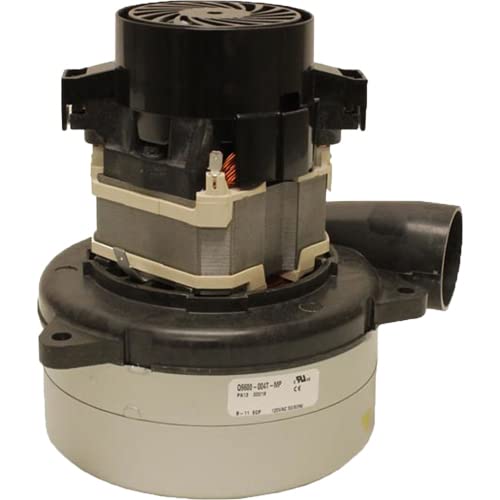

Figure 1: ClimaTek V20C 2 Stage 120V Vacuum Blower Motor. This image displays the complete motor assembly, featuring the black upper motor housing with cooling vents, the central stator windings, and the grey lower blower housing with an air outlet on the side. The product label is visible on the lower housing.
Specifications
| Feature | Value |
|---|---|
| Model | V20C |
| Type | 2 Stage Vacuum Blower Motor |
| Voltage | 120V |
| Max Amp Rating | 11.6 Amps |
| CFM Rating | 112 CFM |
| Overall Height | 7.09 inches |
| Product Dimensions | 8 x 11 x 8 inches |
| Item Weight | 6.25 Pounds (100 Ounces) |
Setup and Installation
This section outlines general steps for replacing a blower motor. Specific installation procedures may vary depending on the appliance. Always refer to the original appliance's service manual for detailed instructions.
- Preparation:
- Ensure the appliance is completely disconnected from its power source.
- Gather necessary tools (e.g., screwdrivers, wrenches, wire strippers, multimeter).
- Take photographs of existing wiring connections before disconnecting anything.
- Access the Old Motor:
- Carefully open the appliance housing to access the existing blower motor.
- Disconnect all electrical wiring from the old motor, noting their positions.
- Remove any mounting hardware securing the old motor.
- Install the New Motor:
- Position the ClimaTek V20C motor in the same location as the old motor.
- Secure the new motor using the appropriate mounting hardware. Ensure it is stable and free from excessive vibration.
- Connect the electrical wiring to the new motor, matching the connections made to the old motor. Refer to your photographs if needed. Ensure all connections are secure and insulated.
- Testing:
- Before fully reassembling the appliance, temporarily restore power and perform a brief test to ensure the motor operates correctly and quietly.
- Check for any unusual noises, vibrations, or smells.
- If issues arise, immediately disconnect power and re-check all connections.
- Reassembly:
- Once satisfied with the test, disconnect power again and reassemble the appliance housing.
- Restore power to the appliance.
Operating Instructions
The ClimaTek V20C blower motor operates as an integral component of your appliance. Its operation is typically controlled by the appliance's main control system. Once installed correctly, the motor will activate and deactivate as required by the appliance's functions.
- Ensure the appliance is properly connected to a 120V power supply.
- Follow the operating instructions provided with your specific appliance to activate the blower function.
- The motor is designed for continuous operation within its specified ratings.
- Listen for smooth operation. Any unusual noises may indicate a problem.
Maintenance
The ClimaTek V20C blower motor is designed for minimal maintenance. However, periodic checks can help ensure its longevity and efficient operation.
- Annual Inspection: Annually, or as recommended by your appliance manufacturer, inspect the motor for any signs of wear, damage, or excessive dust accumulation.
- Cleaning: If accessible, gently clean any dust or debris from the motor's exterior and cooling vents using a soft brush or vacuum cleaner. Ensure power is disconnected before cleaning.
- Wiring Check: Verify that all electrical connections remain secure and free from corrosion.
- Bearing Lubrication: This motor typically features sealed bearings that do not require lubrication. Do not attempt to lubricate unless specifically instructed by the manufacturer.
Troubleshooting
If you encounter issues with your ClimaTek V20C blower motor, consult the following table for common problems and solutions. Always disconnect power before performing any troubleshooting steps.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not start | No power supply Loose wiring connection Faulty control board (of appliance) | Check power to the appliance Verify all wiring connections are secure Consult appliance service manual or qualified technician |
| Motor runs but with unusual noise/vibration | Improper mounting Obstruction in blower wheel Worn bearings (unlikely for new motor) | Ensure motor is securely mounted Inspect blower wheel for debris (with power off) If noise persists, contact a qualified technician |
| Motor overheats | Insufficient airflow/blocked vents Overload condition Internal motor fault | Ensure cooling vents are clear Verify motor is not operating beyond its rated capacity Disconnect power and contact a qualified technician |
If troubleshooting steps do not resolve the issue, or if you are unsure about any procedure, contact a qualified service technician.
Warranty and Support
For information regarding warranty coverage and technical support for your ClimaTek V20C Replacement for Broan 2 Stage 120V Vacuum Blower Motor, please refer to the documentation provided at the time of purchase or visit the official ClimaTek website. Keep your proof of purchase for warranty claims.
For further assistance, you may contact ClimaTek customer service through their official channels.
