LOAAO LED Bathroom Mirror User Manual

1. Introduction

Thank you for choosing the LOAAO LED Bathroom Mirror. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new mirror. Please read this manual thoroughly before installation and keep it for future reference.

This advanced bathroom mirror features integrated LED lighting with multiple modes, anti-fog functionality, and a memory function for personalized settings. Its tempered glass construction ensures durability and safety.

2. Key Features

• Dual Lighting (RGB Backlit + Front Lighted): Offers 8 distinct backlight modes (including white) and 3 front light modes (cold, white, warm). Both lighting types are dimmable.
• Anti-Fog Function: Equipped with a defogger that activates quickly and automatically turns off after one hour, ensuring a clear reflection even in steamy environments.
• Memory Function: Remembers your last used lighting settings, eliminating the need to reset preferences each time.
• Tempered Glass Construction: Built with 5mm tempered glass, providing shatter-proof and explosion-proof properties for enhanced safety and durability. The mirror delivers clear, distortion-free reflection.
• Versatile Installation: Designed for easy installation with two z-bar brackets. Supports both hardwired and plug-in power options. Can be mounted vertically or horizontally.

Product Visuals:

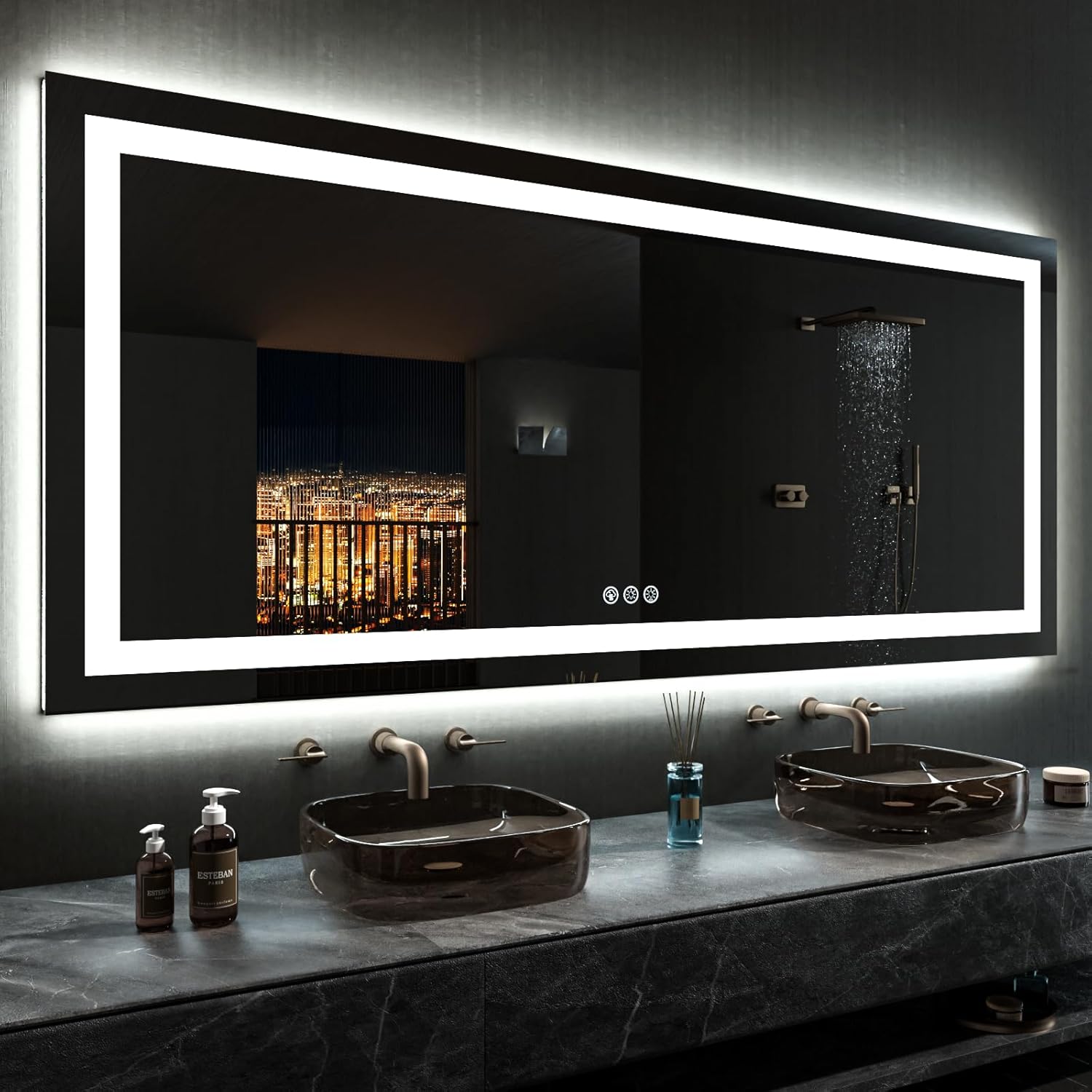

Figure 2.1: LOAAO LED Bathroom Mirror with white front and back lighting.

Figure 2.2: LOAAO LED Bathroom Mirror showcasing RGB backlighting.

Figure 2.3: Illustration of the 8 backlight modes (colorful, cold, white, warm, pink, red, green, blue) and 3 front light modes (cold 6000K, white 4000K, warm 3000K).

Figure 2.4: Demonstrates the touch control for dimming the mirror's light from 20% to 100%.

Figure 2.5: Visual representation of the anti-fog function, clearing the central area of the mirror.

Figure 2.6: Illustrates the flexible power options: direct plug-in to an outlet or hardwired connection for wall switch control.

Figure 2.7: A visual comparison highlighting the shatter-proof and explosion-proof benefits of 5mm tempered glass used in the LOAAO mirror compared to ordinary glass.

Official Product Videos:

No official product videos from the seller were found in the provided data. Please refer to the product page for any available videos.

3. Setup (Installation)

The LOAAO LED Bathroom Mirror is designed for straightforward installation. It can be powered via direct plug-in or hardwired for control by a wall switch.

Installation Steps:

1. Prepare the Wall: Ensure the wall surface is clean, dry, and capable of supporting the mirror's weight (approximately 70.4 lbs or 32 kg).
2. Mount Z-Bar Brackets: Use the two provided z-bar brackets to securely mount the mirror to the wall. Ensure they are level and spaced correctly according to the mirror's dimensions (84"L x 40"W).
3. Power Connection:
   • Plug-in Option: Connect the mirror's power cord to a standard electrical outlet.
   • Hardwired Option: For a seamless look and wall switch control, hardwire the mirror directly into your electrical system. This should be performed by a qualified electrician to ensure safety and compliance with local electrical codes.
4. Hang the Mirror: Carefully lift and place the mirror onto the mounted z-bar brackets, ensuring it is securely seated. The mirror can be hung vertically or horizontally based on your preference.
5. Test Functionality: Once installed, test all mirror functions, including lighting modes, dimming, and anti-fog.

4. Operating Instructions

The LOAAO LED Bathroom Mirror features intuitive touch controls integrated directly into the mirror surface.

Touch Control Functions:

• Power On/Off: A single tap on the main power icon (usually a circle with a line) will turn the mirror's lights on or off.
• Adjust Lighting Modes (Front Light): Tap the light mode icon (often a sun or lightbulb symbol) to cycle through the 3 front light modes: cold light (6000K), white light (4000K), and warm light (3000K).
• Adjust Lighting Modes (Backlight/RGB): Tap the RGB mode icon (often a color wheel or similar symbol) to cycle through the 8 backlight modes, including various colors and a pure white option.
• Dimming Function: Press and hold the light mode icon (for either front or back light) to continuously adjust the brightness level. Release when the desired brightness is achieved.
• Anti-Fog Activation: Tap the anti-fog icon (usually a cloud or steam symbol) to activate the defogger. The anti-fog function will automatically turn off after one hour to conserve energy.
• Memory Function: The mirror is equipped with a memory function that retains your last chosen lighting and dimming settings when powered off and on, whether via the touch control or an external wall switch.

5. Maintenance

To ensure the longevity and optimal performance of your LOAAO LED Bathroom Mirror, follow these simple maintenance guidelines:

• Cleaning the Mirror Surface: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to avoid liquid seeping into the electrical components. Wipe gently to remove smudges and dirt.
• Cleaning the Frame/Edges: For the unframed edges, use a soft, damp cloth. Avoid harsh chemicals or abrasive materials that could damage the glass or internal components.
Electrical Safety: Before cleaning or performing any maintenance, ensure the mirror is disconnected from the power source (unplugged or circuit breaker turned off).
• Avoid Excessive Moisture: While the mirror is waterproof, avoid directly spraying water onto the electrical components or the back of the mirror.

6. Troubleshooting

If you encounter any issues with your LOAAO LED Bathroom Mirror, please refer to the following common troubleshooting tips:

• Lights Not Turning On:
  • Check if the mirror is properly plugged into the outlet or if the hardwired connection is secure.
  • Ensure the wall switch (if hardwired) is in the "on" position.
  • Verify that the circuit breaker for the bathroom is not tripped.
• Anti-Fog Not Working Effectively:
  • Ensure the anti-fog function is activated via the touch control.
  • Note that the anti-fog feature works from the center outwards. The heating pad is located in the center, so effectiveness may decrease towards the edges, especially for larger mirrors. This is normal for energy efficiency.
• Lights Flickering or Dimming Unexpectedly:
  • Check for loose connections in the wiring.
  • Ensure the power supply is stable and meets the mirror's requirements.
• Touch Controls Unresponsive:
  • Ensure the mirror surface is clean and dry. Moisture or dirt on the touch sensors can affect responsiveness.
  • Briefly disconnect power to the mirror and then reconnect it to reset the system.

If problems persist after attempting these troubleshooting steps, please contact LOAAO customer support for further assistance.

7. Specifications

8. Warranty and Support

Specific warranty details and direct support contact information are not provided within this user manual. For warranty claims, technical support, or any product-related inquiries, please refer to the official LOAAO product page on Amazon or visit the LOAAO brand store.

You can typically find warranty information and customer service contacts on the product listing or by searching for "LOAAO customer support" online.

For additional assistance, please retain your proof of purchase.
