1. Introduction
Thank you for choosing the OMOTON KB515 Bluetooth Keyboard. This full-size wireless keyboard is specifically designed for Mac OS devices, offering a comfortable typing experience with multi-device connectivity. Please read this manual carefully to ensure proper setup and operation.
The OMOTON KB515 Bluetooth Keyboard integrated into a multi-device Mac OS workspace.
2. Package Contents
- OMOTON KB515 Bluetooth Keyboard
- Keycap Puller
- User Manual
Note: 2 AAA batteries are required for operation and are not included in the package.
3. Setup and Pairing
3.1 Battery Installation
- Locate the battery compartment on the back of the keyboard.
- Open the battery compartment cover.
- Insert two (2) AAA batteries, ensuring correct polarity (+/-).
- Close the battery compartment cover.
3.2 Power On/Off
Slide the power switch, located on the top edge of the keyboard, to the "ON" position to power on the keyboard. Slide it to "OFF" to power off.
3.3 Bluetooth Pairing Instructions
The OMOTON KB515 keyboard supports connection to up to three devices simultaneously via Bluetooth. Ensure Bluetooth is enabled on your Mac OS device before proceeding.
- Turn on the keyboard using the ON/OFF switch.
- Press and hold the Fn key and one of the Bluetooth channel keys (BT1, BT2, or BT3) for 3-5 seconds until the corresponding LED indicator (blue light) blinks. This activates pairing mode for the selected channel.
- On your Mac OS device, go to System Settings (or System Preferences) > Bluetooth.
- In the list of available devices, select "OMOTON Keyboard".
- Follow any on-screen prompts to complete the pairing process. The blue indicator light will turn off once successfully connected.

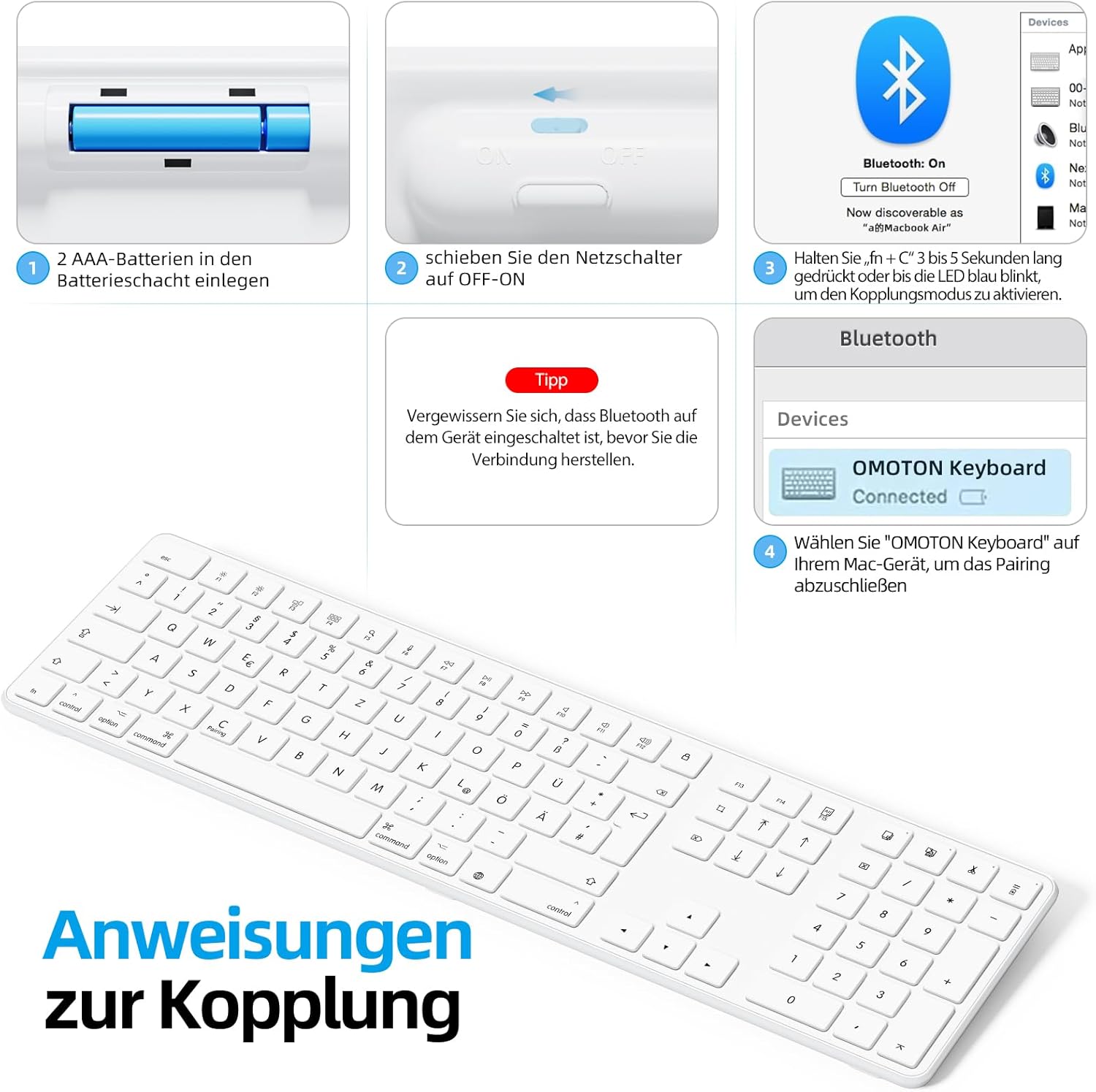

Visual guide for battery insertion and Bluetooth pairing steps.
Tip: To pair with additional devices, repeat step 2 using a different Bluetooth channel (BT2 or BT3).
4. Operating the Keyboard
4.1 Switching Between Paired Devices
To switch between your paired devices, simply press the Fn key along with the corresponding Bluetooth channel key (BT1, BT2, or BT3) that your desired device is paired to. A short press is sufficient for switching.
4.2 Multimedia and Function Keys
The OMOTON KB515 keyboard features 12 dedicated multimedia shortcut keys optimized for Mac OS, providing quick access to various functions.
The keyboard layout highlighting the optimized multimedia keys for Mac OS.
- F1-F2: Screen Brightness Adjustment
- F3: Mission Control
- F4: Launchpad
- F7-F9: Media Playback Controls (Previous, Play/Pause, Next)
- F10-F12: Volume Controls (Mute, Volume Down, Volume Up)
4.3 Power Saving Mode
To conserve battery life, the keyboard will automatically enter sleep mode after 10 minutes of inactivity. To wake it up, simply press any key. The keyboard will reconnect to the last active device.
5. Maintenance
- Keep the keyboard clean by wiping it with a soft, dry cloth.
- Avoid exposing the keyboard to liquids or excessive moisture.
- Do not disassemble the keyboard, as this will void the warranty.
- When not in use for extended periods, turn off the keyboard to save battery life.
- Use the included keycap puller to carefully remove and clean individual keycaps if necessary.
6. Troubleshooting
6.1 Keyboard Not Connecting/Pairing
- Ensure the keyboard is powered on and has fresh batteries.
- Make sure Bluetooth is enabled on your Mac OS device.
- Verify that the keyboard is in pairing mode (blue LED blinking) for the selected channel.
- Try unpairing and re-pairing the keyboard from your device's Bluetooth settings.
- Restart your Mac OS device and try pairing again.
- Ensure the keyboard is within the effective Bluetooth range (typically up to 10 meters).
6.2 Keys Not Responding
- Check battery levels and replace if necessary.
- Ensure the keyboard is properly connected to your device. Try switching Bluetooth channels.
- Clean any debris that might be under the keys.
6.3 Lag or Disconnections
- Move the keyboard closer to your Mac OS device to reduce interference.
- Ensure there are no other strong wireless signals or devices interfering with the Bluetooth connection.
- Check for any available software updates for your Mac OS.
7. Specifications
| Model Number | KB515 |
| Brand | OMOTON |
| Connectivity Technology | Bluetooth |
| Power Source | 2 x AAA Batteries (not included) |
| Keyboard Layout | QWERTZ (German) |
| Compatibility | Mac OS X 10.10 and above (MacBook Air, MacBook Pro, iMac, iPad, etc.) |
| Special Features | Wireless Connection, Numeric Keypad, Multimedia Keys, Ergonomic Design |
| Material | Rubber (keypad cushioning) |
| Color | White |
Keyboard dimensions and key features like ON/OFF switch and battery slot.
8. Warranty and Support
For warranty information or technical support, please refer to the documentation provided with your purchase or contact OMOTON customer service directly through their official website or the retailer where you purchased the product. Please have your model number (KB515) and proof of purchase ready.
